Description

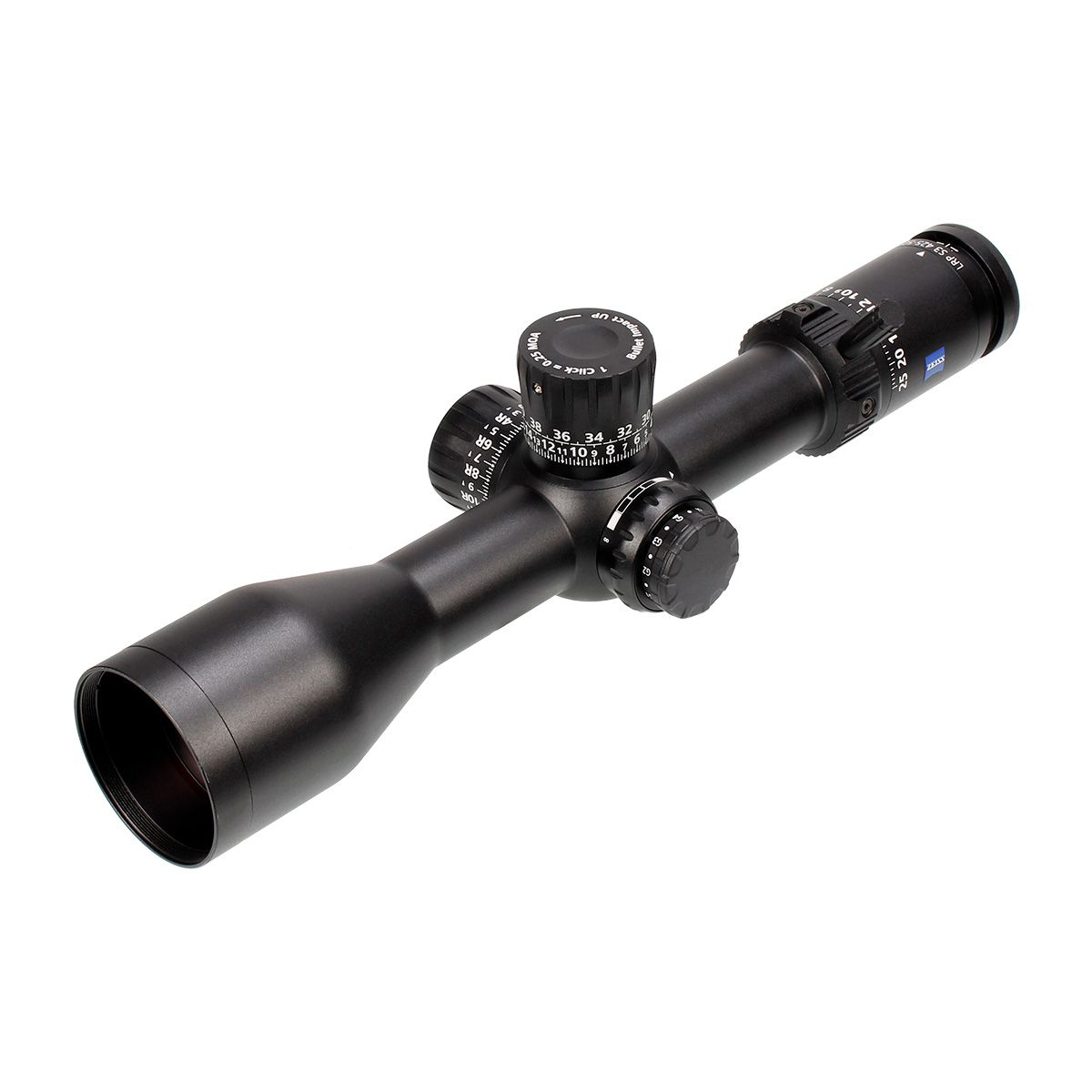

The Zeiss LRP S3 4-25x50mm FFP 522665-9917-090 is a high-precision riflescope designed with long-range shooters in mind. With its robust 34mm tube and expansive 4-25x magnification range, this scope delivers superior clarity and dependability. Optimal for both competitive and tactical use, the Zeiss LRP S3 features a first focal plane (FFP) ZF-MOAi #17 reticle, ensuring accurate holdovers and ranging at all magnifications.
Constructed with Zeiss' trademark optical excellence, the scope offers a stellar 90% light transmission, advanced ED Lens, T* Lens Coating, and LotuTec Lens Coating. These elements combine to provide bright, sharp images, even in challenging lighting conditions. Additionally, the scope includes features such as a generous 160 MOA total elevation travel, a locking windage turret for precise adjustments, and a side parallax adjustment for impeccable focus.
The Zeiss LRP S3 comes with two daylight-visible illuminated reticle options, offering red/green illumination to accommodate different lighting scenarios. With five intensity levels and an auto-off feature, the reticle's illumination is both versatile and energy-efficient. Overall, the Zeiss LRP S3 4-25x50mm FFP is a pinnacle of precision, designed for shooters who demand the utmost from their equipment.
Features
- ADVANCED OPTICS: Features industry-proven ED Lens, 90% Light Transmission, T* and LotuTec Lens Coating for superior image clarity.
- LONG-RANGE PRECISION: Best-in-class total elevation travel of 160 MOA / 46.5 MRAD, perfect for long-distance shooting accuracy.
- ILLUMINATED RETICLE: Daylight visible ZF-MOAi #17 reticle with red/green illumination and five intensity levels plus auto-off feature.
- VERSATILE MAGNIFICATION: 4-25x magnification range, ideal for versatile shooting scenarios from mid-range targets to long-range precision.
- BALLISTIC STOP: Reliably return to zero with the Ballistic Stop feature, ensuring shot repeatability and confidence in adjustments.
- DURABLE CONSTRUCTION: A solid 34mm main tube construction provides strength and reliability in various shooting conditions.
- USER-FRIENDLY TURRETS: External locking windage turret and exposed elevation turret with tactile 0.25 MOA click value adjustments.
- FIRST FOCAL PLANE: Reticle scales with zoom, maintaining the reticle's visual size across the entire magnification range for accurate shooting.
Specifications
| Feature | Specification |
|---|---|
| Scope Weight | 36.7 ounces |
| Scope Length | 13.4 inches |
| Magnification Range | 4x - 25x |
| Scope Objective Diameter | 50mm |
| Scope Tube Size / Mount | 34mm |
| Turret Adjustment | 0.25 MOA |
| Elevation Turret Details | Exposed, 160 MOA total travel, Ballistic Stop |
| Windage Turret Details | Exposed, External Locking, 60 MOA total travel |
| Parallax Adjustment | 16.4 yards to infinity |
| Reticle Position | First Focal Plane |
| Reticle Details | ZF-MOAi #17 |
| Field of View | 28.5 - 4.8 feet @ 100 yards |
| Exit Pupil | 7.1mm - 2mm |
| Eye Relief | 3.5 inches |
| Twilight Factor | 11.7 - 35.4 |
| Light Transmission | 90% |
| Illuminated Reticle | Yes - 5 levels |
| Scope Finish | Black |
| Product Type | Riflescopes |
| UPC | 740035016194 |
| MPN | 522665-9917-090 |
Included In The Box
- Zeiss LRP S3 4-25x50mm FFP Riflescope (522665-9917-090)
- Lens Cloth
- Lens Caps
- Battery for Reticle Illumination
- User Manual
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
