Description
The Vortex Optics Razor Gen II HD-E 1-6x24 JM-1 BDC Rifle Scope is the ultimate optical solution for short to medium-range tactical applications. This enhanced (E) model is nearly 1/4 pound lighter than its predecessor, providing quicker target transitions and reducing arm fatigue during long days on the range. Designed specifically for the AR platform, this top-tier riflescope offers exceptional clarity, resolution, color accuracy, light transmission, and edge-to-edge sharpness.
With a true 1x magnification on the low end, the Razor HD Gen II-E ensures an ultra-forgiving eyebox and generous eye relief, giving you a heads-up-display-like sight picture for fast target acquisition in close quarters. The daylight bright illuminated center dot in the JM-1 BDC reticle allows for extremely quick target acquisition.
Built with durability in mind, the Razor HD Gen II-E features a sleek and robust design. Its 30mm aircraft-grade aluminum tube provides a solid construction that can withstand the harshest conditions. The ultra-low profile, capped windage and elevation turrets offer streamlined performance, while the zero-resettable turrets provide 50 MOA (20 MRAD) of adjustment in a single turn, ensuring ample travel.
This riflescope also boasts an APO optical system with premium, high-density, extra-low dispersion glass for stunning image quality. All lenses are fully multi-coated with XR plus anti-reflective coatings, maximizing light transmission for exceptional brightness. The second focal plane reticle with a daylight bright center dot offers red dot functionality and close-quarters versatility.
Waterproof, fogproof, and shockproof, the Razor HD Gen II-E 1-6x24 JM-1 BDC Riflescope is built to withstand the elements. O-ring sealed and argon purged, it delivers reliable performance in any weather condition. Additionally, Armortek coatings protect the external lenses from scratches, oil, and dirt.
Experience the unmatched performance and precision of the Vortex Optics Razor Gen II HD-E 1-6x24 JM-1 BDC Rifle Scope. Whether you're a competitive shooter or a tactical professional, this riflescope will elevate your shooting experience to the next level.
Features:
- LIGHTWEIGHT AND PRECISE: The Razor HD Gen II-E 1-6x24 JM-1 BDC Rifle Scope is nearly 1/4 pound lighter than its predecessor, allowing for quicker target transitions and reducing arm fatigue.
- EXCEPTIONAL OPTICAL PERFORMANCE: This riflescope delivers outstanding clarity, resolution, color accuracy, light transmission, and edge-to-edge sharpness, ensuring you never miss a shot.
- QUICK TARGET ACQUISITION: With true 1x magnification, an ultra-forgiving eyebox, and a daylight bright illuminated center dot, you can acquire targets rapidly, even in close quarters.
- DURABLE CONSTRUCTION: Built like a tank with a 30mm aircraft-grade aluminum tube, this riflescope is shockproof, waterproof, and fogproof, providing reliable performance in any environment.

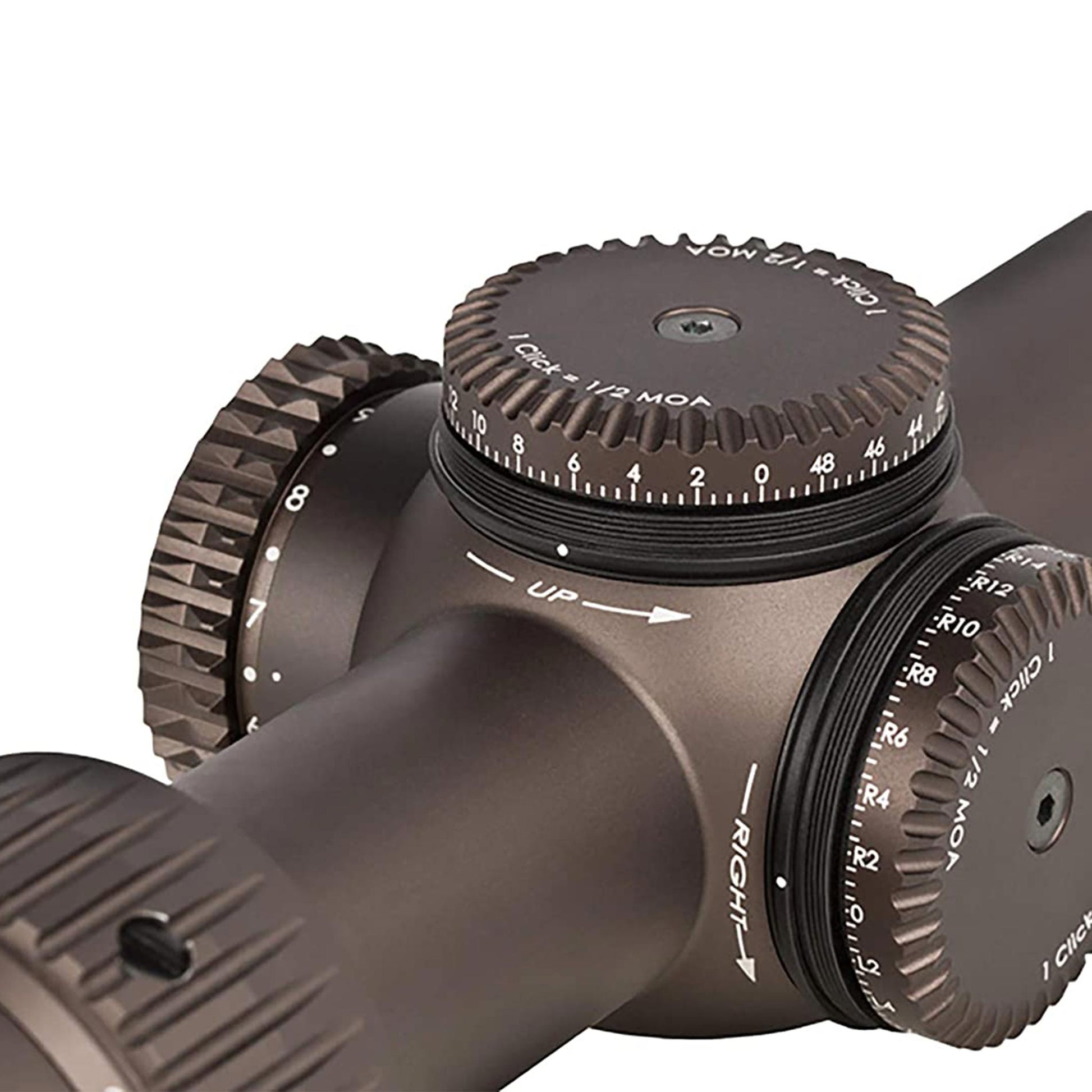

- EASY ADJUSTMENTS: Streamlined zero-resettable turrets offer precise tracking and ample adjustment in a single turn, while the capped design ensures protection during rugged use.
- PREMIUM OPTICAL SYSTEM: The APO optical system with high-density, extra-low dispersion glass and fully multi-coated lenses maximizes image quality and light transmission for exceptional brightness.

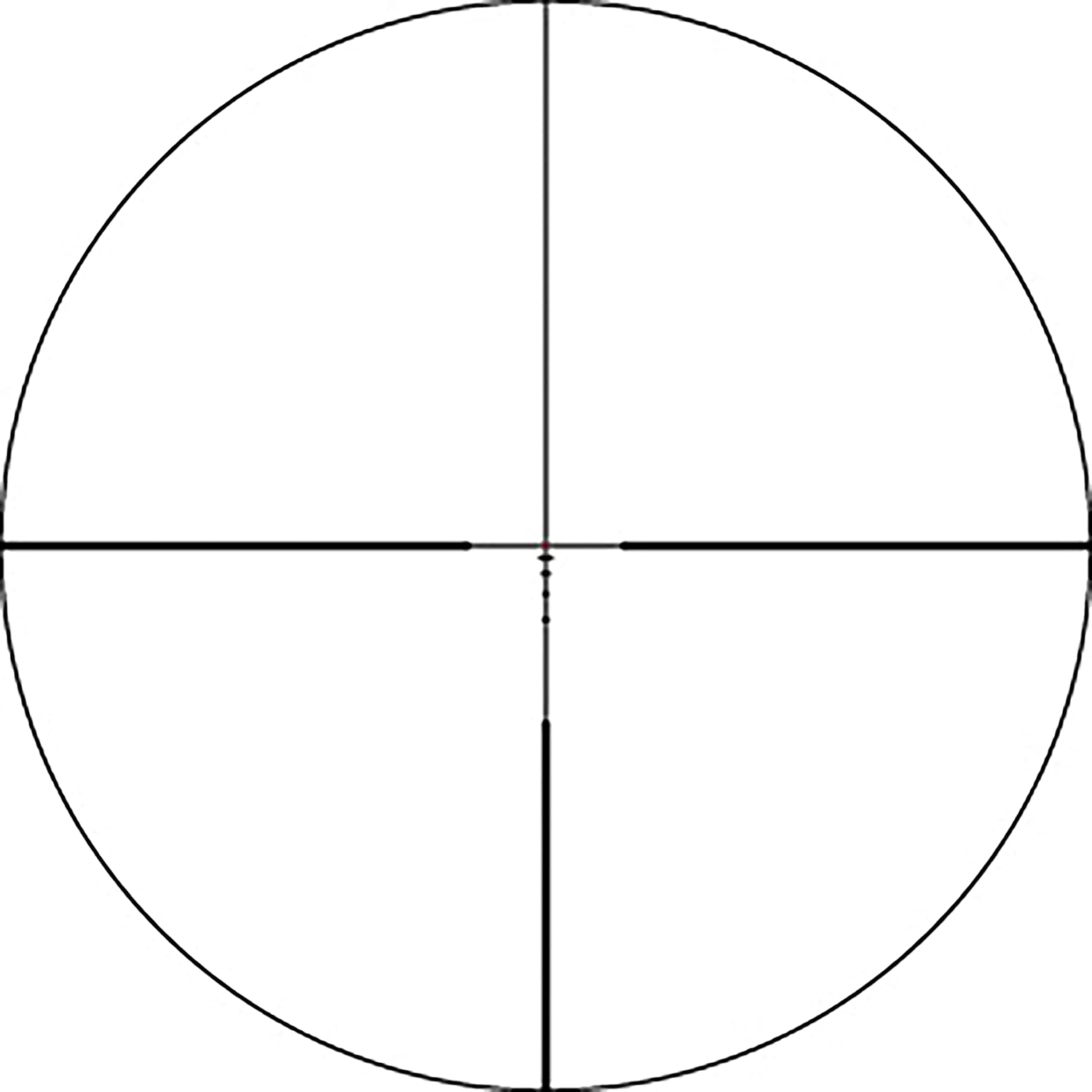

- VERSATILE RETICLE: The JM-1 BDC reticle with a daylight bright center dot provides red dot functionality and close-quarters versatility, making it ideal for tactical applications.
- PROTECTIVE COATINGS: Armortek coatings shield the external lenses from scratches, oil, and dirt, ensuring your scope stays clear and performs at its best.
Technical Specifications:
| Specifications | Details |
|---|---|
| Brand | Vortex |
| Color | Bronze |
| Material | Aluminum |
| Item Condition | New |
| Scope Weight | 21.5 oz. |
| Scope Length | 10.1" |
| Magnification Range | 1-6x |
| Scope Objective Diameter | 24mm |
| Scope Tube Size / Mount | 30mm |
| Turret Adjustment (Click Value) | 1/2 MOA |
| Elevation Turret Details | Capped |
| Elevation Turret Rotation | 50 MOA per rotation |
| Total Elevation Travel | 150 MOA |
| Windage Turret Details | Capped |
| Windage Turret Rotation | 50 MOA per rotation |
| Total Windage Travel | 150 MOA |
| Parallax Adjustment | 100 yards fixed |
| Reticle Position | Second Focal Plane |
| Reticle Details | JM-1 BDC Reticle |
| Field of View | 115.2-20.5 feet @ 100 yards |
| Eye Relief | 4" |
| Illuminated Reticle | Yes |
| Scope Finish | Stealth Shadow |
| Scope Turret Rotation | Counter Clockwise (CCW) |
| Product Type | Riflescopes |
| UPC | 875874009455 |
| MPN | RZR-16008 |
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
