Description

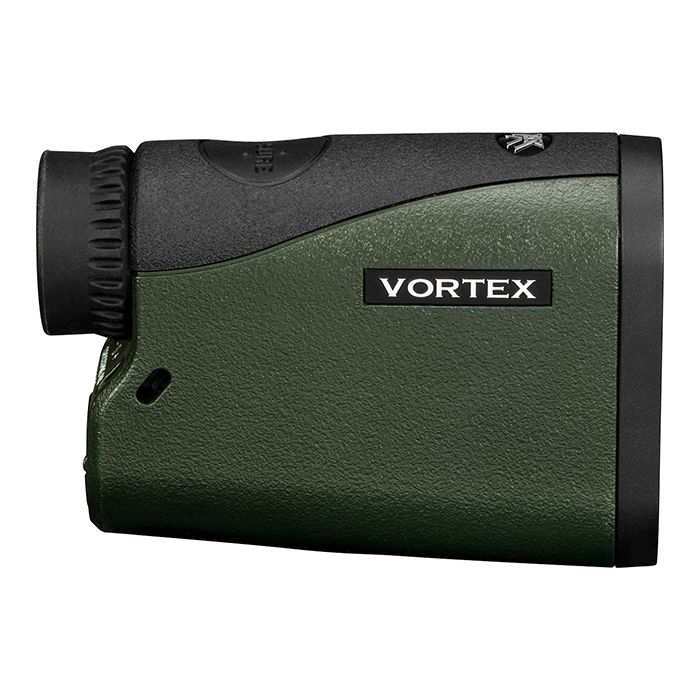

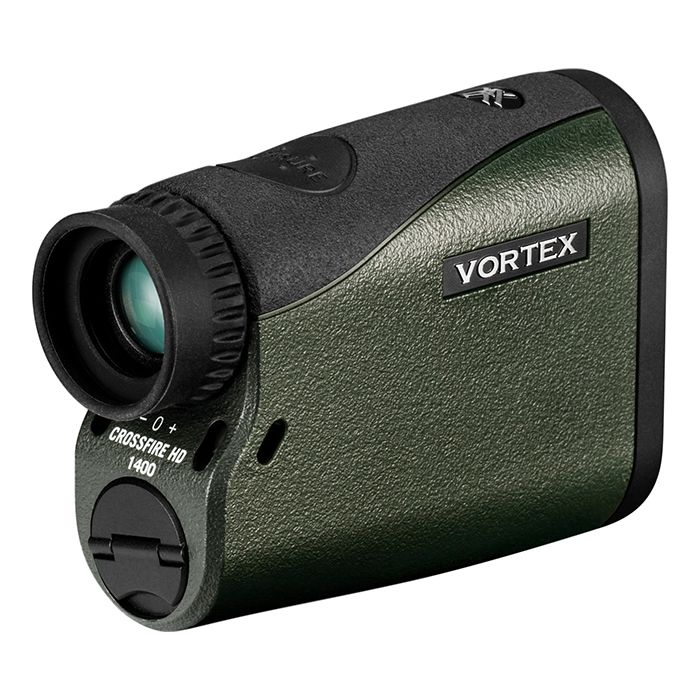

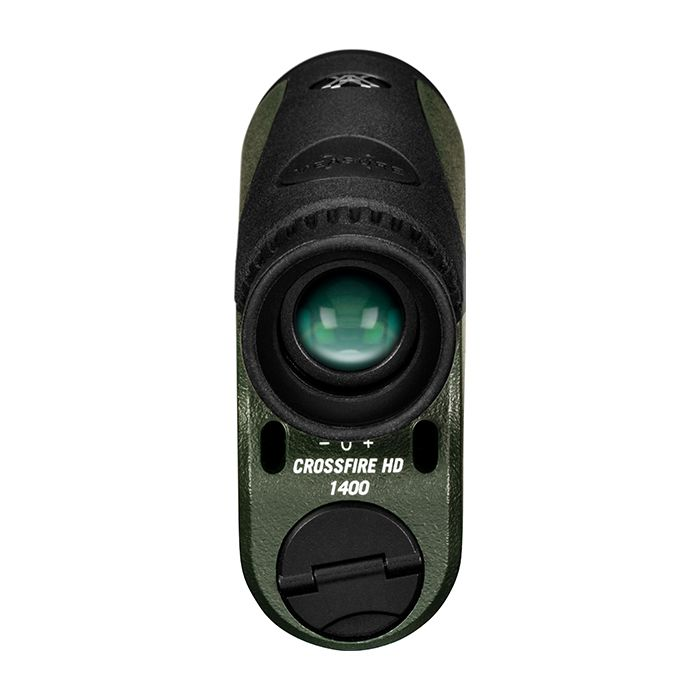

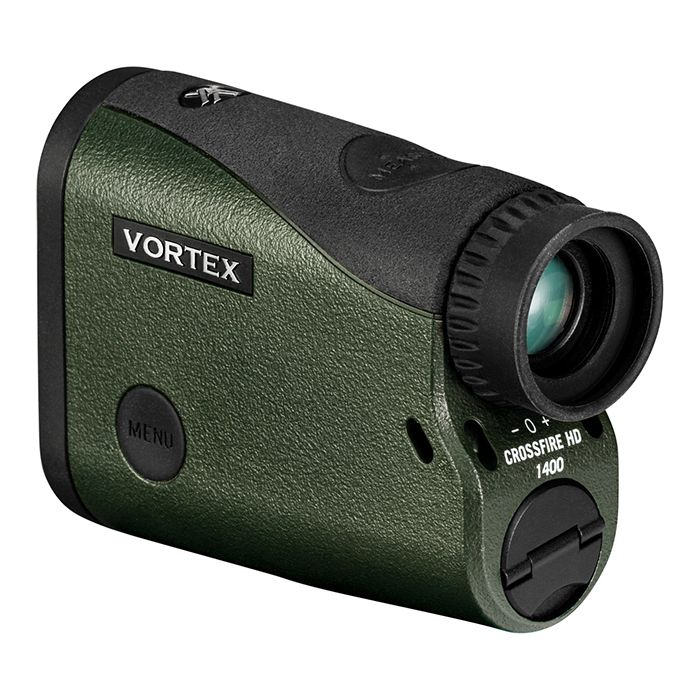

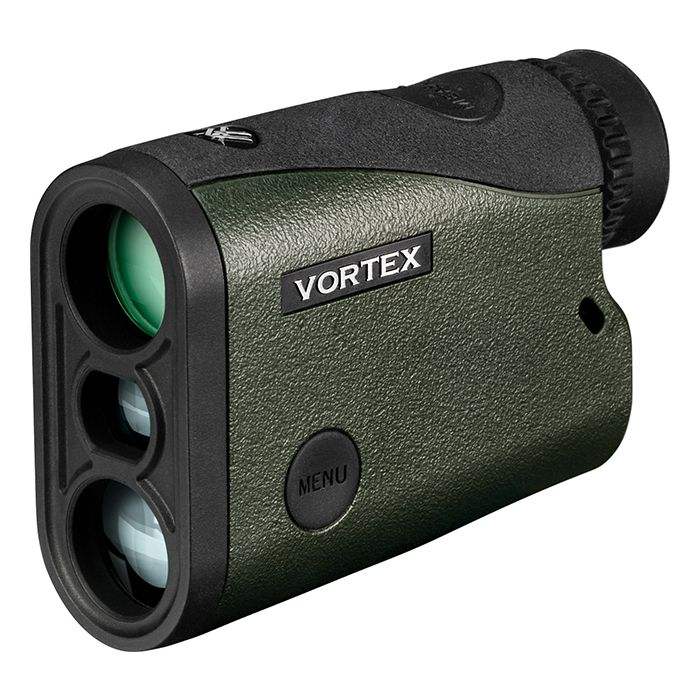

The Vortex Crossfire HD 1400 Laser Rangefinder LRF-CF1400 is an indispensable tool for hunters and marksman who require precise distance measurements in the field. Its robust build and advanced technology make it a reliable companion for accurately sizing up your target up to a remarkable 1,400-yard maximum range, and an impressive 750-yard range for deer. The premium HD optical system embedded in this device ensures exceptional resolution and clarity, enhancing your ability to discern terrain and targets with ease.
Equipped with an intuitive red TOLED display, the Vortex Crossfire HD 1400 provides crisp readouts that are easily readable in various lighting conditions, ensuring that you never miss a beat while tracking prey. Moreover, weighing in at a mere 4.8 ounces, this rangefinder is not only powerful but also remarkably lightweight, ensuring it's no burden during long treks into the wilderness. For those requiring accuracy with both bow and rifle, the device’s HCD (Horizontal Component Distance) technology supplies angle-compensated distance data to help make every shot count.
In addition to its technical prowess, the Vortex Crossfire HD 1400 is wrapped in rugged ArmorTek coating, safeguarding its lenses against the harshest elements. Its waterproof construction guarantees reliable performance under any weather conditions. This rangefinder is tailored to perfection for the avid outdoorsman seeking a fusion of portability, accuracy, and durability.
Features
- ULTIMATE PRECISION: Engage targets with confidence up to 1,400 yards, and 750 yards on deer, utilizing advanced HD optics for clarity.
- ANGLE COMPENSATION: HCD technology provides angle-compensated distances for accurate shooting whether with a bow or rifle.
- EFFICIENT READABILITY: Red TOLED display ensures crisp visibility in diverse lighting, preventing missed opportunities.
- LIGHT AND COMPACT: At just 4.8 ounces, this device’s lightweight design makes it effortless to carry without fatigue.
- SUPERIOR COATINGS: XR Lens Coatings for superb light transmission, alongside ArmorTek for rugged lens protection.
- ADAPTABLE DISPLAY: Detailed .1 yard increment display up to 999.9 yards, aiding in precise measurement.
- ALL-WEATHER DURABILITY: Waterproof sealing withstands inclement weather, ensuring consistent performance.
- MULTIPLE MODES: Choose from three target modes and two ranging modes to adapt to any hunting scenario.
Specifications
| Feature | Specification |
|---|---|
| Weight | 4.8 oz |
| Dimensions | 4"(L) x 1.3"(W) x 2.9"(H) |
| Field of View | 367 ft @ 1000 yards |
| Angular Field of View | 7 degrees |
| Range | 5-1400 yards |
| Objective Lens | 21mm |
| Measurement Units | Yards |
| Battery Type | CR2 |
| Magnification Range | 5x |
| Display | Red TOLED |
| Item Condition | New |
| UPC | 843829107228 |
| MPN | LRF-CF1400 |
| Product Type | Laser Range Finder |
WHAT'S IN THE BOX?
- Vortex Crossfire HD 1400
- Soft Carry Case
- Wrist Lanyard
- Bungee Cord Lanyard
- Lens Cloth
- Hook and Loop Harness Attachment
- CR2 Battery
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
