Description

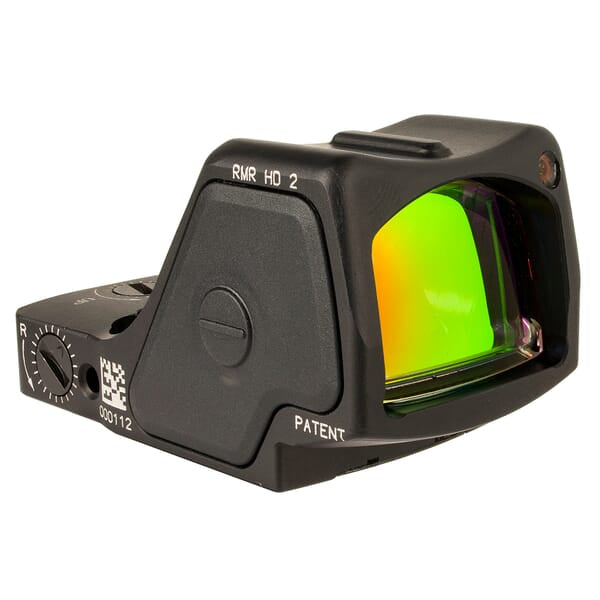

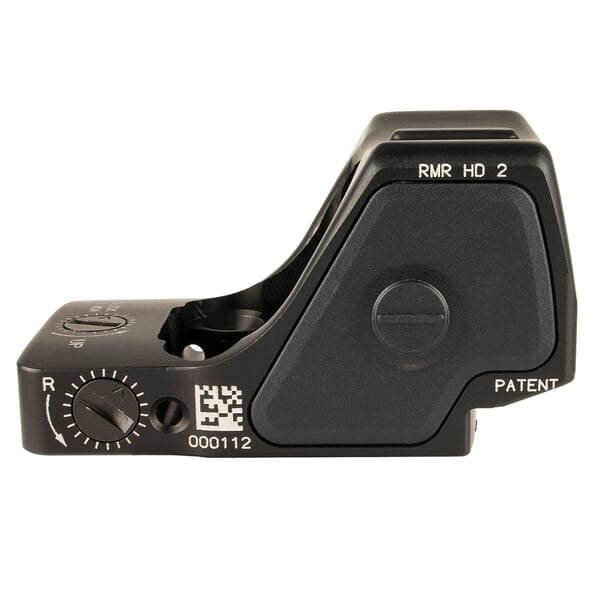

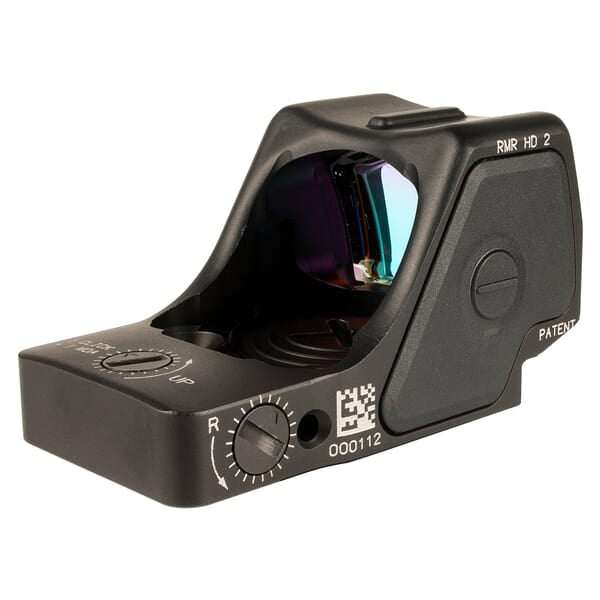

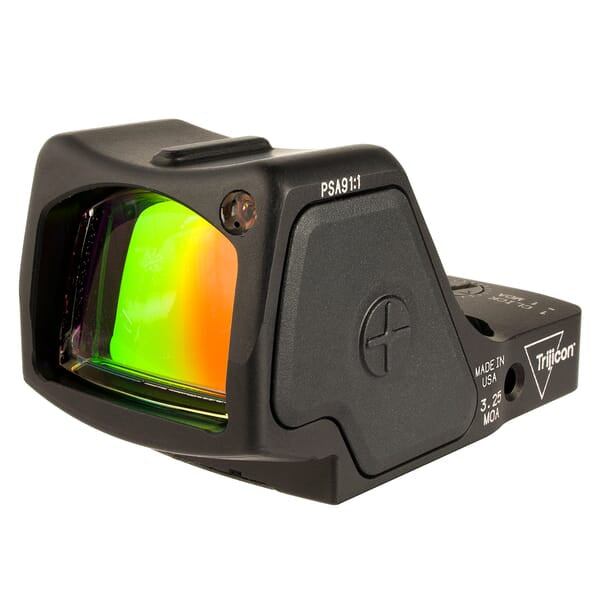

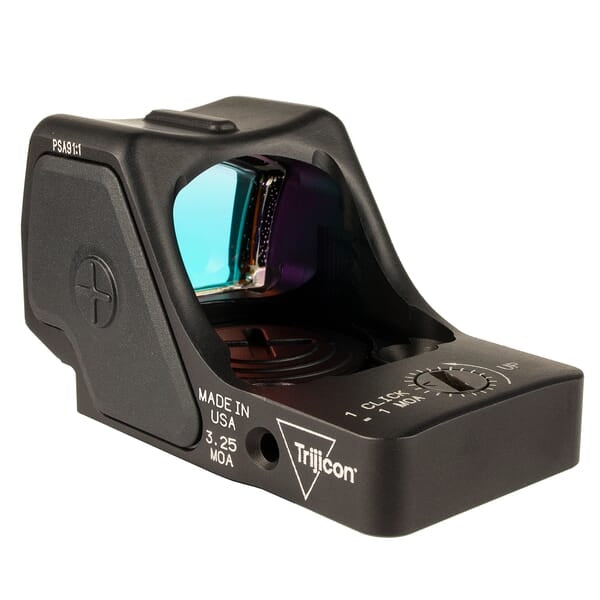

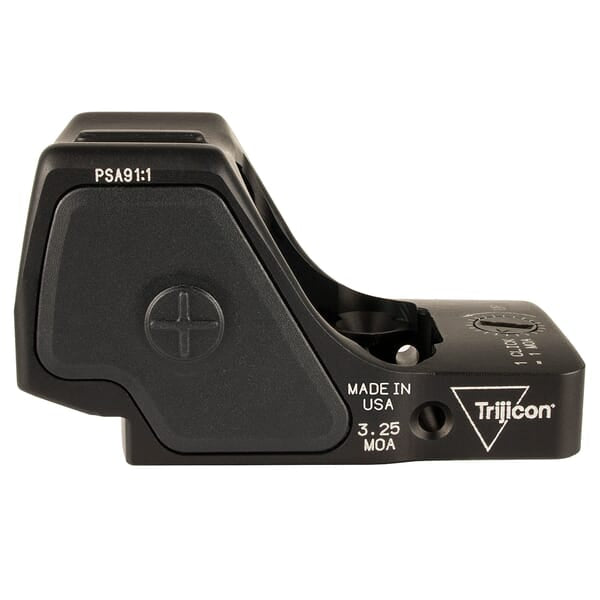

he Trijicon RMR HD Reflex Red Dot Sight, model RMHD2-C-3200002, sets a new standard for micro red dots with its combination of precision engineering and user-focused features. With the new forward-mounted light sensor, this sighting system automatically adjusts the illumination of its crisp 3.25 MOA dot encircled by a 55 MOA ring based on the light available at your target, not just where you stand. This keeps your reticle visible, eliminating washout or bloom when transitioning across different lighting environments.
Boasting an identical footprint to the classic RMR, the RMR HD upgrades your experience with improved illumination settings, including nine brightness levels and additional settings for night vision compatibility. The top-loading battery design ensures that changing batteries doesn't mean removing the sight from your firearm, maintaining zero and saving time. The added index ridge alignment is the cherry on top, enhancing sight picture acquisition to make sure you're on target faster than ever, even from unconventional positions.
This Trijicon RMR HD is perfectly suited for military, law enforcement, and civilian use where reliability, durability, and performance are non-negotiable. Forged from sturdy aluminum and featuring a patented housing shape, this red dot sight promises to withstand the toughest conditions and maintain its functionality through all the rigors of use.
Features
- MILITARY-GRADE DURABILITY: Forged aluminum construction for a robust platform that stands up to harsh conditions.
- ADVANCED OPTICS: Patented housing shape diverts impact away; premium lenses offer a clear sight picture.
- AUTOMATIC BRIGHTNESS: Forward-mounted sensor adjusts reticle luminosity to ambient lighting, reducing glare.
- USER-FRIENDLY CONTROLS: Tactile and audible adjustments, optimized for gloved operation.
- QUICK BATTERY REPLACEMENT: Top-loading battery compartment avoids the need to dismount for changes; up to 4 years lifespan.
- NIGHT VISION SETTINGS: Three settings ensure compatibility with all generations of night vision systems.
- FASTER TARGET ACQUISITION: Built-in index ridge aids rapid, accurate sight alignment.
- VERSATILE COMPATIBILITY: Mounts easily using the same base as the original Trijicon RMR.
Specifications
| Specification | Description |
|---|---|
| Magnification Range | 1x |

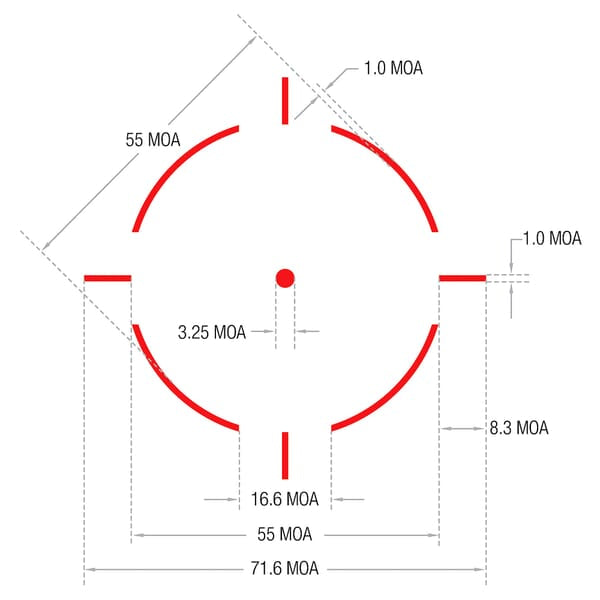

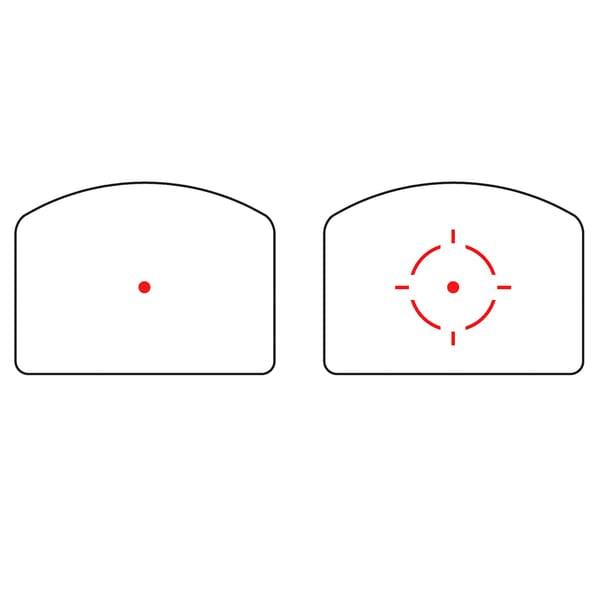

| Reticle Details | 3.25 MOA Dot & 55 MOA Ring |
| Objective Lens Diameter | 22.6mm x 17.2mm |
| Dimensions | 2.15" x 1.27" x 1.19" |
| Weight | 1.69 ounces |
| Battery | CR2032 |
| Battery Type | CR2032 |
| Night Vision Compatible | Yes |
| Brightness Settings | Auto, 9 Manual, 3 NV, 1 Super Bright |
| Product Type | Reflex Sight/Red Dot |
| Item Condition | New |
| UPC | 719307619227 |
| MPN | 3200002 |
What's in the Box?
- Trijicon RMR HD Reflex Red Dot Sight (RMHD2-C-3200002)
- CR2032 Battery
- Protective Sight Cover
- User Manual
- Warranty Card
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
