Description

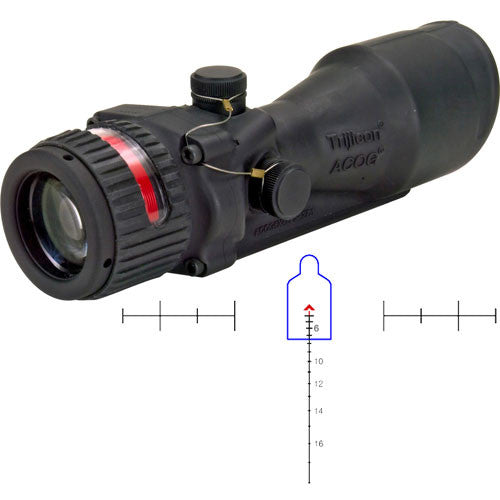

Trijicon ACOG 6x48 Riflescope .50 Cal Red Chevron TA648-50 100006 offers precise targeting with a 6x magnification and 48mm objective lens, ensuring excellent visibility even in low-light conditions. This scope is ideal for tactical shooting and hunting at dusk, providing clarity and reliability. The dual-illuminated red chevron reticle eliminates the need for batteries, making it a practical choice for those who prioritize straightforward functionality in diverse environments.
Constructed from aircraft-grade aluminum, this riflescope is built to withstand harsh conditions while remaining lightweight. It features a rugged design that is both waterproof to 500 feet and fogproof, ensuring consistent performance. With a fixed parallax setting at 100 yards, users can focus on their targets without the distraction of adjustments, enhancing their shooting experience.
Key Features:
- DUAL ILLUMINATION SYSTEM: Automatic brightness adjustment from fiber optics and tritium ensures clear visibility in all lighting conditions without battery reliance.
- RUGGED CONSTRUCTION: Made from aircraft-grade aluminum, fully waterproof to 500 feet, shockproof, and fogproof for reliable performance in extreme conditions.
- PRECISION OPTICS: 6x magnification with a 48mm objective lens delivers exceptional clarity and light transmission for enhanced target identification.

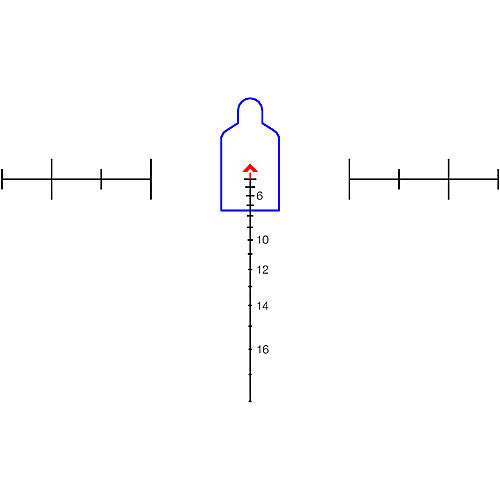

- CALIBRATED RETICLE: Features a red chevron reticle designed for .50 BMG ammunition, providing bullet drop compensation that improves long-range accuracy.
- COMPACT DESIGN: At 9 inches in length and weighing 36.9 ounces, this scope balances power and portability for various shooting applications.
- BINDON AIMING CONCEPT: Allows for both-eyes-open aiming, increasing situational awareness and speeding up target acquisition.
- FIXED PARALLAX: Set at 100 yards, simplifying the aiming process without the need for adjustments.
- DURABLE FINISH: Black anodized finish protects against wear and corrosion, ensuring long-lasting performance of the riflescope.
Technical Specifications Table
| Specification | Value |
|---|---|
| Model | TA648-50 |
| SKU/MPN | 100006 |
| Magnification | 6x |
| Objective Lens Diameter | 48mm |
| Reticle | Red Chevron (.50 BMG) |
| Illumination | Fiber Optics & Tritium |
| Length | 9" |
| Weight | 36.9 oz |
| Eye Relief | 2.7" |
| Field of View | 17' @ 100 yards |
| Exit Pupil | 9.1 mm |
| Adjustment Click Value | 4 clicks/inch @ 100 yards |
| Parallax Setting | Fixed @ 100 yards |
| Waterproof Depth | 500 feet |
| Finish | Black |
| Housing Material | Aircraft-grade Aluminum |
| UPC | 719307302273 |
What’s in the Box?
- Trijicon ACOG 6x48 Riflescope
- Thumbscrew Mount
- Lens Covers
- User Manual
Customer Reviews
"The clarity of the Trijicon ACOG 6x48 is unbeatable; I can spot targets from a mile away!"
"This scope has transformed my shooting experience, even in low light. Highly recommended!"
"Robust and reliable, the ACOG is my go-to for tactical shooting. Can't imagine my setup without it!"
FAQ
How does the dual illumination system work?
The Trijicon ACOG 6x48 Riflescope features fiber optics that gather ambient light, automatically brightening the reticle in daylight. When light conditions diminish, the tritium provides a self-illuminating glow, ensuring visibility in the dark.
Can I use this scope for other calibers?
While the reticle is specifically calibrated for .50 BMG ammunition, shooters can adapt its use with other calibers by considering bullet drop and windage adjustments according to their ammunition's ballistics.
How do I maintain the ACOG scope?
Regularly check the seals and lens for dirt or moisture. Use a soft, clean cloth to wipe down the body and lenses. Avoid using solvents that could damage the finish. For any significant damage or issues, consider professional servicing.
Similar Models
Looking for the perfect optics for your next adventure? Discover our extensive Trijicon lineup, including models like the Trijicon ACOG 4x32 for enhanced versatility and the Trijicon VCOG for advanced variable magnification capabilities. Explore our full collection for exceptional optics tailored to your shooting needs!
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
