Description

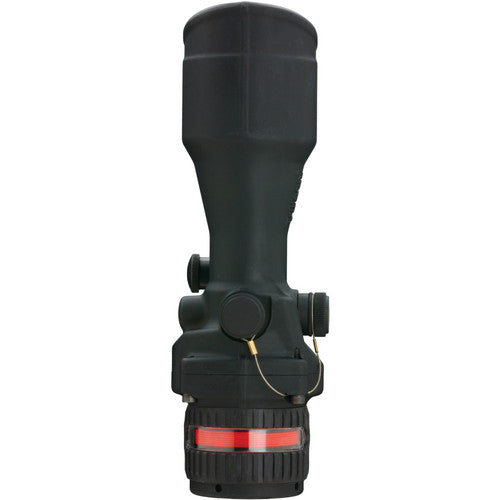

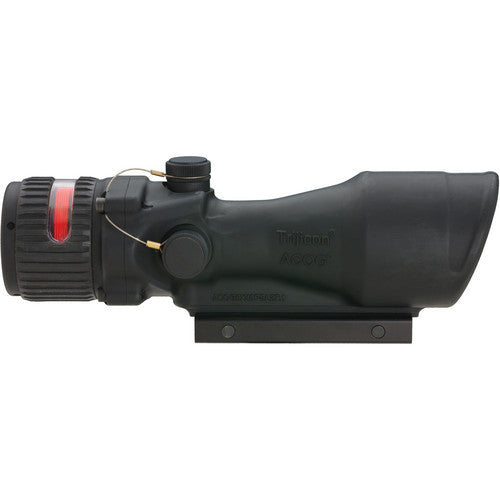

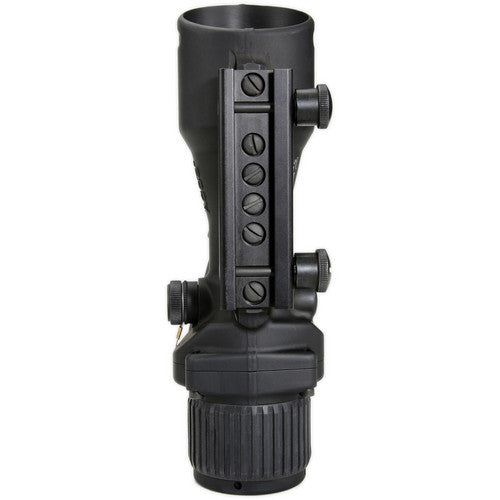

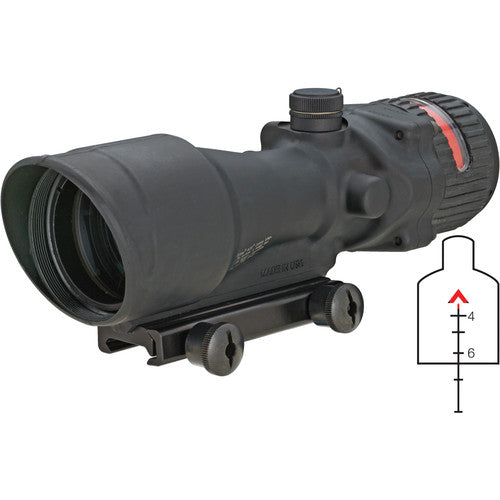

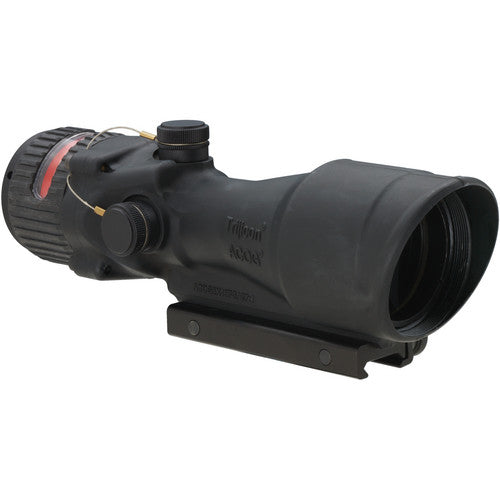

Trijicon ACOG 6x48 Riflescope .223 Red Chevron TA648 100001 is a high-performance optic designed for precision shooting and tactical applications. This rugged and versatile scope offers 6x magnification and a generous 48mm objective lens, providing exceptional clarity and light transmission in various lighting conditions. The fixed parallax setting and the illuminated red chevron reticle ensure rapid target acquisition and accurate shot placement.
The Trijicon ACOG 6x48 Riflescope .223 Red Chevron TA648 100001 features a durable aluminum housing with a black finish, making it resistant to harsh environmental conditions. Its compact 9-inch length and relatively lightweight design at 36.9 oz make it suitable for a wide range of firearms. The scope's 2.7-inch eye relief provides comfortable viewing and allows for quick target transitions.
With a field of view of 17 feet at 100 yards and precise turret adjustments of 4 clicks per inch at 100 yards, this ACOG scope offers both versatility and accuracy. The illuminated reticle is specifically calibrated for .223 ammunition, making it an ideal choice for AR-15 platforms and similar rifles chambered in this popular caliber.
Ideal For: Long-range precision shooting, tactical operations, competitive shooting, and hunting applications where reliability and optical clarity are paramount.
Features:
-
SUPERIOR OPTICAL CLARITY: 6x magnification coupled with a large 48mm objective lens for exceptional light gathering and image quality in various lighting conditions.
-

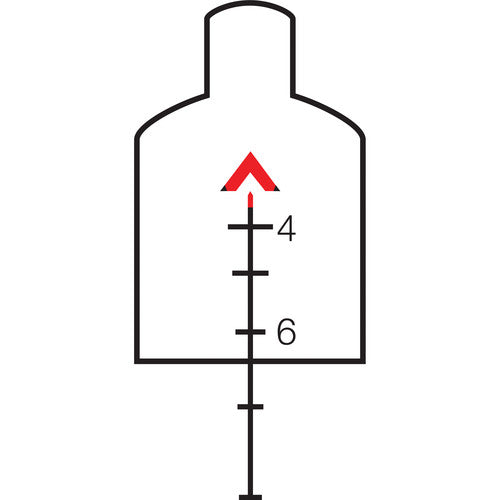

ILLUMINATED RETICLE: Red chevron reticle specifically designed for .223 ammunition, providing rapid target acquisition and precise aiming points for different distances.
-
RUGGED CONSTRUCTION: Durable aluminum housing with a black finish, engineered to withstand harsh environments and heavy recoil for long-lasting performance.
-
COMPACT DESIGN: 9-inch overall length and 36.9 oz weight, offering a balance between magnification power and portability for versatile use on different firearm platforms.
-
FIXED PARALLAX: Preset parallax elimination reduces the need for adjustments, allowing for quicker target engagement and improved accuracy across varying distances.
-
GENEROUS EYE RELIEF: 2.7-inch eye relief provides comfortable viewing and allows for proper eye positioning, even when wearing protective gear or in high-stress situations.
-
PRECISE ADJUSTMENTS: 4 clicks per inch at 100 yards turret adjustment system allows for fine-tuning to compensate for windage and elevation.
-
VERSATILE APPLICATION: Ideal for long-range shooting, tactical operations, competitive events, and hunting scenarios where precision and reliability are crucial.
Specifications:
| Specification | Detail |
|---|---|
| SKU/MPN | 100001 |
| UPC | 719307302259 |
| Magnification | 6x |
| Objective Lens Diameter | 48mm |
| Scope Length | 9" |
| Scope Weight | 36.9 oz |
| Eye Relief | 2.7" |
| Field of View | 17' @ 100 yards |
| Exit Pupil | 9.1 mm |
| Reticle | Red .223 Chevron |
| Illumination | Yes |
| Parallax Setting | Fixed |
| Turret Adjustment | 4 clicks/inch @ 100 yards |
| Finish | Black |
| Housing Material | Aluminum |
What's Included:
- Trijicon ACOG 6x48 Riflescope
- Lens covers
- User manual
- Warranty card
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
