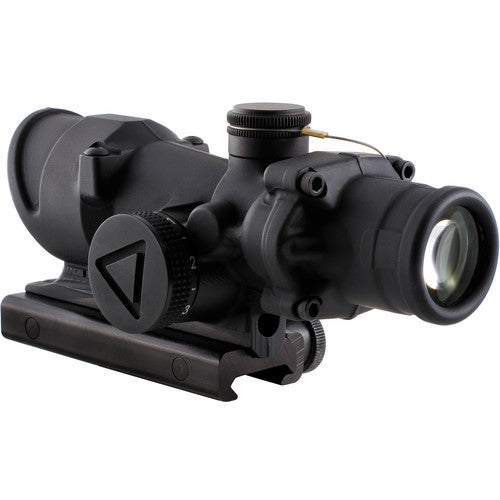

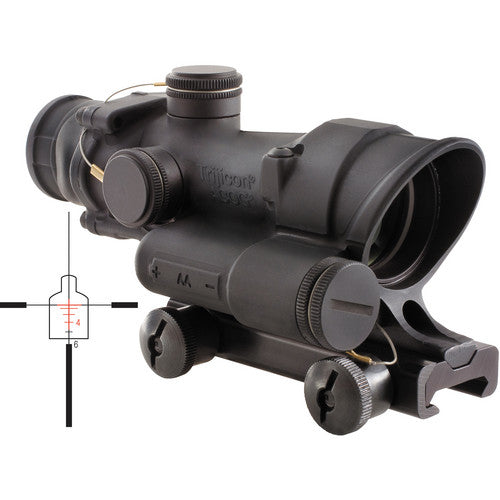

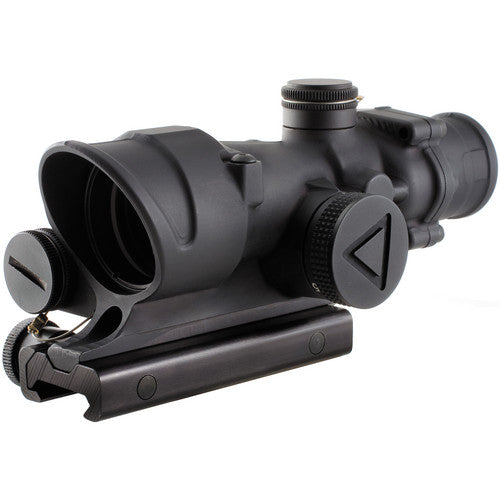

Trijicon ACOG 4x32 Riflescope LED Red Crosshair .223 100190 delivers precise optics suitable for tactical and competitive shooting. With a fixed 4x magnification and a 32mm objective lens, users gain a clear sight picture and a wide field of view, crucial for quick target acquisition. The LED-illuminated red crosshair reticle is specifically designed for .223/5.56 ammunition, optimizing long-range shooting with accurate bullet drop compensation.
Constructed from rugged 7075-T6 aluminum, this riflescope withstands harsh conditions and heavy recoil without compromising performance. Its compact design (6 inches long and 18.1 oz) makes it easy to handle, ensuring stability and balance on your weapon. A single AA battery powers the illumination, offering extended usage for various lighting environments.
Key Features:
- ADVANCED ILLUMINATION: LED-powered red crosshair reticle with multiple brightness settings for optimal visibility in any lighting condition.
- PRECISION OPTICS: 4x fixed magnification with a 32mm objective lens, providing a clear and wide field of view for rapid target acquisition and engagement.
- DURABLE CONSTRUCTION: Forged 7075-T6 aircraft-grade aluminum housing, ensuring maximum strength and resistance to harsh environmental conditions.

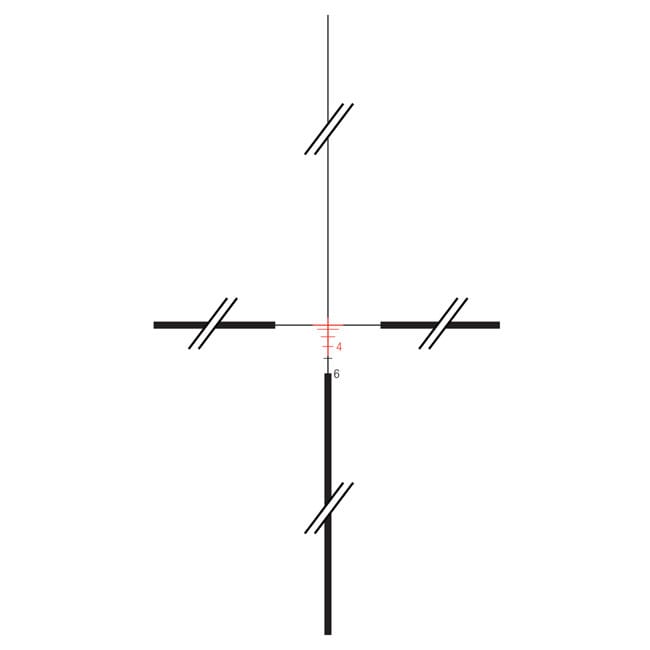

- BALLISTIC RETICLE: Specially calibrated for .223/5.56 ammunition, offering accurate bullet drop compensation for improved long-range accuracy.
- BATTERY EFFICIENCY: Powered by a single AA battery, providing up to 12,000 hours of continuous use on medium settings.
- EASY ADJUSTMENT: 2 clicks per inch at 100 yards for precise zeroing and on-the-fly adjustments.
- VERSATILE MOUNTING: Includes a thumbscrew mount for quick and secure attachment to standard Picatinny rails.
- COMPACT DESIGN: 6-inch overall length and 18.1 oz weight, minimizing bulk and maintaining weapon balance.
Technical Specifications
| Specification | Detail |
|---|---|
| SKU/MPN | 100190 |
| UPC | 719307304833 |
| Magnification | 4x |
| Objective Lens Diameter | 32mm |
| Reticle | Red .223 Crosshair |
| Illumination | LED |
| Length | 6" |
| Weight | 18.1 oz |
| Field of View | 7° (36.8 ft @ 100 yards) |
| Eye Relief | 1.5" |
| Exit Pupil | 8.1 mm |
| Turret Adjustment | 2 clicks/inch @ 100 yards |
| Parallax | Fixed |
| Finish | Black |
| Housing Material | 7075-T6 Aluminum |
| Battery Type | AA |
| Mount | Thumbscrew Mount |
What's in the Box?
- Trijicon ACOG 4x32 Riflescope
- Thumbscrew Mount
- Lens Covers
- User Manual
- Warranty Card
Customer Reviews
“This ACOG scope is perfect for my tactical needs, very clear and easy to adjust.”
“I've never felt more confident while shooting long-range. The reticle is spot on!”
“Solid build and lightweight. Great for both competition and training.”
FAQ
Is the Trijicon ACOG 4x32 suitable for low-light conditions? Yes, the LED illumination enhances visibility in various lighting environments, making it effective for dawn or dusk shooting.
How do I maintain the riflescope? Regularly clean the lenses with a soft, dry cloth and store it in a protective case when not in use to maintain its performance and longevity.
How does it compare to other Trijicon models? The ACOG 4x32 offers fixed magnification and a rugged design, ideal for tactical use. For variable magnification, consider the Trijicon VCOG series for additional versatility.
Similar Models
Looking for more options? Explore our range of Trijicon optics, including the Trijicon VCOG 1-6x24 for versatile magnification and the Trijicon MRO for a compact reflex sight. Discover our complete collection tailored to elevate your shooting experience.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
