Description

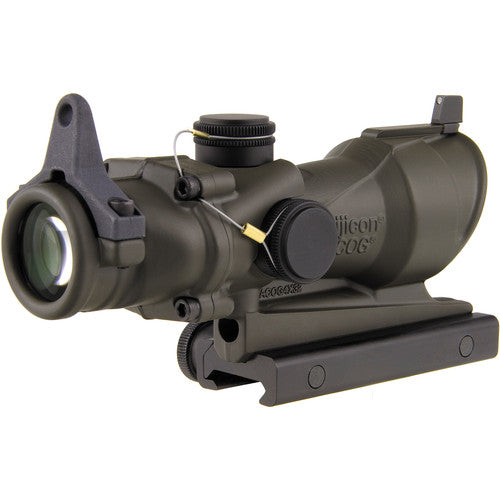

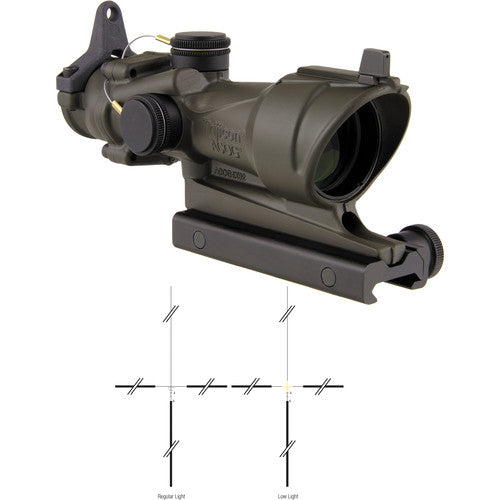

Trijicon ACOG 4x32 Riflescope Amber Crosshair Illuminated Reticle, Cerakote OD Green TA01-D-100318 is a high-performance optical sight designed for precision shooting and tactical applications. This rugged scope features a fixed 4x magnification and a 32mm objective lens, providing a clear and bright sight picture even in challenging light conditions[7].

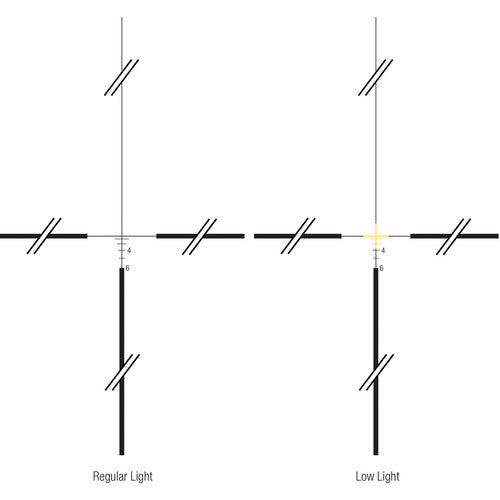

The Trijicon ACOG 4x32 Riflescope boasts a center-illuminated amber crosshair .223 reticle, which offers quick target acquisition and enhanced accuracy[6]. Its illumination is powered by tritium, eliminating the need for batteries and ensuring reliable performance in any environment[7].
Constructed with a forged 7075-T6 aluminum alloy housing and finished with a durable Cerakote OD Green coating, this scope is built to withstand the harshest conditions[5]. The TA01-D-100318 model combines superior optical quality with unmatched durability, making it an ideal choice for both military and civilian shooters.
Ideal For: Law enforcement, military personnel, competitive shooters, and hunting enthusiasts who demand reliability, precision, and durability in their optics.
Features:
-
ADVANCED OPTICS: 4x fixed magnification with a 32mm objective lens for clear, bright images and a wide 7° field of view (36.8 ft @ 100 yards)[5]
-
ILLUMINATED RETICLE: Tritium-powered amber crosshair .223 reticle provides constant illumination without batteries, ensuring visibility in all lighting conditions[6][7]
-
RUGGED CONSTRUCTION: Forged 7075-T6 aluminum alloy housing with Cerakote OD Green finish for superior durability and corrosion resistance[5]
-
PRECISION ADJUSTMENTS: 2 clicks per inch at 100 yards for accurate zeroing and target engagement[5]
-
COMPACT DESIGN: 5.8" length and 14.96 oz weight for easy handling and maneuverability in the field[5]
-
GENEROUS EYE RELIEF: 1.5" eye relief for comfortable viewing and quick target acquisition[5]
-
PARALLAX FREE: Fixed parallax adjustment optimized for medium to long-range shooting[5]
-
VERSATILE APPLICATION: Suitable for various firearms and shooting scenarios, from close-quarters combat to long-range precision shooting
Specifications:
| Specification | Detail |
|---|---|
| SKU/MPN | 100318 |
| UPC | 719307307322 |
| Magnification | 4x |
| Objective Lens Diameter | 32mm |
| Reticle | Amber .223 Crosshair |
| Illumination | Tritium (No batteries required) |
| Housing Material | Forged 7075-T6 aluminum alloy |
| Finish | Cerakote OD Green |
| Length | 5.8" |
| Weight | 14.96 oz |
| Field of View | 7° (36.8 ft @ 100 yards) |
| Eye Relief | 1.5" |
| Exit Pupil | 8.1 mm |
| Adjustment Click Value | 2 clicks/inch @ 100 yards |
| Parallax Setting | Fixed |
What's Included:
- Trijicon ACOG 4x32 Riflescope (TA01-D-100318)
- Lens covers
- User manual
- Warranty information
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
