Description

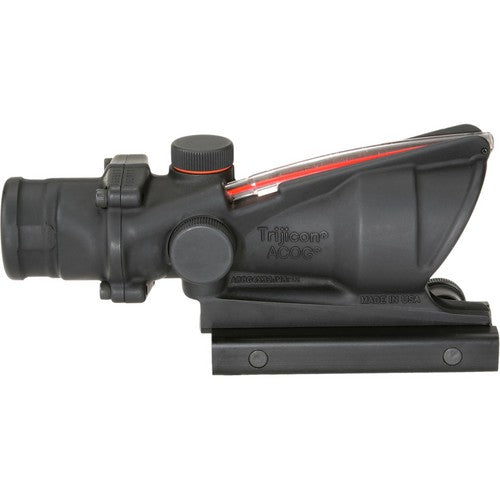

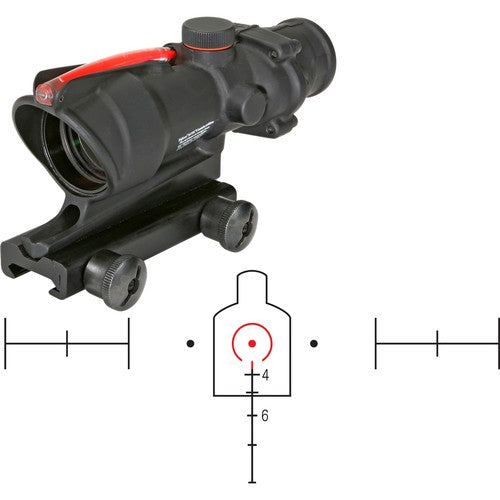

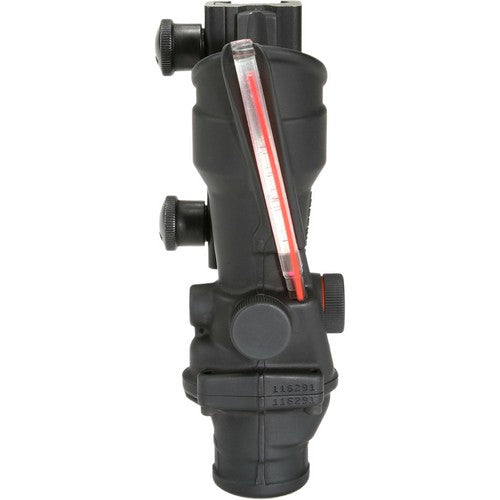

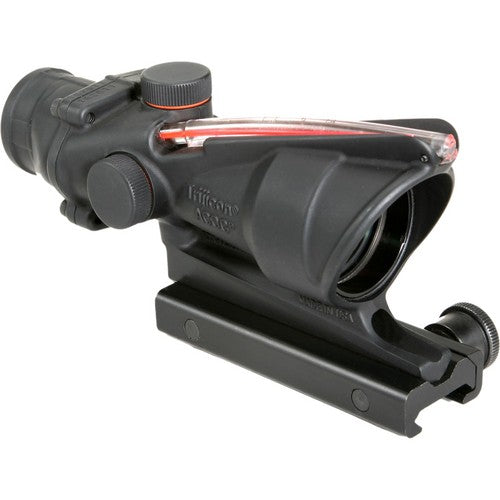

Trijicon ACOG 4x32 Riflescope 6.8 Red Horseshoe/Dot TA31H-68 100220 offers precision shooting capabilities with a fixed 4x magnification and a 32mm objective lens. This riflescope is engineered for clarity and a wide field of view, perfectly calibrated for 6.8 SPC ammunition, ensuring accurate ranging and bullet drop compensation up to 800 meters. The innovative dual-illumination system uses fiber optics for bright daylight and tritium for low-light conditions, providing visibility without the need for batteries.
Constructed from durable 7075-T6 aluminum, this compact scope withstands harsh environments and recoil up to .50 BMG. Its advanced multi-coated lenses enhance light transmission and clarity, making it a reliable choice for military, law enforcement, and shooting enthusiasts. The Bindon Aiming Concept allows for effective "both eyes open" shooting, optimizing situational awareness for rapid target acquisition.
Key Features:
- DUAL ILLUMINATION SYSTEM: Combines fiber optics for daylight use and tritium for low-light conditions, ensuring the reticle is always visible without batteries.
- RUGGED CONSTRUCTION: Forged 7075-T6 aircraft-grade aluminum housing provides exceptional durability and shock resistance, withstanding recoil up to .50 BMG.
- ADVANCED OPTICS: Multi-coated lenses deliver superior light transmission and clarity, while the fixed power design eliminates moving parts for increased reliability.
- BALLISTIC RETICLE: Specially calibrated for 6.8 SPC ammunition, offering precise ranging and holdover points out to 800 meters for improved long-range accuracy.
- WATERPROOF PERFORMANCE: Nitrogen-filled housing ensures fog-proof operation and waterproof capabilities up to 328 feet (100 meters).
- BINDON AIMING CONCEPT: Allows for "both eyes open" shooting, enhancing situational awareness and rapid target acquisition in close-quarters scenarios.
- VERSATILE MOUNTING: Includes a thumbscrew mount for easy installation and removal on Picatinny rail systems, ensuring a secure and repeatable zero.
- COMBAT-PROVEN DESIGN: Trusted by military forces worldwide, the ACOG has been battle-tested in various combat environments, demonstrating its reliability and effectiveness.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | TA31H-68 100220 |
| Magnification | 4x |
| Objective Lens Diameter | 32mm |

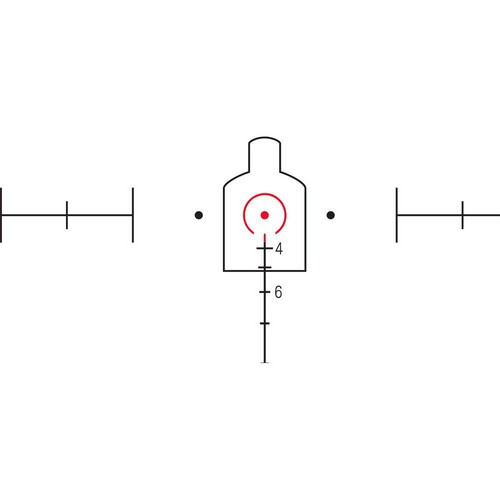

| Reticle | Red Horseshoe/Dot (6.8 SPC) |
| Illumination | Fiber Optics & Tritium |
| Length | 5.8" |
| Weight | 9.9 oz (with mount) |
| Eye Relief | 1.5" |
| Field of View | 7° (36.8 ft @ 100 yards) |
| Exit Pupil | 8.1 mm |
| Adjustment Click Value | 2 clicks/inch @ 100 yards |
| Finish | Black |
| Housing Material | 7075-T6 Aluminum |
| Waterproof Depth | 328 ft (100 m) |
| Parallax Setting | Fixed |
| Mount Type | Thumbscrew Mount (included) |
| SKU | 100220 |
| UPC | 719307302952 |
What's in the Box?
- Trijicon ACOG 4x32 Riflescope
- Thumbscrew Mount
- Lens Covers
- User Manual
Customer Reviews
“The clarity and durability of this ACOG scope are unmatched. Perfect for my long-range shooting.”
“I love the dual-illumination feature. It works great in all lighting conditions!”
“This scope is worth every penny. Excellent performance even in harsh environments.”
FAQ
Many users wonder how the ACOG 4x32 performs in low-light conditions. Thanks to its dual-illumination system, the reticle remains visible regardless of ambient light, making it suitable for dawn or dusk shooting. The tritium ensures that the reticle glows in darkness, providing reliable performance when it matters most.
Maintenance of the ACOG is straightforward. Regularly check the mounting screws to ensure they are tight, clean the lenses with a microfiber cloth, and store it in a protective case when not in use. This will help maintain its performance and longevity.
When comparing the ACOG 4x32 to other riflescopes, consider that this model is combat-proven and designed for quick target acquisition with its fixed magnification. Many alternatives may offer variable zoom but often lack the ruggedness and reliability that the ACOG provides, especially in tactical scenarios.
Similar Models
Looking for more high-performance optics? Explore our extensive Trijicon lineup, including models like Trijicon ACOG 3.5x35 for enhanced versatility and Trijicon VCOG 1-6x24 for a broader magnification range. Discover our full collection for advanced sights tailored to your shooting needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
