Description

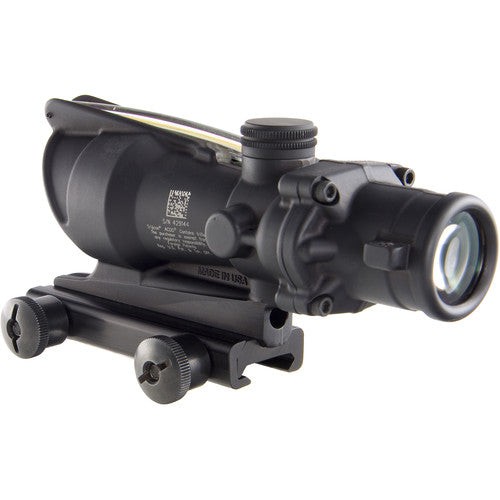

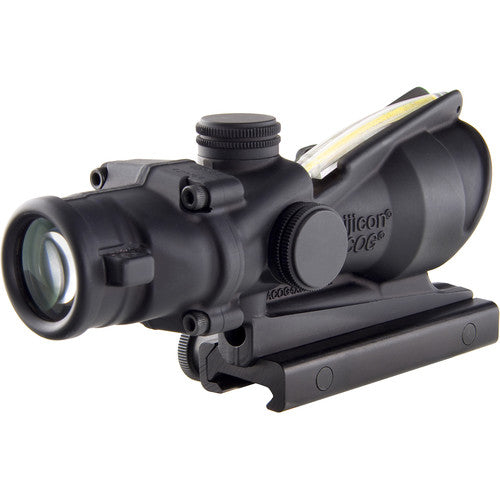

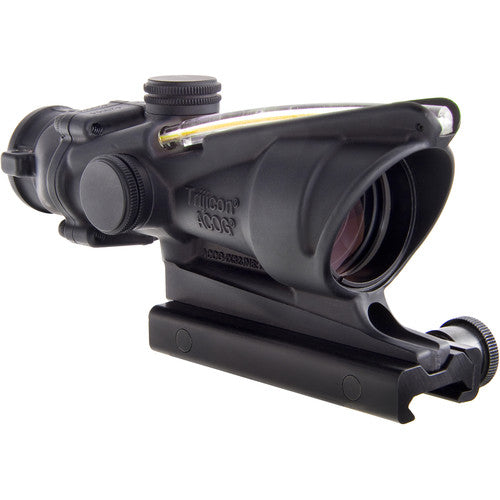

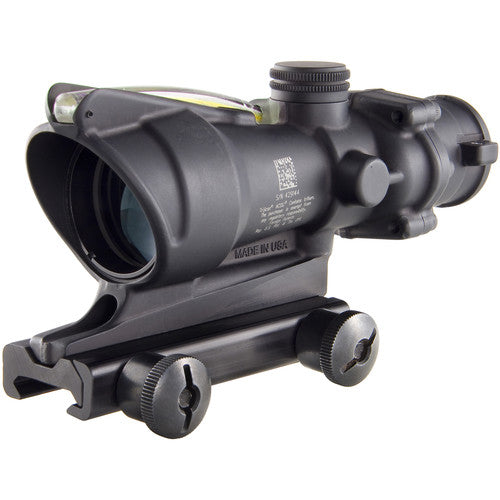

The Trijicon ACOG 4x32 Riflescope .223 Amber Horseshoe/Dot TA31H-A 100223 is a high-performance optic designed for tactical and competitive shooting. Featuring a fixed 4x magnification and a 32mm objective lens, this riflescope offers a wide field of view and exceptional clarity. The illuminated amber horseshoe dot reticle is specifically calibrated for .223 rounds, providing quick target acquisition and precise aiming in various lighting conditions.
Built to withstand the harshest environments, the Trijicon ACOG 4x32 Riflescope is constructed from rugged materials and is both waterproof and shockproof. The multi-coated lenses ensure superior light transmission and zero distortion, making it ideal for low-light scenarios. With a compact design, weighing only 9.9 oz and measuring 5.8 inches in length, this riflescope is easy to mount and maneuver.
The Trijicon ACOG 4x32 Riflescope also features a fixed parallax adjustment and a generous exit pupil of 8.1 mm, providing a clear and consistent sight picture. The 1.5-inch eye relief ensures comfortable use, even with heavy recoil. This riflescope is an excellent choice for shooters who demand reliability, precision, and durability in their optics.
Ideal For:
- Tactical shooting
- Competitive shooting
- Hunting
- Law enforcement
Features:
- SUPERIOR CLARITY: Multi-coated lenses provide superior clarity and light transmission with zero distortion.
- RUGGED DESIGN: Constructed from durable materials, this riflescope is waterproof, shockproof, and built to last.

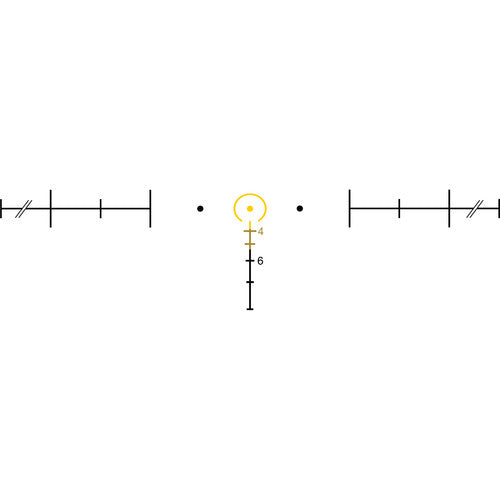

- ILLUMINATED RETICLE: The amber horseshoe dot reticle is illuminated for quick target acquisition in various lighting conditions.
- FIXED MAGNIFICATION: 4x magnification offers a wide field of view and precise aiming capabilities.
- COMPACT AND LIGHTWEIGHT: Weighing only 9.9 oz and measuring 5.8 inches in length, it is easy to mount and maneuver.
- FIXED PARALLAX: Designed with a fixed parallax adjustment for consistent accuracy.
- GENEROUS EXIT PUPIL: 8.1 mm exit pupil provides a clear and consistent sight picture.
- COMFORTABLE EYE RELIEF: 1.5-inch eye relief ensures comfortable use, even with heavy recoil.
Specifications:
| Specification | Details |
|---|---|
| Item Condition | New |
| Scope Weight | 9.9 oz |
| Scope Length | 5.8" |
| Magnification Range | 4x |
| Scope Objective Diameter | 32mm |
| Turret Adjustment (Click Value) | 2 clicks/inch @ 100 yards |
| Parallax Adjustment | Fixed |
| Reticle Details | Amber .223 Horseshoe Dot Reticle |
| Field of View | 7°, 36.8 ft @ 100 yards |
| Exit Pupil | 8.1 mm |
| Eye Relief | 1.5" |
| Illuminated Reticle | Yes |
| Scope Finish | Black |
| Product Type | Riflescopes |
| UPC | 719307303973 |
| MPN | 100223 |
What's Included:
- Trijicon ACOG 4x32 Riflescope .223 Amber Horseshoe/Dot TA31H-A 100223
- Lenspen
- Trijicon logo sticker
- Manual
- Warranty card
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
