Description

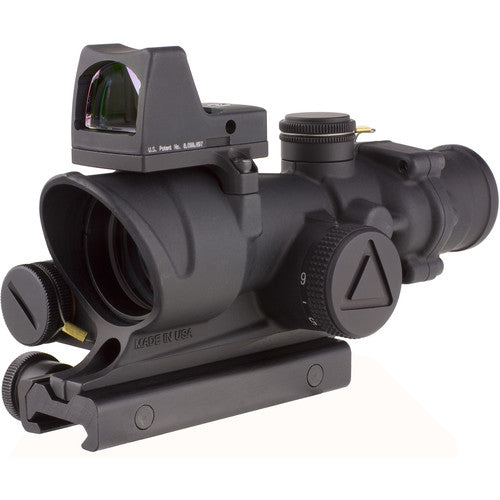

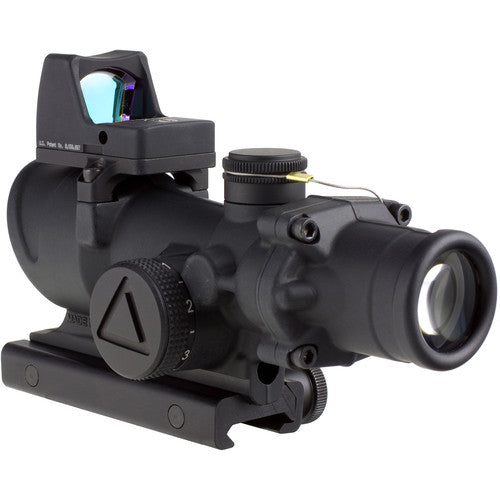

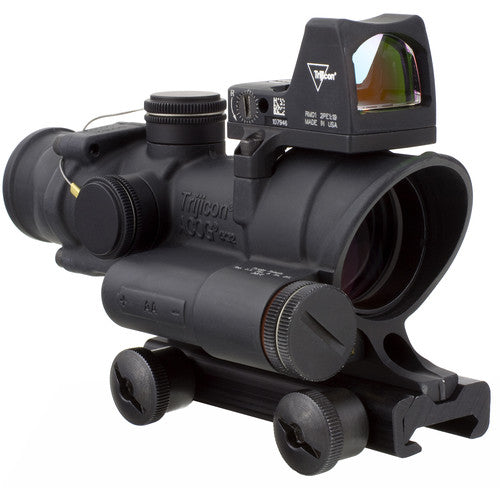

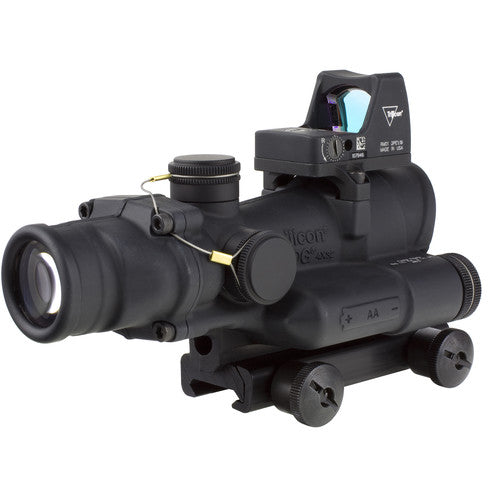

Experience unparalleled clarity and precision with the Trijicon ACOG 4x32 LED Illum Scope & 3.25 MOA Red Dot Type 2 LED RM01 Sight Kit .223 Red Crosshair Illuminated Reticle TA02-C-100558. Designed for both tactical and recreational shooting, this advanced optical system combines the renowned ACOG scope with a cutting-edge RMR sight, ensuring you never miss your target. Whether you're dusk hunting, engaging in tactical range shooting, or competing outdoors, this versatile kit excels in various conditions, providing the reliability you need when it matters most.
The Trijicon ACOG 4x32 LED Illum Scope offers 4x magnification and a 32mm objective lens, allowing you to spot targets even in low light. Its LED-illuminated red crosshair reticle is specifically calibrated for .223 ammunition, delivering vibrant visibility across all lighting environments. Pair this with the 3.25 MOA red dot from the RMR, and you’ll enjoy swift transitions between magnified and non-magnified optics—perfect for any shooting scenario. Elevate your shooting experience with this expertly crafted optics solution!
Features – Key Benefits Bullets
- DUAL SIGHT SYSTEM: Combines a 4x32 ACOG scope with a 3.25 MOA RMR red dot sight for versatile targeting at various ranges.
- LED ILLUMINATION: Features an LED-illuminated red crosshair reticle in the ACOG and a 3.25 MOA red dot in the RMR for clear aiming in all light conditions.
- RUGGED CONSTRUCTION: Built to withstand harsh environments with durable aluminum housing and waterproof design.
- CALIBRATED RETICLE: ACOG reticle specifically designed for .223 ammunition, providing accurate bullet drop compensation.
- WIDE FIELD OF VIEW: Offers a generous 36.8 ft field of view at 100 yards for enhanced situational awareness.
- COMPACT AND LIGHTWEIGHT: Weighs only 19.3 oz without the RMR, minimizing the impact on weapon handling.
- EASY ADJUSTMENTS: Features 1/2 MOA click value turrets for precise zeroing and windage/elevation adjustments.
- BATTERY-FREE OPTION: ACOG model available with fiber optic and tritium illumination for a battery-free operation (check specific model).
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | TA02-C-100558 |
| Magnification | 4x |
| Objective Lens Diameter | 32mm |

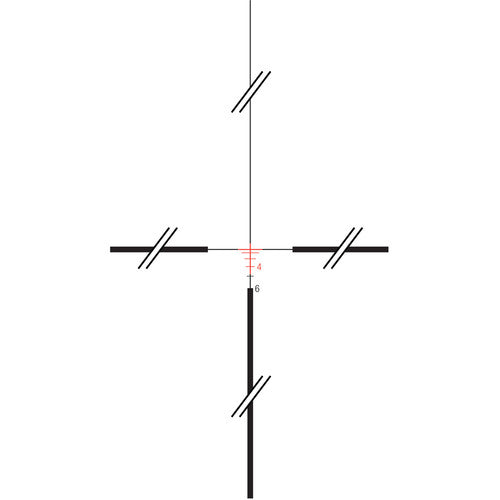

| Reticle | Red Crosshair .223 / RMR 3.25 MOA Red Dot |
| Illumination | LED (Red) |
| Field of View | 36.8 ft @ 100 yards |
| Eye Relief | 1.5 inches |
| Length | 6.0 inches |
| Weight | 19.3 oz (without RMR) |
| Turret Adjustment | 1/2 MOA per click |
| Parallax Setting | Fixed |
| Waterproof | Yes |
| Battery Type | Check specific model |
| Warranty | Limited Lifetime (Check with manufacturer) |
| SKU/UPC | 719307311862 |
What’s in the Box?
- Trijicon ACOG 4x32 LED Illuminated Scope
- Trijicon RMR Type 2 LED RM01 Sight
- Mounting hardware
- User manual
- Warranty card
Customer Reviews
“The ACOG's clarity is unmatched! Perfect for both day and dusk hunting.” - John D.
“I love how easy it is to switch between sights. A game changer for tactical training!” - Sarah L.
“An incredible setup for competitive shooting. Highly recommend!” - Mike W.
FAQ
What is the main advantage of the Trijicon ACOG over other scopes?
The Trijicon ACOG 4x32 LED allows for quick target acquisition with its dual sight system, offering both magnification and a close-range red dot. This versatility is especially beneficial in tactical scenarios where conditions may change rapidly.
How do I maintain my Trijicon ACOG?
Maintaining your ACOG involves periodic cleaning of the lenses with a soft microfiber cloth. Avoid using harsh chemicals that could damage the lens coatings. Regular checks of the mounts and turrets for tightness will ensure consistent performance during use.
Can the ACOG be used in low-light situations?
Absolutely! The LED illumination and the fiber optic options in some models provide excellent visibility, making it suitable for low-light hunting or tactical applications.
Similar Models
Looking for more options? Explore our comprehensive Trijicon lineup, including models like the Trijicon VCOG, designed for long-range precision shooting, and the Trijicon MRO, perfect for close-range engagements. Discover the full collection now!
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
