Description

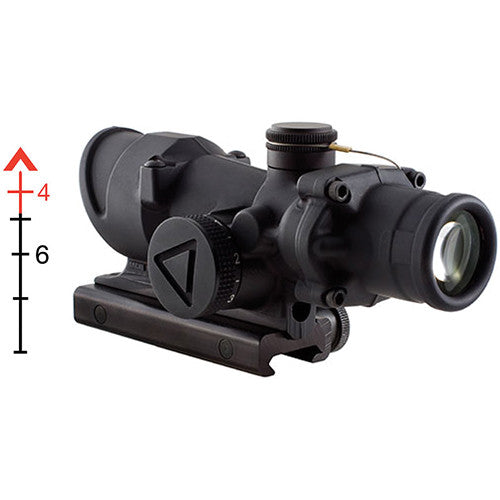

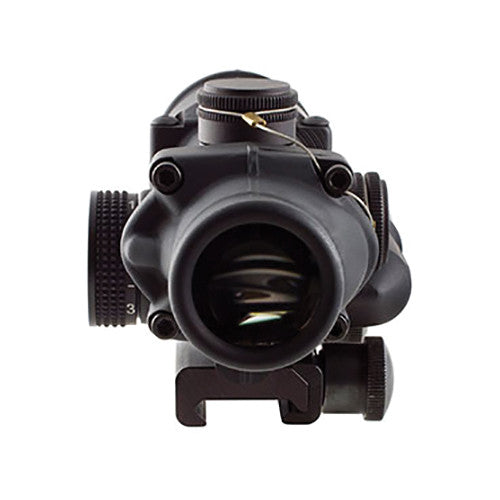

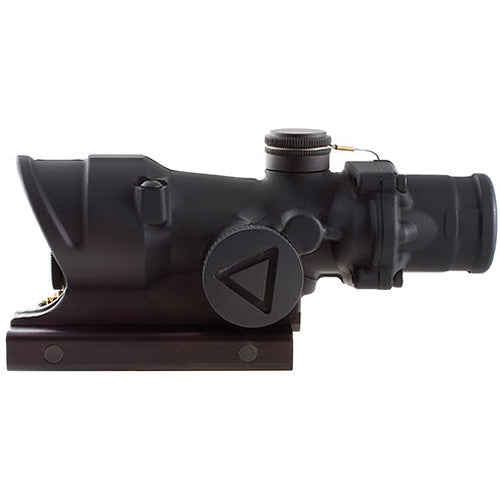

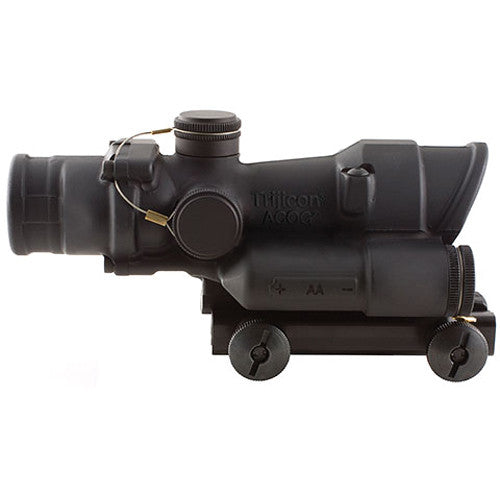

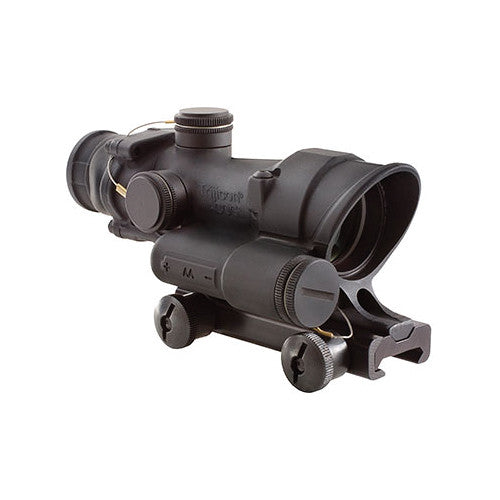

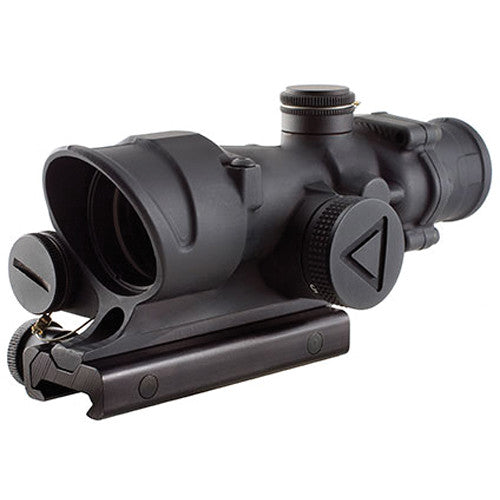

Trijicon ACOG 4x32 LED-Illum Riflescope combines precision optics with robust design for an unmatched shooting experience. With fixed 4x magnification and a 32mm objective lens, it delivers a wide field of view of 7° or 36.8 feet at 100 yards. Weighing just 18.1 oz and measuring 6 inches in length, this riflescope is ideal for both tactical engagements and hunting scenarios. The green .300 BLK crosshair ballistic reticle, illuminated by a user-controlled LED system, ensures accuracy in various lighting conditions, while the first focal plane design keeps reticle subtensions consistent across magnification levels.
Built from 7075-T6 aircraft-grade aluminum, the scope is practically indestructible and resistant to the elements. Nitrogen-filled and sealed, it prevents internal fogging, ensuring clarity in any weather. Powered by a single AA battery, it offers extended usage time and easy field replacement. The 1.5-inch eye relief and generous exit pupil facilitate quick target acquisition, allowing shooters to maintain situational awareness with both eyes open.
Key Features:
- ADVANCED OPTICS: 4x fixed magnification with a 32mm objective lens for optimal light transmission and a wide field of view, ensuring rapid target acquisition and engagement.
- LED ILLUMINATION: User-controlled LED illumination system with multiple brightness settings, providing a clear reticle in any lighting condition without relying on tritium.
- DURABLE CONSTRUCTION: Forged 7075-T6 aircraft-grade aluminum housing, making it virtually indestructible and suitable for the harshest environments.
- WATERPROOF DESIGN: Nitrogen-filled and sealed to prevent internal fogging, ensuring clear vision in all weather conditions.
- BALLISTIC RETICLE: Green .300 BLK crosshair ballistic reticle calibrated specifically for .300 Blackout ammunition, enhancing long-range accuracy.
- BATTERY EFFICIENCY: Powered by a single AA battery, offering extended operation time and easy replacement in the field.
- QUICK TARGET ACQUISITION: 1.5-inch eye relief and large exit pupil for rapid sight picture and both-eyes-open shooting.
- VERSATILE MOUNTING: Compatible with various mounting systems, allowing for easy installation on different firearm platforms.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | TA02-C-100432 |
| Magnification | 4x |
| Objective Lens Diameter | 32mm |
| Length | 6 inches |
| Weight | 18.1 oz |
| Reticle | Green .300 BLK Crosshair Ballistic |
| Illumination | LED |
| Eye Relief | 1.5 inches |
| Field of View | 7° (36.8 ft @ 100 yards) |
| Exit Pupil | 8.1 mm |
| Turret Adjustment | 2 clicks/inch @ 100 yards |
| Parallax Setting | Fixed |
| Reticle Position | First Focal Plane |
| Finish | Matte Black |
| Battery Type | AA |
| Waterproof | Yes |
| UPC | 719307308732 |
What's in the Box?
- Trijicon ACOG 4x32 LED-Illum Riflescope
- Lens covers
- AA battery
- User manual
- Warranty card
Customer Reviews
"This ACOG riflescope is a game-changer for my shooting accuracy. The low-light performance is outstanding!"
"Built like a tank. I’ve used it in adverse weather, and it has never fogged up or failed me."
"Easy to mount and adjust. The reticle is perfect for my .300 Blackout setup."
FAQ
How does the Trijicon ACOG 4x32 perform in low-light conditions? The integrated LED illumination system allows for adjustable brightness, ensuring the reticle remains visible in varying lighting. This feature is particularly useful during dawn or dusk shooting scenarios.
Is the scope compatible with different firearm types? Yes, the ACOG is designed for versatility and can be mounted on various platforms, making it suitable for a range of firearms, especially those chambered in .300 Blackout.
What is the maintenance required for the ACOG riflescope? Regular cleaning of the lenses with a soft cloth is recommended. The rugged construction means it requires minimal maintenance, but it’s important to check the battery and reticle functionality periodically.
Similar Models
Looking for more options? Explore our complete range of Trijicon products, including the Trijicon VCOG series for variable magnification and the Trijicon MRO for a compact red dot sight. Each model offers unique features tailored to enhance your shooting experience. Discover the full collection for superior optics that meet your needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
