Description

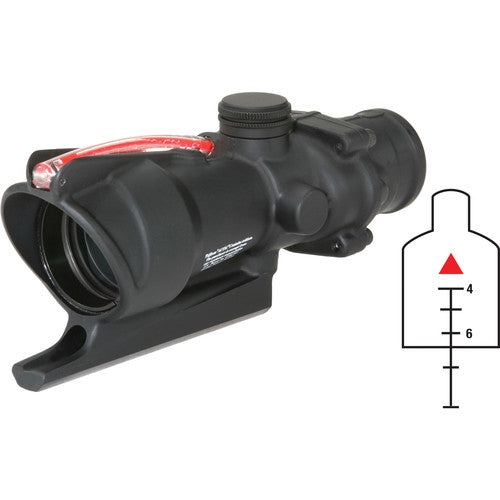

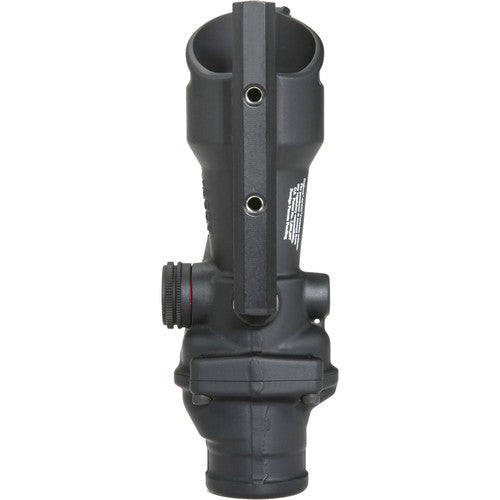

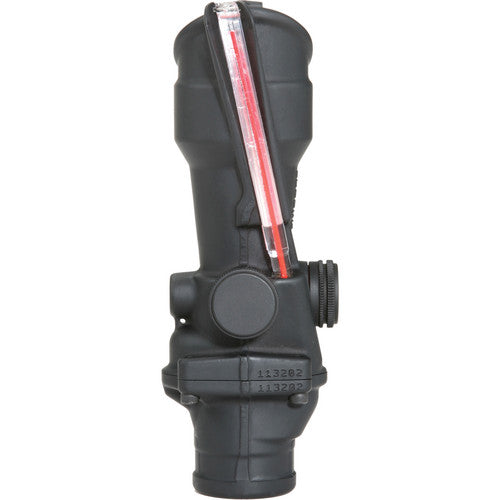

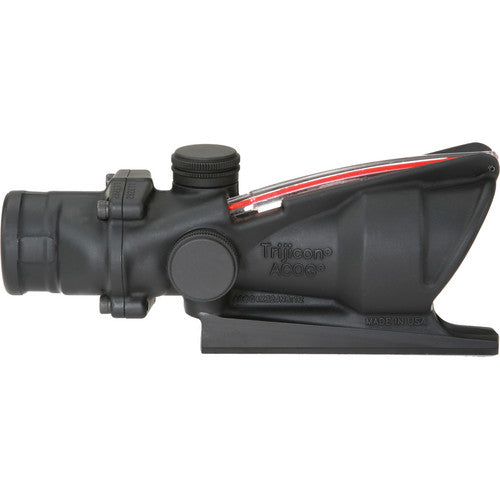

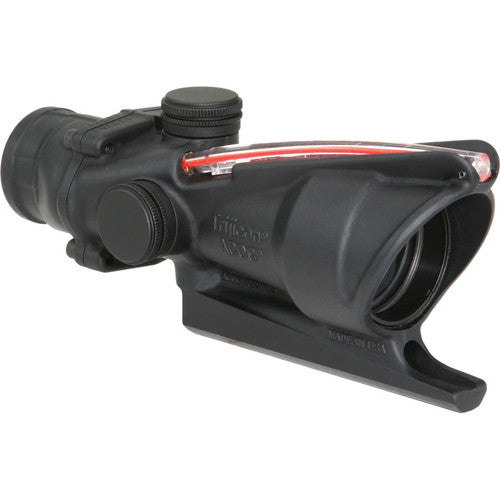

Trijicon ACOG 4x32 .223 Red Triangle TA31A 100213 is a highly durable and reliable riflescope designed for precision and clarity in various lighting conditions. Featuring a fixed 4x magnification and a 32mm objective lens, this scope offers a wide field of view and exceptional light-gathering capabilities. The red triangle reticle is dual-illuminated using fiber optics for daylight and tritium for low-light conditions, ensuring visibility in any environment.
The scope's rugged construction is built to withstand the harshest conditions, making it shockproof, waterproof, and fogproof. With a weight of just 9.9 oz and a length of 5.8 inches, it is compact and lightweight, perfect for tactical and field use. The Bindon Aiming Concept (BAC) allows for "both eyes open" shooting, enhancing situational awareness and target acquisition speed.
Ideal for military, law enforcement, and competitive shooting, the Trijicon ACOG 4x32 .223 Red Triangle TA31A 100213 is combat-proven and trusted by professionals worldwide. Its precise turret adjustments and fixed parallax ensure accurate targeting, while the black finish provides a sleek, non-reflective appearance.
Ideal For:
- Military and law enforcement personnel
- Competitive shooters
- Tactical and field use
- Low-light and daylight shooting
Features:
- DUAL ILLUMINATION: Fiber optics for daylight and tritium for low-light conditions ensure the reticle is always visible.
- RUGGED DESIGN: Shockproof, waterproof, and fogproof construction meets military standards for durability.
- BOTH EYES OPEN: Bindon Aiming Concept (BAC) allows for improved situational awareness and faster target acquisition.
- COMPACT AND LIGHTWEIGHT: Weighs only 9.9 oz and measures 5.8 inches in length, making it easy to handle and mount.
- PRECISE ADJUSTMENTS: 2 clicks per inch at 100 yards for accurate turret adjustments.
- FIXED PARALLAX: Ensures consistent accuracy without the need for adjustment.
- WIDE FIELD OF VIEW: 36.8 feet at 100 yards with a 7° angle, providing excellent situational awareness.

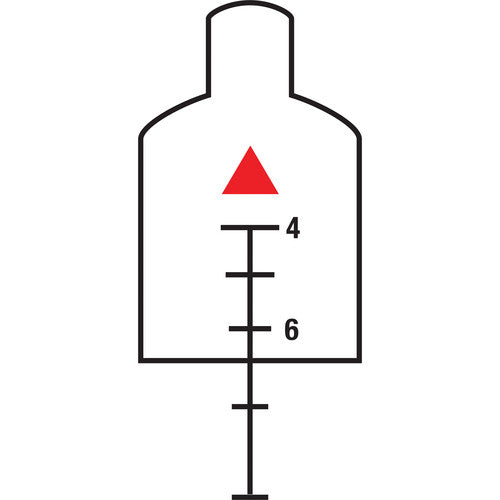

- ILLUMINATED RETICLE: Red .223 triangle reticle for clear aiming points in various lighting conditions.
Specifications:
| Specification | Details |
|---|---|
| Item Condition | New |
| Scope Weight | 9.9 oz |
| Scope Length | 5.8" |
| Magnification Range | 4x |
| Scope Objective Diameter | 32mm |
| Turret Adjustment (Click Value) | 2 clicks/inch @ 100 yards |
| Parallax Adjustment | Fixed |
| Reticle Details | Red .223 Triangle |
| Field of View | 7° / 36.8 ft @ 100 yards |
| Exit Pupil | 8.1 mm |
| Eye Relief | 1.5" |
| Illuminated Reticle | Yes |
| Scope Finish | Black |
| Product Type | Riflescopes |
| UPC | 719307301252 |
| MPN | 100213 |
What's Included:
- Trijicon ACOG 4x32 .223 Red Triangle TA31A 100213 riflescope
- Lenspen for cleaning
- Trijicon logo sticker
- Warranty card
- Manual
This comprehensive description and detailed specifications ensure you have all the information needed to understand the capabilities and benefits of the Trijicon ACOG 4x32 .223 Red Triangle TA31A 100213.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
