Description

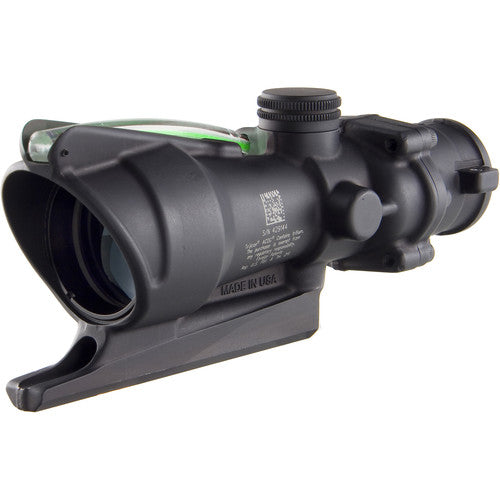

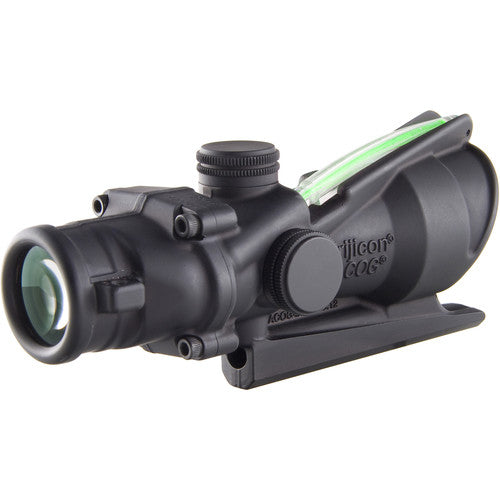

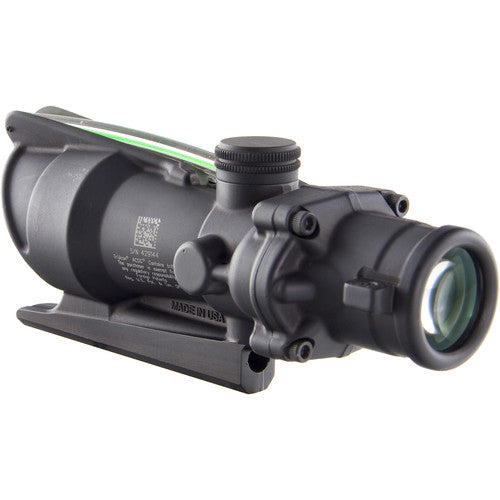

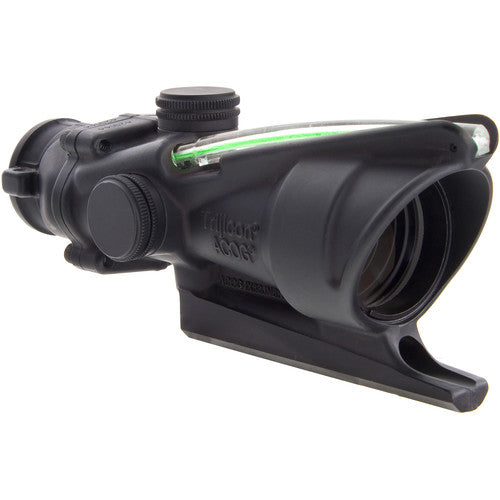

The Trijicon ACOG 4x32 .223 Green Horseshoe/Dot TA31H-G 100224 is a high-performance riflescope designed for precision and reliability in various shooting conditions. This compact and rugged scope features a fixed 4x magnification and a 32mm objective lens, providing a clear and wide field of view of 36.8 feet at 100 yards.

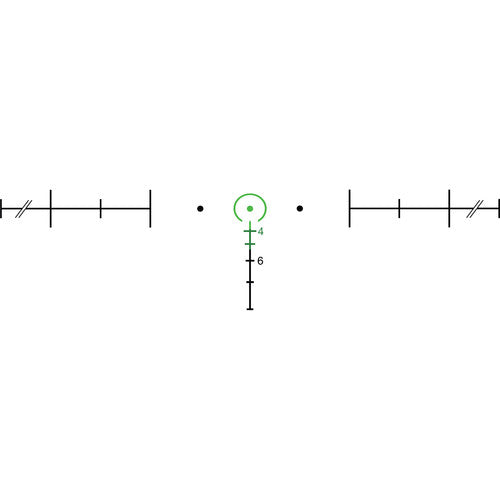

The TA31H-G model boasts a dual-illuminated green horseshoe/dot reticle, calibrated for .223/5.56 ammunition. Its innovative design incorporates fiber optics for daytime illumination and tritium for low-light conditions, ensuring optimal visibility without the need for batteries.
Constructed with durability in mind, this ACOG (Advanced Combat Optical Gunsight) scope weighs just 9.9 ounces and measures 5.8 inches in length[3][6]. It features a fixed parallax adjustment and offers a generous 1.5-inch eye relief, making it comfortable for extended use.
Ideal For: Military personnel, law enforcement officers, competitive shooters, and hunting enthusiasts seeking a reliable, compact, and versatile optic for their AR-style rifles or similar platforms.
Features:
-
DUAL ILLUMINATION SYSTEM: Utilizes fiber optics for daylight illumination and tritium for low-light conditions, ensuring clear reticle visibility without batteries.
-
RUGGED CONSTRUCTION: Built to withstand harsh environments and heavy recoil, making it suitable for combat and tactical situations.
-
PRECISE BALLISTIC RETICLE: Calibrated for .223/5.56 ammunition, providing accurate ranging and holdovers up to 800 meters.
-
COMPACT DESIGN: Lightweight at 9.9 oz and only 5.8" long, minimizing bulk on your rifle without compromising performance.
-
WIDE FIELD OF VIEW: Offers 36.8 feet at 100 yards, allowing for quick target acquisition and improved situational awareness.
-
EASY MOUNTING: Includes a Flattop TA-51 Adapter for seamless integration with AR-style platforms.
-
ALL-WEATHER PERFORMANCE: Fog-proof and waterproof design ensures reliability in various environmental conditions.
-
LIMITED LIFETIME WARRANTY: Backed by Trijicon's commitment to quality and customer satisfaction.
Specifications:
| Specification | Value |
|---|---|
| Model | TA31H-G |
| SKU | 100224 |
| Magnification | 4x |
| Objective Lens Diameter | 32mm |
| Reticle | Green .223 Horseshoe/Dot |
| Weight | 9.9 oz |
| Length | 5.8" |
| Field of View | 36.8 ft @ 100 yards |
| Eye Relief | 1.5" |
| Exit Pupil | 8.1 mm |
| Turret Adjustment | 2 clicks/inch @ 100 yards |
| Parallax Adjustment | Fixed |
| Illumination | Dual (Fiber optics & Tritium) |
| Finish | Black |
| Turret Rotation | Counter Clockwise (CCW) |
| UPC | 719307303027 |
What's Included:
- Trijicon ACOG 4x32 Scope
- Flattop TA-51 Adapter
- Lens Pen
- Lenspen
- LENSPEN
- Warranty Card
- Manual
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
