Description

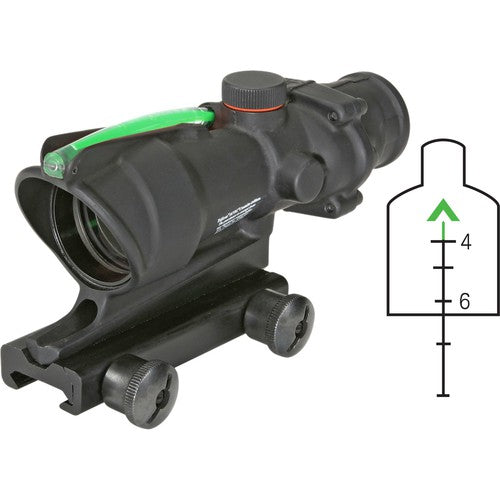

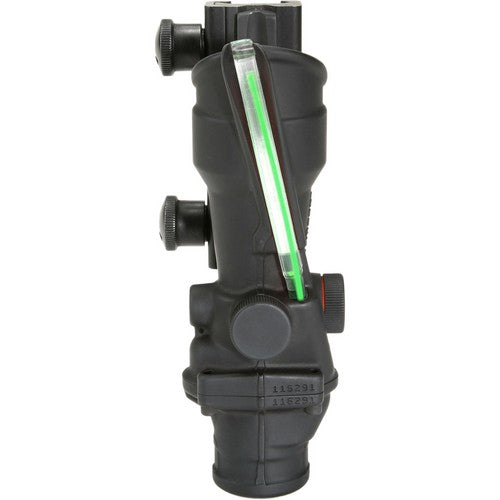

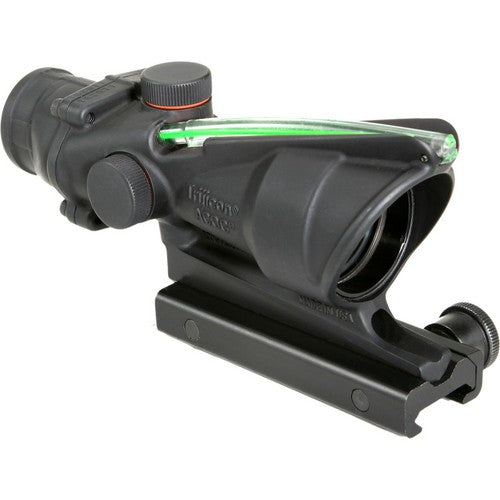

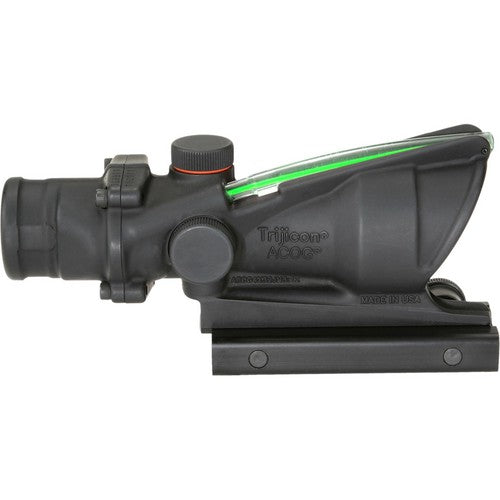

Trijicon ACOG 4x32 .223 Green Chevron TA31F-G is a high-performance, fixed-power riflescope designed for precision and rapid target acquisition. This compact optical sight features a dual-illuminated reticle system, combining fiber optics for daylight use and tritium for low-light conditions. The green chevron reticle is specifically calibrated for .223/5.56mm ammunition, offering bullet drop compensation out to 800 meters.
The ACOG (Advanced Combat Optical Gunsight) is constructed with a rugged aluminum alloy housing, ensuring durability in harsh environments. Its 4x magnification and 32mm objective lens provide an optimal balance between field of view and target clarity. The scope's "both eyes open" design enhances situational awareness, making it suitable for close-quarters combat and medium-range engagements.
Trijicon's innovative BAC (Bindon Aiming Concept) technology allows for rapid target acquisition and improved accuracy. The fixed parallax setting and simple zeroing process make this scope user-friendly for both experienced marksmen and novice shooters. With its compact size and lightweight design, the ACOG adds minimal bulk to your rifle setup.
Ideal For: Military and law enforcement personnel, competitive shooters, and civilian firearms enthusiasts seeking a reliable, combat-proven optic for their AR-15 or similar .223/5.56mm platform rifles.
Features:
- DUAL ILLUMINATION SYSTEM: Combines fiber optics for daylight brightness and tritium for low-light visibility, ensuring clear reticle illumination in all lighting conditions without the need for batteries.
- COMBAT-PROVEN DURABILITY: Constructed with a rugged aluminum alloy housing and waterproof to 100 meters, this scope withstands harsh environments and recoil from high-powered rifles.
- PRECISION OPTICS: Features superior quality glass lenses and a 4x fixed magnification, providing crystal-clear target image and a generous field of view of 7° (36.8 ft at 100 yards).
- RAPID TARGET ACQUISITION: Utilizes the Bindon Aiming Concept (BAC) for quick target engagement with both eyes open, enhancing situational awareness and accuracy in fast-paced scenarios.

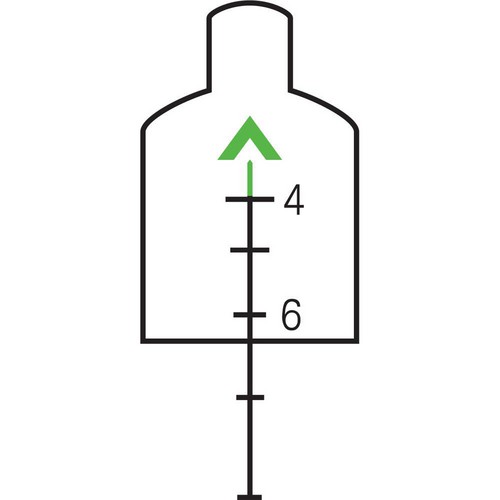

- CALIBRATED RETICLE: Green chevron reticle is specifically designed for .223/5.56mm ammunition, offering bullet drop compensation out to 800 meters for improved long-range accuracy.
- COMPACT AND LIGHTWEIGHT: Weighing only 9.9 oz without mount and measuring 5.8" in length, this scope adds minimal bulk to your rifle setup while providing maximum performance.
- EASY ADJUSTMENT: Features 2 clicks per inch at 100 yards turret adjustment, allowing for precise zeroing and on-the-fly corrections in the field.
- VERSATILE MOUNTING: Includes a TA51 Flattop Adapter for secure attachment to Picatinny rail systems, ensuring compatibility with a wide range of modern rifle platforms.
Specifications:
| Specification | Detail |
|---|---|
| Model | TA31F-G |
| Magnification | 4x |
| Objective Lens Diameter | 32mm |
| Reticle | Green .223 Chevron |
| Illumination | Dual (Fiber Optics & Tritium) |
| Weight | 9.9 oz (without mount) |
| Length | 5.8" |
| Field of View | 7° (36.8 ft @ 100 yards) |
| Eye Relief | 1.5" |
| Exit Pupil | 8.1 mm |
| Adjustment Click Value | 2 clicks/inch @ 100 yards |
| Waterproof | Up to 100 meters |
| Finish | Black |
| Mount | Includes TA51 Flattop Adapter |
| Parallax Setting | Fixed |
| UPC | 719307302945 |
| MPN | 100218 |
What's Included:
- Trijicon ACOG 4x32 Scope
- TA51 Flattop Adapter
- Scopecoat
- LENSPEN
- Lanyard Assembly for Adjuster Caps
- Trijicon Logo Sticker
- ACOG Manual
- Warranty Card
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
