Description

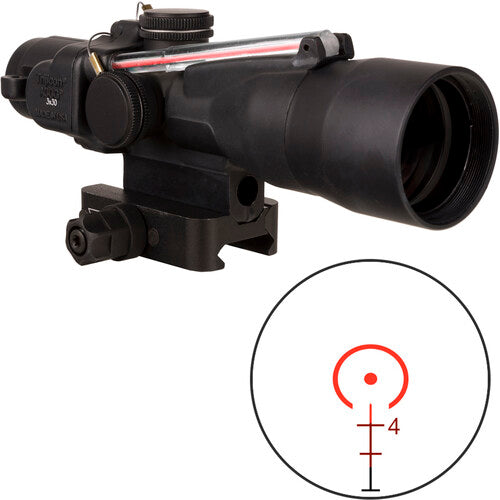

Trijicon ACOG 3x30 Riflescope combines 3x magnification with a 30mm objective lens, offering an efficient balance of target acquisition and situational awareness. The dual-illuminated red horseshoe/dot reticle is specifically designed for 5.56x45mm 62 gr. ammunition, ensuring precise shot placement under various lighting conditions. This riflescope is built for durability with a compact length of 6.1 inches and a weight of just 9.9 ounces, making it easy to maneuver even in tight spaces.
Featuring a generous 1.9-inch eye relief, the ACOG 3x30 allows for comfortable viewing and quick sight alignment. With .25 MOA click adjustments for precise zeroing and the Bindon Aiming Concept (BAC) that supports both-eyed shooting, this optic enhances your situational awareness. It comes with a flattop mount (TA60) for straightforward installation on Picatinny rails, making it compatible with a variety of firearms platforms.
Key Features:
- ADVANCED OPTICS: 3x magnification and 30mm objective lens provide a balanced view for target acquisition and awareness.
- DUAL ILLUMINATION: Battery-free illumination ensures a visible reticle in all lighting conditions, enhancing usability.
- RUGGED CONSTRUCTION: Compact and lightweight design withstands harsh environments and heavy recoil for lasting performance.
- PRECISION ADJUSTMENTS: .25 MOA click value allows for fine-tuning and maintaining zero for consistent accuracy.
- ENHANCED AWARENESS: Bindon Aiming Concept enables both-eyes-open shooting for improved target acquisition speed.
- GENEROUS EYE RELIEF: 1.9-inch eye relief provides comfort and quick alignment, ideal for high-stress situations.
- VERSATILE MOUNTING: Includes TA60 flattop mount for easy installation on Picatinny rails, compatible with different firearms.
- COMPLETE PACKAGE: Comes with ACOG Scopecoat, LENSPEN, Trijicon sticker, manual, and warranty card for immediate use.
Technical Specifications
| Specification | Details |
|---|---|
| SKU | TA33-C-400380 |
| UPC | 719307313866 |
| Item Condition | New |
| Magnification | 3x |
| Objective Diameter | 30mm |
| Scope Length | 6.1 inches |
| Scope Weight | 9.9 oz |
| Eye Relief | 1.9 inches |
| Field of View | 3.7° |
| Exit Pupil | .33 inch |
| Reticle | Dual Illuminated Red Horseshoe/Dot 5.56x45mm/62gr Ballistic |
| Reticle Position | 2nd Focal Plane |
| Turret Adjustment | 0.25 MOA per click |
| Turret Rotation | Clockwise (CW) |
| Illumination | Yes (Battery-free) |
| Finish | Black |
What's in the Box?
- ACOG 3x30 Riflescope
- Flattop Mount (TA60)
- ACOG Scopecoat (TA64)
- LENSPEN (TA56)
- Trijicon Logo Sticker
- ACOG Manual
- Warranty Card
Customer Reviews
"The clarity and durability are unmatched. Perfect for my needs!"
"The ACOG 3x30 has improved my target acquisition significantly. Highly recommend!"
"Compact and lightweight, it fits perfectly on my AR-15 without adding bulk."
FAQ
What is the effective range of the Trijicon ACOG 3x30? This riflescope is designed for effective use at medium ranges, typically up to 600 yards, depending on ammunition and environmental conditions. Its magnification and reticle calibration make it suitable for both close-quarters and longer shots.
How do I maintain the ACOG 3x30? Regular cleaning of the lenses with a microfiber cloth and keeping the scope protected with the included Scopecoat will help maintain performance. Check adjustments periodically, and ensure mounting hardware is secure after heavy use.
How does the ACOG 3x30 compare to other optics in its class? Unlike many traditional scopes, the battery-free illumination and compact design of the ACOG 3x30 set it apart. Its robust construction and dual-illumination reticle enhance usability in various lighting conditions, making it a preferred choice for many users.
Similar Models
Explore more from Trijicon with models like the ACOG 4x32 and the ACOG 1.5x16, both offering unique features for different shooting needs. Check out our full collection for a variety of optics tailored to enhance your shooting experience.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
