Description

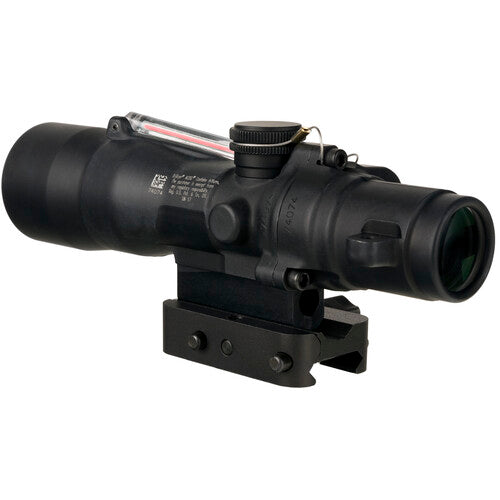

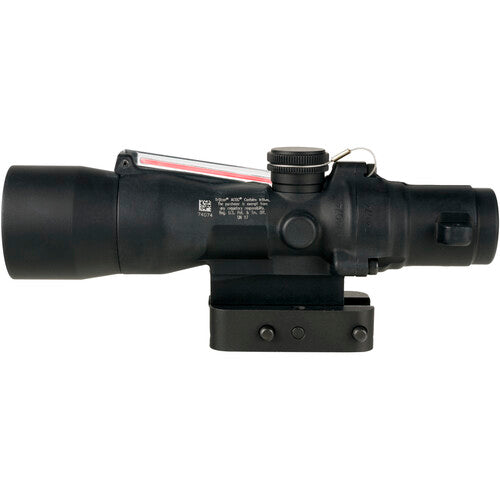

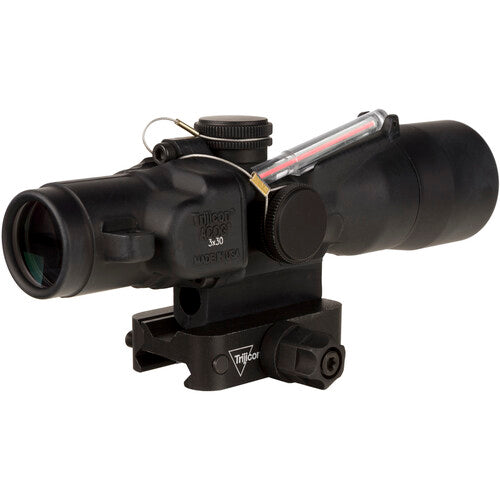

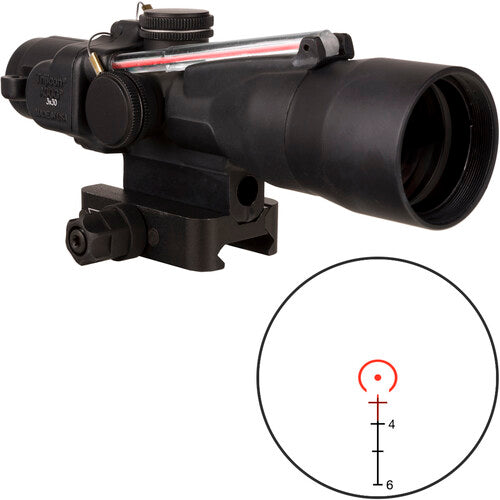

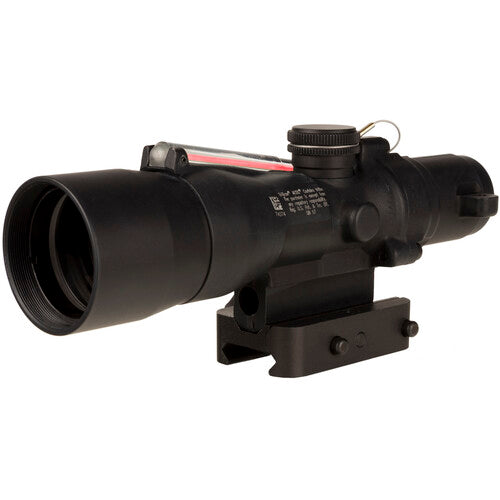

Trijicon ACOG 3x30 Dual Illum Red Horseshoe/Dot 7.62x39/123gr. Riflescope w/Q-LOC Mount TA33-C-400377 features a 3x magnification and a 30mm objective lens, delivering clear target acquisition across various ranges. The dual illumination system combines fiber optics and tritium, ensuring optimal visibility in any lighting condition, making it suitable for both daytime and low-light operations. Specifically calibrated for the 7.62x39mm cartridge with 123-grain ammunition, the ballistically matched reticle enhances accuracy with quick target acquisition.
Built with rugged 7075-T6 aircraft-grade aluminum, this ACOG is designed to withstand harsh environments. Weighing just 9.9 oz and measuring 6.1 inches in length, its compact design allows for improved maneuverability in tactical situations. The included Q-LOC mount enables rapid attachment and detachment to various firearms, making it versatile for different shooting scenarios. Whether for law enforcement, competitive shooting, or hunting, this riflescope provides durability and performance where it matters most.
Features – Key Benefits Bullets
- DUAL ILLUMINATION SYSTEM: Battery-free fiber optics and tritium provide automatic brightness adjustment for the reticle, ensuring clear visibility in any lighting condition.

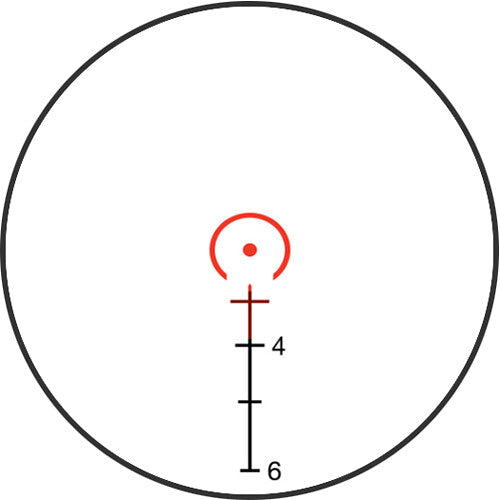

- BALLISTIC RETICLE: Specifically calibrated for 7.62x39mm 123gr ammunition, offering precise holdover points for improved long-range accuracy.
- RUGGED CONSTRUCTION: Forged 7075-T6 aircraft-grade aluminum housing provides exceptional durability and resistance to harsh environmental conditions.
- COMPACT DESIGN: Weighing just 9.9 oz and measuring 6.1 inches in length, this scope offers a lightweight and compact solution for improved maneuverability.
- QUICK-DETACH MOUNT: The included Q-LOC mount allows for rapid attachment and detachment, providing versatility across multiple firearm platforms.
- WIDE FIELD OF VIEW: 3.7° field of view at 100 yards enables quick target acquisition and improved situational awareness.
- WATERPROOF PERFORMANCE: Nitrogen-filled housing ensures fog-proof and waterproof operation in challenging environments.
- MULTI-COATED LENSES: Advanced lens coatings provide superior light transmission and clarity, enhancing overall optical performance.
Technical Specifications
| Specification | Detail |
|---|---|
| SKU / MPN | TA33-C-400377 |
| Magnification | 3x |
| Objective Lens Diameter | 30mm |
| Weight | 9.9 oz |
| Length | 6.1 inches |
| Eye Relief | 1.9 inches |
| Field of View | 3.7° |
| Reticle | Dual Illuminated Red Horseshoe/Dot |
| Reticle Position | Second Focal Plane |
| Turret Adjustment | 0.25 inch @ 100 yards |
| Exit Pupil | 0.33 inch |
| Illumination | Yes (Fiber Optic & Tritium) |
| Mount | Included Q-LOC Flattop Mount (TA60) |
| Turret Rotation | Clockwise (CW) |
What's in the Box?
- ACOG 3x30 Riflescope
- Flattop Mount (TA60)
- ACOG Scopecoat (TA64)
- LENSPEN (TA56)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Customer Reviews
“The clarity and durability of this ACOG are unmatched. Perfect for my tactical needs.”
“Quick target acquisition with the illuminated reticle. Really impressed with its performance.”
“Lightweight and easy to mount. A solid choice for any shooter.”
FAQ
What is the effective range of the Trijicon ACOG 3x30? The 3x magnification allows for effective shooting at distances up to 600 yards, making it suitable for tactical and competitive scenarios. Users often find its reticle provides quick and accurate aiming points for varied ranges.
How do I maintain the ACOG riflescope? Regular cleaning of the lenses with a microfiber cloth and ensuring the body is free from dirt and moisture will keep the scope in optimal condition. The rugged construction requires minimal maintenance, but check the mounting system periodically for secure attachment.
How does this ACOG compare to other Trijicon models? Compared to other Trijicon optics, the ACOG 3x30 offers a balance of compact size and effective magnification for close to mid-range shooting. Models with higher magnification may be better for long-distance precision, while this scope excels in versatility and quick target acquisition.
Similar Models
Looking for more options? Explore our complete range of Trijicon optics, including the Trijicon ACOG 4x32 for enhanced magnification and the Trijicon MRO for a reflex sight that provides rapid target acquisition in any environment. Discover the full collection tailored to meet your shooting needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
