Description

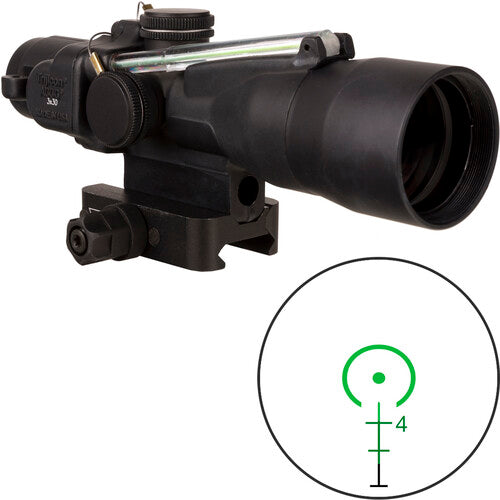

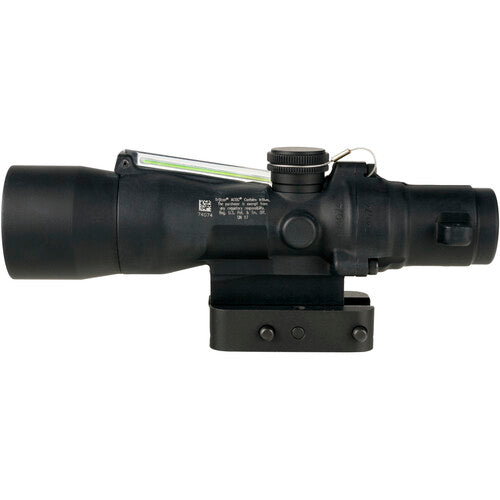

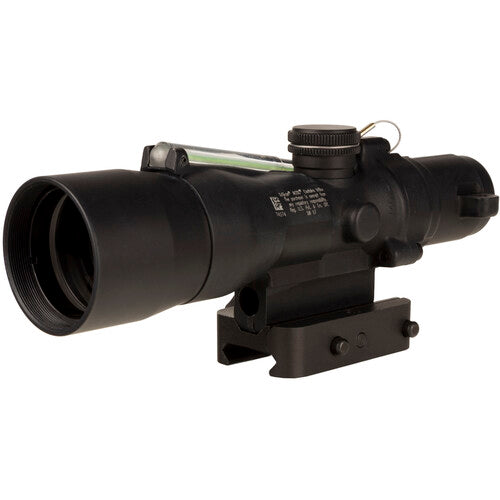

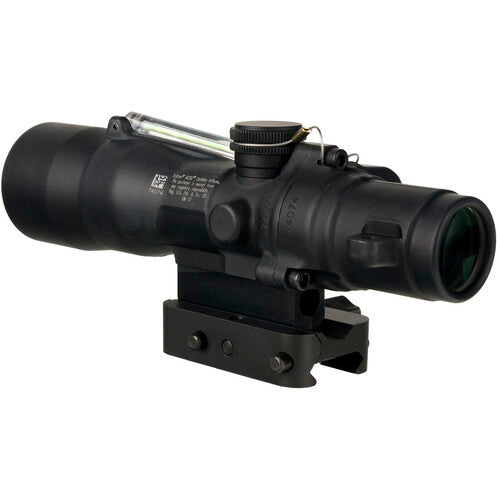

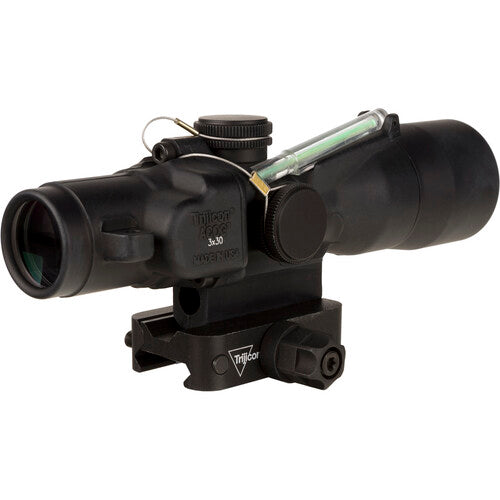

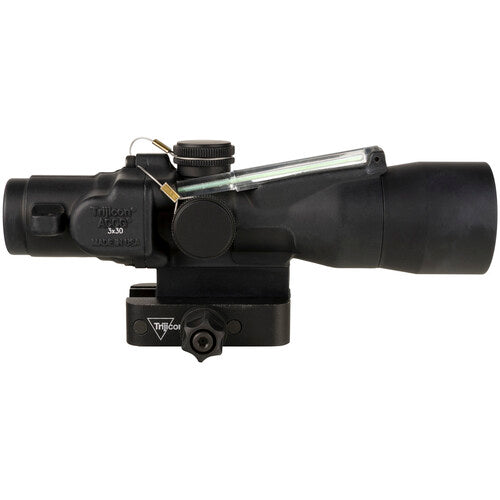

Trijicon ACOG 3x30 Dual Illum Green Horseshoe/Dot 5.56x45mm/62gr. Riflescope w/Q-LOC Mount TA33-C-400373 features a 3x magnification and 30mm objective lens, providing a clear and wide field of view for precision shooting. The dual illumination system uses both fiber optics and tritium, ensuring visibility of the reticle in varying light conditions. This ballistic riflescope is designed specifically for 5.56x45mm 62gr. ammunition, offering accurate holdovers and enhancing your long-range shooting capabilities.
Constructed to endure harsh environments and heavy recoil, the ACOG's rugged design ensures reliability in demanding situations. The included Q-LOC mount allows for quick attachment to Picatinny rails, making it versatile for different firearms. Weighing just 9.9 oz and measuring 6.1 inches in length, it balances performance and portability, ideal for military personnel, law enforcement, competitive shooters, and hunting enthusiasts.
Key Features:
- DUAL ILLUMINATION SYSTEM: Combines fiber optics for daylight brightness and tritium for low-light conditions, ensuring optimal reticle visibility in any environment.
- COMPACT DESIGN: Measuring just 6.1 inches in length and weighing 9.9 oz, this scope offers a perfect balance of performance and portability for improved maneuverability.
- DURABLE CONSTRUCTION: Built to military standards, the ACOG withstands extreme conditions, heavy recoil, and rough handling, ensuring long-lasting performance in the field.
- BALLISTIC RETICLE: Specially calibrated for 5.56x45mm 62gr. ammunition, providing accurate holdovers for enhanced long-range shooting capabilities.
- QUICK TARGET ACQUISITION: The 3x magnification and 3.7° field of view allow for rapid target engagement at various distances, making it ideal for both close-quarters and medium-range shooting.
- NO BATTERY REQUIRED: The self-luminous reticle eliminates the need for batteries, ensuring reliable operation without the worry of power failure.
- VERSATILE MOUNTING: Includes a Q-LOC mount for easy installation and removal on Picatinny rail systems, enhancing compatibility with various firearms.
- CLEAR OPTICS: Features high-quality, fully multi-coated lenses for exceptional light transmission and clarity, even in challenging lighting conditions.
Technical Specifications
| Specification | Detail |
|---|---|
| SKU/MPN | 400373 |
| UPC | 719307313798 |
| Magnification | 3x |
| Objective Lens Diameter | 30mm |
| Scope Length | 6.1 inches |
| Weight | 9.9 oz |
| Eye Relief | 1.9 inches |
| Exit Pupil | 0.33 inches |
| Field of View | 3.7° |

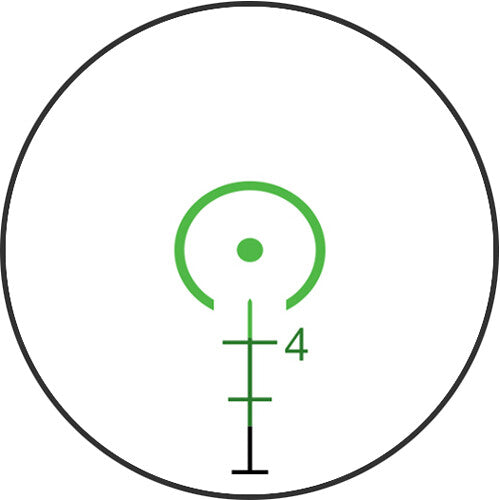

| Reticle | Dual Illum Green Horseshoe/Dot 5.56x45mm/62gr. Ballistic |
| Reticle Position | 2nd Focal Plane |
| Illumination | Yes (Fiber Optics and Tritium) |
| Turret Adjustment | 0.25 inch @ 100 yards |
| Finish | Black |
| Turret Rotation | Clockwise (CW) |
What's in the Box?
- ACOG Scope
- Flattop Mount (TA60)
- ACOG Scopecoat (TA64)
- LENSPEN (TA56)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Customer Reviews
“I love the clarity and brightness of this scope, even in low light. It's perfect for my tactical needs.”
“The mount is sturdy and easy to attach. This ACOG has improved my shooting accuracy significantly.”
“Lightweight yet durable. It's built to last through tough conditions.”
FAQ
Many customers ask about the performance of the ACOG 3x30 in various environments. This riflescope is specifically designed to function under extreme conditions, making it reliable for both tactical and recreational use. Its durable construction ensures it can withstand heavy recoil and rough handling without compromising its performance.
Concerned about maintenance? The ACOG requires minimal upkeep due to its rugged design and battery-free illumination system. Simply clean the lenses with a soft cloth, and you're good to go. Comparisons with other models often highlight the ACOG’s superior optical clarity and quick target acquisition capabilities, making it a top choice for serious shooters.
Another common question revolves around compatibility with firearms. The Q-LOC mount allows for easy attachment to Picatinny rails, enhancing its versatility across a variety of rifles. Whether you're using it for military, law enforcement, or hunting applications, this scope meets diverse needs effectively.
Similar Models
Looking for more options? Explore additional Trijicon models, like the Trijicon MRO for a red dot sight that offers rapid target acquisition and the Trijicon VCOG for more extended magnification capabilities. Check out our complete collection to find the perfect optic tailored to your needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
