Description

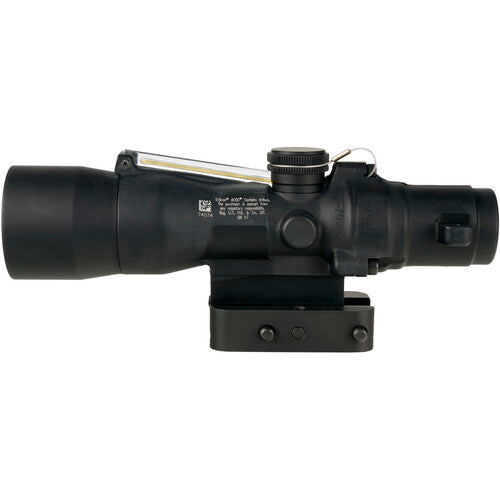

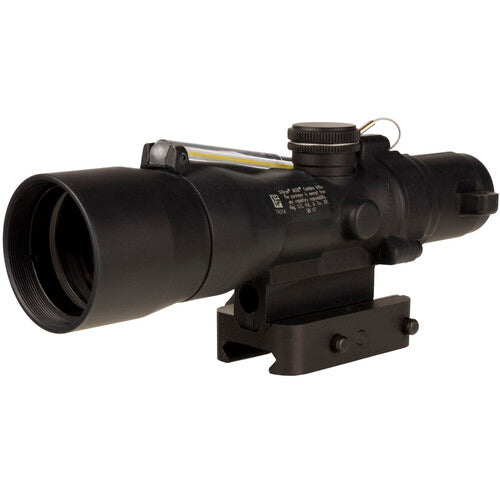

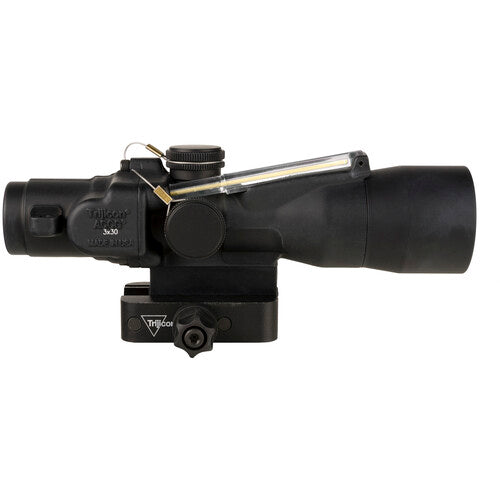

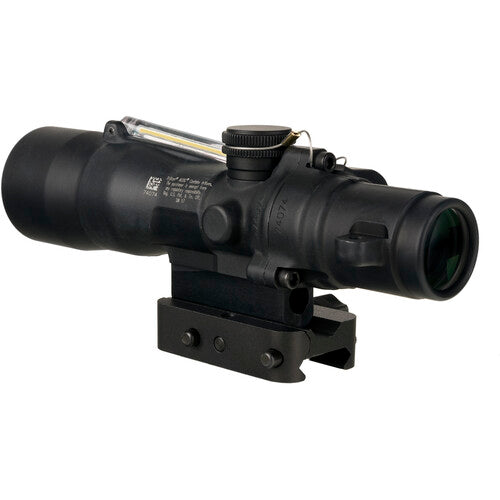

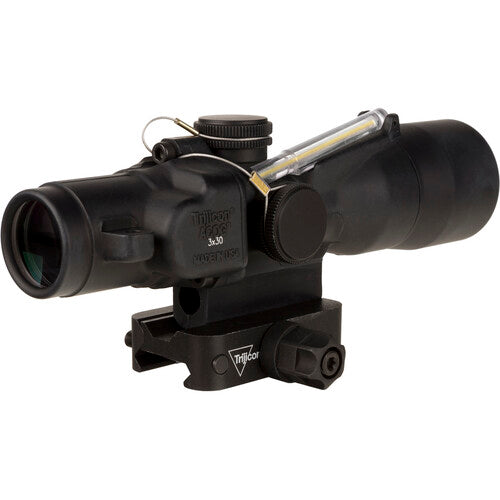

The Trijicon ACOG 3x30 Dual Illum Amber Chevron .223/62gr. Riflescope w/Q-LOC Mount TA33-C-400363 is a compact and versatile optic designed for precision shooting. This rugged scope features a 3x magnification and a 30mm objective lens, providing a clear and wide field of view of 3.7°. The dual illumination system ensures optimal visibility in various lighting conditions, making it suitable for both daytime and low-light scenarios.

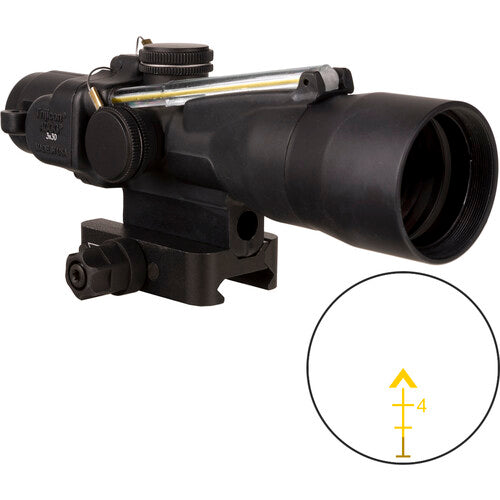

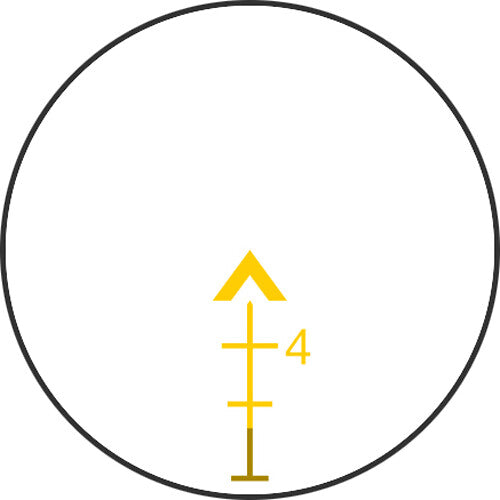

Engineered specifically for .223/62gr ammunition, this ACOG scope boasts an amber chevron ballistic reticle positioned in the second focal plane. This reticle design offers quick target acquisition and precise aiming points for different distances. The scope's durability is enhanced by its compact size, measuring just 6.1 inches in length and weighing a mere 9.9 ounces.
The Trijicon ACOG 3x30 comes equipped with the innovative Q-LOC mount, featuring Mil-Spec drop-test-rated 6061-T6 aluminum construction. This mount ensures a secure and stable attachment to your firearm, allowing for consistent performance even under harsh conditions. With its generous 1.9-inch eye relief, this scope provides comfortable viewing and quick target engagement.
Ideal For: Tactical shooters, law enforcement personnel, competitive marksmen, and hunting enthusiasts seeking a reliable and compact optic for their .223 caliber firearms.
Features:
-
DUAL ILLUMINATION SYSTEM: Provides clear reticle visibility in various lighting conditions, enhancing accuracy and target acquisition speed.
-
COMPACT DESIGN: Measuring 6.1 inches in length and weighing only 9.9 ounces, this scope offers superior portability without compromising on performance.
-
AMBER CHEVRON RETICLE: Specifically calibrated for .223/62gr ammunition, providing precise aiming points for improved long-range accuracy.
-
Q-LOC MOUNT: Mil-Spec drop-test-rated 6061-T6 aluminum construction ensures a secure and stable attachment to your firearm.
-
DURABLE CONSTRUCTION: Built to withstand harsh environments and heavy recoil, maintaining zero and optical clarity in challenging conditions.
-
GENEROUS EYE RELIEF: 1.9-inch eye relief allows for comfortable viewing and quick target engagement, even with varying shooting positions.
-
WIDE FIELD OF VIEW: 3.7° field of view at 3x magnification provides excellent situational awareness and target tracking capabilities.
-
VERSATILE APPLICATIONS: Suitable for tactical operations, competitive shooting, hunting, and self-defense scenarios, offering adaptability across various use cases.
Specifications:
| Specification | Detail |
|---|---|
| SKU / MPN | TA33-C-400363 / 400363 |
| Magnification | 3x |
| Objective Lens Diameter | 30mm |
| Scope Length | 6.1 inches |
| Scope Weight | 9.9 oz |
| Field of View | 3.7° |
| Eye Relief | 1.9 inches |
| Exit Pupil | 0.33 inches |
| Reticle | Amber Chevron .223/62gr. Ballistic Reticle |
| Reticle Position | 2nd Focal Plane |
| Illumination | Dual Illuminated |
| Turret Adjustment | 0.25 inch @ 100 yards |
| Turret Rotation | Clockwise (CW) |
| Finish | Black |
| Mount | Q-LOC Mount (TA60) |
What's Included:
- ACOG Scope
- Flattop Mount (TA60)
- ACOG Scopecoat (TA64)
- LENSPEN (TA56)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
