Description

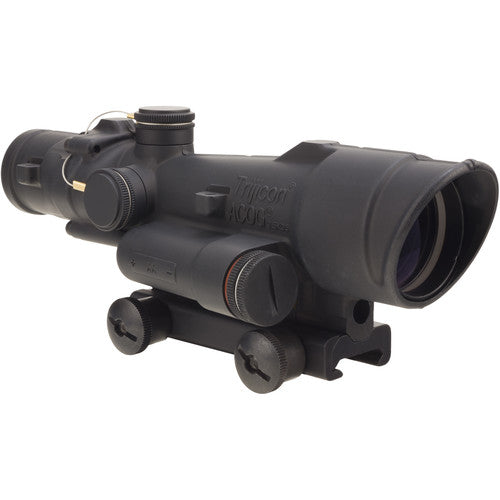

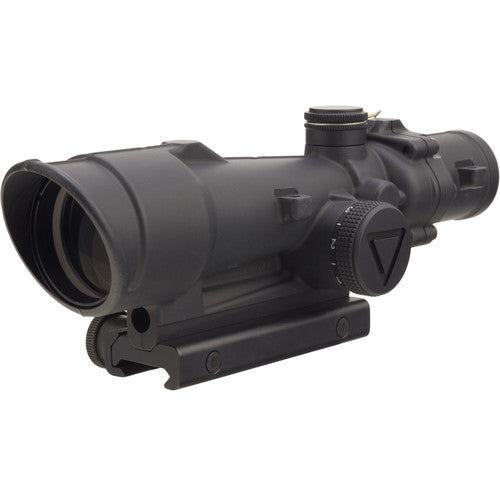

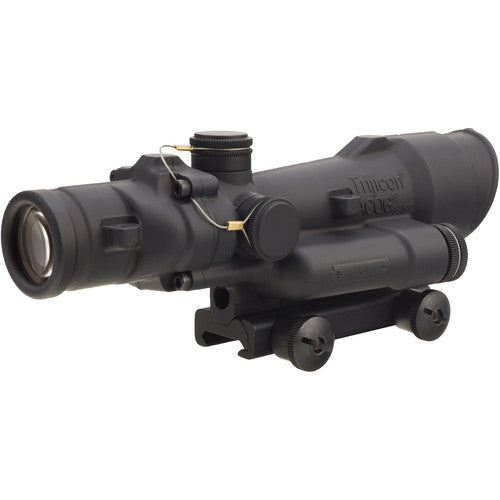

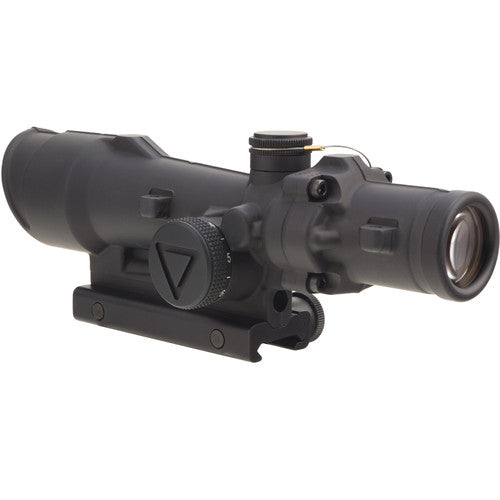

The Trijicon ACOG 3.5x35 Riflescope Red LED Illuminated .223 Horseshoe Reticle, w/Thumbscrew Mount TA110-D-100493 is a high-performance optical sight designed for precision shooting. This rugged riflescope features a 3.5x magnification and a 35mm objective lens, providing excellent clarity and a wide field of view of 28.9 feet at 100 yards. The red LED illuminated .223 horseshoe reticle offers six adjustable brightness levels with an "off" setting between each, allowing for optimal visibility in various lighting conditions.
Constructed from forged 7075-T6 aircraft-grade aluminum alloy, this ACOG (Advanced Combat Optical Gunsight) is built to withstand harsh environments and heavy recoil. It's waterproof up to 66 feet and filled with dry nitrogen to prevent fogging. The scope's compact design, measuring 8 inches in length and weighing just 16.8 ounces, makes it ideal for tactical operations where quick target acquisition is crucial.
The TA110-D-100493 model comes with a thumbscrew mount for easy installation and removal. It features a fixed parallax setting and .5 MOA click value turret adjustments for precise zeroing. With a generous 2.4-inch eye relief, this scope allows for comfortable shooting even with high-recoil firearms.
Ideal For: Military and law enforcement personnel, competitive shooters, and hunting enthusiasts seeking a durable, reliable, and high-performance riflescope for their .223/5.56 caliber firearms.
Features:
-
RUGGED CONSTRUCTION: Forged from a single piece of 7075-T6 aircraft-grade aluminum alloy, ensuring exceptional durability and resistance to heavy recoil and harsh conditions.
-
LED ILLUMINATION: Features a red LED illuminated .223 horseshoe reticle with six adjustable brightness levels and an "off" setting between each, powered by a single AA battery for over 12,000 continuous hours of use on setting #4.
-
OPTICAL CLARITY: 3.5x magnification combined with a 35mm objective lens provides a clear, bright image and a wide 28.9-foot field of view at 100 yards, enhancing situational awareness and target acquisition.
-
WATERPROOF AND FOGPROOF: Exceeds military standards for waterproof performance, submersible up to 66 feet, and filled with dry nitrogen to eliminate internal fogging in any environment.
-
COMPACT AND LIGHTWEIGHT: Measures 8 inches in length and weighs only 16.8 ounces, making it an ideal choice for tactical operations where weight and size are critical factors.
-
PRECISE ADJUSTMENTS: Features .5 MOA click value turret adjustments for accurate zeroing and a fixed parallax setting for consistent performance across varying distances.
-
COMFORTABLE SHOOTING: Offers a generous 2.4-inch eye relief, allowing for comfortable and safe use even with high-recoil firearms.
-
EASY MOUNTING: Includes a thumbscrew mount for quick and tool-free installation and removal, enhancing versatility and ease of use in the field.
Specifications:
| Specification | Detail |
|---|---|
| SKU/MPN | TA110-D-100493 |
| Magnification | 3.5x |
| Objective Lens Diameter | 35mm |
| Reticle | Red .223 Horseshoe Reticle |
| Illumination | LED, 6 brightness levels |
| Length | 8" |
| Weight | 16.8 oz |
| Field of View | 28.9' at 100 yds |
| Eye Relief | 2.4" |
| Exit Pupil | 10.0 mm |
| Turret Adjustment | .5 MOA per click |
| Parallax Setting | Fixed |
| Waterproof Depth | Up to 66' |
| Housing Material | 7075-T6 aluminum alloy |
| Finish | Black |
| Mount | Thumbscrew |
| Battery Type | AA |
| UPC | 719307320970 |
What's Included:
- Trijicon ACOG 3.5x35 Riflescope
- Thumbscrew Mount
- Scopecoat
- Manual
- Warranty Card
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
