Description

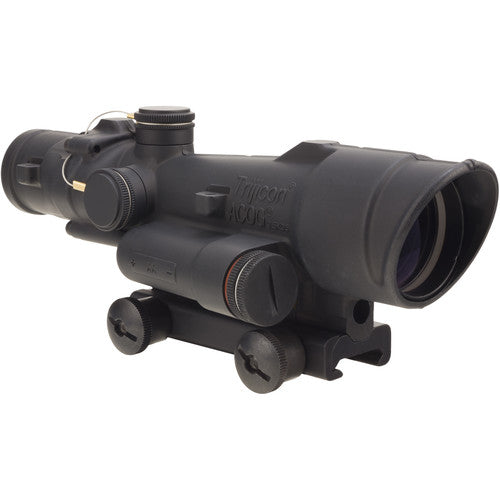

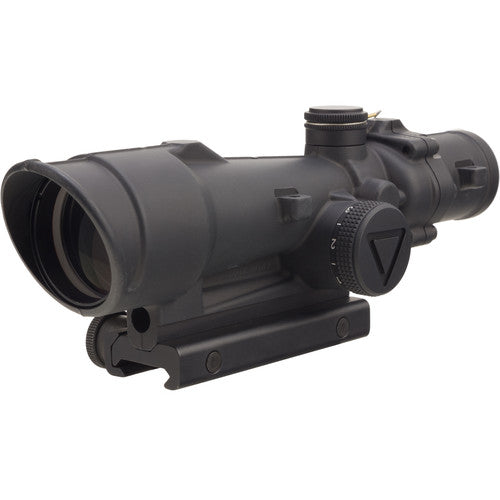

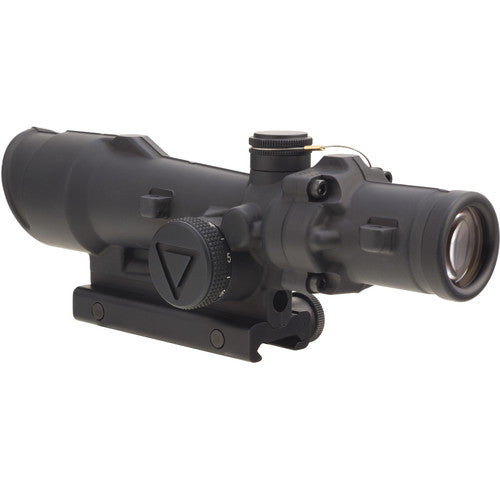

Trijicon ACOG 3.5x35 Riflescope features a 3.5x magnification and a 35mm objective lens, delivering exceptional clarity and a wide field of view of 28.9 feet at 100 yards. The red LED-illuminated chevron reticle is specifically designed for .223/5.56 ammunition, allowing for quick target acquisition in various lighting conditions. Built with a rugged 7075-T6 aluminum alloy housing, this scope is engineered to endure harsh environments and heavy recoil, making it suitable for both tactical and hunting applications.
Powered by a single AA battery, the ACOG boasts an impressive battery life of over 12,000 hours on setting #4, ensuring reliable performance during extended use. Its compact design measures 8 inches in length and weighs only 16.8 ounces, providing ease of maneuverability. The included thumbscrew mount (TA51) facilitates quick attachment to Picatinny rails, while its nitrogen-filled housing guarantees fog-proof and waterproof performance, meeting military standards for durability.
Key Features:
- RUGGED CONSTRUCTION: Built with 7075-T6 aircraft-grade aluminum, ensuring durability against harsh conditions and heavy recoil.
- LED ILLUMINATION: Six adjustable brightness settings optimize reticle visibility in various lighting, enhancing target acquisition.
- LONG BATTERY LIFE: Single AA battery provides over 12,000 hours of use on setting #4, ensuring reliability during long shooting sessions.

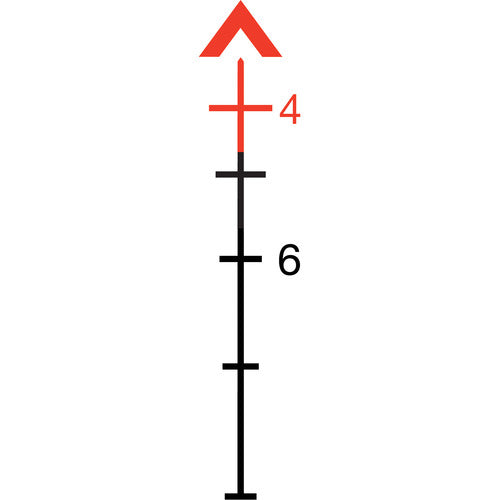

- PRECISE RETICLE: Red chevron reticle calibrated for .223/5.56 ammunition allows for fast target acquisition and rangefinding.
- CLEAR OPTICS: Multi-coated lenses maximize light transmission for a clear and distortion-free sight picture.
- COMPACT DESIGN: At 8 inches long and 16.8 ounces light, this scope offers improved maneuverability for tactical applications.
- EASY MOUNTING: Comes with a thumbscrew mount (TA51) for quick, secure attachment to Picatinny rails without tools.
- WATERPROOF AND FOGPROOF: Nitrogen-filled housing ensures fog-free operation and exceeds military standards for waterproofing.
Technical Specifications
| Specification | Detail |
|---|---|
| SKU | TA110-C-100491 |
| Magnification | 3.5x |
| Objective Lens Diameter | 35mm |
| Reticle | Red .223 Chevron |
| Illumination | LED, 6 brightness settings |
| Battery Type | Single AA |
| Battery Life | 12,000+ hours (setting #4) |
| Length | 8 inches |
| Weight | 16.8 oz (without mount) |
| Housing Material | Forged 7075-T6 aluminum alloy |
| Field of View | 28.9 feet @ 100 yards |
| Eye Relief | 2.4 inches |
| Exit Pupil | 10.0 mm |
| Adjustment | 0.5 MOA per click |
| Turret Rotation | Counter Clockwise (CCW) |
| Parallax | Fixed |
| Finish | Matte Black |
| Mount | Thumbscrew Flattop Adapter (TA51) |
| Waterproof | Yes |
| Fogproof | Yes (Nitrogen filled) |
| MPN | 100491 |
| UPC | 719307320956 |
What's Included:
- Trijicon ACOG 3.5x35 Riflescope
- Thumbscrew Flattop Adapter (TA51)
- Scopecoat
- Manual
- Warranty Card
Customer Reviews
"This ACOG is incredibly reliable and performs well in all conditions. The clarity is outstanding!"
"I love the compact design. It fits perfectly on my rifle and is very easy to use."
"The battery life is impressive. I rarely have to change it, even after long outings!"
FAQ
What type of battery does the Trijicon ACOG use, and how long does it last? The ACOG uses a single AA battery, providing over 12,000 hours of continuous operation on setting #4. This extended battery life ensures reliable performance during long shooting sessions without the need for frequent replacements.
How does the red chevron reticle perform in different lighting conditions? The ACOG features six adjustable brightness settings, allowing you to optimize reticle visibility based on the ambient light. This flexibility makes it easy to use in bright daylight or low-light conditions.
Is this scope suitable for other calibers besides .223/5.56? While the reticle is specifically calibrated for .223/5.56 ammunition, the ACOG can be used with other calibers as well. However, for the best accuracy, it's recommended to use the reticle with the caliber it was designed for.
Similar Models
Looking for more options? Explore our extensive Trijicon lineup, which includes models like the Trijicon ACOG 4x32 for enhanced magnification and the Trijicon RMR Type 2 for versatile red dot sighting. Discover our full collection to find the perfect optics tailored to your shooting needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
