Description

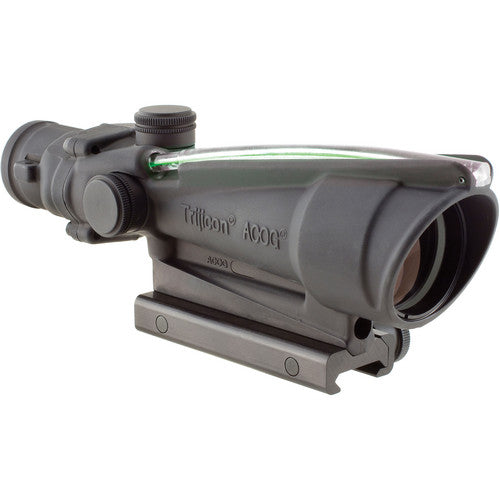

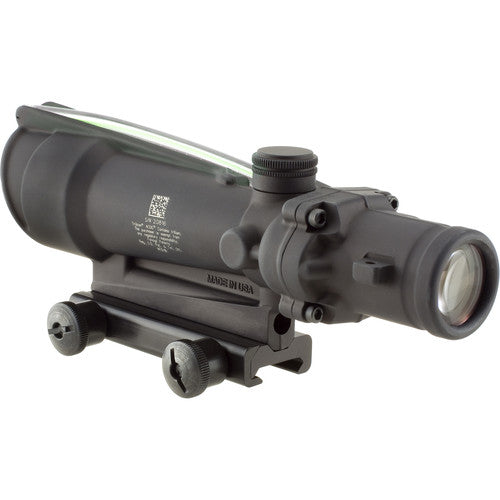

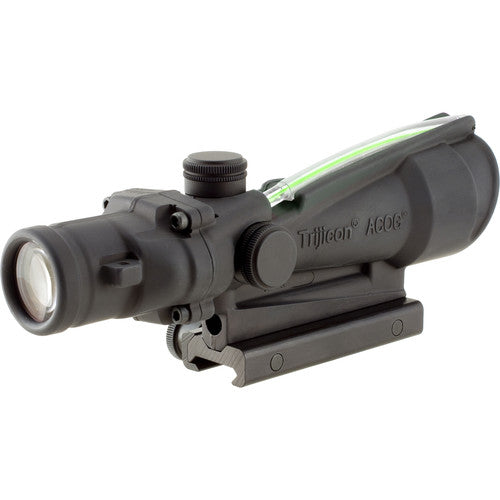

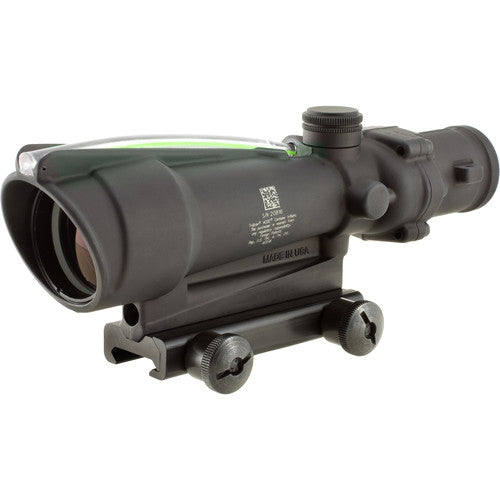

The Trijicon ACOG 3.5x35 Riflescope .308 Green Crosshair TA11J-308G 100161 is a high-performance optical sight designed for precision shooting and tactical applications. This advanced combat optical gunsight offers a fixed 3.5x magnification and a 35mm objective lens, providing an optimal balance between field of view and target acquisition. The illuminated green crosshair reticle is specifically calibrated for 7.62mm (.308 cal) flat-top rifles, offering ranging capabilities up to 1200 meters.
Engineered for durability and reliability, the ACOG 3.5x35 features a rugged forged aluminum housing that's both waterproof and shockproof. The dual illumination system utilizes both fiber optics and tritium, ensuring the reticle remains visible in any lighting condition without the need for batteries. This makes it an ideal choice for both military and law enforcement personnel, as well as civilian shooters seeking a dependable optic for their .308 rifle.
The Trijicon ACOG 3.5x35 Riflescope .308 Green Crosshair TA11J-308G 100161 comes equipped with a TA51 mount, allowing for easy installation on Picatinny rail systems. With its compact 8-inch length and lightweight 14 oz design, this ACOG provides enhanced accuracy without significantly impacting the rifle's balance or handling characteristics.
Ideal For: Military and law enforcement operations, competitive shooting, hunting, and tactical applications requiring quick target acquisition and precise shot placement at medium to long ranges.
Features:
-
DUAL ILLUMINATION SYSTEM: Combines fiber optics and tritium for a self-illuminated reticle that automatically adjusts brightness based on ambient light conditions, ensuring optimal visibility without batteries.
-

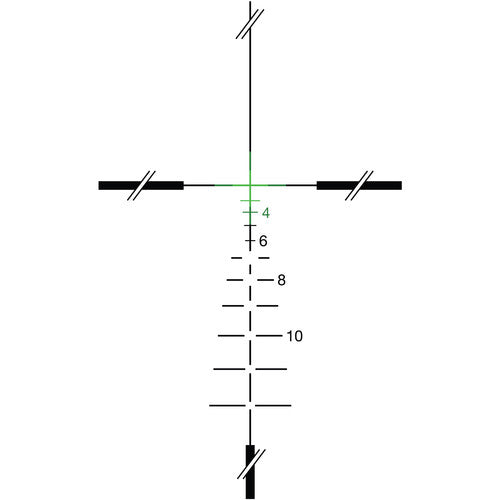

BALLISTIC COMPENSATING RETICLE: Green crosshair reticle specifically calibrated for 7.62mm (.308 cal) ammunition, providing accurate holdovers up to 1200 meters for improved long-range accuracy.
-
RUGGED CONSTRUCTION: Forged aluminum housing offers exceptional durability, with waterproof and shockproof performance to withstand harsh environments and heavy recoil.
-
FIXED MAGNIFICATION: 3.5x magnification provides an ideal balance between field of view and target detail, suitable for both close-quarters engagements and medium-range precision shooting.
-
COMPACT AND LIGHTWEIGHT: Measuring just 8 inches in length and weighing 14 oz, this ACOG adds minimal bulk to your rifle setup while enhancing accuracy and target acquisition speed.
-
WIDE FIELD OF VIEW: Offers a generous 28.9 ft field of view at 100 yards, allowing for improved situational awareness and faster target transitions.
-
FULLY MULTI-COATED OPTICS: Advanced lens coatings maximize light transmission and minimize glare, resulting in a bright, clear sight picture even in challenging lighting conditions.
-
INCLUDED ACCESSORIES: Comes with a TA51 mount for easy installation on Picatinny rail systems and a protective polymer hard case for secure storage and transport.
Specifications:
| Specification | Value |
|---|---|
| SKU/MPN | 100161 |
| Magnification | 3.5x (Fixed) |
| Objective Lens Diameter | 35mm |
| Reticle | Illuminated Green Crosshair (.308 BDC) |
| Eye Relief | 2.4 inches |
| Exit Pupil | 10mm |
| Field of View | 28.9 ft @ 100 yards |
| Length | 8 inches |
| Weight | 14 oz |
| Housing Material | Forged Aluminum |
| Waterproof | Yes |
| Shockproof | Yes |
| Fogproof | Yes |
| Illumination Type | Fiber Optics and Tritium |
| Adjustment Click Value | 1/3 MOA |
| Mount Type | TA51 (Included) |
| Parallax Setting | Fixed |
| Country of Origin | USA |
| UPC | 719307302785 |
What's Included:
- Trijicon ACOG 3.5x35 Riflescope
- TA51 Mount
- Protective Polymer Hard Case
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
