Description

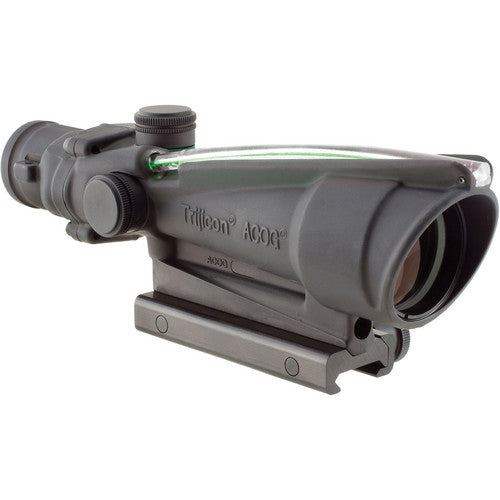

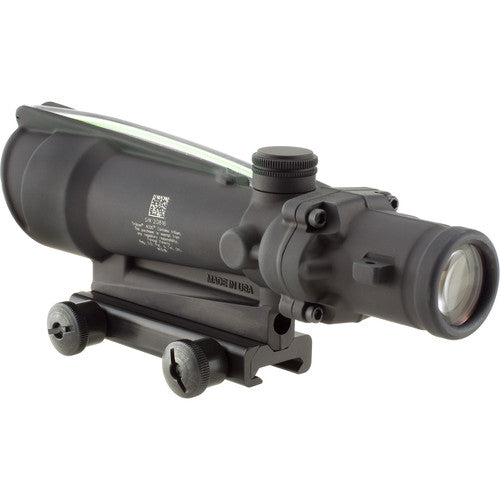

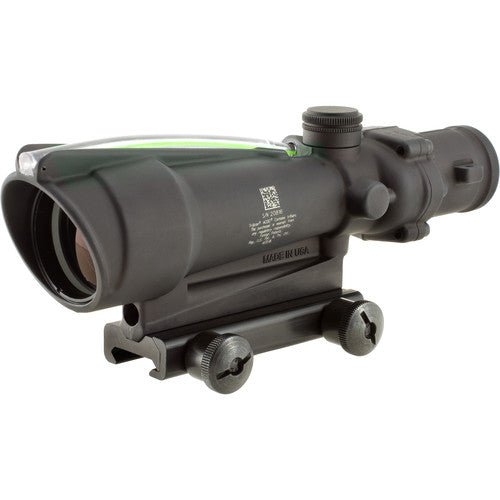

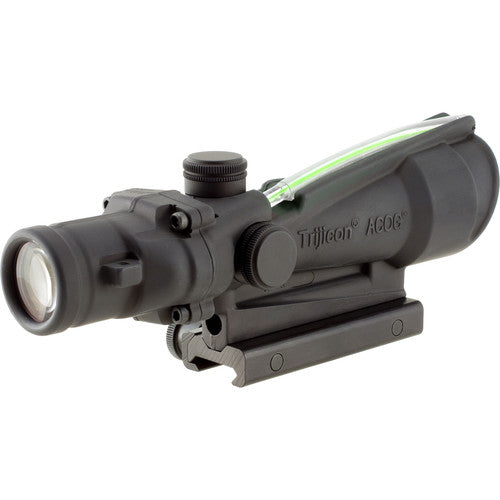

Trijicon ACOG 3.5x35 Riflescope .223 Green Horseshoe/Dot TA11H-G 100156 is a premium optical solution designed for precision shooting and tactical applications. This advanced combat optical gunsight offers a fixed 3.5x magnification, providing an ideal balance between close-quarter engagement and medium-range target acquisition. The 35mm objective lens ensures optimal light transmission, resulting in a bright and clear sight picture even in challenging lighting conditions.

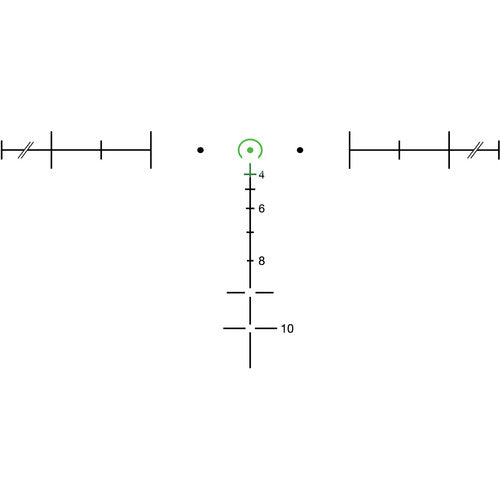

The TA11H-G model features a unique .223 Green Horseshoe/Dot reticle, specifically calibrated for .223 ammunition. This innovative reticle design combines a horseshoe-shaped outer ring with a central aiming dot, offering rapid target acquisition and precise shot placement. The illuminated reticle utilizes Trijicon's renowned fiber optics and tritium-based technology, ensuring visibility in all lighting conditions without the need for batteries.
Constructed with durability in mind, the Trijicon ACOG 3.5x35 Riflescope boasts a rugged aluminum housing that can withstand the harshest environments. Its compact 8-inch length and lightweight 14 oz design make it an excellent choice for operators who prioritize maneuverability without compromising on optical performance. The fixed parallax setting and generous 2.4-inch eye relief contribute to the scope's user-friendly nature, allowing for quick and consistent sight alignment.
Ideal For: Law enforcement professionals, military personnel, competitive shooters, and civilian firearm enthusiasts seeking a reliable, high-performance optic for their .223 caliber rifles. The Trijicon ACOG 3.5x35 Riflescope excels in both tactical scenarios and long-range precision shooting, making it a versatile choice for various applications.
Features:
- ADVANCED OPTICS: 3.5x fixed magnification with a 35mm objective lens for superior light gathering and image clarity.
- INNOVATIVE RETICLE: .223 Green Horseshoe/Dot reticle provides rapid target acquisition and precise aiming in various lighting conditions.
- ILLUMINATION TECHNOLOGY: Utilizes fiber optics for daytime illumination and tritium for low-light situations, ensuring 24/7 reticle visibility without batteries.
- RUGGED CONSTRUCTION: Forged aluminum housing offers exceptional durability and weather resistance for reliable performance in harsh environments.
- COMPACT DESIGN: 8-inch length and 14 oz weight provide a lightweight, maneuverable optic solution without sacrificing optical quality.
- WIDE FIELD OF VIEW: 28.9 feet at 100 yards allows for improved situational awareness and target tracking.
- EASY ADJUSTMENT: 3 clicks per inch at 100 yards turret adjustment for precise zeroing and on-the-fly corrections.
- GENEROUS EYE RELIEF: 2.4-inch eye relief ensures comfortable shooting and quick target acquisition, even with heavy recoiling firearms.
Specifications:
| Specification | Detail |
|---|---|
| Model | TA11H-G |
| SKU | 100156 |
| Magnification | 3.5x |
| Objective Lens Diameter | 35mm |
| Reticle | .223 Green Horseshoe/Dot |
| Illumination | Fiber optics and tritium |
| Length | 8 inches |
| Weight | 14 oz |
| Eye Relief | 2.4 inches |
| Field of View | 28.9 feet @ 100 yards |
| Exit Pupil | 10.0 mm |
| Turret Adjustment | 3 clicks/inch @ 100 yards |
| Parallax Setting | Fixed |
| Housing Material | Forged aluminum |
| Finish | Black |
| UPC | 719307303454 |
What's Included:
- Trijicon ACOG 3.5x35 Riflescope
- TA51 Mount
- Lens Pen
- LENSPEN
- Warranty Card
- Manual
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
