Description

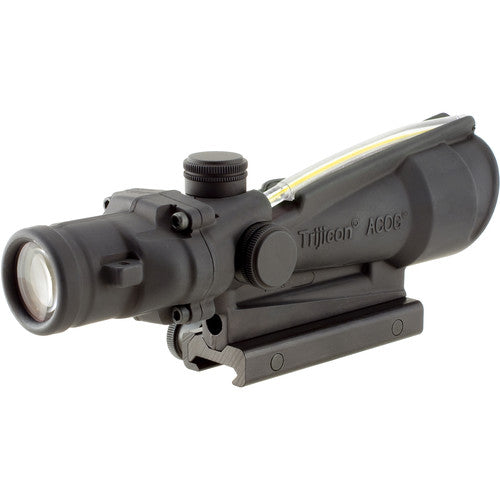

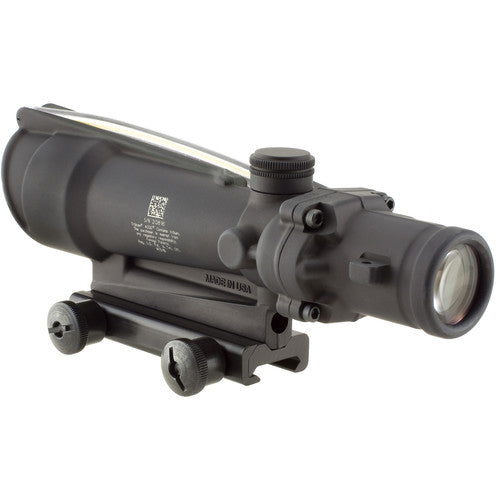

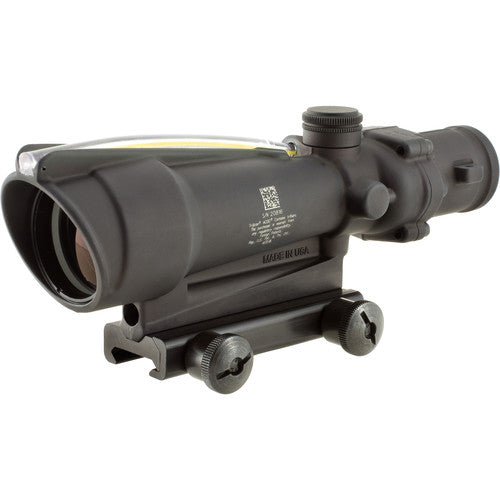

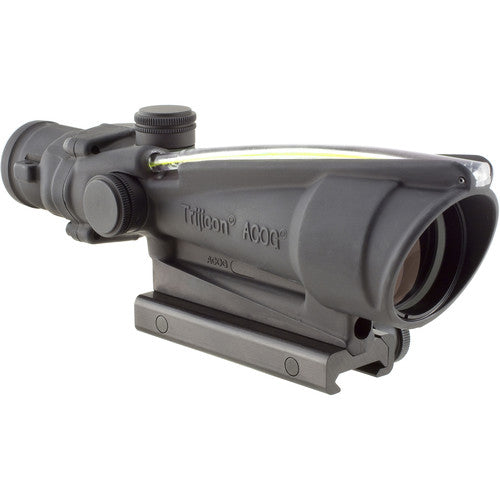

The Trijicon ACOG 3.5x35 Riflescope .223 Amber Chevron TA11F-A 100146 is engineered for precision and performance. With a fixed magnification of 3.5x and a 35mm objective lens, this riflescope offers a clear, bright field of view, even in low light conditions. The illuminated amber chevron reticle is designed for use with .223 caliber rifles, ensuring accurate targeting up to 800 meters.
The Trijicon ACOG 3.5x35 Riflescope features a durable, military-grade aluminum alloy housing that is fog, water, and shock-resistant, making it ideal for the most demanding environments. The multi-coated lenses enhance light transmission and reduce glare, providing crisp images in various lighting conditions. With an eye relief of 2.39 inches and a field of view of 28.9 feet at 100 yards, this scope ensures comfort and situational awareness during extended use.
This riflescope includes a thumbscrew flattop adapter, a scopecoat, a lenspen, and a lanyard assembly for adjuster caps, along with a Trijicon logo sticker, ACOG BAC manual, and warranty card. SKU: 100146.
Ideal For: Hunting, Tactical Shooting, Competitive Shooting
Features:
- DURABLE CONSTRUCTION: Built from military-grade aluminum alloy for maximum resilience against harsh conditions.

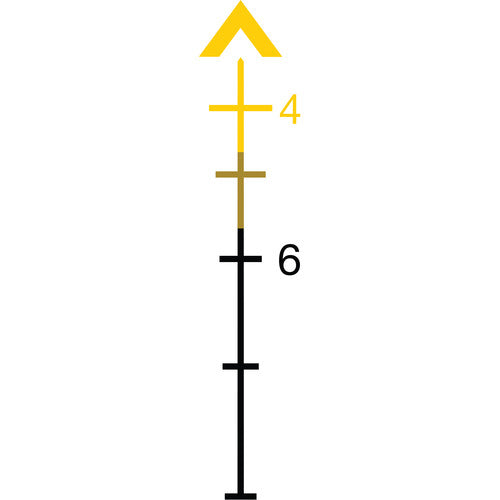

- PRECISE RETICLE: Illuminated amber chevron reticle designed for rapid target acquisition and precise aim up to 800 meters.
- MULTI-COATED LENSES: Anti-reflective coatings on all air-to-glass surfaces ensure superior clarity and light transmission.
- FIXED MAGNIFICATION: Reliable 3.5x magnification with a 35mm objective lens that enhances target sighting.
- WEATHER RESISTANT: Fully fog-proof, waterproof, and shock-resistant to withstand all weather conditions.
- WIDE FIELD OF VIEW: Offers a field of view of 28.9 feet at 100 yards for better situational awareness.
- EASY MOUNTING: Includes a thumbscrew flattop adapter for easy attachment to your rifle.
- COMPLETE ACCESSORY PACKAGE: Comes with scopecoat, lenspen, lanyard assembly for adjuster caps, Trijicon logo sticker, ACOG BAC manual, and warranty card.
Specifications:
| Item | Specification |
|---|---|
| Item Condition | New |
| Scope Weight | 14 oz |
| Scope Length | 8 inches |
| Magnification Range | 3.5x |
| Objective Diameter | 35 mm |
| Turret Adjustment (Click Value) | 3 clicks/inch @ 100 yards |
| Parallax Adjustment | Fixed |
| Reticle Details | .223 Amber Chevron |
| Field of View | 28.9 feet @ 100 yards |
| Exit Pupil | 10 mm |
| Eye Relief | 2.39 inches |
| Illuminated Reticle | Yes |
| Scope Finish | Black |
| Product Type | Riflescope |
| UPC | 719307301320 |
| MPN | 100146 |
What's Included:
- Thumbscrew flattop adapter
- Scopecoat
- Lenspen
- Lanyard assembly for adjuster caps
- Trijicon logo sticker
- ACOG BAC manual
- Warranty card
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
