Description

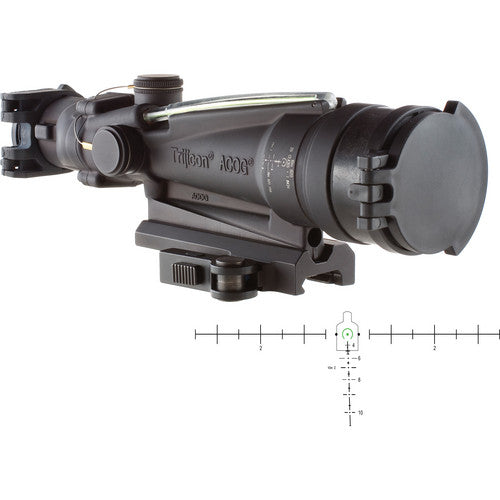

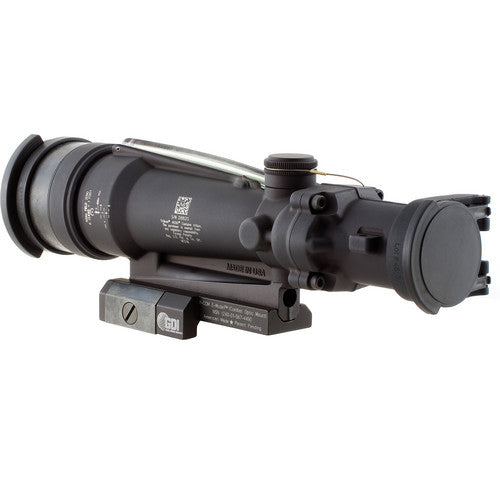

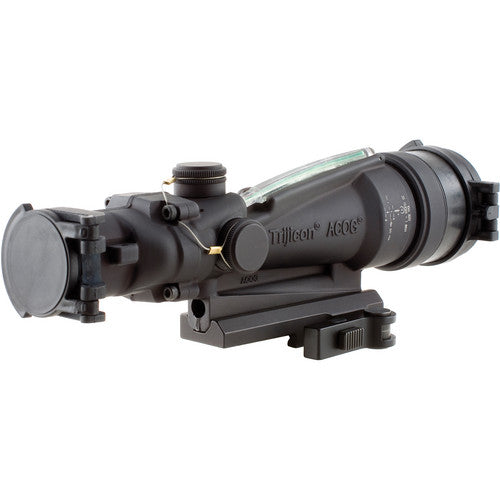

Trijicon ACOG 3.5x35 Machine Gun Optic Riflescope Matte Black TA11MGO-M249 100168 is a high-performance optical sight designed specifically for machine guns, particularly the M249 SAW. This rugged and reliable scope offers a 3.5x magnification with a 35mm objective lens, providing an excellent balance of field of view and target acquisition capabilities.
The TA11MGO-M249 features Trijicon's renowned dual-illumination system, combining fiber optics and tritium to provide a clear, bright reticle in any lighting condition. The green horseshoe reticle with a 2 MOA center dot is specially calibrated for the M249's ballistics, offering quick and accurate target engagement at various distances.
Built to withstand the harshest combat conditions, this ACOG scope boasts a matte black finish and aircraft-grade aluminum housing. Its compact design, measuring 8.7 inches in length and weighing just 14 ounces, ensures it doesn't add significant bulk to the weapon system.
Ideal For: Military personnel, law enforcement agencies, and civilian shooters looking for a durable, combat-proven optic for their M249 SAW or similar machine guns. It's particularly suited for scenarios requiring rapid target acquisition and engagement at medium ranges.
Features:
-
DUAL ILLUMINATION SYSTEM: Combines fiber optics for daylight brightness and tritium for low-light conditions, ensuring a visible reticle in any environment.
-

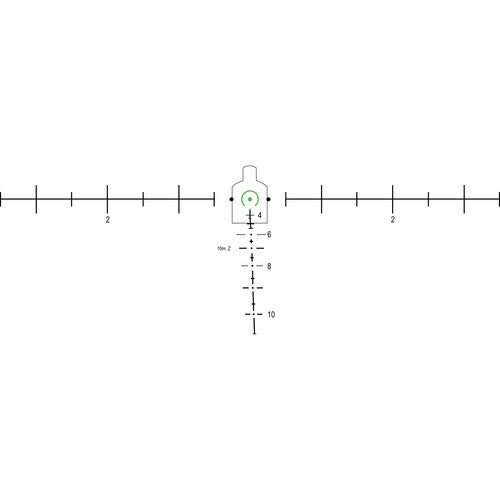

BALLISTIC RETICLE: Green horseshoe with 2 MOA center dot, specifically calibrated for M249 ballistics, allowing for quick and accurate target engagement at various distances.
-
RUGGED CONSTRUCTION: Aircraft-grade aluminum housing with a matte black finish, designed to withstand harsh combat conditions and heavy recoil.
-
COMPACT DESIGN: Measures 8.7 inches in length and weighs only 14 ounces, minimizing impact on weapon handling and mobility.
-
FIXED PARALLAX: Set for 100 yards, reducing the need for adjustments and simplifying use in high-stress situations.
-
WIDE FIELD OF VIEW: Offers 28.9 feet at 100 yards, enhancing situational awareness and target acquisition speed.
-
PRECISE ADJUSTMENTS: Features 3 clicks per inch turret adjustment, allowing for fine-tuning of point of impact
-
GENEROUS EYE RELIEF: 2.39 inches of eye relief provides comfort and flexibility in mounting options, especially important for machine gun applications.
Specifications:
Specification | Detail |
---|---|
SKU/MPN | 100168 |
UPC | 719307304482 |
Magnification | 3.5x |
Objective Lens Diameter | 35mm |
Scope Weight | 14 oz |
Scope Length | 8.7" |
Field of View | 28.9 ft @ 100 yards |
Eye Relief | 2.39" |
Exit Pupil | 10.0 mm |
Reticle | Green Horseshoe 2 MOA Dot M249 Ballistic Drop |
Illumination | Dual (Fiber Optic & Tritium) |
Parallax Setting | Fixed @ 100 yards |
Turret Adjustment | 3 clicks/inch |
Turret Rotation | Counter Clockwise (CCW) |
Finish | Matte Black |
Housing Material | Aircraft-grade Aluminum |
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
