Description

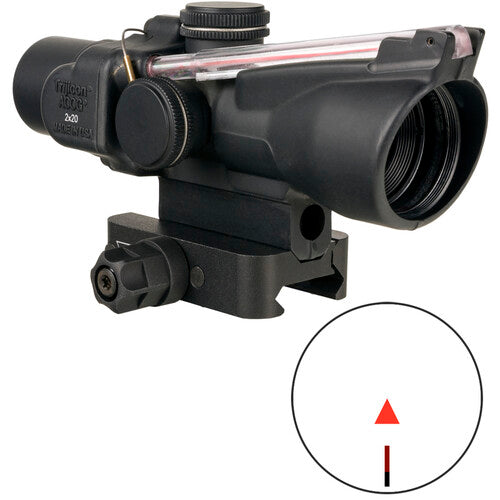

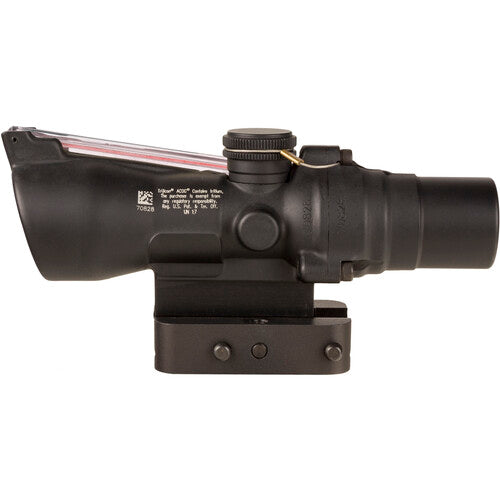

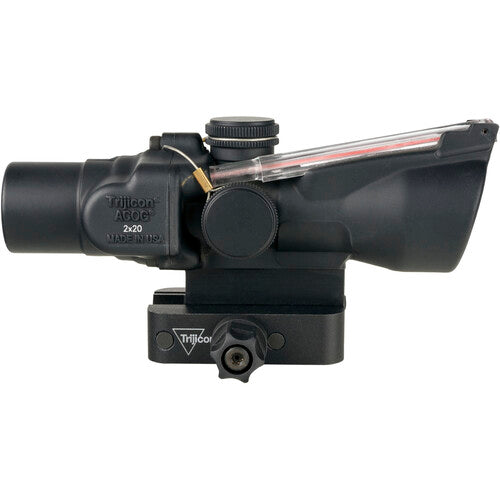

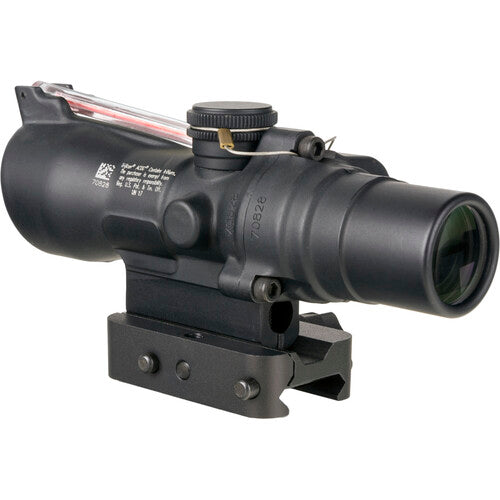

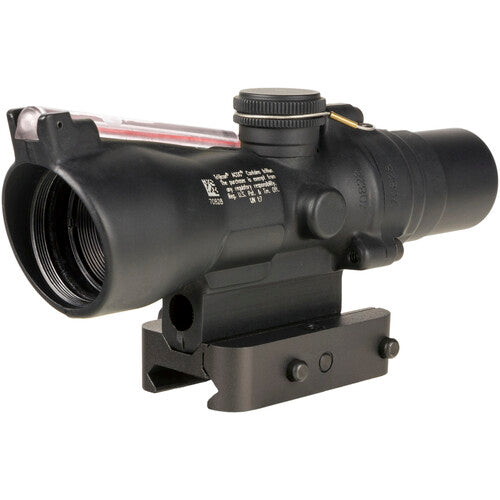

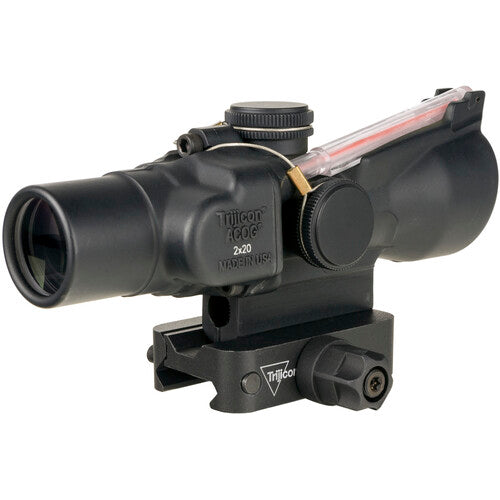

The Trijicon ACOG 2x20 Dual Illum Red 9.2 MOA Triangle Riflescope w/Q-LOC Mount TA47-C-400342 is a compact and versatile optic designed for enhanced target acquisition and precision shooting. This rugged riflescope features a fixed 2x magnification, making it ideal for close to medium-range engagements. The dual illumination system ensures clear visibility of the 9.2 MOA triangle reticle in various lighting conditions, from bright daylight to low-light scenarios.
With its lightweight design, weighing only 6.4 oz without the mount, this ACOG scope is perfect for maintaining maneuverability without compromising on performance. The 20mm objective lens provides a generous 29.31 ft field of view at 100 yards, allowing for quick target acquisition and situational awareness. The fixed parallax adjustment and 2.1" eye relief contribute to the scope's user-friendly nature, reducing fatigue during extended use.
The Trijicon ACOG 2x20 comes equipped with the innovative Q-LOC mount, ensuring a secure and stable attachment to your firearm. This feature allows for quick installation and removal while maintaining zero. The scope's durability and reliability make it suitable for both tactical operations and recreational shooting.
Ideal For: Law enforcement, military personnel, competitive shooters, and firearm enthusiasts seeking a compact, reliable, and high-performance optic for their rifles or submachine guns.
Features:
-
DUAL ILLUMINATION SYSTEM: Provides a clear, bright reticle in any lighting condition, enhancing target acquisition and accuracy.
-
COMPACT DESIGN: Lightweight at 6.4 oz (without mount) and measuring only 5.3" in length, perfect for firearms with limited rail space.
-
FIXED 2X MAGNIFICATION: Offers enhanced target detection up to 200 meters while maintaining a wide field of view for situational awareness.
-
Q-LOC MOUNT: Innovative mounting system allows for quick, tool-less installation and removal while maintaining zero.
-
DURABLE CONSTRUCTION: Built to withstand harsh environments and recoil, ensuring reliability in demanding situations.
-
GENEROUS EYE RELIEF: 2.1" eye relief reduces fatigue during extended use and accommodates various shooting positions.
-
PRECISE ADJUSTMENTS: 2 clicks per inch turret adjustment for fine-tuning your point of impact.
-
VERSATILE APPLICATION: Suitable for a wide range of firearms, including rifles, carbines, and submachine guns.
Specifications:
| Specification | Detail |
|---|---|
| SKU/MPN | TA47-C-400342 |
| UPC | 719307313941 |
| Magnification | 2x |
| Objective Lens Diameter | 20mm |

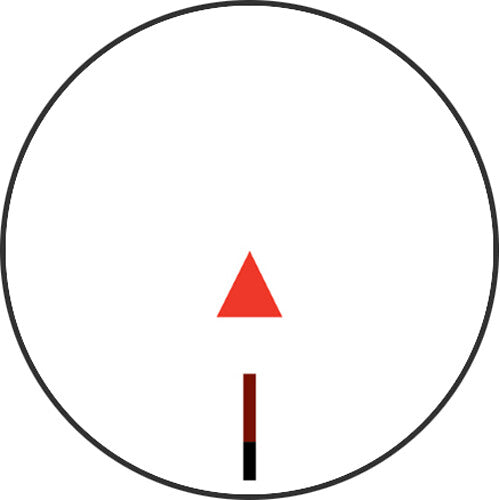

| Reticle | Red 9.2 MOA Triangle |
| Illumination | Dual Illuminated |
| Weight (without mount) | 6.4 oz |
| Length (without mount) | 5.3" |
| Field of View | 29.31 ft @ 100 yd |
| Eye Relief | 2.1" |
| Exit Pupil | 10.0 mm |
| Parallax Adjustment | Fixed |
| Turret Adjustment | 2 clicks/in |
| Mount | Trijicon Q-LOC™ Technology |
What's Included:
- Trijicon ACOG 2x20 Riflescope
- Q-LOC Mount
- Lens Covers
- User Manual
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
