Description

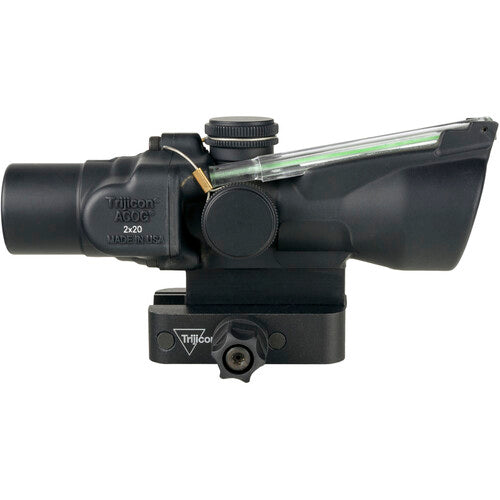

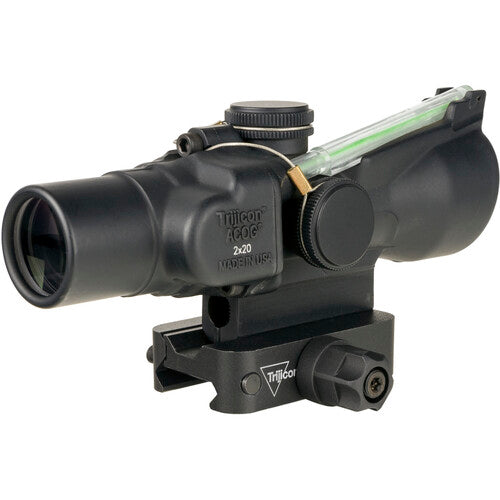

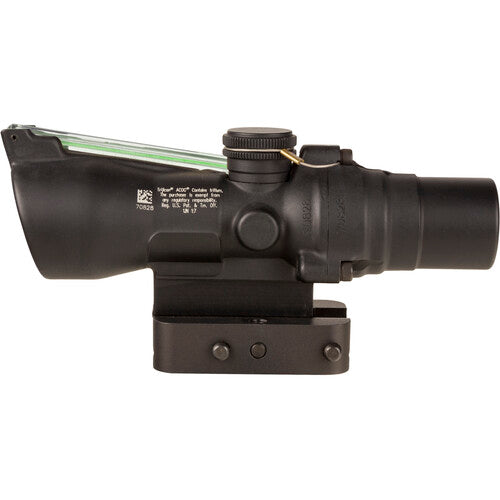

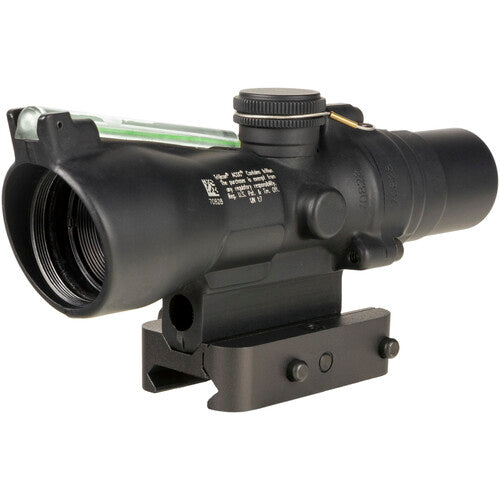

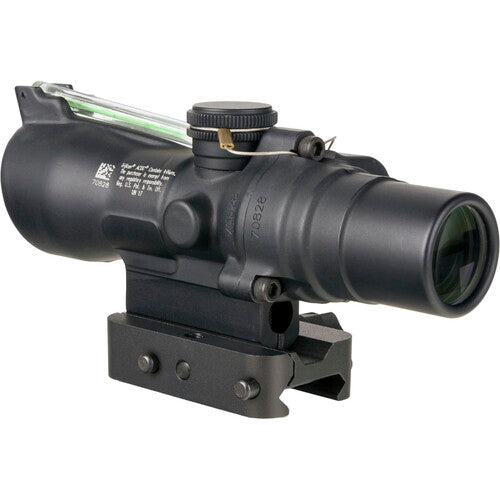

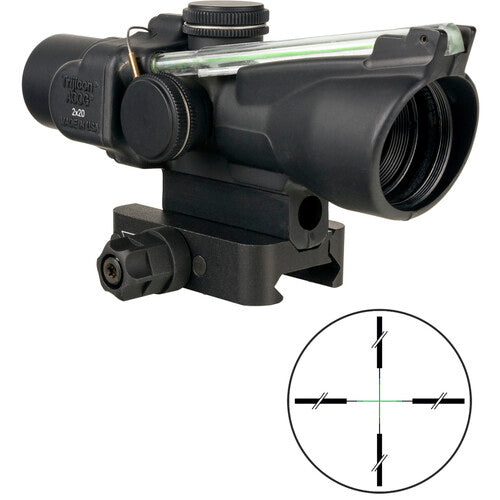

Trijicon ACOG 2x20 Compact Riflescope delivers reliable performance for fast-paced shooting scenarios. Designed specifically for close-quarters engagements, it features a fixed 2x magnification that allows for quick target acquisition. The illuminated green crosshair reticle, powered by tritium and fiber optics, ensures excellent visibility in varying light conditions without needing batteries. This makes it an ideal choice for tactical applications, law enforcement, and competitive shooting.
Constructed from rugged aluminum, this riflescope withstands harsh environments and heavy recoil, making it suitable for compact firearms such as submachine guns. Weighing only 6.4 ounces and measuring 5.3 inches long, it is an excellent option for users seeking a lightweight and versatile optic. With precise turret adjustments and exceptional clarity from multi-coated lenses, the Trijicon ACOG 2x20 is built for accuracy and performance in the field.
Key Features:
- FIXED MAGNIFICATION: 2x magnification for enhanced target detection and identification in various conditions.
- DUAL ILLUMINATION: Green crosshair reticle illuminated by tritium and fiber optics, ensuring visibility from dusk till dawn.
- ROBUST CONSTRUCTION: Forged aluminum housing for outstanding durability and resistance to harsh environments.
- COMPACT DESIGN: Weighing only 6.4 oz and measuring 5.3 inches, ideal for firearms with limited mounting space.
- PRECISION ADJUSTMENTS: Fixed parallax adjustment and 2 clicks per inch turret adjustment for pin-point accuracy.
- EXCEPTIONAL CLARITY: Multi-coated lenses enhance light transmission, providing minimal distortion for clear images.
- BOTH EYES OPEN SHOOTING: Bindon Aiming Concept (BAC) enhances situational awareness for quicker target acquisition.
- WATERPROOF AND FOG-PROOF: Nitrogen-filled to prevent fogging, it performs well in extreme temperatures.
Technical Specifications
| Specification | Details |
|---|---|
| SKU | TA47-C-400341 |
| Item Condition | New |
| Scope Weight | 6.4 oz (without mount) |
| Scope Length | 5.3" (without mount) |
| Magnification Range | 2x |
| Scope Objective Diameter | 20mm |
| Turret Adjustment | 2 clicks/in |
| Parallax Adjustment | Fixed |

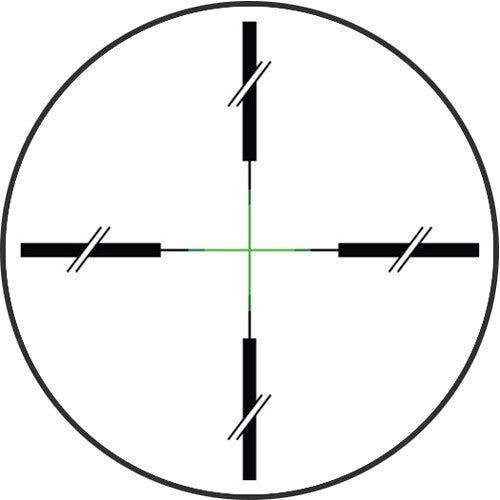

| Reticle Details | Green Crosshair |
| Field of View | 29.31 ft @ 100 yds |
| Exit Pupil | 10.0 mm |
| Eye Relief | 2.1" |
| Illuminated Reticle | Yes |
| Product Type | Riflescopes |
| UPC | 719307313934 |
| MPN | 400341 |
What’s in the Box?
- Trijicon ACOG 2x20 Compact Riflescope
- Lenspen
- Trijicon Logo Sticker
- Manual
- Warranty Card
Customer Reviews
“The clarity of this scope is fantastic, I can easily spot targets at dusk!”
“Perfect for my H&K, the compact size is a bonus for tight spaces.”
“Durable and reliable; this is my go-to optic for competitions!”
FAQ
How does the dual illumination feature work?
The dual illumination system uses both tritium and fiber optics, allowing for a bright reticle in any light condition without battery dependency. This ensures you can always see your target, whether in bright sunlight or low-light settings.
Can I use this for long-range shooting?
While the Trijicon ACOG 2x20 is optimized for close to mid-range shooting, its clarity and accuracy can still serve you well in longer engagements. However, for extensive distances, consider scopes with higher magnification.
Is this scope waterproof?
Yes! The Trijicon ACOG 2x20 is waterproof and nitrogen-filled, preventing fogging and ensuring performance under wet conditions.
Similar Models
Looking for the perfect companion to your shooting adventures? Discover our extensive Trijicon lineup, including models like the Trijicon AccuPoint for exceptional versatility and the Trijicon RMR for compact reflex sights. Explore our full collection for exceptional optics tailored to your needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
