Description

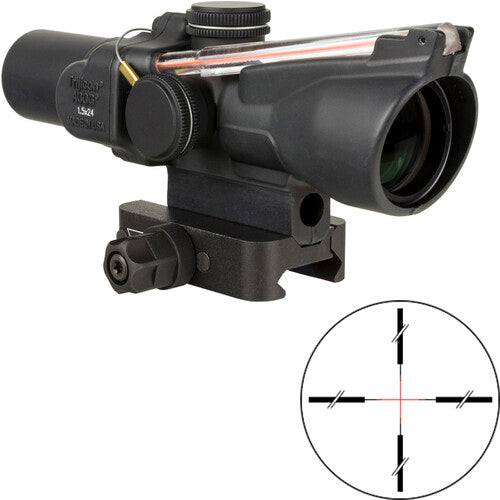

The Trijicon ACOG 1.5x24 Dual Illum Red Crosshair Compact Riflescope w/Q-LOC Mount TA45-C-400337 is a high-performance optical sight designed for maximum versatility and reliability in various combat and tactical situations. This compact model offers a battery-free dual illuminated reticle pattern that works effectively in any lighting conditions, providing users with a clear sight picture at all times[1].
With its 1.5x magnification and 24mm objective lens, this ACOG scope delivers a wide field of view of 25.6 feet at 100 yards, allowing for quick target acquisition and enhanced situational awareness. The generous 3.6-inch eye relief and large 16mm exit pupil provide comfortable viewing and flexibility in eye positioning, making it ideal for rapid engagement scenarios[1][5].

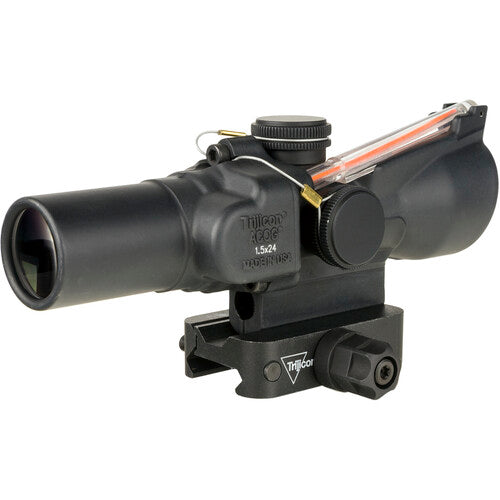

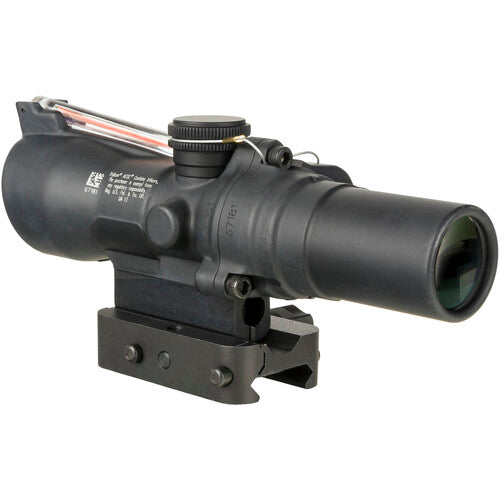

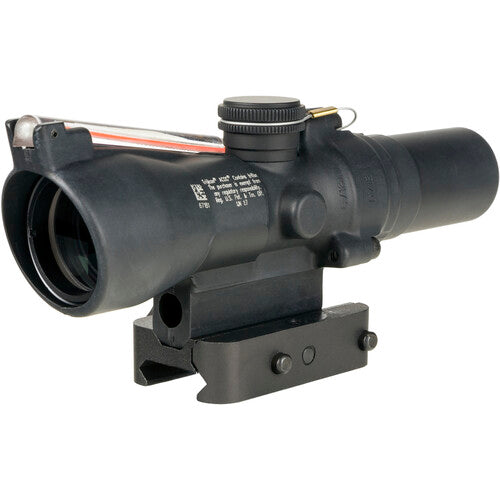

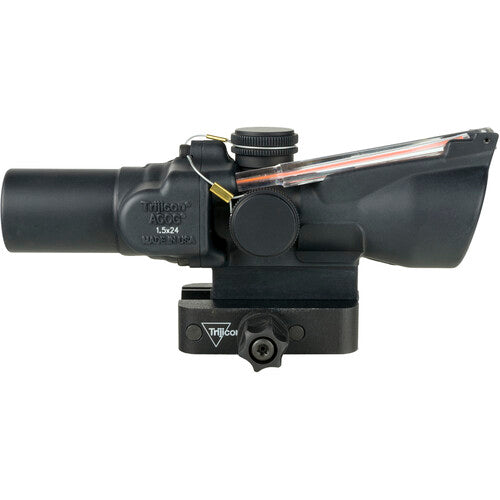

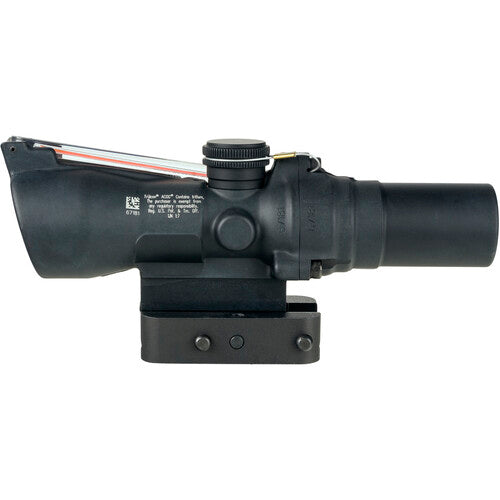

The Trijicon Compact ACOG Mount with Q-LOC™ Technology is a standout feature of this model. Crafted from Mil-Spec drop test rated 6061-T6 aluminum, this innovative mounting system allows for fast, one-handed, tool-less installation. The spring-loaded design ensures constant retention and maintains zero even if the knobs are not fully tightened, offering superior return-to-zero performance[1][5].
Ideal For: Military personnel, law enforcement officers, competitive shooters, and civilian firearm enthusiasts seeking a rugged, reliable, and compact optical sight for their rifles.
Features:
-
DUAL ILLUMINATION SYSTEM: Battery-free tritium/fiber optic illuminated reticle automatically adjusts brightness based on available light, ensuring optimal visibility in all conditions[1].
-
COMPACT DESIGN: Lightweight at 6.3 ounces (without mount) and measuring only 5.8 inches in length, this scope is perfect for maintaining weapon balance and maneuverability[1].
-
DURABLE CONSTRUCTION: Fixed-power design with minimal moving parts creates an extremely rugged and nearly indestructible sighting system, built to withstand harsh environments[1].
-
Q-LOC MOUNT TECHNOLOGY: Proprietary spring-loaded attachment mechanism allows for quick, one-handed mounting and removal without the need for re-zeroing, enhancing operational flexibility[5].
-
ENHANCED OPTICAL CLARITY: High-quality glass and coatings provide exceptional light transmission and image clarity, ensuring a crisp sight picture in various lighting conditions.
-
VERSATILE APPLICATION: Compatible with a wide range of firearms and suitable for close to medium-range engagements, making it an excellent choice for diverse shooting scenarios.
-
MADE IN USA: Manufactured to stringent quality standards in the United States, ensuring reliability and performance that meets military and law enforcement requirements[1].
-
BINDON AIMING CONCEPT: Allows for "both eyes open" shooting, improving situational awareness and target acquisition speed in dynamic environments[1].
Specifications:
| Specification | Detail |
|---|---|
| SKU / MPN | TA45-C-400337 / 400337 |
| UPC | 719307314009 |
| Magnification | 1.5x |
| Objective Lens Diameter | 24mm |
| Field of View | 25.6 ft @ 100 yd |
| Eye Relief | 3.6" |
| Exit Pupil | 16.0 mm |

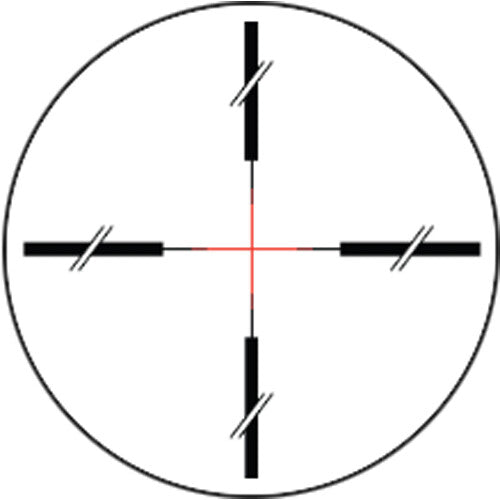

| Reticle | Red Crosshair, Dual Illuminated |
| Parallax Setting | Fixed |
| Length (without mount) | 5.8 inches |
| Weight (without mount) | 6.3 ounces |
| Mount | Q-LOC™ Technology |
| Housing Material | 6061-T6 aluminum |
| Country of Origin | USA |
What's Included:
- Trijicon ACOG 1.5x24 Compact Riflescope
- Q-LOC Mount
- Lens Covers
- User Manual
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
