Description

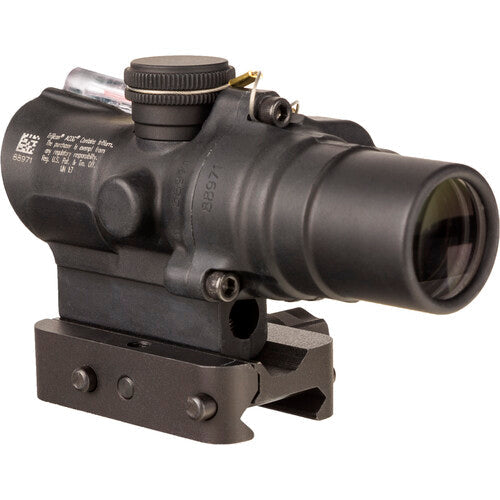

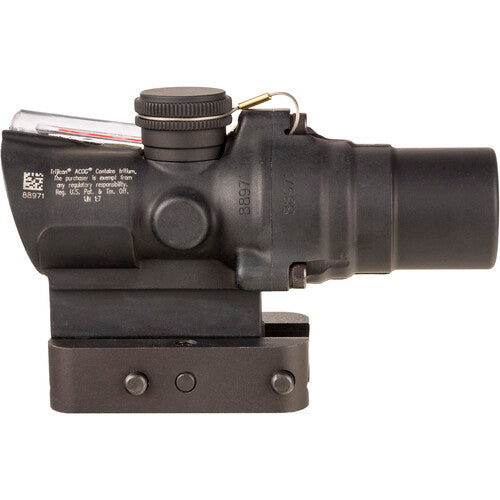

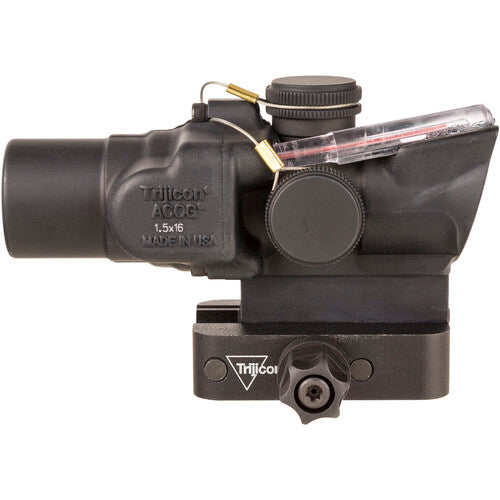

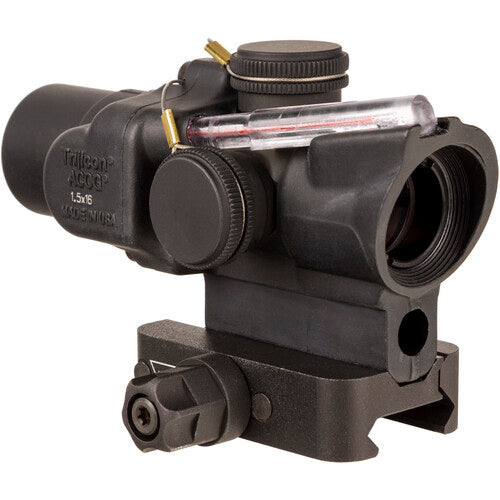

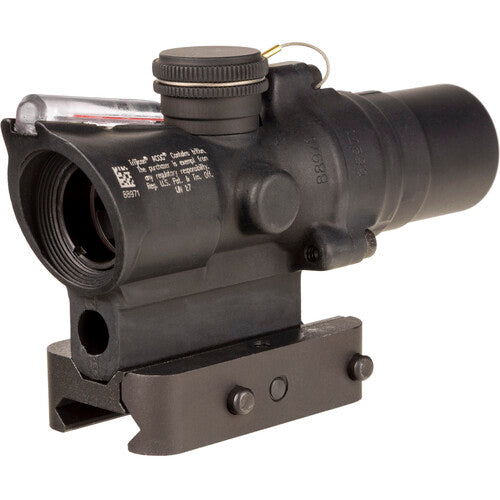

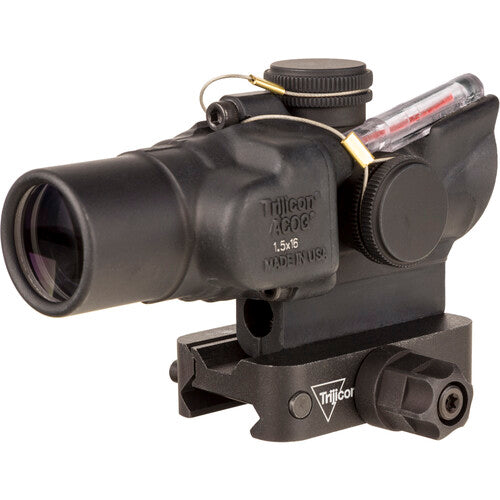

The Trijicon ACOG 1.5x16S Riflescope, Dual Illum RTR 9mm PCC Reticle TA44-C-400389 is a compact, fixed magnification riflescope designed for optimal performance in close-quarters combat and speed-oriented competitions. This lightweight optic weighs just 7.2 oz and measures 4 inches in length, making it an ideal choice for tactical teams and competitive shooters who prioritize agility and quick target acquisition.
Featuring a 1.5x magnification and a 16mm objective diameter, this ACOG (Advanced Combat Optical Gunsight) model offers a generous 7.4° field of view. The dual-illuminated red horseshoe reticle, positioned in the second focal plane, ensures clear target engagement in any lighting condition. With a 2.4-inch eye relief and a .42-inch exit pupil, the TA44-C-400389 provides comfortable viewing and rapid target acquisition.
The Trijicon ACOG 1.5x16S Riflescope is built to withstand harsh environments, featuring a durable black finish and precise .5 inch per 100 yards turret adjustments. It comes equipped with a flattop mount (TA60) for easy installation on various platforms, particularly suited for 9mm PCC (Pistol Caliber Carbine) setups.
Ideal For: Law enforcement, military personnel, competitive shooters, and civilian users seeking a reliable, compact optic for close to medium-range engagements with their 9mm PCC platforms.
Features:
-
COMPACT DESIGN: Lightweight 7.2 oz construction with a 4-inch length, perfect for agile handling and quick target acquisition in fast-paced scenarios.
-
OPTICAL CLARITY: 1.5x fixed magnification with a 16mm objective diameter, providing a clear sight picture and a wide 7.4° field of view for enhanced situational awareness.
-
ILLUMINATED RETICLE: Dual-illuminated red horseshoe reticle in the second focal plane, ensuring visibility in all lighting conditions without the need for batteries.
-
DURABLE CONSTRUCTION: Rugged design with a black finish, built to withstand harsh environments and heavy use in tactical or competitive settings.
-
PRECISE ADJUSTMENTS: Turrets offer .5 inch per 100 yards click value for accurate zeroing and on-the-fly adjustments, with clockwise rotation.
-
COMFORTABLE VIEWING: 2.4-inch eye relief and .42-inch exit pupil for comfortable extended use and quick target acquisition.
-
VERSATILE MOUNTING: Includes a flattop mount (TA60) for easy installation on various platforms, particularly suited for 9mm PCC setups.
-
COMPLETE PACKAGE: Comes with ACOG Scopecoat (TA64), LENSPEN (TA56), Trijicon Logo Sticker (PR15), manual, and warranty card for comprehensive care and protection.
Specifications:
| Specification | Detail |
|---|---|
| SKU / MPN | 400389 |
| UPC | 719307617193 |
| Magnification | 1.5x |
| Objective Diameter | 16mm |
| Weight | 7.2 oz |
| Length | 4 inches |
| Eye Relief | 2.4 inches |
| Exit Pupil | .42 inches |
| Field of View | 7.4° |
| Reticle | Dual Illuminated Red Horseshoe |
| Reticle Position | 2nd Focal Plane |
| Turret Adjustment | .5 inch per 100 yards |
| Turret Rotation | Clockwise (CW) |
| Finish | Black |
| Mount Type | Flattop Mount (TA60) included |
What's Included:
- Trijicon ACOG 1.5x16S Riflescope
- Flattop Mount (TA60)
- ACOG Scopecoat (TA64)
- LENSPEN (TA56)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
