Description

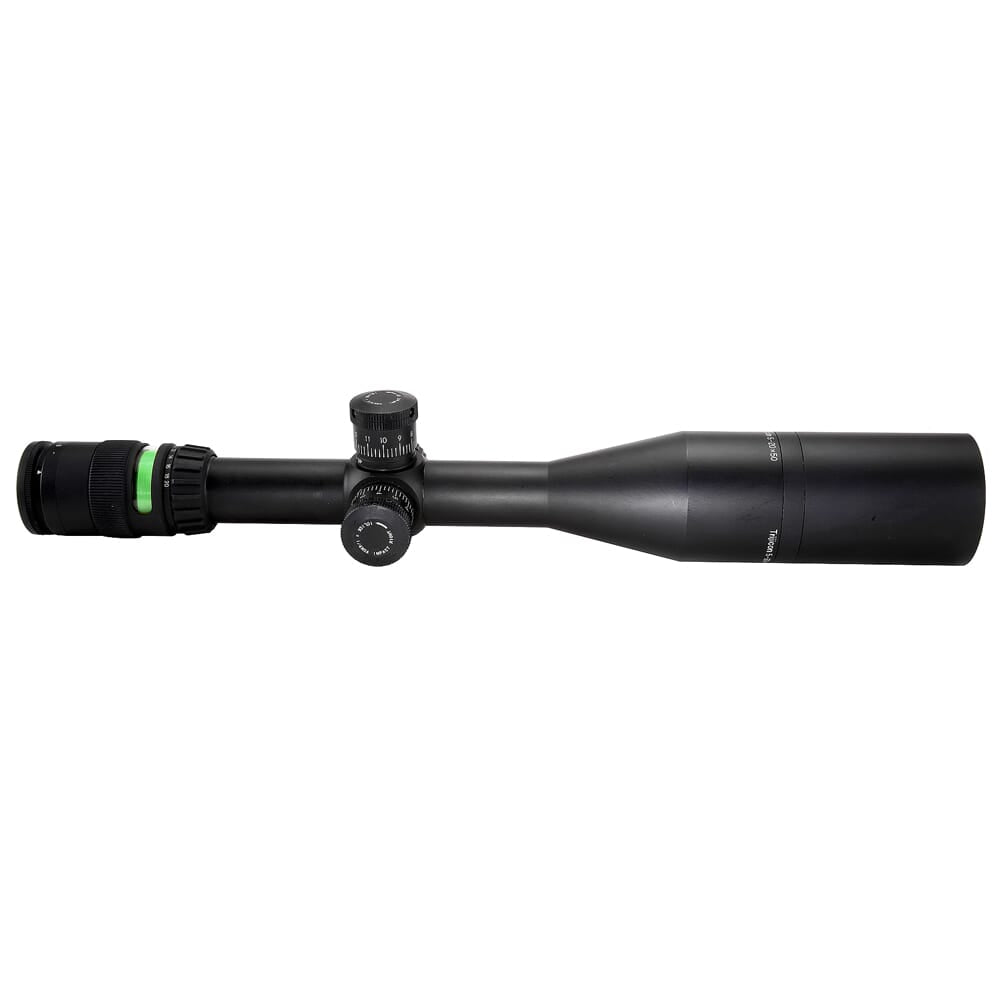

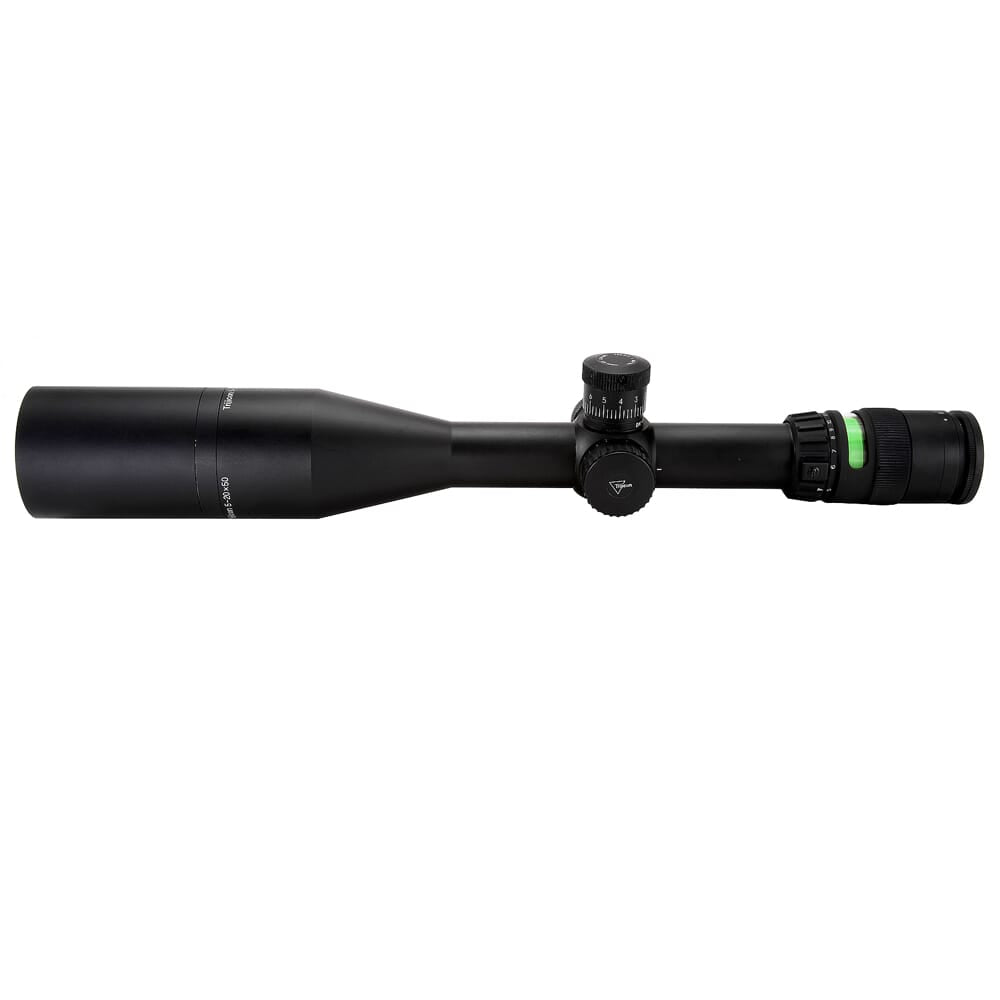

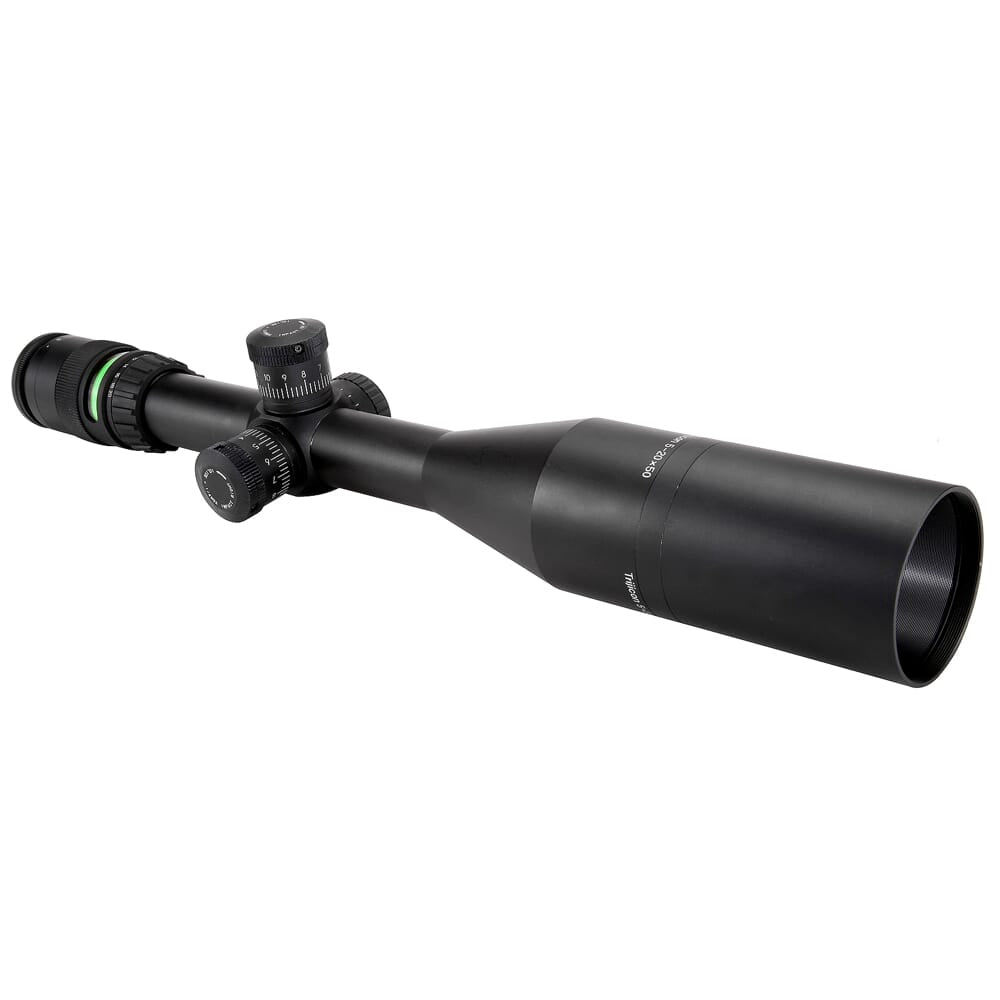

Trijicon Accupoint 5-20x50 Riflescope TR23-2G is built for precision shooting across varying lighting conditions. Its magnification range of 5x to 20x makes it versatile for both close and long-range targets. The 50mm objective lens optimizes light transmission, ensuring clear visuals even in low-light scenarios. The MilDot Crosshair with a green dot reticle simplifies target acquisition, enhancing accuracy during use.
Constructed from rugged aircraft-grade aluminum, this riflescope is designed to endure harsh environments. The matte black finish minimizes glare while increasing durability. An advanced fiber optics and tritium illumination system automatically adjusts reticle brightness based on ambient light, eliminating the need for battery reliance. This feature is particularly useful during extended shooting sessions and tactical applications. Additionally, user-friendly controls for windage, elevation, and parallax adjustments enable precise aim fine-tuning.
Key Features:
- VERSATILE MAGNIFICATION: Offers a 5x to 20x magnification range, making it ideal for any shooting scenario.
- SUPERIOR CLARITY: Multi-coated lenses provide exceptional light transmission, ensuring sharp, clear images in various conditions.
- BATTERY-FREE ILLUMINATION: The fiber optics and tritium system adjust reticle brightness based on light levels, enhancing usability.
- RUGGED CONSTRUCTION: Built from aircraft-grade aluminum with a matte finish, ensuring durability and reduced glare.
- PRECISE ADJUSTMENTS: External controls for windage, elevation, and parallax allow for accurate fine-tuning.
- CONSISTENT RETICLE SIZE: The second focal plane reticle maintains a steady size across all magnifications for reliable aiming.
- WATERPROOF AND WEATHERPROOF: Engineered to endure tough environmental conditions for dependable performance.
- EASY TARGET ACQUISITION: MilDot Crosshair with a green dot reticle enhances quick target acquisition and precision.
Technical Specifications
| Specification | Details |
|---|---|
| Item Condition | New |
| Scope Weight | 26.9 oz |
| Scope Length | 13.6" |
| Magnification Range | 5x to 20x |
| Scope Objective Diameter | 50 mm |
| Scope Tube Size / Mount | 30 mm |
| Turret Adjustment (Click Value) | 0.25 MOA |
| Parallax Adjustment | 10 yards to infinity |
| Reticle Position | Second Focal Plane |

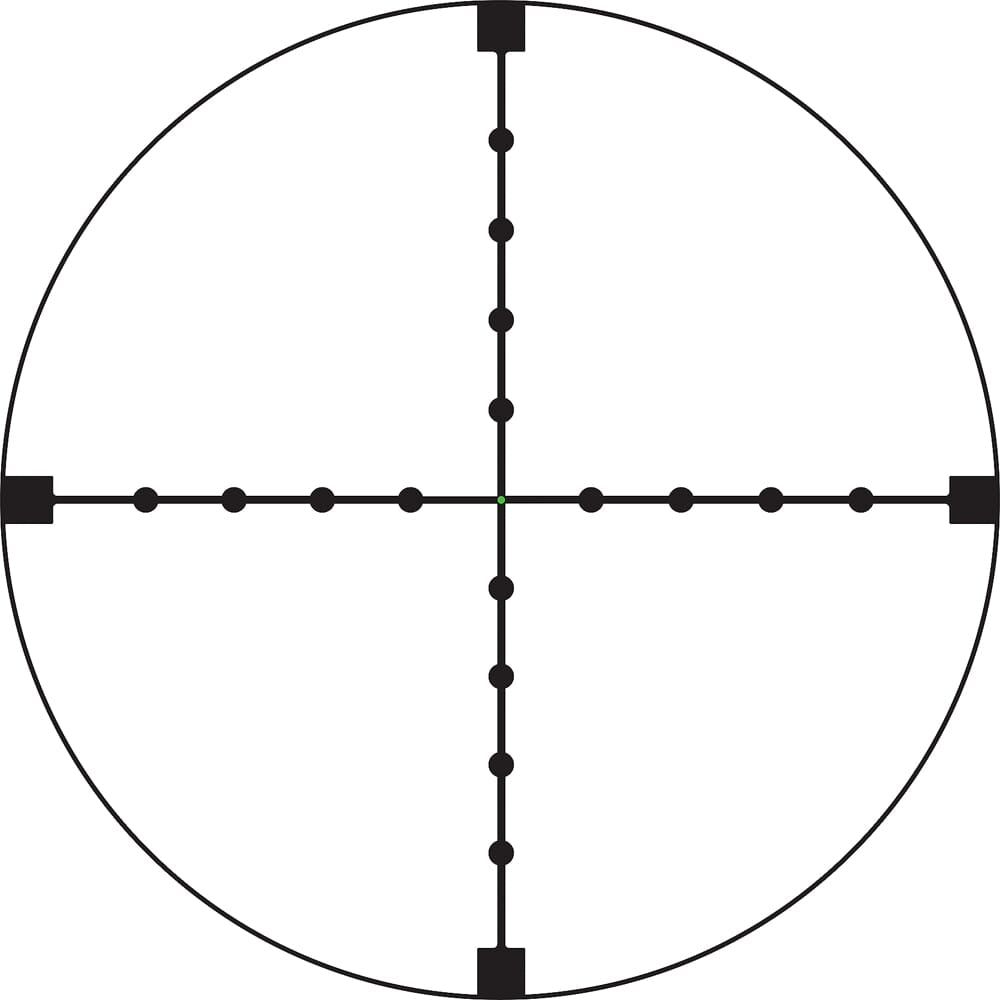

| Reticle Details | MilDot Crosshair Green Dot |
| Field of View | 19.1' - 5.1' |
| Exit Pupil | 10 - 2.5 mm |
| Eye Relief | 3.8" - 4.1" |
| Illuminated Reticle | Yes |
| Scope Finish | Matte Black |
| Product Type | Riflescopes |
| UPC | 719307400535 |
| MPN | 200043 |
What's in the Box?
- Trijicon Accupoint 5-20x50 Riflescope
- Lens caps
- Logo sticker
- Sunshade
- Warranty card
- Manual
- Lens pen
Customer Reviews
"The clarity is outstanding, even at 20x. Perfect for my long-range shooting needs!"
"The built quality is exceptional. This riflescope has held up in tough conditions without any issues."
"The illumination feature is a game changer for low-light shooting. Highly recommend!"
FAQ
How does the illumination system work? The fiber optics and tritium illumination system automatically adjust the brightness of the reticle based on the surrounding light. This ensures that the reticle is always visible without needing batteries, making it convenient for various shooting conditions.
What maintenance is required for the Trijicon Accupoint? Regularly clean the exterior lenses with a soft lens cloth. Ensure the scope is securely mounted and check the adjustment knobs periodically. It’s also advisable to store it in a protective case when not in use to prevent damage.
How does it compare to other Trijicon models? Compared to other Trijicon riflescopes, the Accupoint series offers battery-free illumination and rugged construction. Models with higher magnification may provide more range, but the 5-20x50 is ideal for a balance of versatility and performance.
Similar Models
Looking for additional optics? Explore our full collection of Trijicon riflescopes, including options like the Trijicon VCOG 1-6x24 for tactical versatility and the Trijicon RMR for compact reflex sighting. Each model is designed to meet varying shooting requirements, ensuring you find the right fit for your needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
