Description

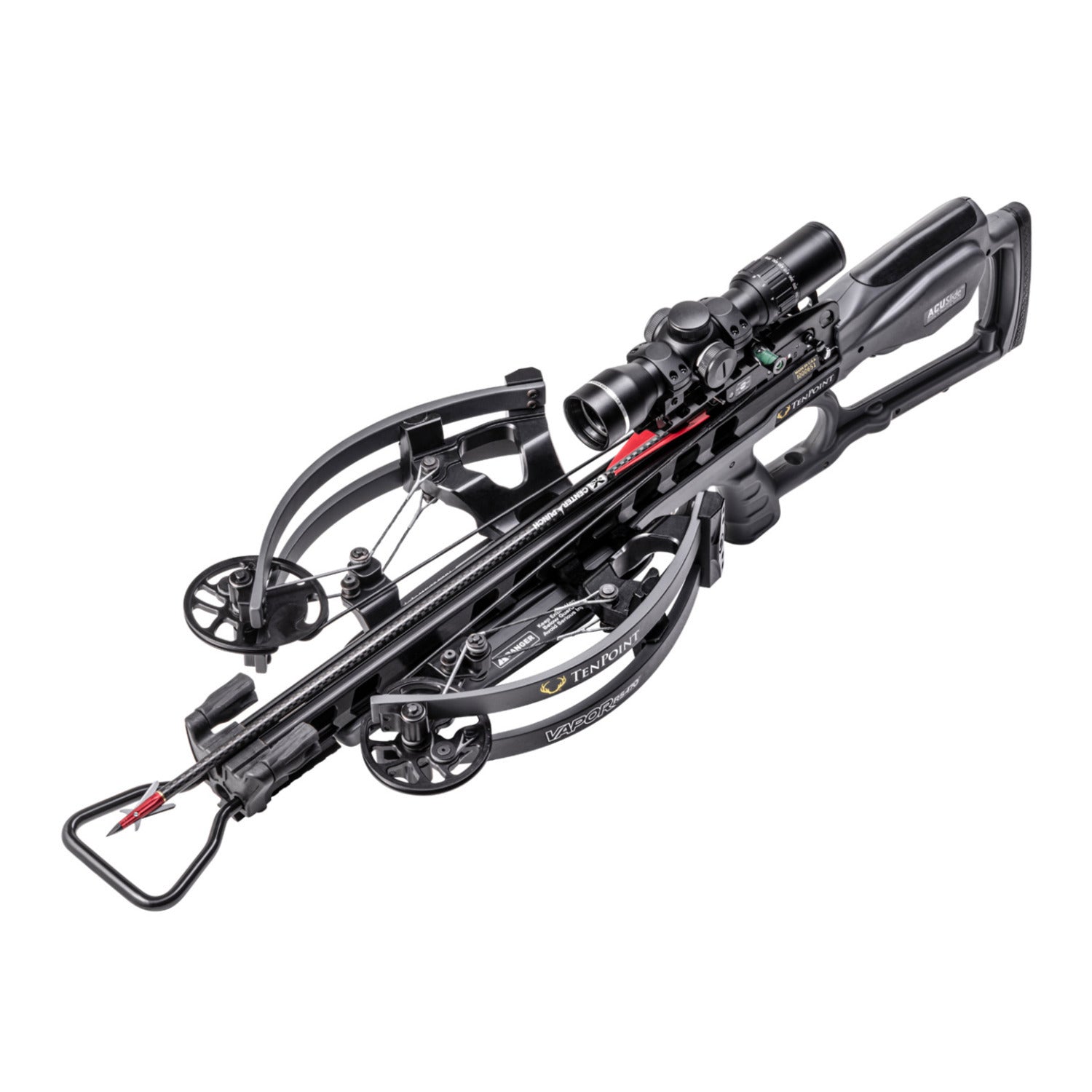

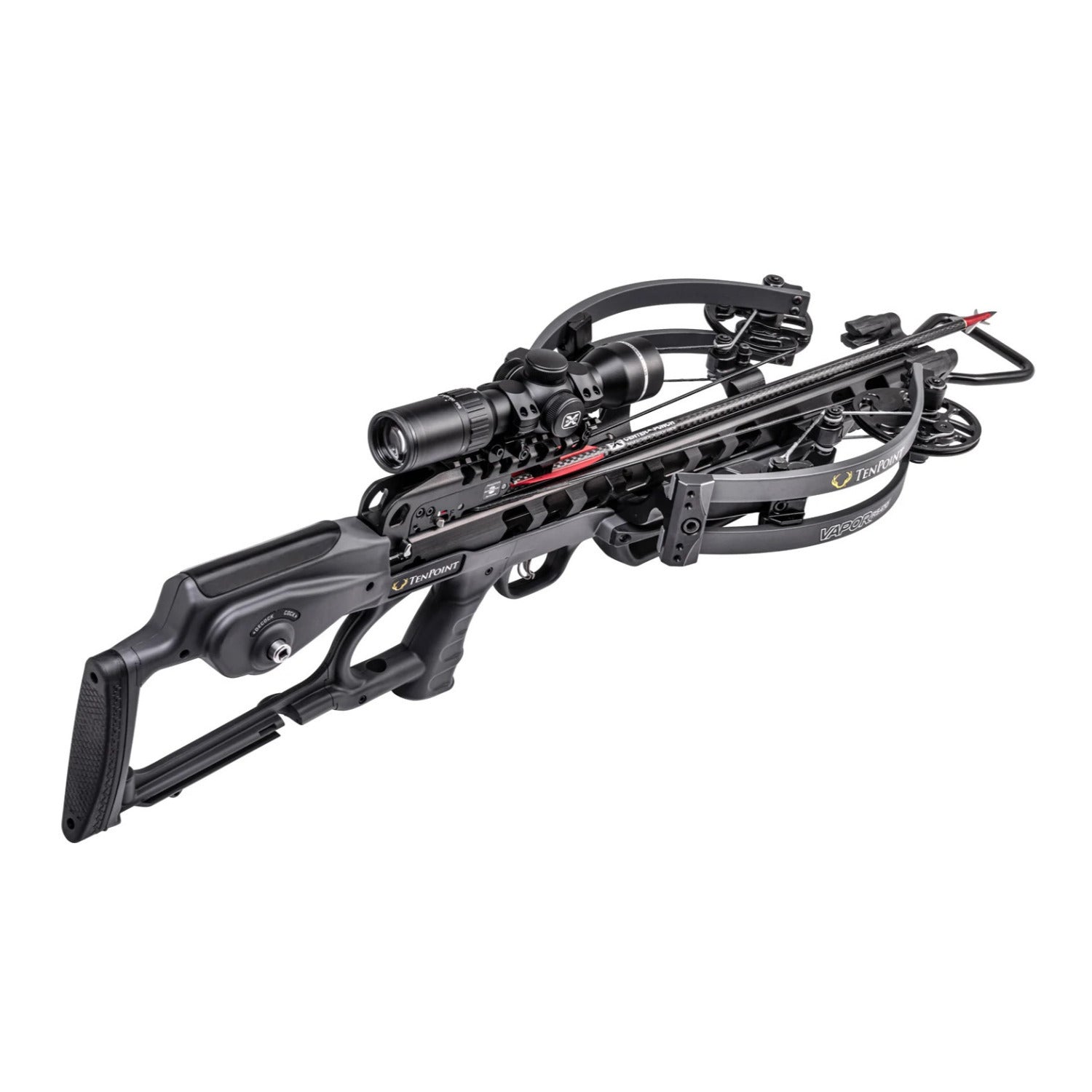

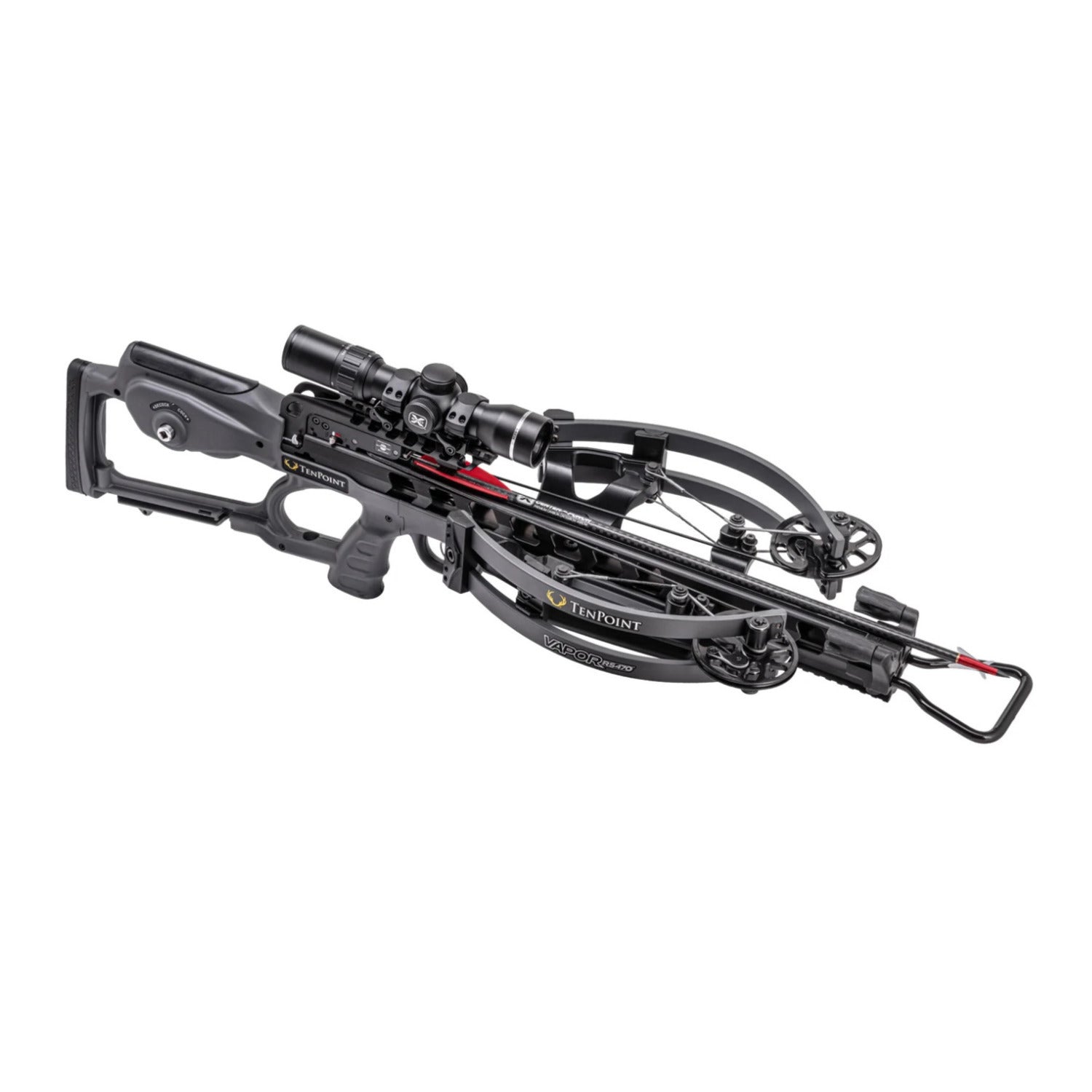

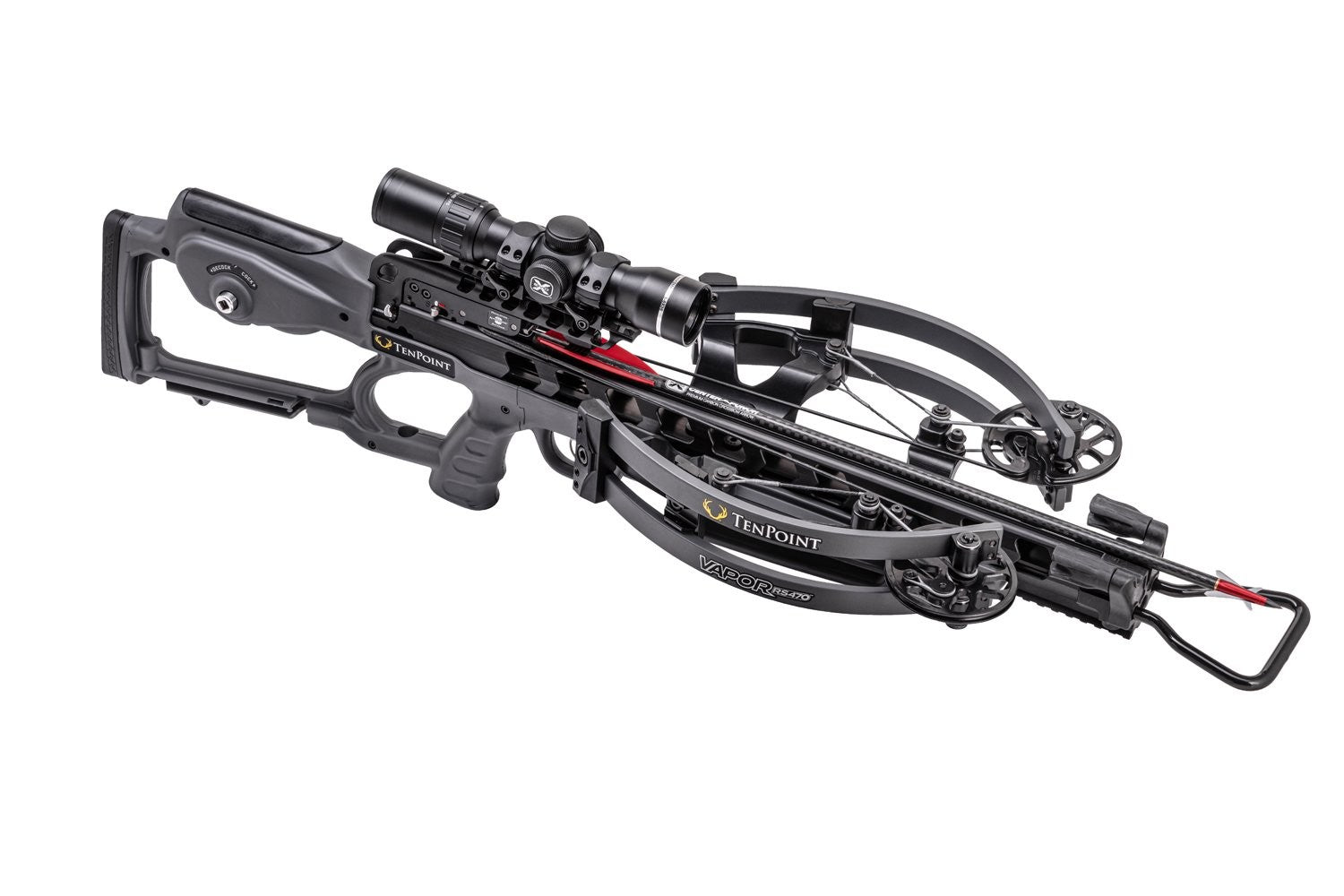

Experience unparalleled speed, accuracy, and convenience with the TenPoint Vapor RS470 Reverse-Draw Crossbow. Engineered to be the fastest crossbow on the market, this remarkable weapon boasts a unique ACUslide cocking and de-cocking system, allowing for silent and safe operation. Measuring an ultra-narrow 6.5 inches wide, it features the industry's best 3.5-pound 2-stage S1 trigger, ensuring a crisp and consistent break for same-hole down-range accuracy.
With the included package, you'll be fully equipped for success. The EVO-X Marksman Scope mounted on a machined aluminum 7/8-inch Fixed Dovetail Mount provides unmatched brightness in low light, guaranteeing clear and precise shots. The Tec-X Stock dramatically reduces the crossbow's weight, making it lighter by half a pound for improved maneuverability.
The Vapor RS470's reverse draw advantage offers an industry-leading 17-inch power stroke, generating impressive speed with less draw weight. The elongated power stroke also increases the engagement distance between the arrow nock and string, resulting in superior accuracy upon impact.
Featuring the new S1 Trigger with a zero-creep, roller sear system, this crossbow sets a new standard for high-performance accuracy. The Micro-Trac Barrel further enhances precision by reducing string-to-rail contact by 50%, ensuring increased accuracy and unmatched string longevity.
Choose the TenPoint Vapor RS470 Reverse-Draw Crossbow for a thrilling hunting experience, where speed, accuracy, and reliability meet.
TenPoint Vapor RS470 Features:
- Silent Cocking and Safe De-Cocking: New ACUslide system provides quiet cocking and secure de-cocking, ensuring a hassle-free hunting experience.
- Premier Crossbow Scope: Evo-X Marksman Scope features variable speed design and fully multi-coated optics for unrivaled brightness in low light situations.
- Lightweight and Compact: The Tec-X Stock dramatically reduces the crossbow's weight by 1/2 pound, offering enhanced maneuverability without sacrificing strength.
- Reverse Draw Advantage: Industry-leading 17-inch power stroke generates increased speed with less draw weight, maximizing power and accuracy upon impact.
- Superior Trigger Performance: The new S1 Trigger's 2-stage, zero-creep design with a roller sear system delivers exceptional accuracy for unmatched crossbow performance.
- Minimized String-to-Rail Contact: The new Micro-Trac Barrel reduces contact by 50%, resulting in heightened accuracy and extended string life.
- Complete Package: The TenPoint Vapor RS470 includes accessories like the ACUslide Cocking and De-Cocking System, 6-Arrow Tech Quiver, and premium carbon arrows, ensuring you're equipped for success.
TenPoint Vapor RS470 Technical Specifications:
Specification | |
---|---|
Length (w/o foot stirrup) | 31″ |
Width Axle-to-Axle (uncocked/cocked) | 12″ / 6.5″ |
Power Stroke | 17″ |
Weight (w/out accessories) | 8 lbs. |
Speed/KE: Pro Light Carbon Arrow (370-grains) | 470 FPS / 182 FP KE |
Speed/KE: Pro Elite 400 Carbon Arrow (400-grains) | 460 FPS / 188 FP KE |
Speed/KE: EVO-X CenterPunch Carbon Arrow (445-grains) | 440 FPS / 191 FP KE |
Draw style | Reverse-Draw |
Safe De-Cocking | ACUslide |
Scope | EVO-X Marksman Scope |
Mount | Machined aluminum 7/8-inch Fixed Dovetail Mount |
Cocking Device and De-Cocking System | ACUslide Cocking Device and De-Cocking System |
Quiver | 6-Arrow Tech Quiver |
Bubble Level | Included |
Lighted Arrows | Six Evo-X CenterPunch premium carbon arrows with 100-grain practice points |
Arrows with Practice Points | Six Evo-X CenterPunch premium carbon arrows with 100-grain practice points |
Broadheads | 3 EVO-X CenterPunch Broadheads |
Integrated String Stop System | Included |
Crossbow Case | TenPoint STAG hard crossbow case |
Sling | TenPoint Neoprene Sling |
TenPoint Vapor RS470 Package Includes:
- Optics: EVO-X Marksman Scope mounted on a machined aluminum 7/8-inch Fixed Dovetail Mount
- Bubble Level
- Cocking Device: ACUslide Cocking and De-Cocking System
- Quiver: 6-Arrow Tech Quiver
- Arrows: Six Lighted Evo-X CenterPunch premium carbon arrows with 100-grain practice points
- Arrows: Six Evo-X CenterPunch premium carbon arrows with 100-grain practice points
- Broadheads: 3 EVO-X CenterPunch Broadheads
- Dampening: Integrated String Stop System
- Hard Case: TenPoint STAG hard crossbow case
- Sling: TenPoint Neoprene Sling
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
