Description

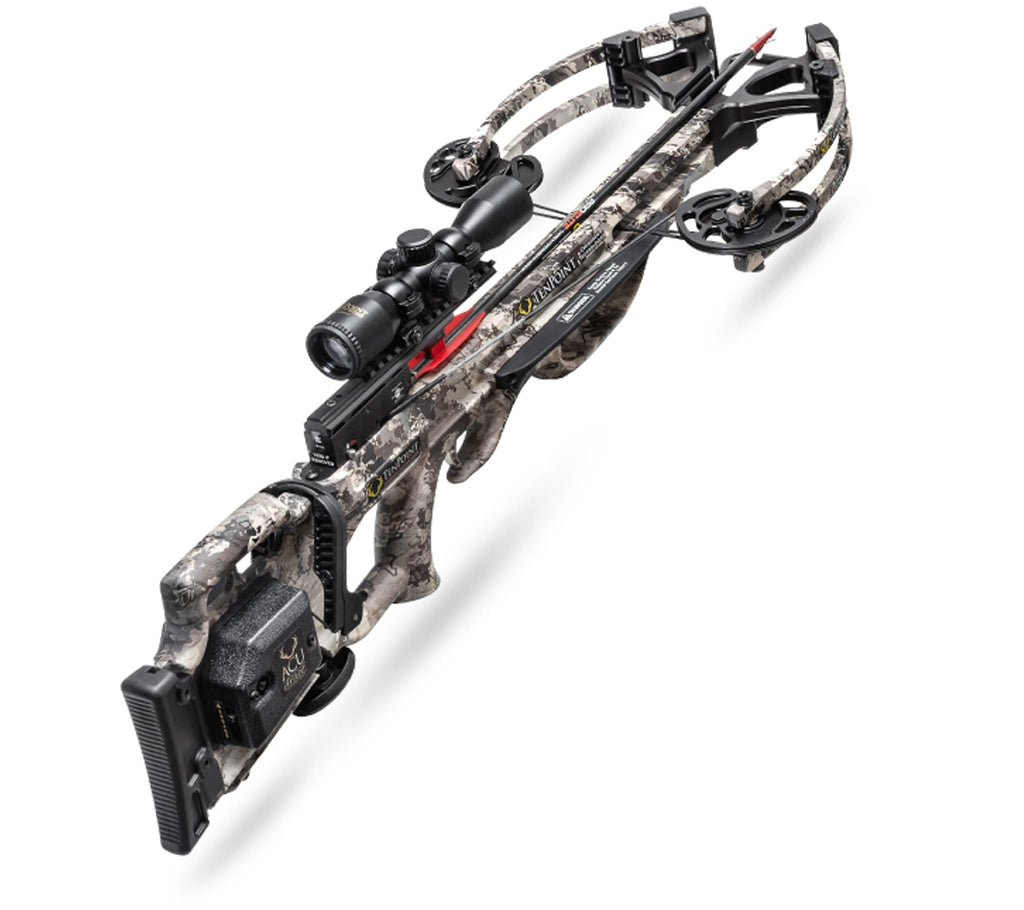

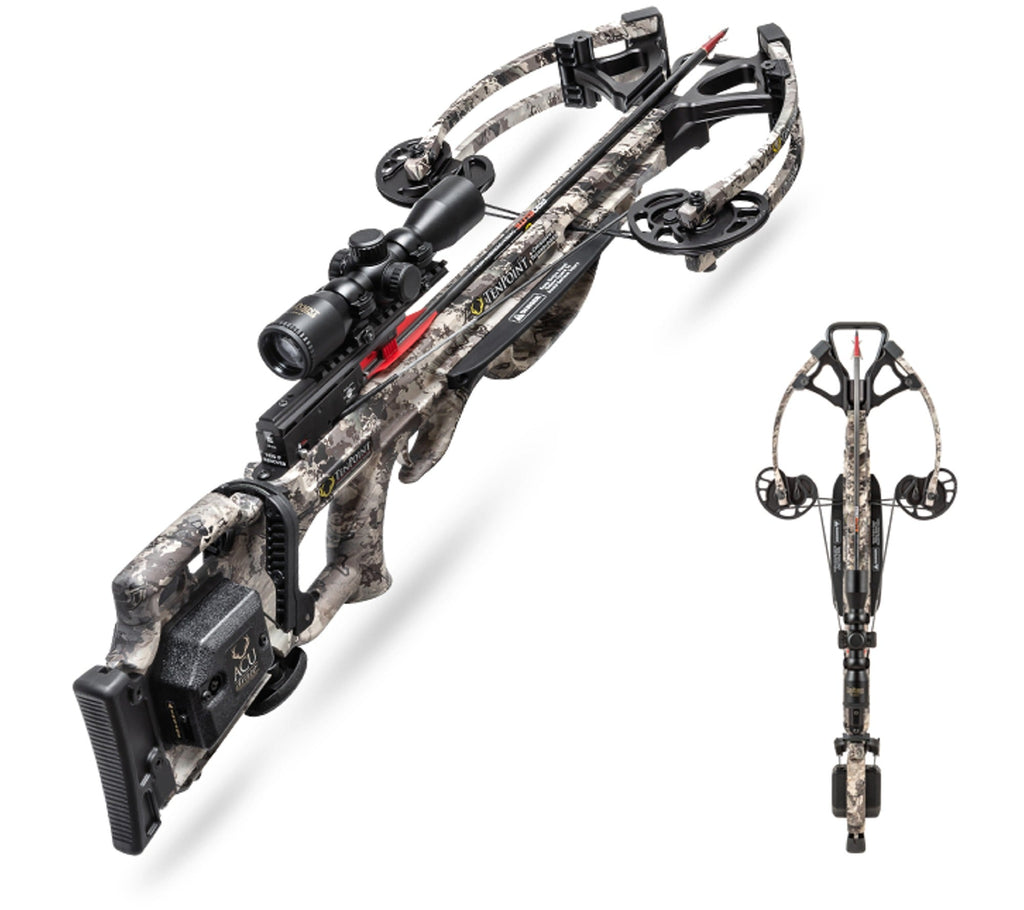

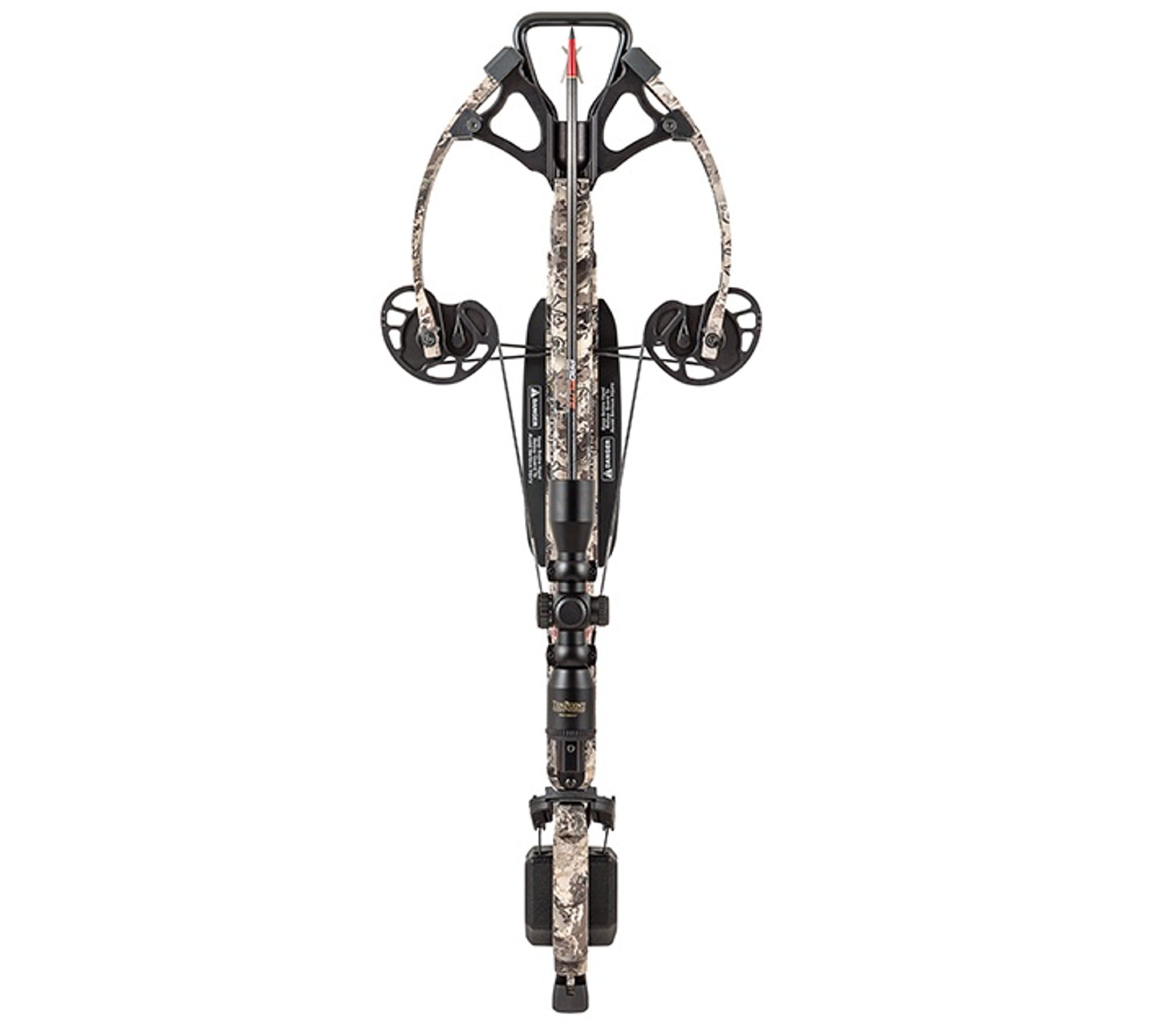

The TenPoint Titan M1 370FPS ACUdraw Crossbow Package is a complete makeover of our all-time best-selling model. With an incredible 9.5-inch narrower frame and 30 feet-per-second faster shooting speed, it surpasses its legendary predecessor in every way. Powered by VX-5 inverted cams that elongate the power stroke and increase rotation, this crossbow delivers lethal accuracy shot-after-shot.
Equipped with a T5 trigger featuring an advanced dry-fire inhibitor and auto-engaging safety, the TenPoint Titan M1 ensures the smoothest shooting experience ever. The string latch design reduces friction, providing a clean, crisp, and consistent break with each shot.
Featuring VX-5 inverted cams, the Titan M1 delivers devastating speeds and lethal accuracy. These cams elongate the power stroke, resulting in impressive bolt shooting speeds of up to 370 FPS. With the custom Alpha-Nock technology, string-to-nock engagement is increased by 28%, ensuring excellent downrange accuracy.
The Titan M1 is constructed with CNC-machined aircraft-grade aluminum, making it lightweight and durable. Its compact design, with dimensions of 32.5" length and 14.25"/9" axle-to-axle width (uncorked/cocked), offers optimal maneuverability in the field.
Features:
- LETHAL SPEED: Shoots arrows at an impressive speed of 370 FPS for exceptional power and effectiveness.
- SMOOTH TRIGGER: T5 trigger with advanced dry-fire inhibitor and auto-engaging safety delivers the smoothest shooting experience with a clean, consistent break.
- VX-5 INVERTED CAMS: The VX-5 inverted cams elongate the power stroke and increase rotation, resulting in devastating speeds and lethal accuracy.
- ALPHA-NOCK TECHNOLOGY: Custom Alpha-Nock design enhances string-to-nock engagement by 28% for outstanding downrange accuracy.
- LIGHTWEIGHT DURABILITY: Constructed with CNC-machined aircraft-grade aluminum, providing a lightweight yet durable crossbow.
- MANEUVERABLE DESIGN: Compact dimensions with an axle-to-axle width of 14.25" (uncorked) and 9" (cocked) for excellent maneuverability in any hunting situation.
- UNMATCHED PERFORMANCE: The TenPoint Titan M1 offers top-of-the-line performance with its speed, accuracy, and value.
Technical Specifications:
| Specifications | Values |
|---|---|
| Bolt Shooting Speed | 370 FPS |
| Trigger | T5 Trigger |
| VX-5 Inverted Cams | Yes |
| Alpha-nock Technology | Yes |
| Construction | Aluminum |
| Length | 32.5" |
| Width - Axle-to-Axle | 14.25"/9" |
| Power Stroke | 14" |
| Weight (w/o accessories) | 6.4 lbs |
| Draw Weight | 180 lbs |
| Performance | Pro |
| Lite Arrow (370 grain) | 370 FPS/113 FP KE |
| Pro Elite Arrow (425-grain) | 350 FPS/116 FP |
| KEEVO-X Center Punch (445-grain) | 350 FPS /114 FP KE |
Package Includes :
- Optics: TenPoint’s 3x Pro-View 3 Scope mounted on a machined aluminum 7/8-inch Fixed Dovetail Mount
- Cocking Device: Acu-Draw - Reduces draw weight to about 5-pounds when operated manually
- Quiver: 3-Arrow Instant Detach Quiver; Ambidextrous Side-Mount Quiver Bracket
- Arrows: Three TenPoint Pro Elite carbon arrows with 100-grain practice points
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
