Description

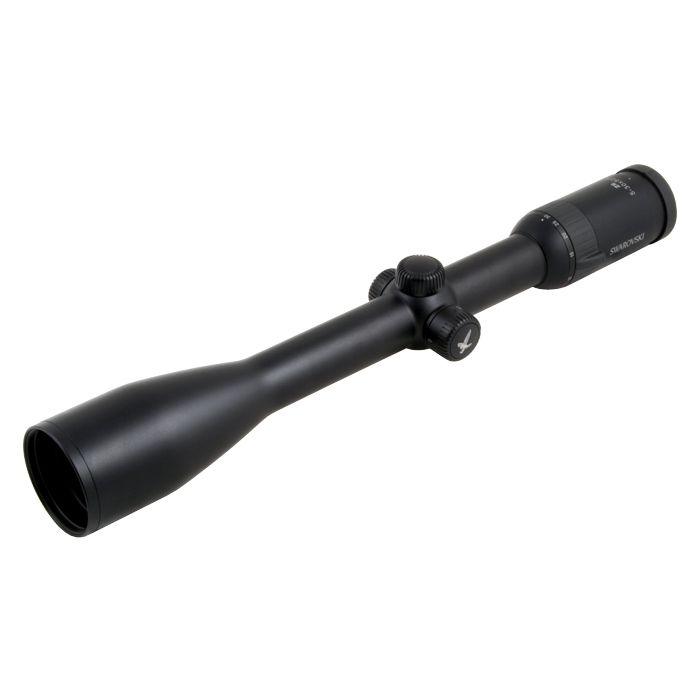

Designed and crafted by Swarovski Optik, the sleek Z6 5-30x50 BRH Scope is equipped with a High Definition 50mm lens for superior resolution at high magnification and low lighting. The scope utilizes a slim 30mm main tube for an impressive 30x magnification and a BRH reticle. The wide zoom range and greater eye relief provide more flexibility, greater accuracy, and increased safety and awareness when hunting. With waterproof and fog proof technologies, Swarovskis highest imaginable glass quality which allows 90% light transmission, and a SWAROCLEAN coating to ensure that water droplets, dirt, and bug spray can be washed away with ease, you can expect a bright and crisp image whether you hunt at dawn, dusk, or on a cloudy day.
The Swarovski Z6 rifle scope has been designed to be utilized in long range shooting when powerful magnification is necessary to bring game into view. Whether you are pursuing fast game at low magnification or shooting long-range, the flexibility of the Z6 ensures good results. The Swarovski 5-30x50 BRH rifle scope is the perfect optic for the versatile hunter.
Subtension Dimensions:
http://subtensions.swarovskioptik.com/
Ballistic Program:
http://ballisticprograms.swarovskioptik.com/Ballistic-Program
Swarovski Z6 5-30x50 BRH for sale - get unbeatable prices, user reviews, expert advice and FREE shipping on rifle scopes!BRH Reticle - 30mm Tube
SPECIFICATIONS
| Magnification Type | 5X - 30X |
|---|---|
| Magnification | Zoom: 5X to 30X |
| Objective Lens Size | 50 |
| Exit Pupil | 9.5 mm to 1.7 mm |
| Eye Relief | 3.74" |
| Field of View @ 100 Yards Spec | 23.7 ft - 3.9 ft |
| Tube Diameter | 30mm |
| Turret Type | Capped |
| Turret Click Value | .5 CM |
| Illuminated Reticle | None |
| Reticle Focal Plane | 2nd Focal Plane |
| Weather Resistance | Water/Fog Proof |
| Weight | 21.2 oz |
| Length | 15.55" |
| Max Elevation Adjustment | 43.2 MOA |
| Max Windage Adjustment | 25.2 MOA |
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle

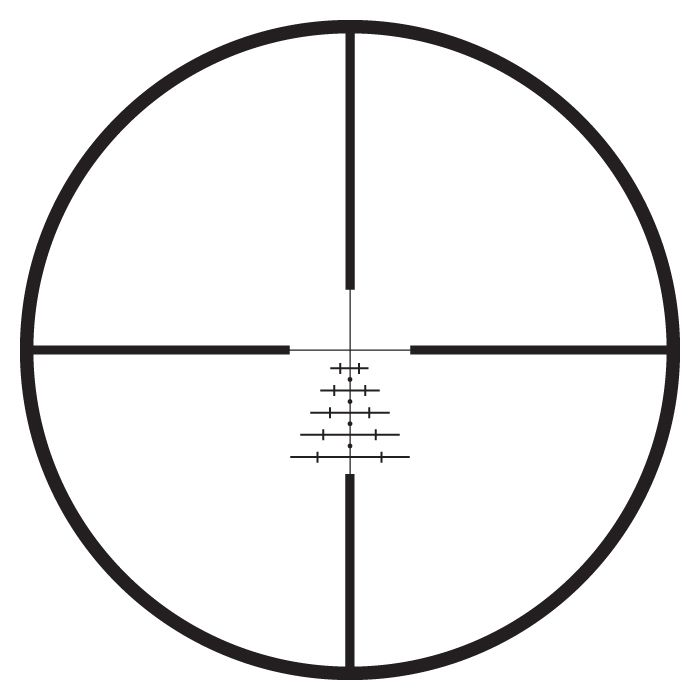

The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
