Description

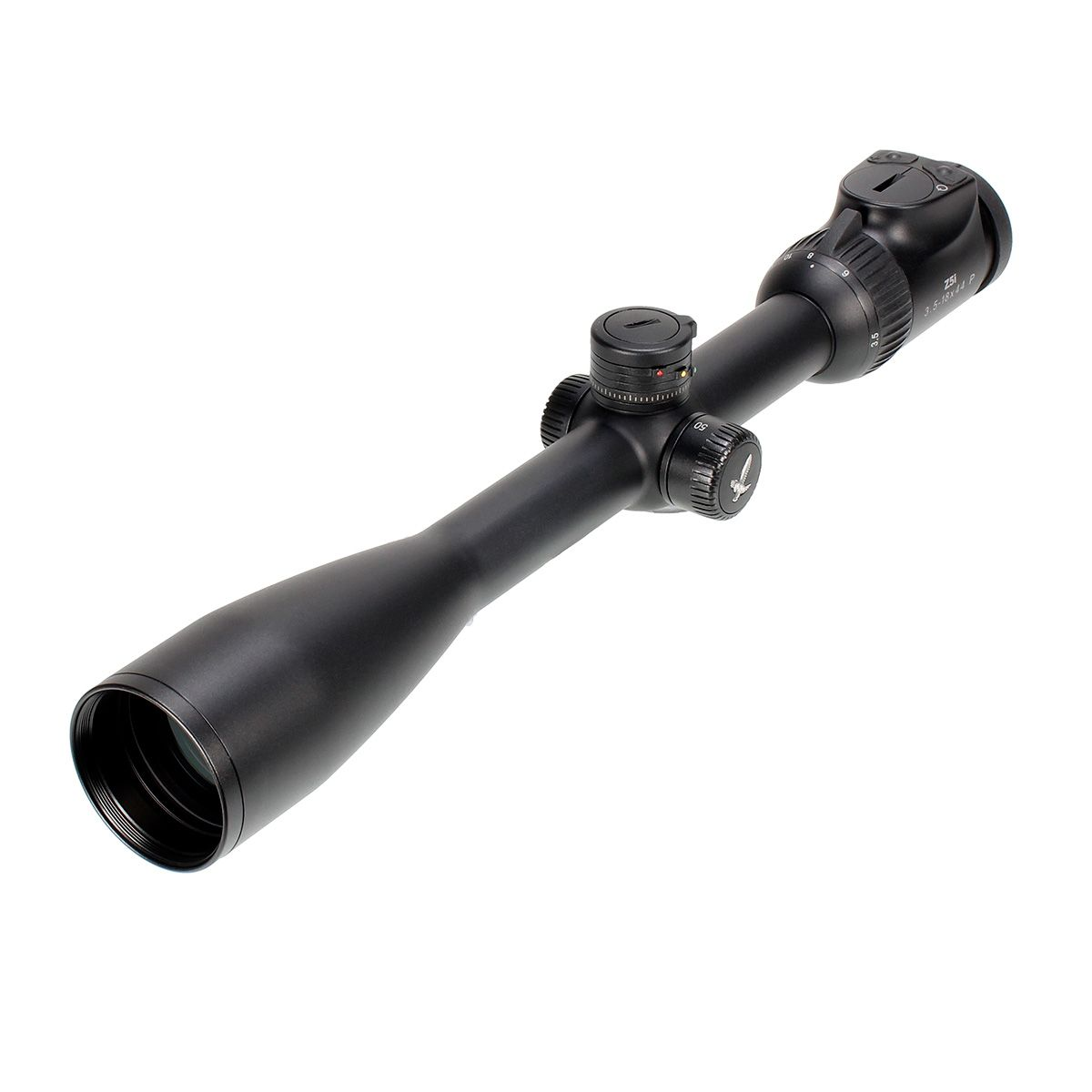

Swarovski Optik, the Z5i 3.5-18x44 BT Plex-I 69760 Riflescope utilizes a slim 1.0 main tube for an impressive 18x magnification, a large objective, and a Plex-Ireticle. The Z5i weighs only 17.4 oz and has a sleek design that will complement any rifle. Because of the slim construction of the Z5i, it can be easily mounted close to the barrel. Swarovski riflescopes offer the highest level of accuracy and the ability to overcome even the most dynamic situations to allow you to focus on what matters most, the shot. The combination of Swarovskis state-of-the-art anti-reflective coatings and the wide objective lens enhances light transmission and improves twilight performance. The scope also features a low magnification of 3.5X for when you are viewing something up-close or on the move, making the Z5i a versatile tool for hunters.
In addition to the outstanding optical performance, the Z5i is built with waterproof and fog proof technologies, Swarovskis highest imaginable glass quality which allows incredible light transmission, and a SWAROCLEAN coating to ensure that water droplets, dirt and bug spray can be washed away with ease, so you can expect a bright and crisp image whether you hunt at dawn, dusk, or on a cloudy day. If you are searching for a simple optic with all the features you need, the Swarovski Z5i 3.5-18x44 BTwill not disappoint.
Notable Features Include:
- Illuminated PLEX-I Reticle
- 2nd Focal Plane Reticle Placement
- 1" Diameter Maintube
- Proprietary Ballistic Elevation Turret
- 1/4 MOA/Click Impact Point Correction
- 36 MOA Windage/58 MOA Elevation Range
- Anodized Aluminum Housing
- SWAROTOP & SWARODUR Lens Coatings
- Nitrogen-Filled Water and Fogproof
Save big on Swarovski Z5i 3.5-18x44 BT Riflescope with NO TAX plus FAST & FREE shipping on orders over $199! Authorized stocking dealer, call (985) 269-7799 to talk to a Swarovski expert!Illuminated Plex-I Reticle - 1" Tube
SPECIFICATIONS
| Magnification | Zoom: 3.5X to 18X |
|---|---|
| Objective Lens Size | 44mm |
| Exit Pupil | 10 mm to 2.4 mm |
| Eye Relief | 95mm |
| Field of View @ 100 Yards Spec | 30 ft - 6 ft |
| Tube Diameter | 1 Inch |
| Turret Type | BDC/Adjustable |
| Turret Click Value | .250 MOA |
| Illuminated Reticle | Yes |
| Reticle Focal Plane | 2nd Focal Plane |
| Weight | 17.4 oz |
| Length | 14.29" |
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
