Description

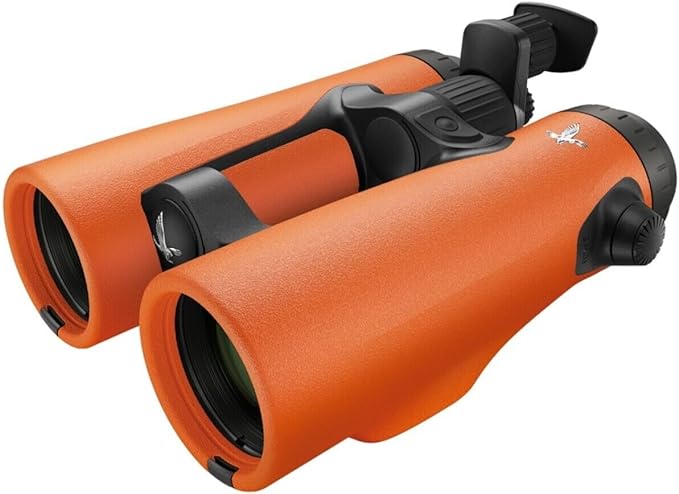

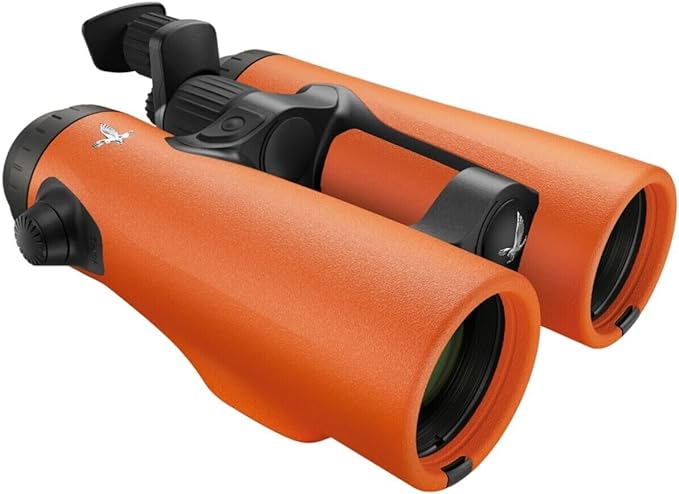

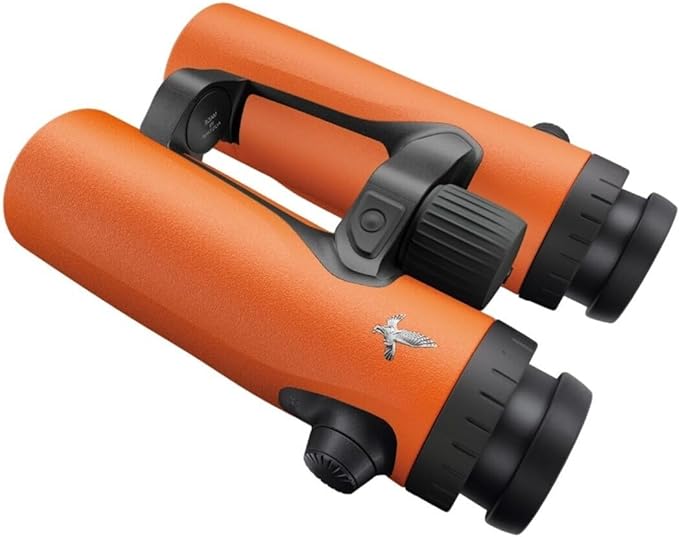

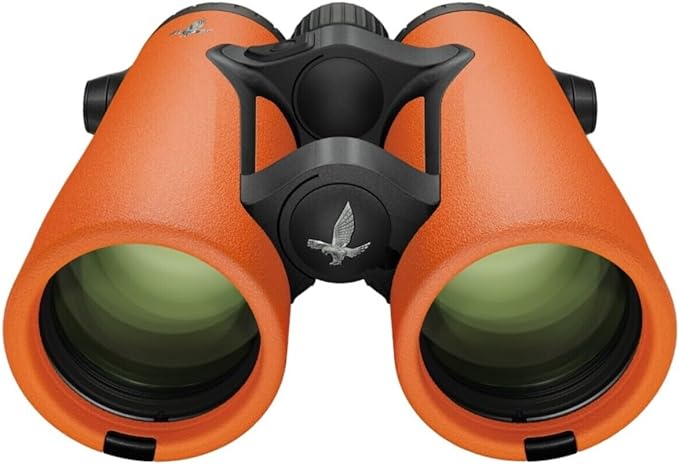

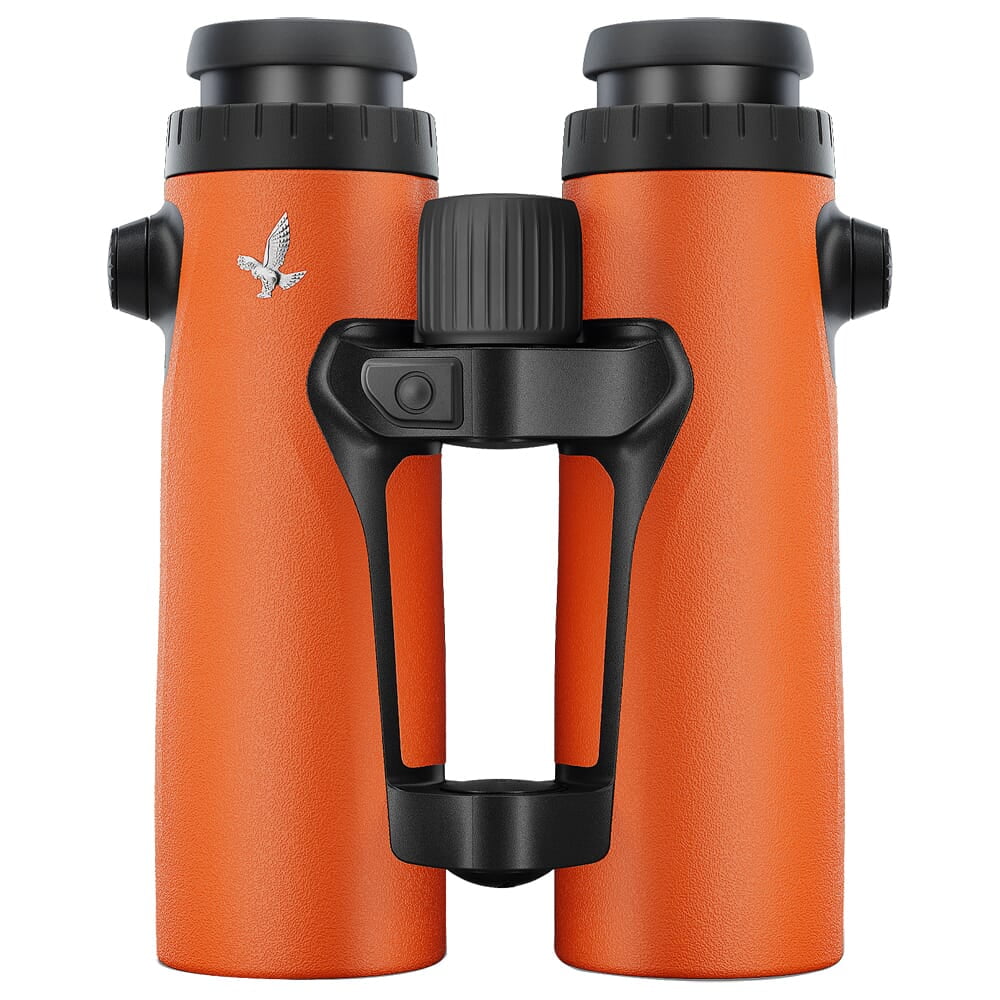

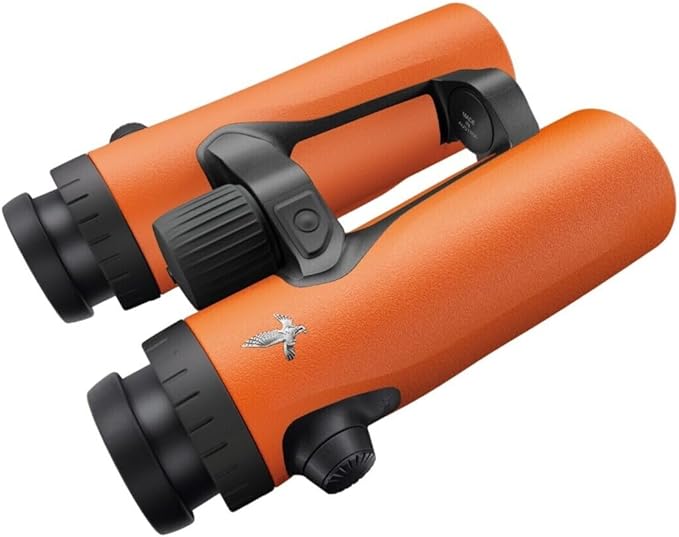

Enter the realm of unparalleled clarity with the Swarovski EL Range 8x42 w/Tracking Assistant Rangefinding Binoculars 72014. Crafted for precision and durability, these binoculars are the perfect fusion of optical excellence and advanced range-finding capabilities. They are engineered for enthusiasts and professionals who demand high-performance equipment for outdoor activities, such as hunting and wildlife observation.
Thanks to Swarovski's Swarovision Technology, every image is rendered with high fidelity. Distortion-free, sharp views with maximum detail ensure optimal performance even in challenging lighting conditions. Moreover, a unique feature of the EL Range 8x42 is the Tracking Assistant, which aids hunters in pinpointing the location of their game post-shot, either via the EL Range TA itself or the accompanying app.
Enhance your outdoor pursuits with confidence. From gauging distances and angles to adjusting for ballistic profiles, these rangefinding binoculars provide critical data swiftly and accurately. With a design prioritizing ergonomic comfort and efficient operation, Swarovski makes sure that outdoor expeditions become experiences of unmatched measurement precision and visual clarity.
Swarovski EL Range 8x42 72014 Features:
- PRECISION TRACKING: The integrated Tracking Assistant helps locate the target area after a shot.
- HIGH-DEFINITION GLASS: Swarovision Technology ensures clear, true-color images with 98% light transmission.
- WIDE FIELD OF VIEW: Enjoy an expansive 419-foot view at 1000 yards for comprehensive observation.
- RAPID MEASUREMENT: Acquire distances quickly with a 0.5-second measuring time and a range of up to 2,200 yards.
- PERSONALIZED BALLISTICS: Connect to the EL Range TA Configurator App for custom ballistics profiles.
- ERGONOMIC DESIGN: A streamlined form factor and balance for comfortable, extended use.
- RELIABLE LASER: A Class 1 Laser provides precise, safe distance measurements.
- ROBUST ACCESSORIES: Comprehensive accessory kit enhances the binoculars' utility and protection.
Swarovski EL Range 8x42 72014 Specifications:
| Feature | Specification |
|---|---|
| Item Condition | New |
| Weight | 32.8 oz. |
| Dimensions | 6.8" x 5.3" x 3.1" |
| Eye Relief | 19mm |
| Field of View | 419 feet @ 1000 yards |
| Angular Field of View | 8° |
| Exit Pupil | 5.3mm |
| Interpupillary Distance | 56mm - 74mm |
| Twilight Factor | 18.3 |
| Light Transmission | 98% |
| Range | 10 - 2,200 yds |
| Close Focus Range | 16.4" |
| Objective Diameter | 42mm |
| Laser | Class 1 Laser |
| Angle Compensation | Yes |
| Measuring Time | 0.5 sec |
| Measurement Units | Meters/Yards |
| Beam Divergence | 1.5 to ± 1 m/yds |
| Battery Type | CR2 |
| Product Type | Binoculars, Laser Rangefinders |
| UPC | 708026720147 |
| MPN | 72014 |
Included in the Box:
- UCS universal comfort strap
- FSB functional side bag
- Eyepiece covers
- Objective lens covers
- Soap & brush kit
- Cover for steel rings (when detaching the objective lens cover)
- BT tool
Swarovski is renowned for crafting exceptional optical devices, and the Swarovski EL Range 8x42 w/Tracking Assistant Rangefinding Binoculars 72014 is a testament to that legacy. Integrated with cutting-edge technology for both avid hunters and nature enthusiasts, this piece of equipment offers reliability and sophistication in any environment.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
