Description

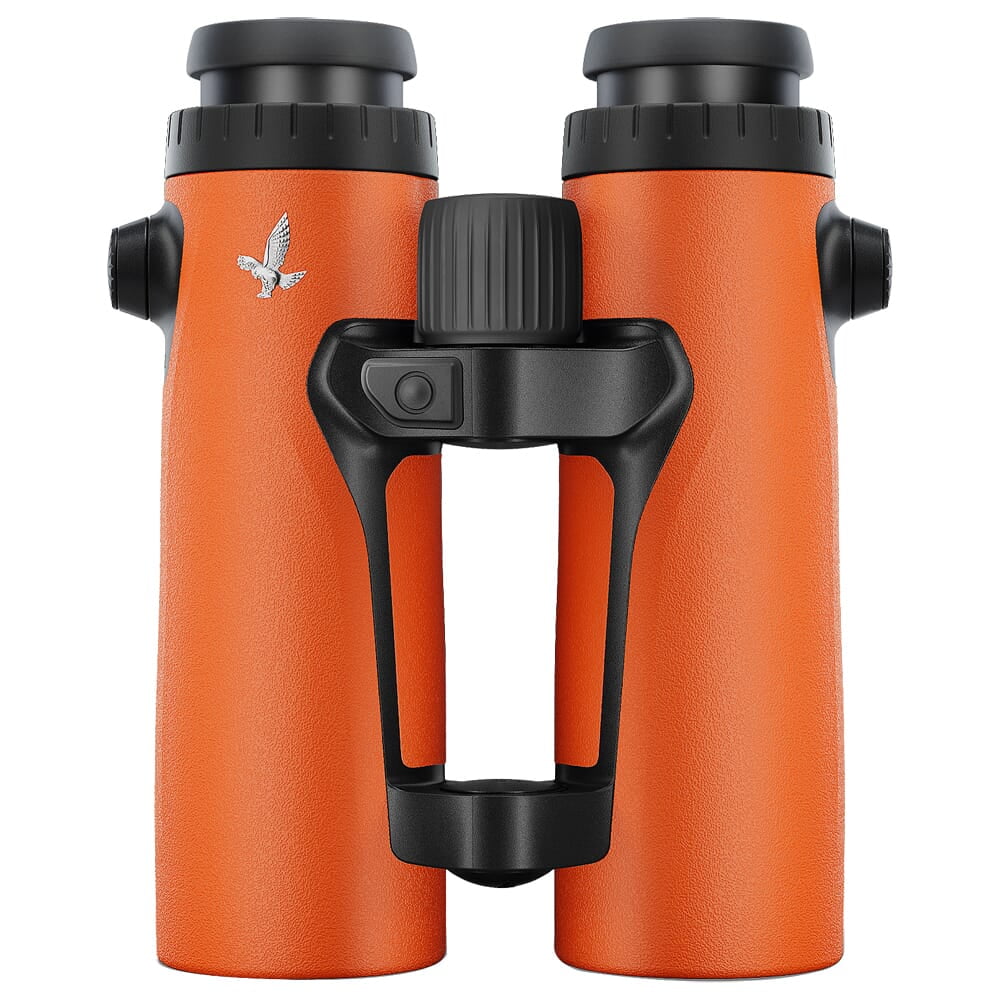

The Swarovski EL Range 10x42 w/Tracking Assistant Orange Rangefinding Binoculars 72015 is a state-of-the-art optical solution for the dedicated outdoorsman. Combining crystal-clear optics with high-precision rangefinding, these binoculars push the boundaries of what you can expect from field glassing. With Swarovision Technology, you experience unparalleled image clarity, color fidelity, and a generous 90% light transmission. The wide field of view ensures you won't miss a thing in the great outdoors.
What sets the EL Range 10x42 apart is the Tracking Assistant feature, which helps hunters and observers alike pinpoint the exact location of their quarry by recording the shot or sighting and guiding them to the target area. The unit effortlessly pairs with the EL Range TA Configurator App through Bluetooth, allowing users to craft personalized ballistic profiles. Measurement adjustments consider shot angle, air pressure, and temperature for the most accurate field assessments.
Equipped with class 1 laser technology, these rangefinding binoculars provide rapid and accurate measurements from 10 to 2,200 yards. The ergonomic design is complemented by the option of a separate forehead rest for added stability during one-handed operation. Whether you're tracking wildlife or measuring distances on challenging terrain, the Swarovski EL Range 10x42 with Tracking Assistant is designed to be your reliable companion in the field.
Swarovski EL Range 10x42 72015 Features
- ADVANCED TRACKING: Tracking Assistant for precise post-shot navigation.
- CRYSTAL-CLEAR VISION: Swarovision Technology ensures exceptional image quality.
- CUSTOMIZABLE RANGEFINDING: EL Range TA Configurator App for tailored ballistic profiles.
- PRECISION MEASUREMENTS: Accurate distance display from 10 to 2,200 yards.
- ENHANCED STABILITY: Optional forehead rest for improved handling (sold separately).
- BUILT FOR THE FIELD: Durable with an ergonomic, user-friendly design.
- HIGH LIGHT TRANSMISSION: 90% light transmission for clear images in low light.
- FULL ACCESSORY PACKAGE: Includes comfortable strap, protective cases, cleaning kit, and more.
Swarovski EL Range 10x42 72015 Specifications
| Specification | Detail |
|---|---|
| Item Condition | New |
| Weight | 32.6 oz. |
| Dimensions | 6.6" x 5.3" x 3.1" |
| Eye Relief | 19mm |
| Field of View | 359 feet @ 1000 yards |
| Angular Field of View | 6.8° |
| Exit Pupil | 4.2mm |
| Interpupillary Distance | 56mm - 74mm |
| Twilight Factor | 20.5 |
| Light Transmission | 90% |
| Range | 10 - 2,200 yds |
| Close Focus Range | 16.4" |
| Objective Diameter | 42mm |
| Laser | Class 1 Laser |
| Angle Compensation | Yes |
| Measuring Time | .5 sec |
| Measurement Units | Meters/Yards |
| Beam Divergence | 10 - 1,500 ± 1 m/yds |
| Battery Type | CR2 |
| Product Type | Rangefinding Binocular |
| UPC | 708026720154 |
| MPN | 72015 |
Included In The Box
- Swarovski EL Range 10x42 Rangefinding Binoculars 72015
- UCS universal comfort strap
- FSB functional side bag
- Eyepiece covers
- Objective lens covers
- Soap & brush kit
- Cover for steel rings (when detaching the objective lens cover)
- BT tool
The Swarovski EL Range 10x42 w/Tracking Assistant Orange Rangefinding Binoculars 72015 is the ultimate companion for any adventurer seeking to marry technological sophistication with rugged outdoor performance.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
