Description

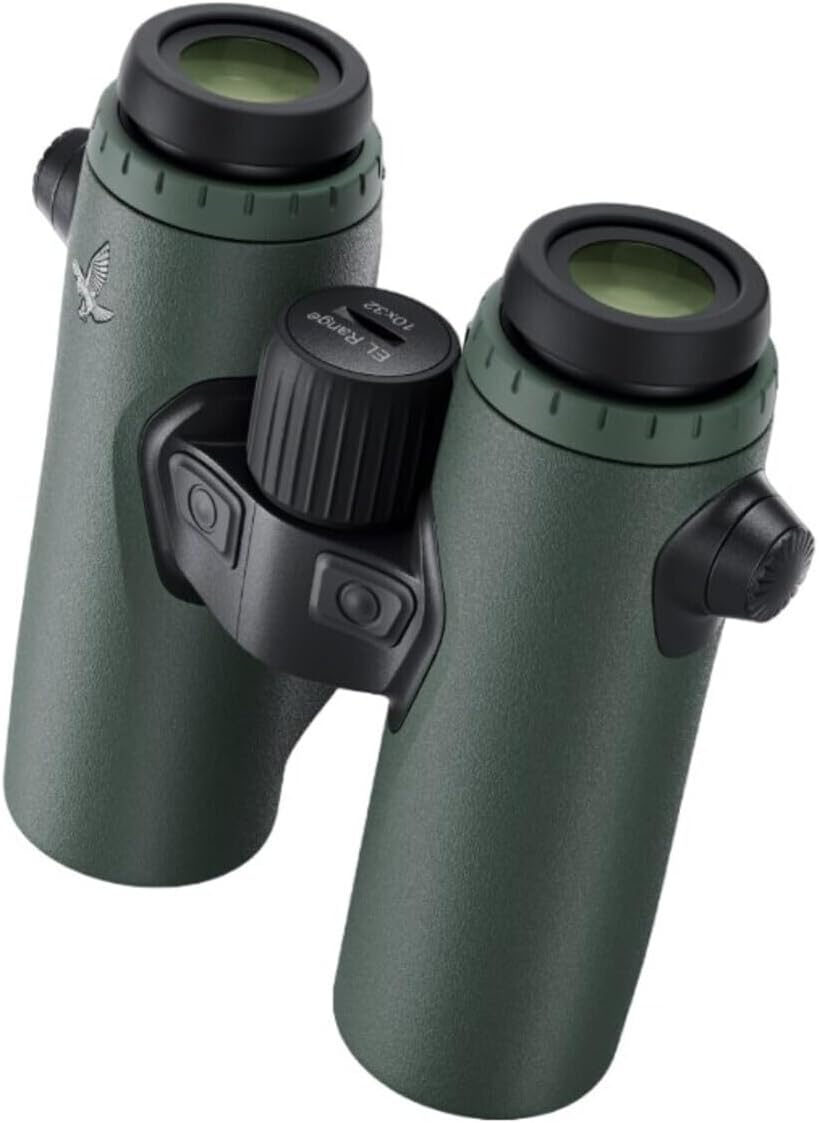

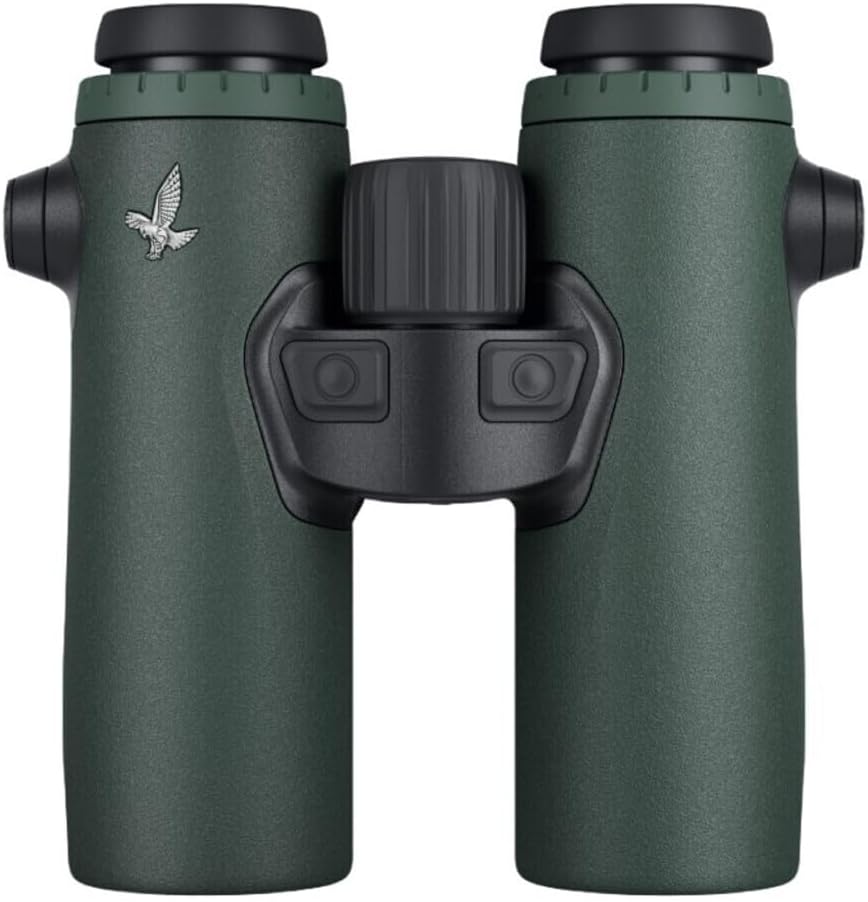

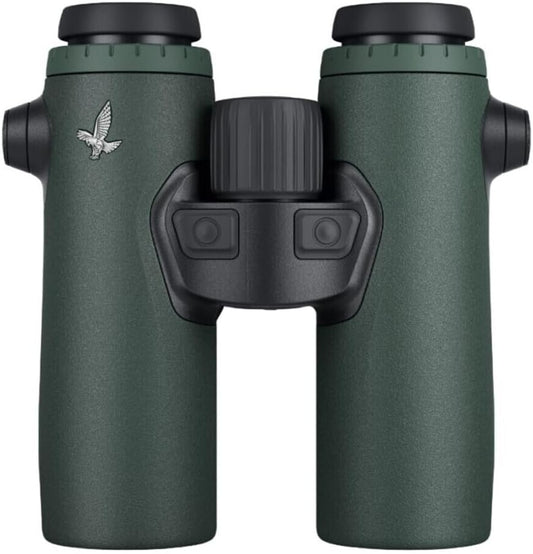

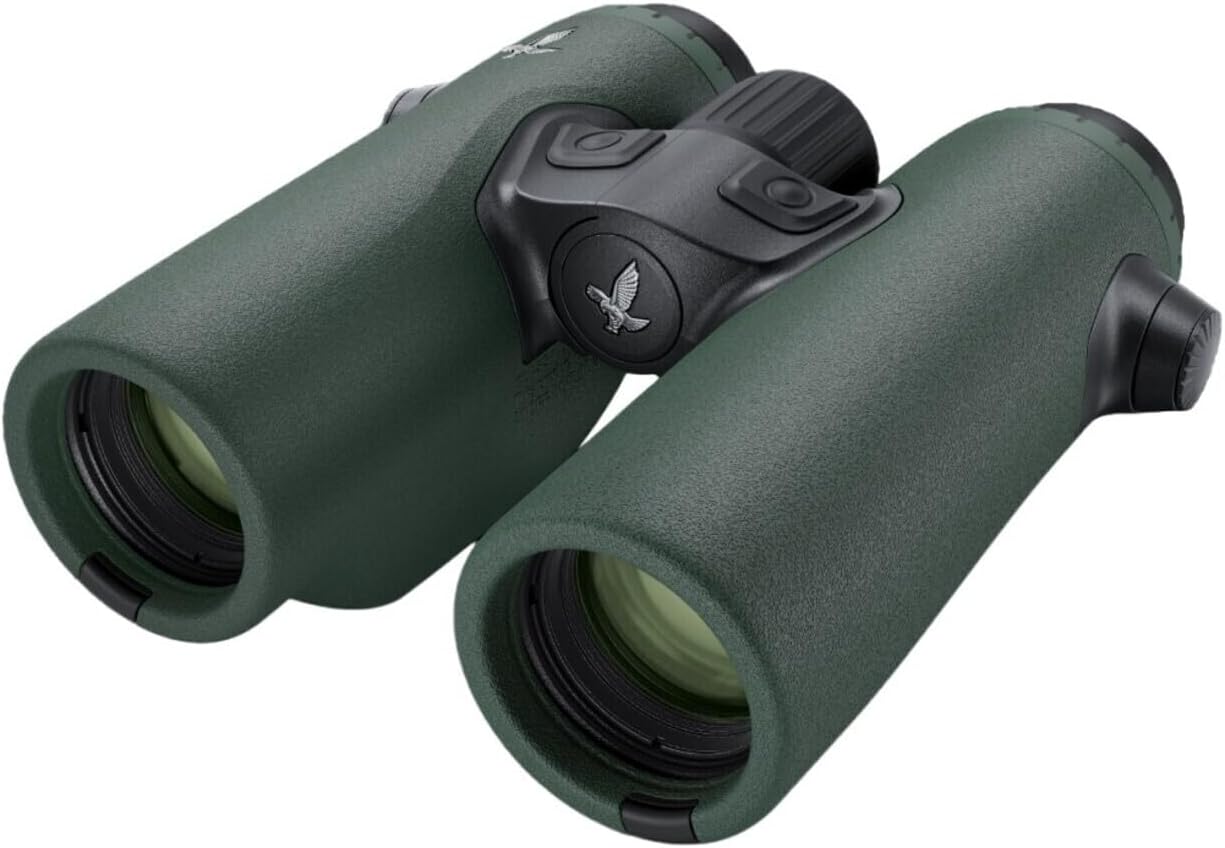

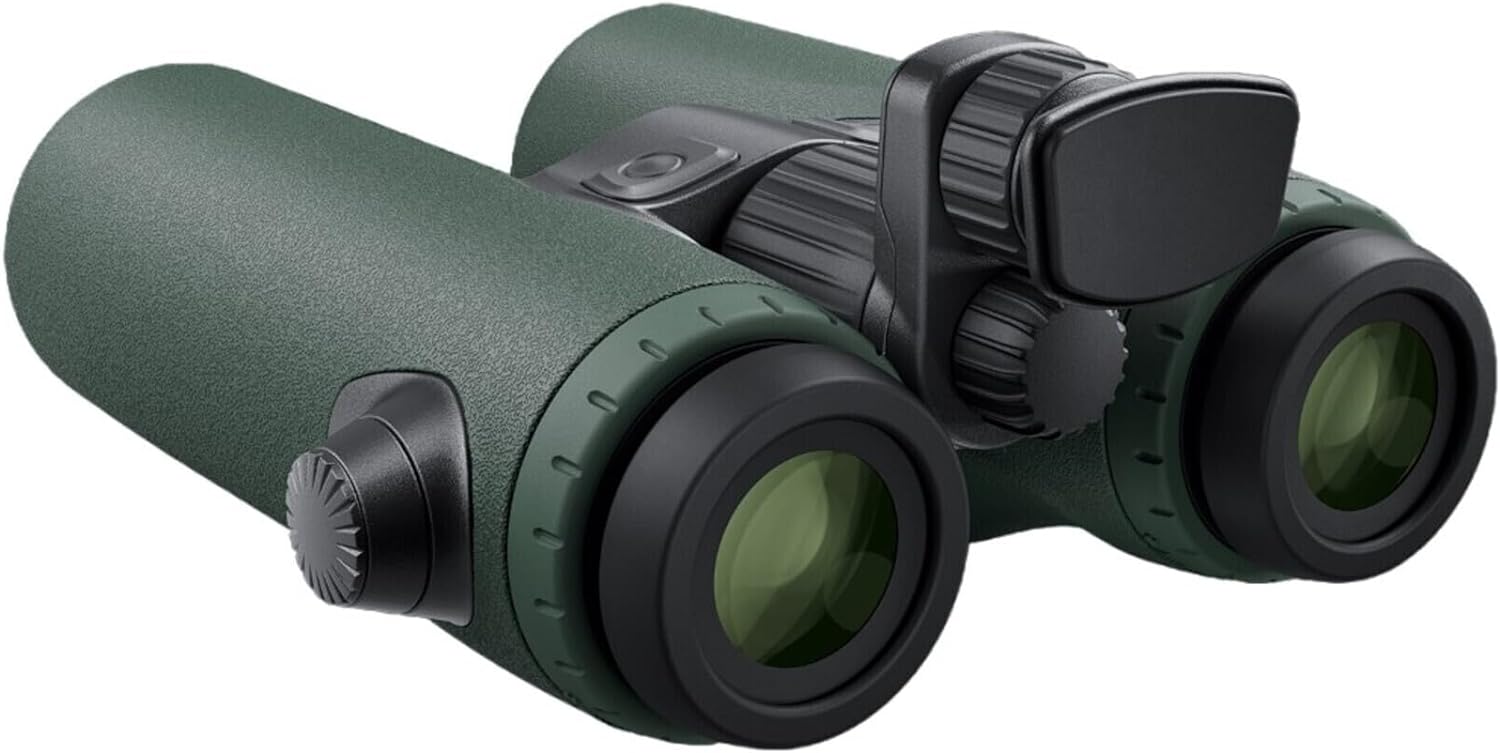

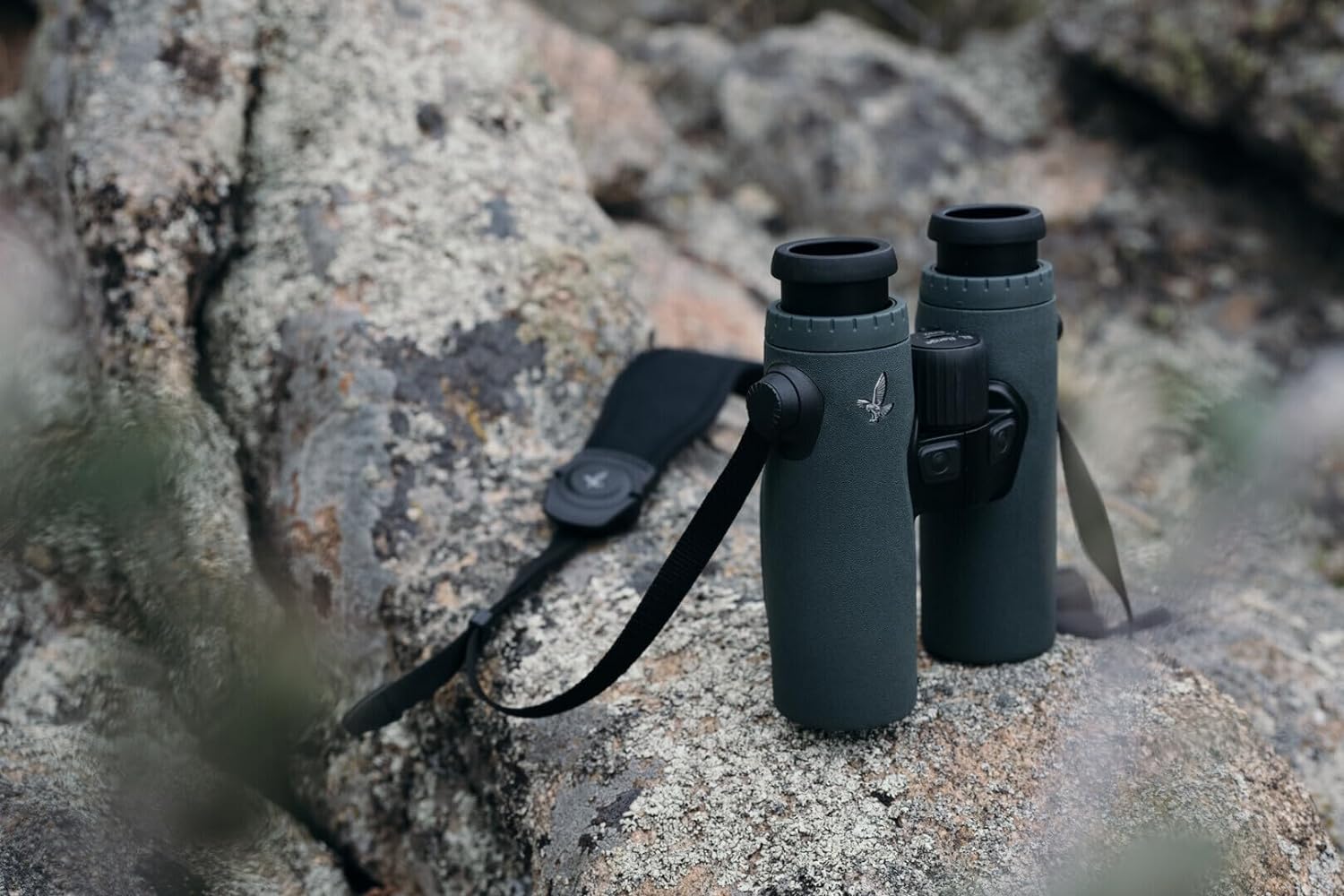

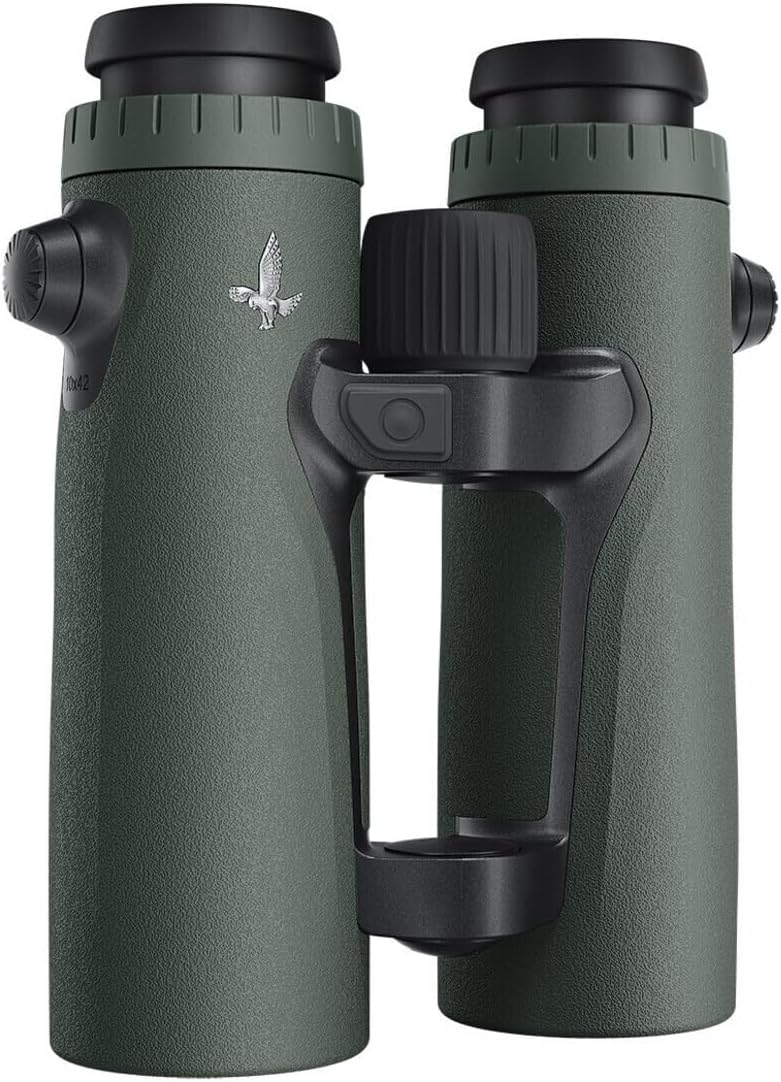

Discover the epitome of precision and clarity with the Swarovski EL Range 10x32 Rangefinding Binoculars 72017, an invaluable asset for any outdoor enthusiast. With Swarovski's renowned Swarovision Technology, these binoculars offer unmatched image quality. They feature 90% light transmission for bright, clear views even in low-light conditions. The wide field of view ensures you never miss a moment of the action.
In addition to superior optical performance, the Swarovski EL Range 10x32 is more than just a standard pair of binoculars—it embodies an advanced rangefinding system that takes your outdoor adventures to new heights. Pair these binoculars with the EL Range TA Configurator App to create customized ballistics profiles. You'll get accurate measurements that take into account shot angle, air pressure, and temperature, optimizing your hunting strategy and shot precision.
The Swarovski EL Range 10x32 is not only about observation; the Tracking Assistant feature is a game-changer for hunters. Light and easy to handle, these binoculars guide you to your target area with directional arrows and distance data, making tracking as straightforward as it is effective. This sophisticated tool ensures you can navigate the wild with confidence, whether you're identifying game or tracking your success.
Swarovski EL Range 10x32 72017 Features
- SUPERIOR OPTICS: Swarovision Technology ensures stunning image fidelity with 90% light transmission.
- ADVANCED RANGEFINDER: Integrates with EL Range TA Configurator App for customizable ballistic profiles.
- PRECISE MEASUREMENTS: Captures shot angle, atmospheric data, and more for comprehensive range analysis.
- TRACKING ASSISTANT: Simplifies the retrieval of game with clear backtracking data.
- WIDE FIELD OF VIEW: Expansive 330 feet at 1000 yards for broad observation range.
- RAPID DATA ACQUISITION: Class 1 laser with a quick 0.5-second measuring time.
- HIGHLY PORTABLE: A featherweight contender at 24 ounces with compact dimensions of 5.6” x 5.1” x 2.7”.
- DURABLE DESIGN: Sturdy and built to endure rugged outdoor conditions.
Swarovski EL Range 10x32 72017 Specifications
| Specification | Detail |
|---|---|
| Item Condition | New |
| Weight | 24 ounces |
| Dimensions | 5.6" x 5.1" x 2.7" |
| Field of View | 330 feet @ 1000 yards |
| Angular Field of View | 6.3° |
| FOV Apparent | 61° |
| Exit Pupil | Diameter: 3.2mm |
| Eye Relief | 16mm |
| Interpupillary Distance | 56mm - 74mm |
| Twilight Factor | 17.9 |
| Light Transmission | 90% |
| Objective Diameter | 32mm |
| Laser Classification | Class 1 EN/FDA |
| Measuring Time | 0.5 sec |
| Measurement Units | Meters/Yards |
| Battery Type | CR2 |
| Product Type | Rangefinding Binocular |
| UPC | 708026720178 |
| MPN | 72017 |
Included In The Box
- UCS universal comfort strap
- FSB functional side bag
- Eyepiece covers
- Objective lens covers
- Soap & brush kit
- Cover for steel rings (when detaching the objective lens cover)
- BT tool
The Swarovski EL Range 10x32 Rangefinding Binoculars 72017 bring together the finest in optics technology with practical features for a seamless outdoor experience. Whether you are scouting landscapes or tracking game, these binoculars promise reliability and precision every step of the way.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
