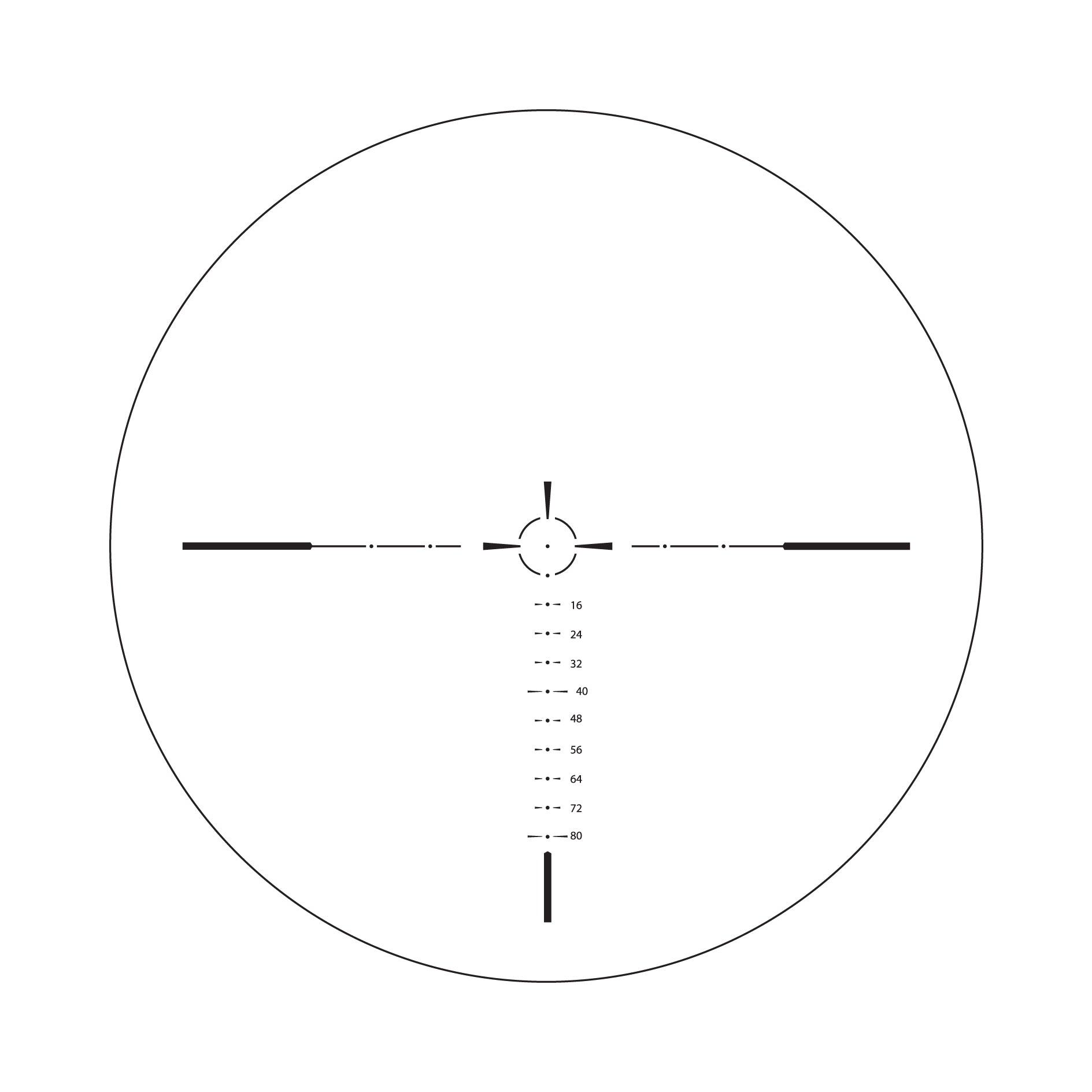

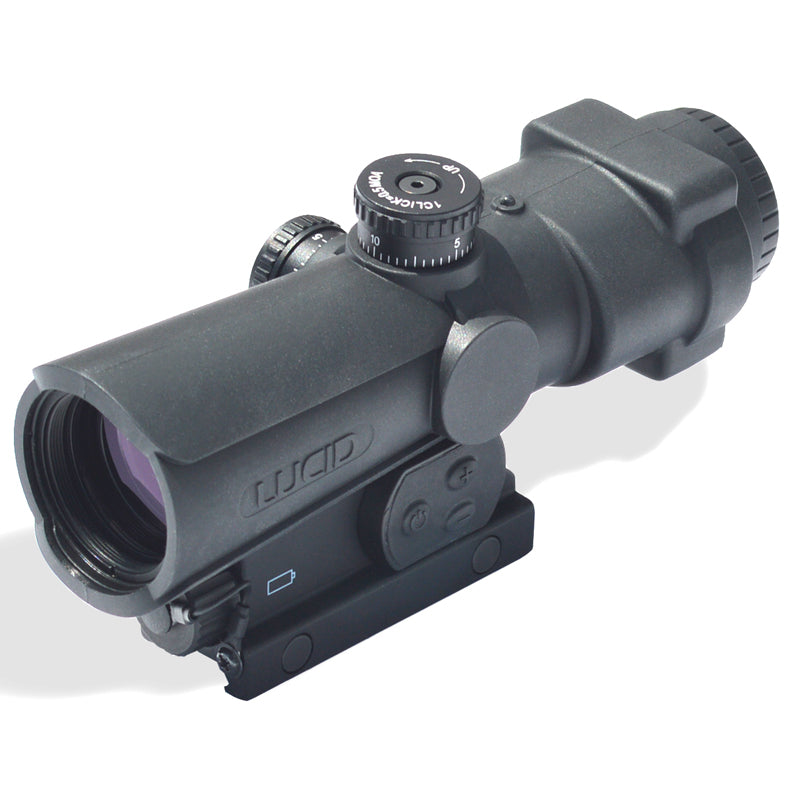

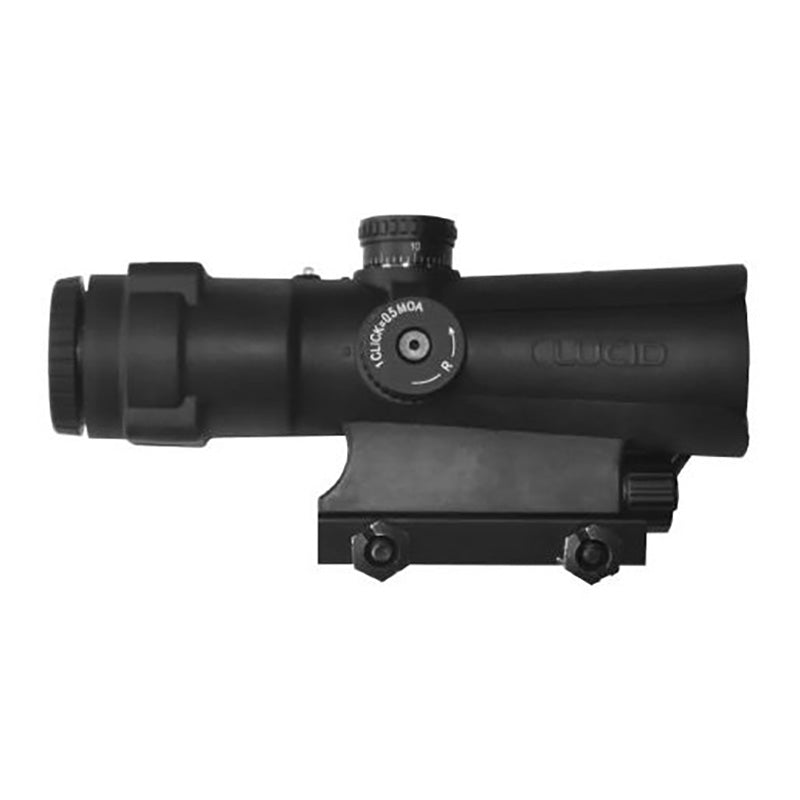

Description
The Lucid Optics P7 4x Combat Optics is the result of a direct request for a 4x magnified combat optic. Built for durability by using an aircraft grade aluminum frame then wrapped in the same chemical rubber housing as the HD7. The AA power source gives you 2500 hours of use with the auto shut off kicking in after 2 hours. Quick target acquisition is a no brainer with the P7 reticle, auto brightness sensor, and 10 manual brightness setting. You will never lose sight of your target regardless of the light level. The built-in Picatinny Mount ensures your P7 is solid and sturdy, able to handle combat. See why shooters of all kinds love Lucid Optics P7 4x Combat Optic, add it to your collection.
Features:
- Limited Lifetime Warranty
- Auto Brightness Sensor - So the operator does not have to take a hand off the weapon to manipulate the reticle brightness when going from a bright environment to a darker one
- Reversible Mounting Pins - We made the mounting pins reversible so the Bull Pup weapons can utilize the HD7 without cracking the knuckles of the operator when the bolt carrier needs charged
- AA Battery - An economical and readily available power source for offering over 2500 hours on a single AA battery
- Mounting - A robust Picatinny rail mount is built in for secure and rock solid mounting to most weapons platforms
- 100% Waterproof, Shockproof & Fogproof - Because you never know what environmental conditions you will be in when you need to rely on your weapon system
- Adjustable Ocular Focus
- Chemical rubber armor
- Easy access, leashed battery cap
- Auto shut off after 2 hours
- Exposed 1/2 MOA adjustments
- Reversible mounting pins
- 10 brightness levels
- Optical coating FBMC Multi Coated
Technical Specifications:
 |
Magnification Objective Lens Ocular Lens Diameter Length Mounting Weight Rubber Armor Construction Material Power Source Color & Finish |
4x 30mm 25mm 6.5" Picatinny Rail w/ Reversible Pins 19oz YES One Piece Aluminum (6063) AA Battery (not included) MATTE BLACK |
 |
Waterproof |
YES (submersible) YES (Nitrogen Purged) YES (.458 SOCOM) FBMC Multi Coated 92% YES 10 Brightness Levels 100yd fixed 3.25" 9mm 25ft @ 100yds (-2 to +1.5) Manual & Auto |
 |
Reticle Type Turret Click Value Windage Adj, Range Elevation Adj. Range Auto Shut-Off Re-Zeroable Turrets Accessories Warranty |
P7 Etched Glass 1/2MOA 50MOA 50MOA 2 Hour YES Available Flash Filter ScopeCoat Limited Lifetime |
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
