Description

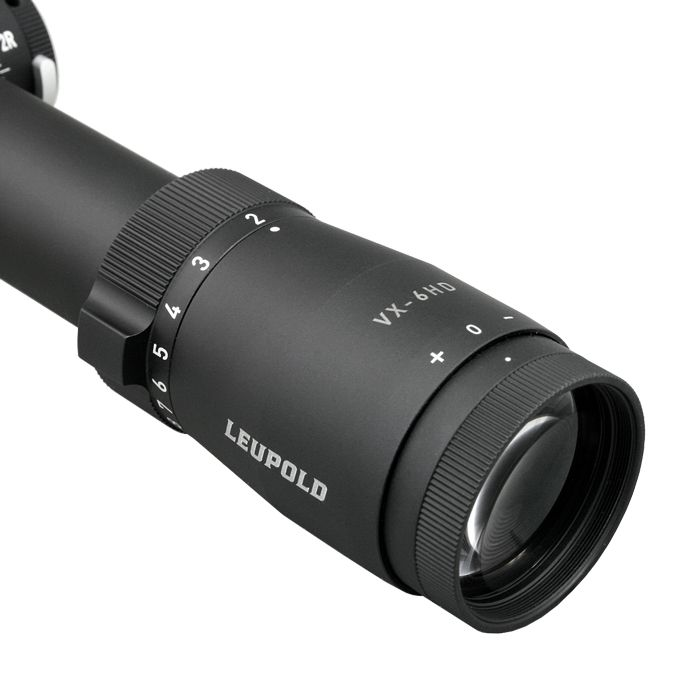

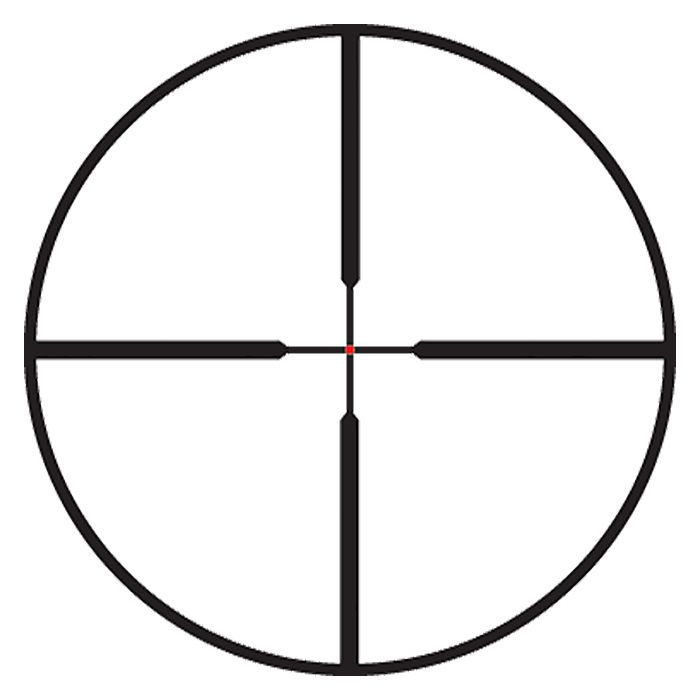

Relentlessly versatile in a light-weight design with a large objective lens and extremely wide field-of-view. TheLeupold VX-6HD 2-12x42FireDot Duplex CDS-ZL2 171563has a versatile 2-12x magnification range. The rear focal planeilluminatedFireDot Duplex reticleis fine and minimally covers the target as subtensions change with zoom and tune the ballistic reticles. Easily control the reticle with one-button design or allow the Motion Sensor Technology(MST) to deactivate illumination after 5 minutes of inactivity to save battery life. TheLeupold VX-6HD 2-12x42FireDot Duplex CDS-ZL2features a 42mm objective lens coated with a Guard-Ion-assisted coating, which ensures the lens surfaces are protected from scratches and other abrasions and issealed to guarantee it is 100% water and fog proof. See more with even less light using the Twilight Light Management System, which adds up to an extra 30 minutes of shooting light and eliminates 90% more glare than the competition. ZeroLock system helps avoid accidental adjustments and an electronic leveling system causes the reticle to blink when the scope is not level. TheLeupold VX-6HD 2-12x42FireDot Duplex CDS-ZL2also features a fast-focusing eyepiece for quick reticle focus and a reversible throw lever for speedy magnification changes.
Leupold VX-6HD 2-12x42 CDS-ZL2 for sale - get unbeatable prices, user reviews, expert advice and FREE shipping on rifle scopes!Illuminated FireDot Duplex Reticle - 30mm Scope Tube
| Magnification | Zoom: 2X to 12X |
|---|---|
| Objective Lens Size | 42mm |
| Exit Pupil | 24mm-4mm |
| Eye Relief | 3.8" |
| Field of View @ 100 Yards Spec | 57.5 ft-10.2 ft |
| Tube Diameter | 30mm |
| Turret Type | BDC/Adjustable |
| Turret Click Value | .250 MOA |
| Illuminated Reticle | Yes |
| Reticle Focal Plane | 2nd Focal Plane |
| Weather Resistance | Water/Fog Proof |
| Weight | 16.8oz |
| Length | 12.5" |
| Max Elevation Adjustment | 70 MOA |
| Max Windage Adjustment | 70 MOA |
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
