Description

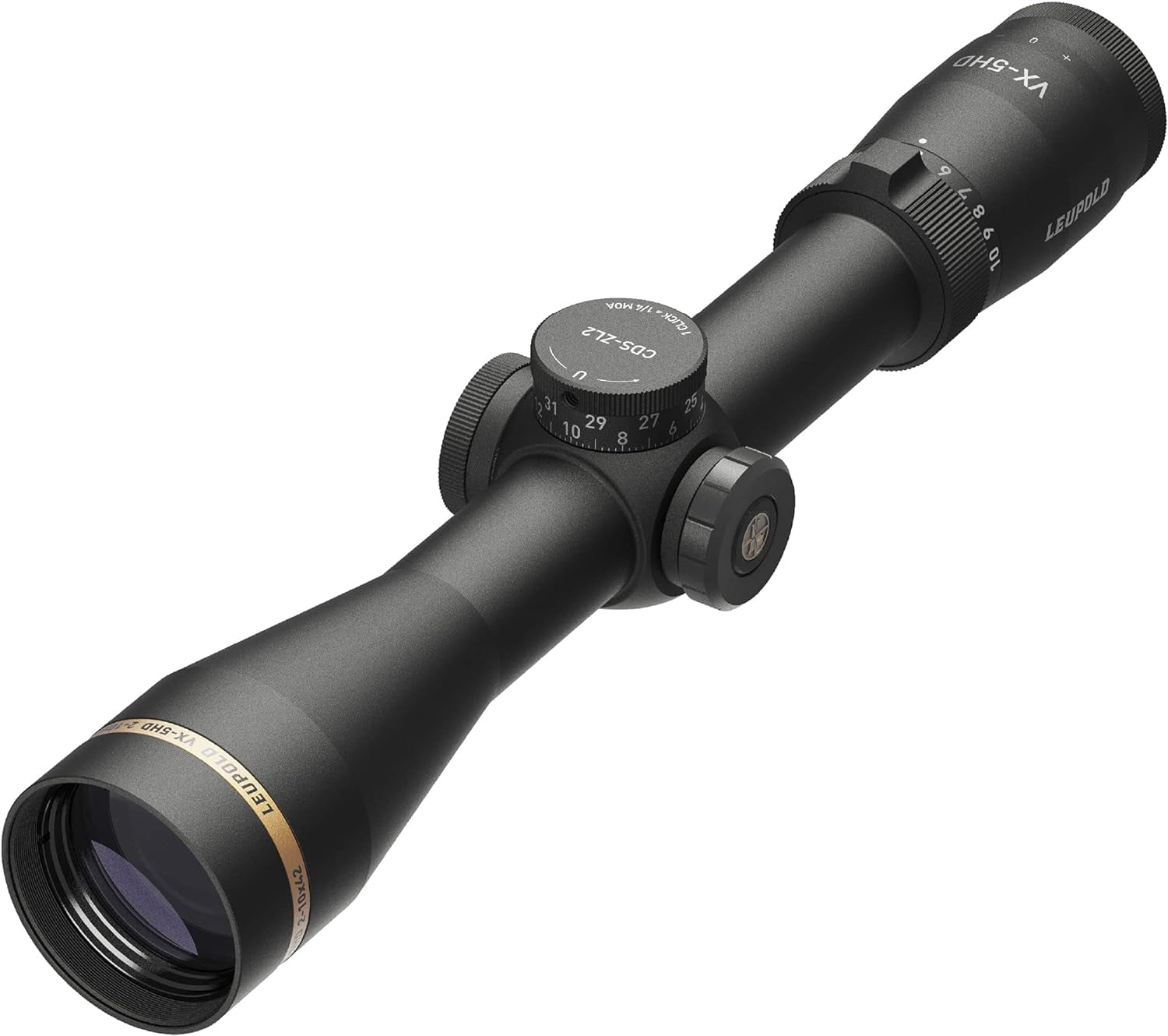

The Leupold VX-5HD Rifle Scope 2-10x42mm 30mm SFP 171389 offers unparalleled optical performance and rugged reliability for hunters and shooters alike. Boasting a versatile magnification range, the scope is engineered for accuracy and clarity across the entire field of view. The 2-10x zoom provides adaptability for close to mid-range targeting, while the 42mm objective lens gathers ample light to ensure a bright and clear sight picture, even in low-light conditions.

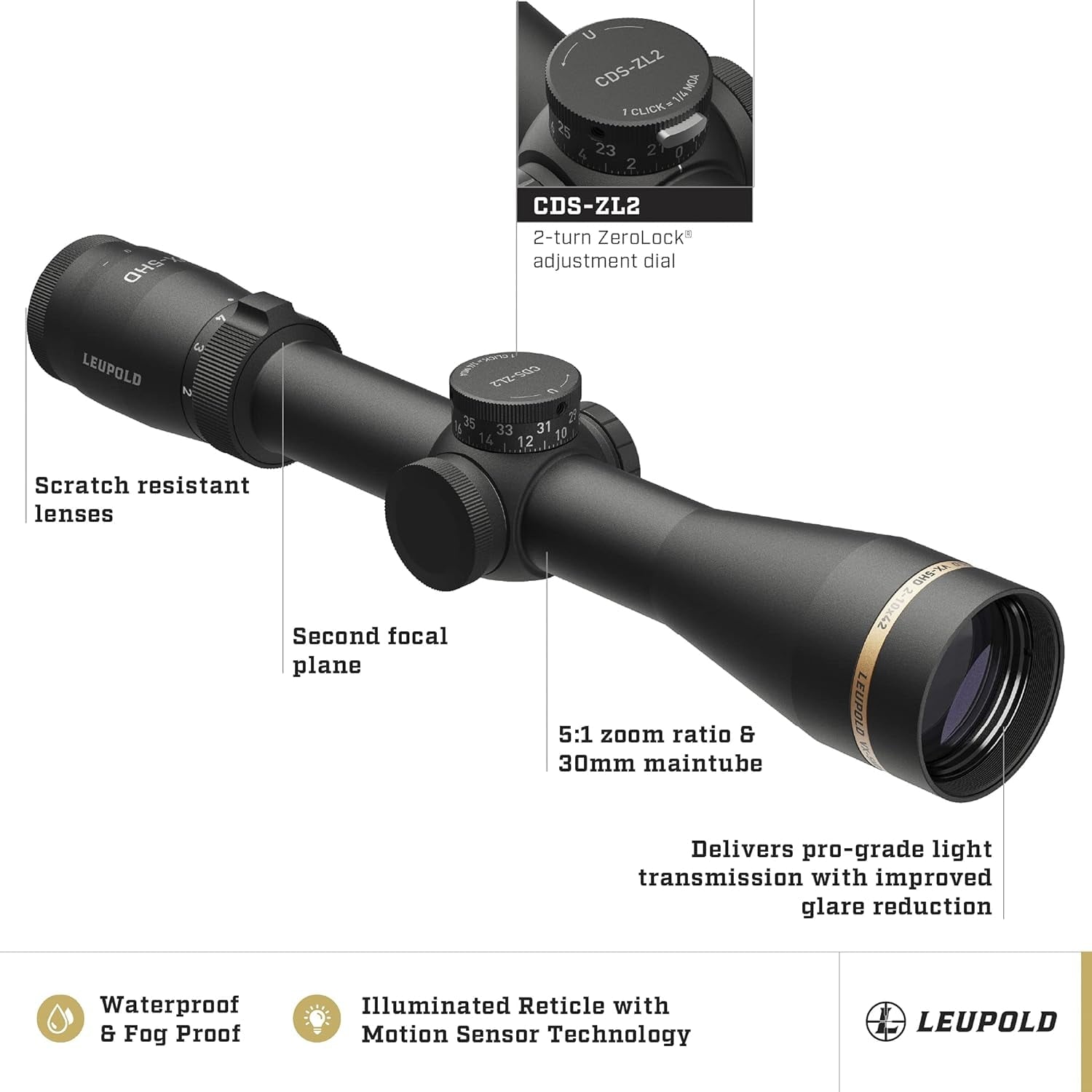

Employing Leupold's exclusive Twilight Max Light Management System, this rifle scope delivers premium image quality with true-to-life colors and superior light transmission. The Firedot Illuminated Reticle, complemented by Motion Sensor Technology, enhances target acquisition and preserves battery life by activating standby mode after five minutes of inactivity. The Custom Dial System ZeroLock 2 (CDS-ZL2) avoids inadvertent changes, securing your zero setting firmly in place.
Constructed to endure the most challenging environments, the Leupold VX-5HD Rifle Scope is waterproof and fog-proof. The scope's Guard-Ion lens coating repels water and dirt, ensuring a clear view in adverse conditions. Made in the USA and backed by Leupold's Legendary Lifetime Guarantee, this scope is built to perform and last a lifetime. It's a testament to the quality and craftsmanship that has defined Leupold optics for generations.
Leupold VX-5HD Rifle Scope 2-10x42 171389 Features
- ADVANCED OPTICS: Twilight Max Light Management System ensures maximum brightness, color fidelity, and clarity.
- ILLUMINATED RETICLE: Firedot Illuminated Reticle with Motion Sensor Technology enhances precision in low-light conditions.
- SECURE ZEROLOCK: CDS-ZL2 feature locks your zero in place, preventing accidental adjustments.
- ROBUST CONSTRUCTION: Waterproof, fog-proof, and built with a Guard-Ion coating to repel water and debris.
- VERSATILE ZOOM: 2-10x magnification range, suitable for a wide array of shooting conditions.
- HIGH-QUALITY BUILD: Made in the USA, guaranteeing top-notch construction and materials.
- LIFETIME WARRANTY: Covered by Leupold's Legendary Lifetime Guarantee for peace of mind.
- USER-FRIENDLY DESIGN: Fast-Focus Eyepiece and a generous eye box provide comfort and ease of use.
Leupold VX-5HD Rifle Scope 2-10x42 171389 Specifications
| Specification | Detail |
|---|---|
| Scope Weight | 16.4 oz |
| Scope Length | 12.5" |
| Magnification Range | 2.0 - 10.0x |
| Scope Objective Diameter | 42mm |
| Scope Tube Size / Mount | 30mm |
| Turret Adjustment | 1/4 MOA |
| Zero Lock Dial System | CDS-ZL2 |
| Elevation Turret Details | 120 MOA |
| Windage Turret Details | 120 MOA |
| Parallax Adjustment | Fixed |
| Reticle Position | Second Focal Plane |
| Reticle Details | Illuminated Red FireDot Duplex Reticle |
| Field of View | @ 2x: 57.5' @ 100 yrds, @10x 11.7' @ 100 yrds |
| Eye Relief | 3.8" |
| Illuminated Reticle | Yes, FireDot |
| Scope Finish | Matte Black |
| Scope Turret Rotation | Counter Clockwise (CCW) |
| Product Type | Riflescopes |
| UPC | 030317012151 |
| MPN | 171389 |
Included In The Box
- Leupold VX-5HD Rifle Scope 2-10x42mm 30mm SFP 171389
- Protective Lens Covers
- Lens Cloth
- Documentation
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
