Description

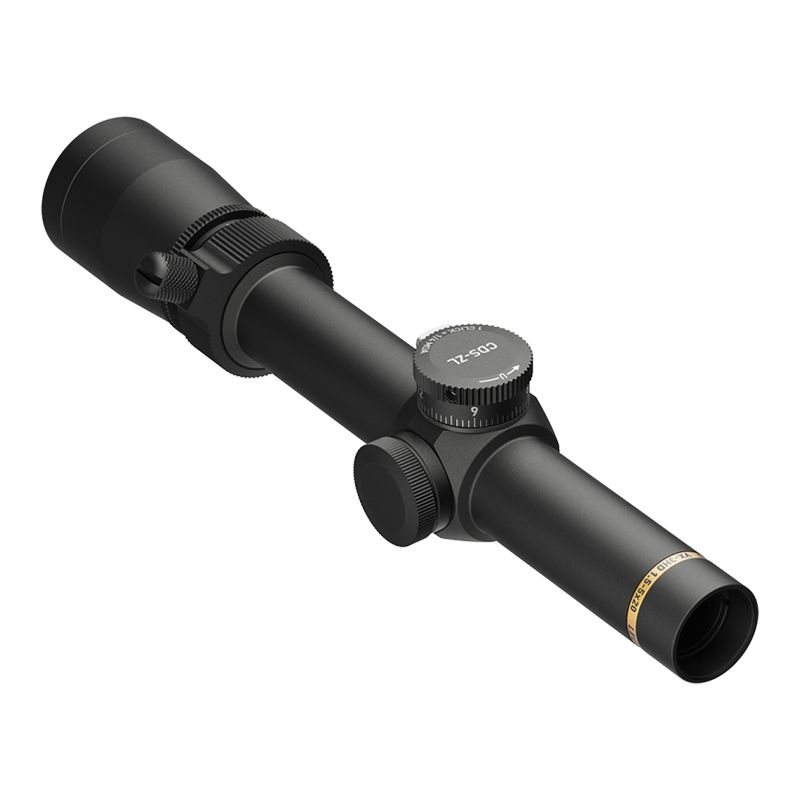

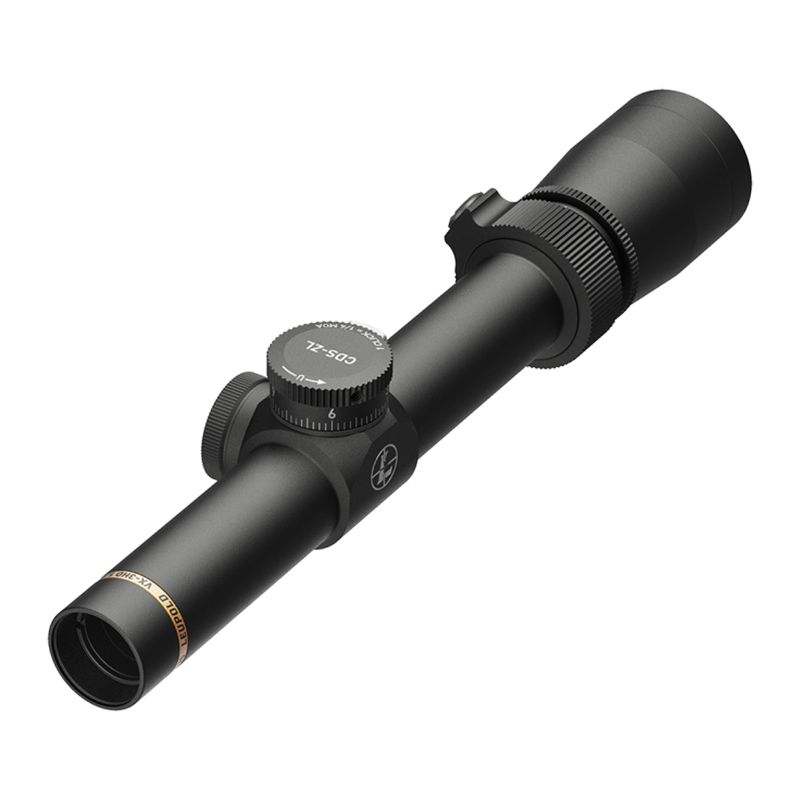

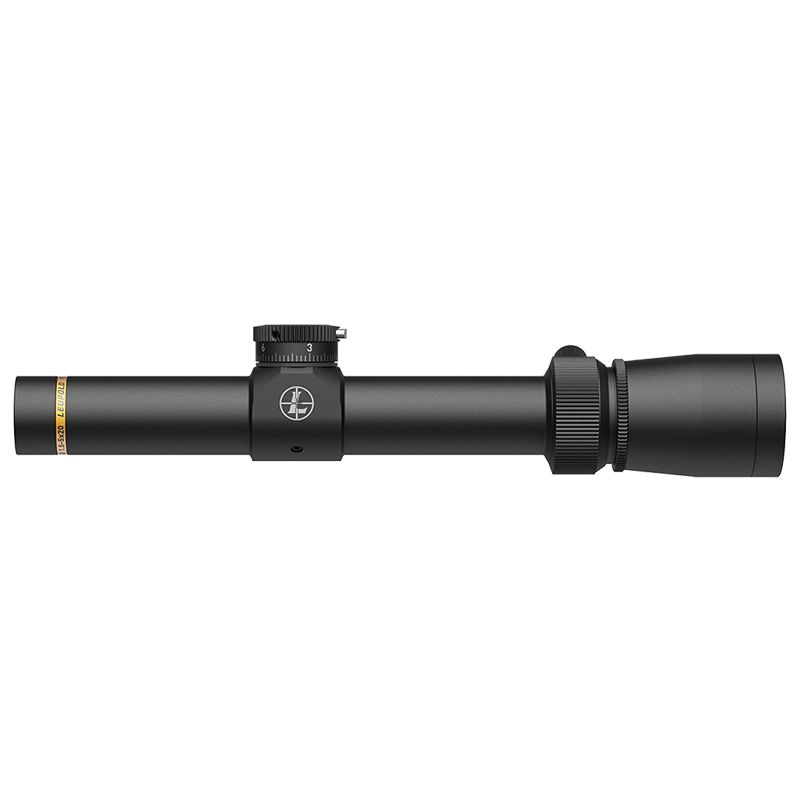

Designed for hunters and marksmen who demand precision and versatility, the Leupold VX-3HD 1.5-5x20 CDS-ZL Duplex Riflescope (180615) enhances your shooting experience from dawn until dusk. With Leupold's elite optical system, this compact and robust riflescope delivers superior light transmission and reduces glare, ensuring a clear view in challenging conditions.
The incorporation of CDS ZeroLock dial technology in the VX-3HD assures that your elevation settings remain locked in place, even during the most rugged activity. The exposed elevation turret allows for quick adjustments. A duplex reticle and a fixed parallax ensure fast target acquisition, which is fundamental for hunters on the move or in dense environments.
Whether you're trekking through the backcountry or preparing for that crucial shot, the VX-3HD riflescope is designed to perform. Its sleek design is not only pleasing to the eye but also practical, with an integrated, removable throw lever for rapid magnification changes.
Features
- ELITE OPTICAL SYSTEM: Superior low-light performance and glare reduction for exceptional clarity.
- CDS ZEROLOCK TECH: Ensures elevation adjustments stay locked in with ZeroLock technology.
- EXPOSED TURRET: Quick and precise elevation adjustments with an exposed turret design.
- THROW LEVER: Integrated, removable throw lever for swift magnification changes.

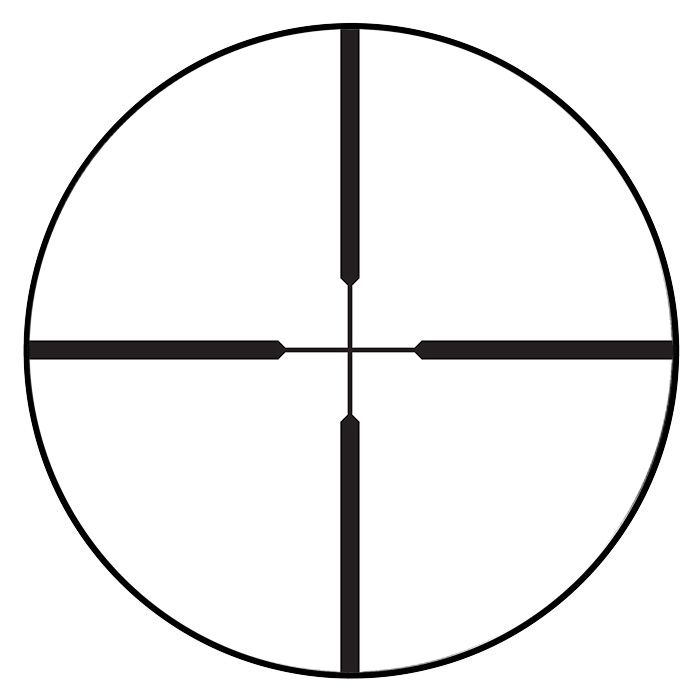

- DUPLEX RETICLE: Time-tested reticle designed for quick target acquisition.
- LIGHTWEIGHT DESIGN: At just 9.7 ounces, this scope won't weigh down your setup.
- SECOND FOCAL PLANE: Reticle size stays consistent, aiding shot accuracy at different magnifications.
- RELIABLE DURABILITY: Built to withstand the elements with a robust construction and black finish.
Specifications
| Feature | Specification |
|---|---|
| Scope Weight | 9.7 ounces |
| Scope Length | 9.7 inches |
| Magnification Range | 1.5x - 5x |
| Scope Objective Diameter | 20mm |
| Scope Tube Size / Mount | 1 inch |
| Turret Adjustment (Click Value) | .25 MOA |
| Elevation Turret Details | CDS ZeroStop 125 MOA |
| Windage Turret Details | 125 MOA |
| Parallax Adjustment | Fixed |
| Reticle Position | Second focal plane |
| Reticle Details | Duplex |
| Field of View | 67.6 - 24.1 feet @ 100 yards |
| Eye Relief | 4.4" - 3.6" |
| Illuminated Reticle | No |
| Scope Finish | Black |
| Scope Turret Rotation | Counter Clockwise (CCW) |
| Product Type | Riflescopes |
| UPC | 030317028428 |
| MPN | 180615 |
Included In The Box
- Leupold VX-3HD 1.5-5x20 CDS-ZL Duplex Riflescope (180615)
- Integrated Removable Throw Lever
- Protective Lens Covers
- Leupold Sticker
- Owner's Manual
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
