Description
Discover unparalleled precision with the Leupold RX-2800 TBR/W Laser Rangefinder OLED Selectable 171910, a must-have tool for rifle scope enthusiasts aiming for accuracy at extreme distances. Engineered to redefine long-range shooting, this rangefinder features cutting-edge technology, guaranteeing accuracy within 1/2-yard up to an impressive 2800 yards. The crisp, high-visibility red OLED display combined with 7x magnification ensures you can spot and range your target with ease.
Leupold's proprietary True Ballistic Range (TBR) technology adapts to the angle of your shot and individual ballistics, offering 25 selectable ballistic groups for unmatched precision. Its advanced Alpha IQ engine enhances target recognition and speeds up the ranging process, even for small or moving targets. Experience a major upgrade from traditional methods with Leupold's TBR/W technology, designed to deliver first-shot success.
Accurate shot placement is further refined by incorporating wind holds for 10 mph crosswinds, which means the RX-2800 helps take the guesswork out of the windage adjustment. Compact, durable, and equipped with a rugged design, the Leupold RX-2800 is the ultimate rangefinder that stands up to any field conditions, ensuring that avid marksmen have the most accurate data at their fingertips when it matters most.
Features
- EXTREME RANGE CAPABILITY: Accurate to 1/2-yard for distances up to 2800 yards, catering to the most demanding long-range shooters.
- ADVANCED OPTICS: High-quality 7x magnification with a bright red OLED selective display that provides excellent visibility and clarity.
- PRECISION TBR/W TECHNOLOGY: Integrates True Ballistic Range with Wind for 25 selectable ballistics groups, enhancing accuracy and shot placement.
- ENHANCED ALPHA IQ SYSTEM: Makes it quicker to range small or moving targets, streamlining the targeting process.
- WIND HOLD CALCULATIONS: Equipped with 10-mph wind holds, taking the guesswork out of windage adjustments for more accurate shooting.
- DURABILITY AND RUGGED DESIGN: Engineered to withstand the toughest field conditions, ensuring reliability and longevity.
- USER-FRIENDLY INTERFACE: Intuitive and easy to use, even for those new to using rangefinders with advanced features.
- PORTABLE AND LIGHTWEIGHT: At just 7.3 ounces and 4.3" in length, it’s the perfect companion for hunters and shooters on the move.
Specifications:
| Feature | Specification |
|---|---|
| Item Condition | New |
| Weight | 7.3 oz. |
| Dimensions | 4.3" L |
| Range | Up to 2800 yards |
| Magnification | 7x |
| Objective Aperture | 23mm |
| Eye Relief | 16mm |
| Linear FOV | 318 ft @ 1000 yards |
| Angular FOV | 6.3 degrees |
| Measurement Units | Yards |
| Battery Type | CR123A battery |
| Product Type | Laser Rangefinders |
| UPC | 030317013073 |
| MPN | 171910 |
Included In The Box
- Leupold RX-2800 TBR/W Laser Rangefinder OLED Selectable (171910)
- CR123A Battery

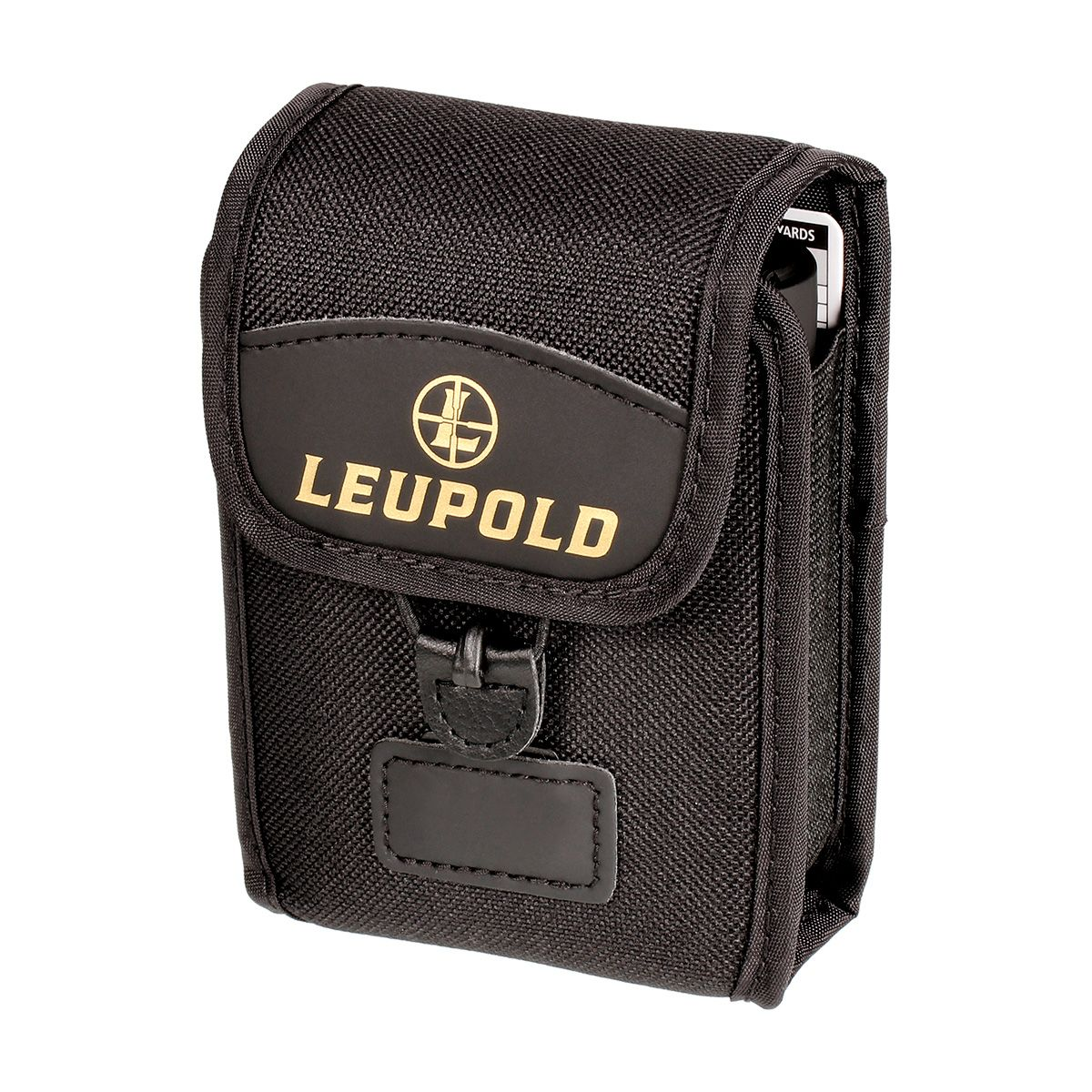

- Protective Soft Case
- Cordura Holster
- Lanyard
- Quick Reference Card
- Owner's Manual
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
