Description

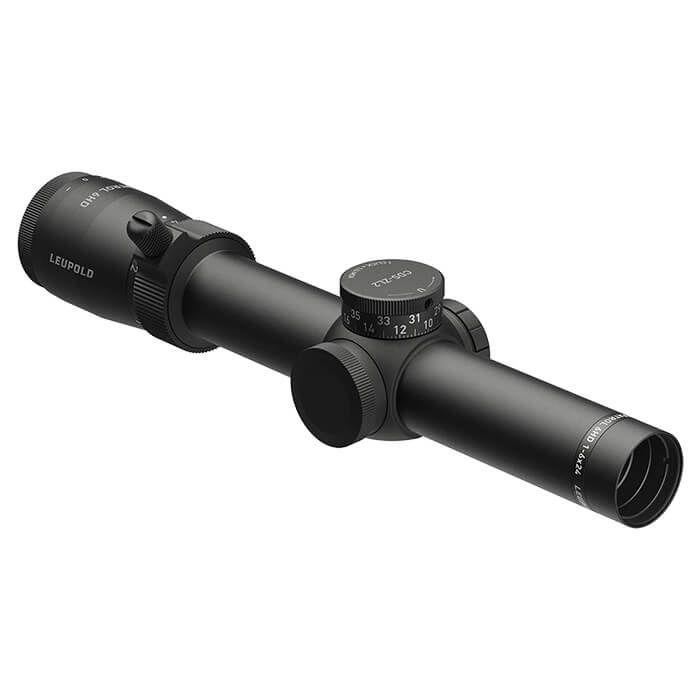

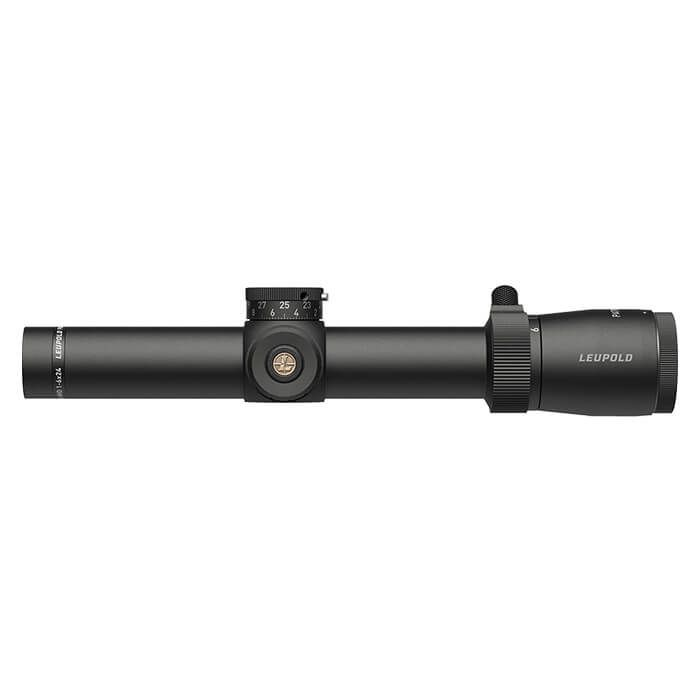

Leupold Patrol 6HD 1-6x24mm CDS-ZL2 Riflescope 182352 offers precise targeting and versatility for various shooting scenarios. With a powerful 6:1 zoom ratio, it seamlessly transitions from 1x for close-range engagements to 6x for distant targets. The scope is engineered with Leupold's Professional-Grade Optical System, ensuring superior light transmission and glare reduction, enabling clear visibility in challenging lighting conditions.

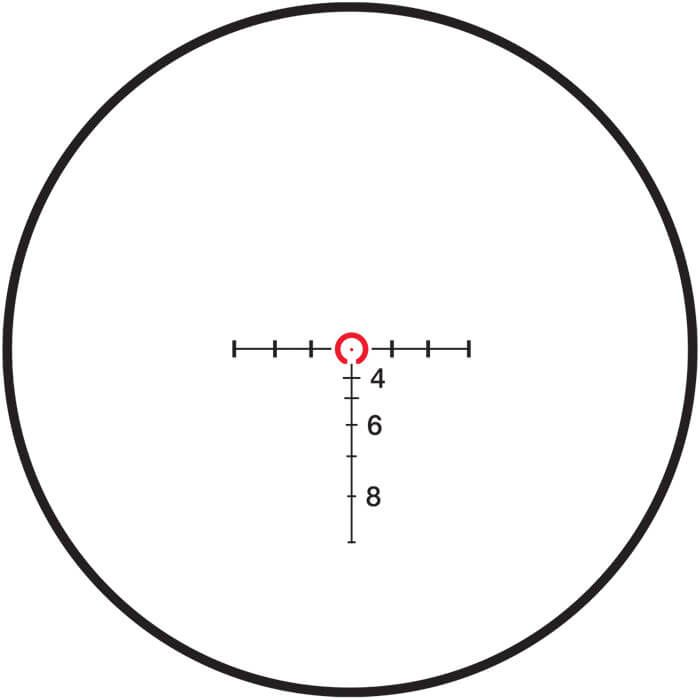

Featuring an illuminated CM-R2 reticle, this riflescope provides a precise 0.5 MOA center dot and includes horizontal and vertical stadia lines for effective bullet drop and wind drift compensation. The push-button illumination is complemented by Motion Sensor Technology, which conserves battery life by automatically activating when motion is detected. The Electronic Reticle Level ensures your rifle remains level for accurate long-range shots, while the CDS-ZL2 ZeroLock 2 elevation dial allows quick, secure adjustments in the field.
Key Features:
- OPTICAL EXCELLENCE: Leupold's Professional-Grade Optical System ensures maximum light transmission and glare reduction.
- VERSATILE MAGNIFICATION: The 6:1 zoom ratio caters to both close and long-range shooting.
- PRECISION RETICLE: Illuminated CM-R2 reticle provides a clear aiming point with a 0.5 MOA center dot.
- MOTION SENSOR TECH: Illumination saves battery with automatic deactivation and reactivation.
- LEVEL ACCURACY: Electronic Reticle Level helps maintain perfect shot alignment.

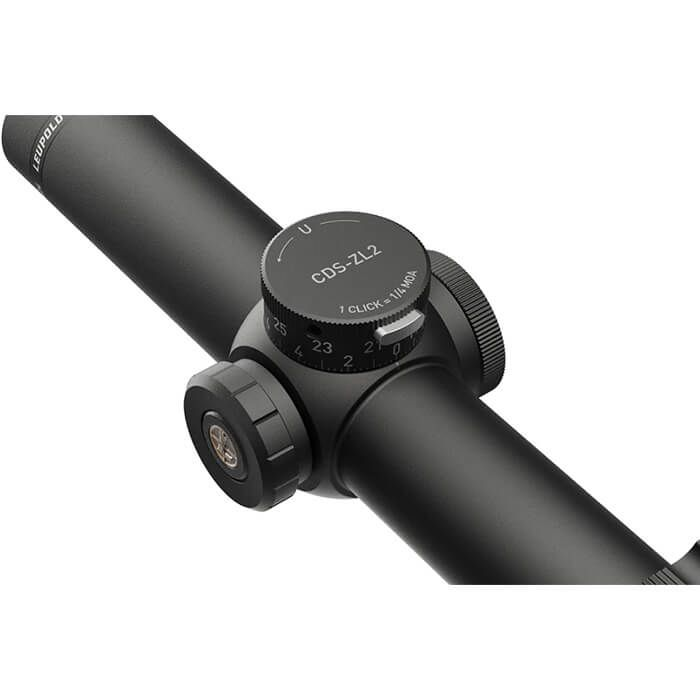

- ELEVATION DIAL: CDS-ZL2 ZeroLock 2 elevates the field adjustment capability with security against accidental changes.
- WIDE FIELD OF VIEW: Enjoy a broad view of your target area with edge-to-edge clarity.
- ROBUST & DURABLE: Built to withstand challenging conditions and maintain peak performance.
Technical Specifications
| Specification | Detail |
|---|---|
| Scope Weight | 16.2 ounces |
| Scope Length | 10.8 inches |
| Magnification Range | 1x - 6x |
| Scope Objective Diameter | 24mm |
| Scope Tube Size / Mount | 30mm |
| Turret Adjustment (Click Value) | 1/4 MOA |
| Elevation Turret Details | Exposed CDS-ZL2 ZeroLock 2, 170 MOA total travel |
| Windage Turret Details | Capped, 170 MOA total travel |
| Parallax Adjustment | Fixed at 150 yards |
| Reticle Position | Second focal plane |
| Reticle Details | CMR2 |
| Field of View | 120.9 feet @ 100 yards (low power), 19.2 feet @ 100 yards (high power) |
| Eye Relief | 3.7 - 3.8 inches |
| Illuminated Reticle | Yes |
| Scope Finish | Black |
| Product Type | Riflescopes |
| UPC | 030317032067 |
| MPN | 182352 |
What's in the Box?
- Leupold Patrol 6HD 1-6x24mm CDS-ZL2 Riflescope (182352)

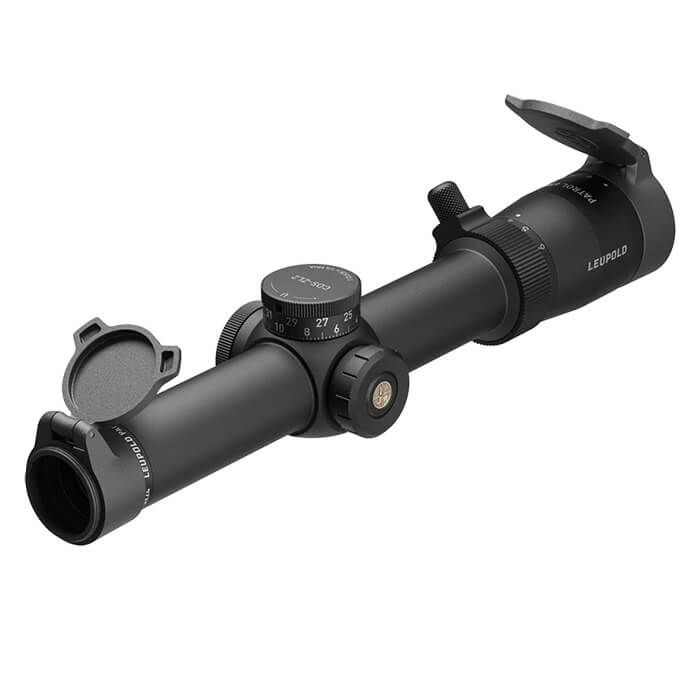

- Detachable Lens Covers
- Lens Cloth
- Product Documentation
- Full Leupold Lifetime Guarantee
Customer Reviews
"The clarity and ease of use at different ranges is impressive. A great addition to my gear." - John D.
"I've used it in various conditions, and it performs exceptionally well. Highly recommend!" - Sarah K.
"The electronic reticle level is a game changer for long-distance shooting." - Mike R.
FAQ
How does the illumination feature work? The illuminated reticle activates with a push button and employs Motion Sensor Technology, which conserves battery life by turning off after a period of inactivity and reactivating with motion detection.
What are the advantages of the Electronic Reticle Level? This feature alerts you when your rifle is not perfectly level, enhancing your accuracy, especially at long distances.
Can this scope be used in low light conditions? Yes, the scope’s Professional-Grade Optical System provides superior light transmission and glare reduction, making it ideal for low light conditions.
Is the scope durable for outdoor use? Absolutely. The Leupold Patrol 6HD is built to withstand harsh conditions, featuring robust construction that ensures longevity.
How does this scope compare to other tactical scopes? The Patrol 6HD offers a versatile magnification range, advanced reticle technology, and features like Motion Sensor Technology, setting it apart from many competitors in terms of functionality and user experience.
Similar Models
Looking for more options? Explore our selection of Leupold riflescopes, including models like the Leupold VX-Freedom 3-9x40 for versatile hunting applications and the Leupold Mark 5HD 3.6-18x44 for long-range precision. Check out our complete collection for top-quality optics tailored to your shooting needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
