Description

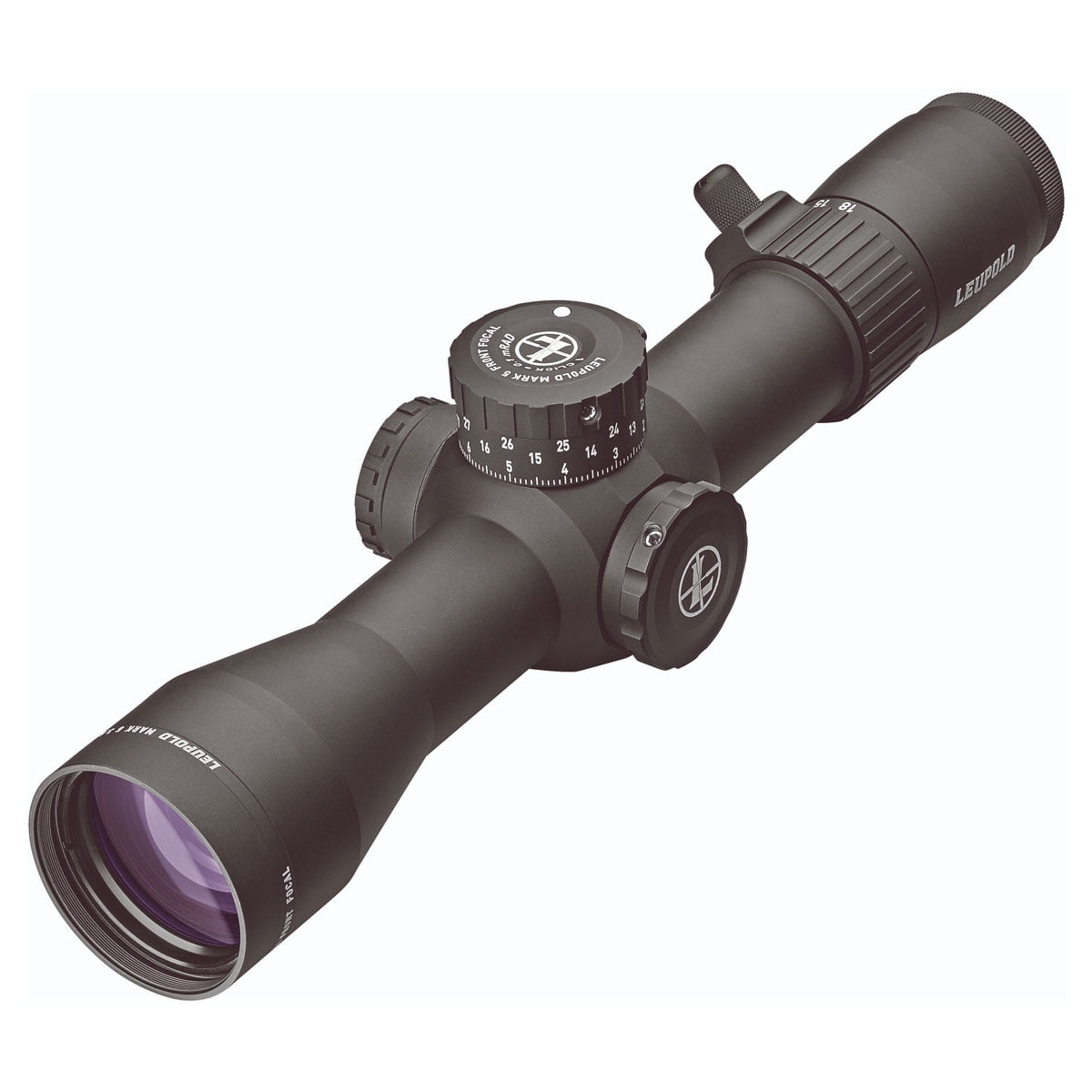

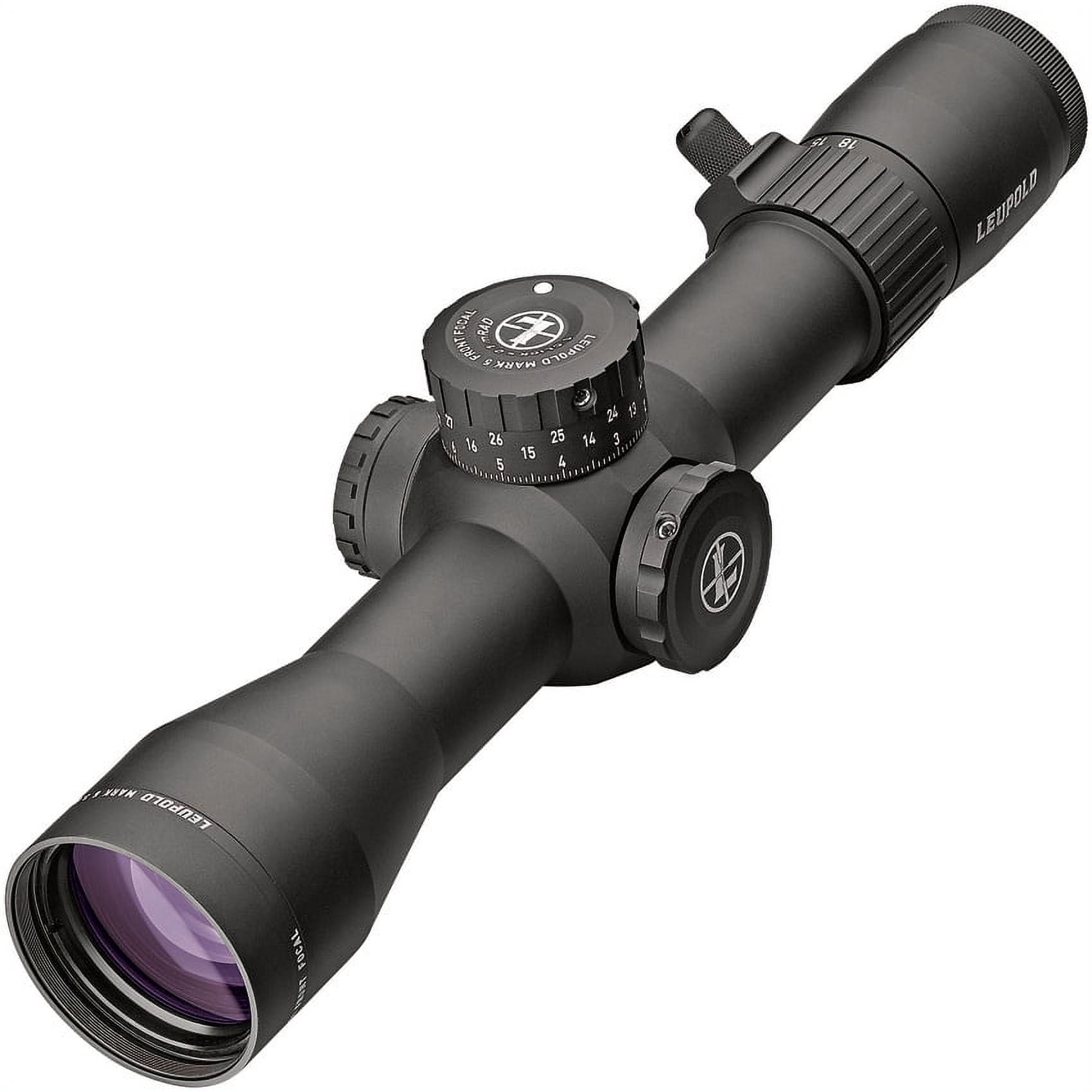

Designed for precision and reliability, the Leupold Mark 5HD 3.6-18x44mm Rifle Scope M5C3 TMR 173296 caters to serious shooters who demand nothing short of excellence. This tactical scope leverages elite military expertise and professional shooting insights, pushing the envelope of riflescope capability. Weighing a manageable 26 ounces and measuring 12.1 inches in length, it offers a blend of portability and performance, proving that superior optics need not be cumbersome.
The Mark 5HD 3.6-18x boasts a Twilight Max HD Management System, ensuring crystal-clear vision, superior low light performance, and enhanced contrast. Its M5C3 ZeroLock adjustments offer a 3-turn dial with 10 Mils per turn, precision tracking, and steadfast return to zero. From its first focal plane TMR reticle to its rock-solid 35mm main tube, the Mark 5HD is prepared to handle the most challenging situations.
Leupold offers legendary robustness and backs this scope with their Full Lifetime Guarantee. Whether subjected to the most adverse environments or the recoil of repeated shots, this riflescope promises durability and consistent performance. Its waterproof and fog-proof integrity ensures unimpeded functionality no matter the weather conditions.
Leupold Mark 5HD 3.6-18x44 173296 Features
- PRECISION ENGINEERING: Leupold's Twilight Max HD Management System for peerless edge-to-edge clarity and low-light performance.
- M5C3 ZEROLOCK: Offers a 3-turn dial at 10 Mils per turn for precise elevation adjustments and reliable return to zero.
- LIGHTWEIGHT DURABILITY: At 26 oz. and 12.1 inches, combines portability with rugged reliability, backed by a Full Lifetime Guarantee.
- CASH BENCHMARKS: Features a 3.6-18x magnification range, 44mm objective diameter, and a 35mm main tube for versatile use in tactical environments.
- ADVANCED OPTICS: First Focal Plane TMR reticle for consistent aiming, with a wide field of view (28.3 - 5.8 ft @ 100 yards).
- USER-FRIENDLY FEATURES: High-speed power selector with integrated throw lever and a fast focus eyepiece for quick target acquisition.
- ALL-WEATHER CAPABLE: Built to be waterproof and fog proof, ensuring performance in any climate conditions.
- TERMINAL PRECISION: Counter Clockwise (CCW) turret rotation and precise side focus for accurate shots at varying distances.
Leupold Mark 5HD 3.6-18x44 173296 Specifications
| Specification | Detail |
|---|---|
| Item Condition | New |
| Scope Weight | 26 oz. |
| Scope Length | 12.1" |
| Magnification Range | 3.6-18x |
| Scope Objective Diameter | 44mm |
| Scope Tube Size / Mount | 35mm |
| Turret Adjustment | 0.1 mRAD, CCW |
| Elevation Turret Details | 29.1 MIL, M5C3 |
| Windage Turret Details | 23.3 MIL |
| Parallax Adjustment | 50 yards - infinity |
| Reticle Position | First Focal Plane |

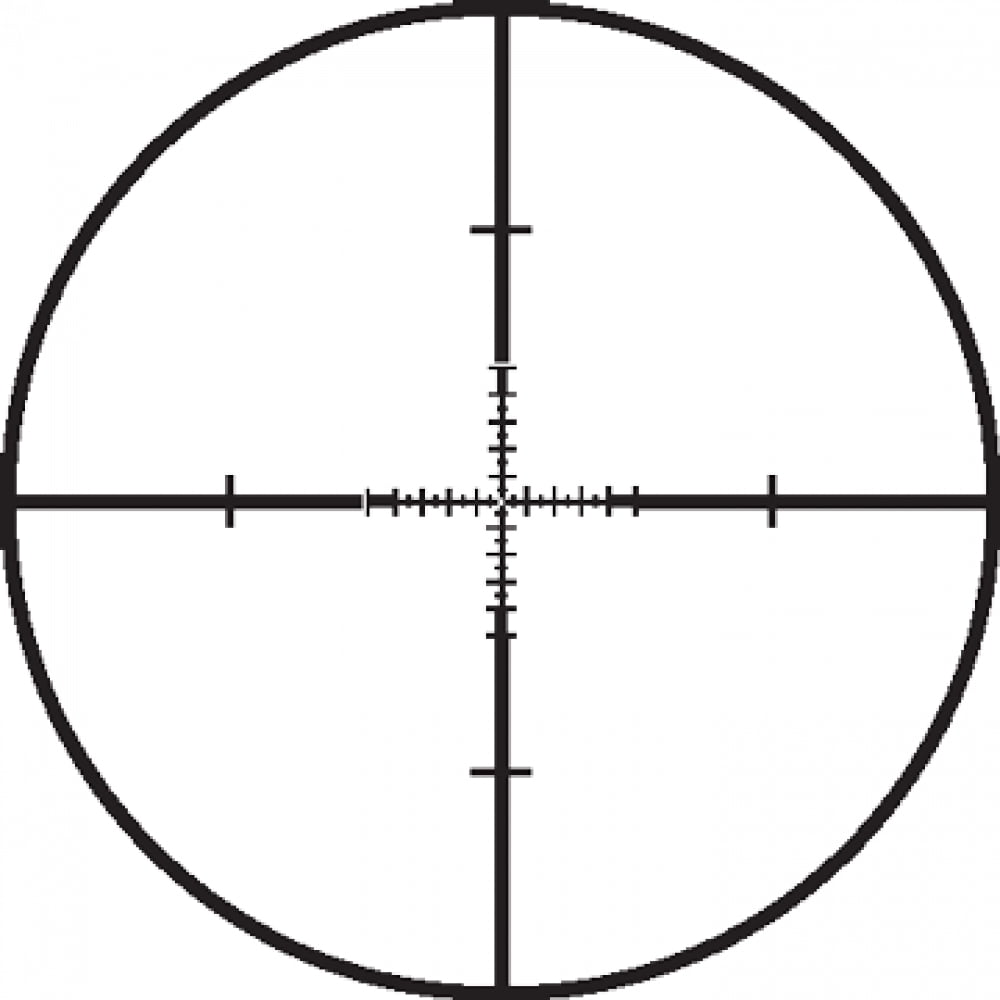

| Reticle Details | TMR Reticle |
| Field of View | 28.3 - 5.8 ft @ 100 yards |
| Exit Pupil | 2.4 mm |
| Eye Relief | 3.5 - 3.8" |
| Illuminated Reticle | No |
| Scope Finish | Black |
| Scope Turret Rotation | Counter Clockwise (CCW) |
| Product Type | Riflescopes |
| UPC | 030317016357 |
| MPN | 173296 |
WHAT'S IN THE BOX?
When you receive your Leupold Mark 5HD 3.6-18x44mm Rifle Scope M5C3 TMR 173296, it comes equipped with everything needed for immediate deployment onto your rifle. The uncompromised quality and performance of this scope are second to none, ensuring that with each inclusion in the box, you're ready for any shooting scenario.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
