Description

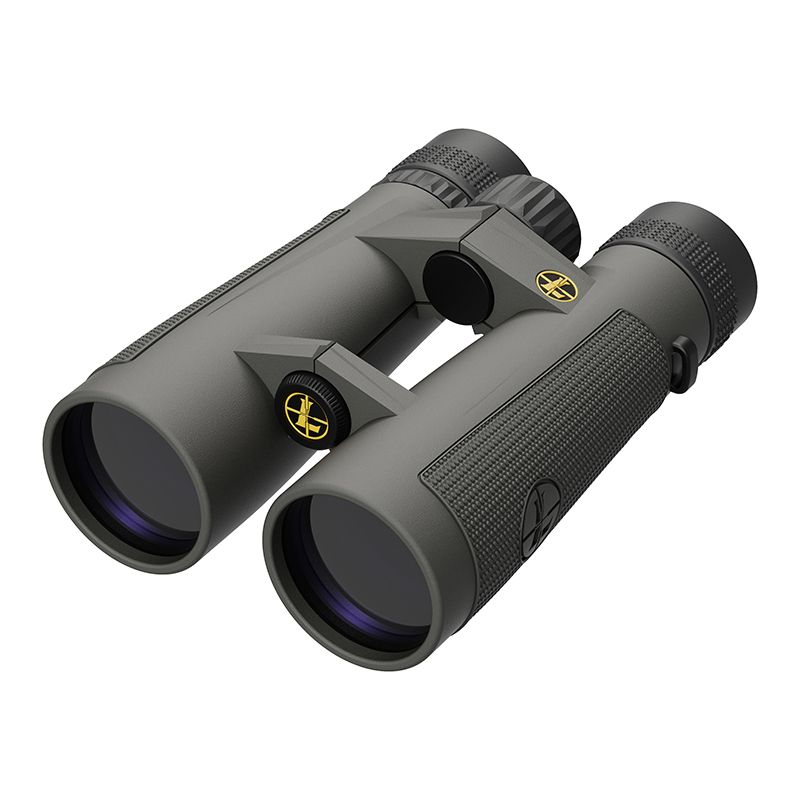

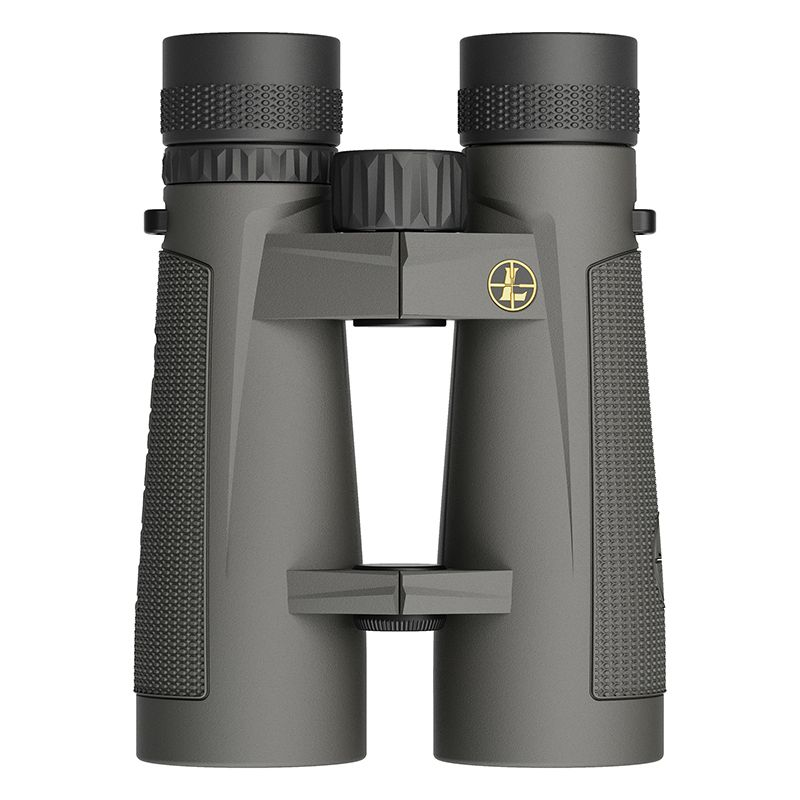

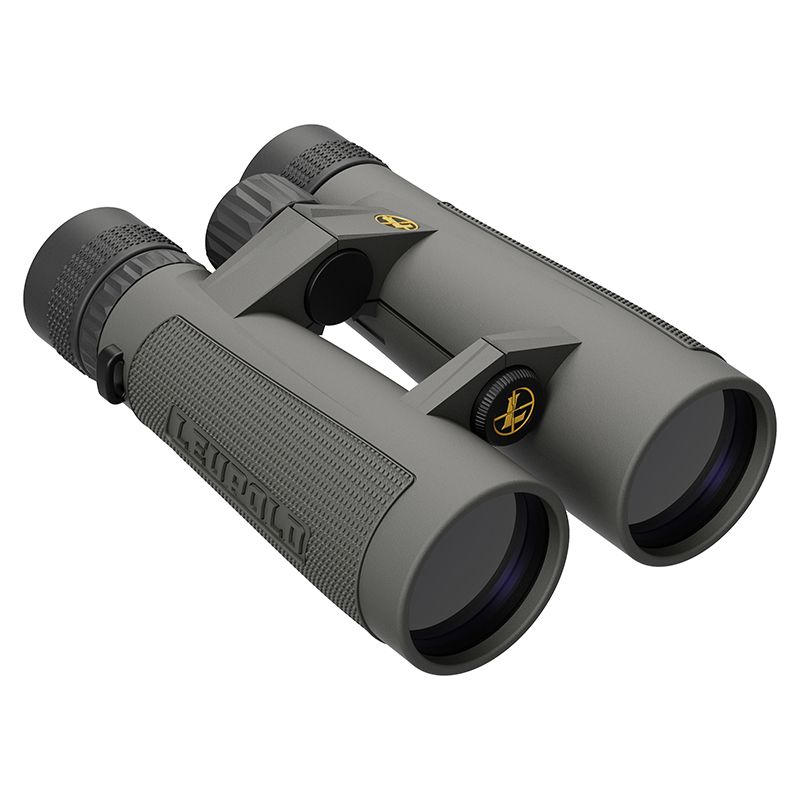

Discover unparalleled clarity with the Leupold BX-5 Santiam HD 8x42mm Shadow Grey Binoculars 174481, designed to elevate your outdoor experiences. These superior optics are engineered to cater to the discerning rifle scope shopper, capturing the finest details through the Professional-Grade Optical System. The BX-5 Santiam HD binoculars promise a blend of resilience and optical brilliance that birders and hunters have come to expect, ensuring that lighting conditions never compromise your view.
Crafted with an ergonomic design, these binoculars fit snugly in your hands, providing an ease of use that both enhances comfort and brings you closer to the heart of the action. Complemented with BAK 4 prisms, they yield virtually edge-to-edge sharpness and brightness. Additionally, the DiamondCoat 2 ion-assisted lens coating acts to boost light transmission while providing essential abrasion resistance.
Functionality melds with durability, as these binoculars boast a waterproof and fogproof construction, ready to face any environmental challenge. Whether you're surveying a scenic landscape or tracking game, the Leupold BX-5 Santiam HD 8x42mm is your ally in adventure, offering a crystal-clear window to the world even in twilight conditions.
Features
- PROFESSIONAL-GRADE OPTICS: Experience outstanding clarity with HD lenses that render maximum resolution and brightness.
- ERGONOMIC DESIGN: A lightweight, slim profile ensures these binoculars are comfortable to hold and easy to maneuver for long periods.
- ADVANCED LENS COATINGS: Benefit from enhanced light transmission and scratch resistance courtesy of DiamondCoat 2 lens coating.
- ALL-WEATHER RELIABILITY: Ready for any conditions, these binoculars are waterproof and fogproof, perfect for outdoor enthusiasts.
- BAK 4 PRISMS: Enjoy a bright, sharp image with virtually no edge distortion thanks to high-quality BAK 4 prism technology.
- TWILIGHT MAX HD SYSTEM: Maximize low-light performance, crucial for hunters and bird watchers during dawn and dusk.
- COMFORT VIEWING: Features like the twist-up eyecups and generous eye relief offer custom fit viewing comfort for extended use.
- OPEN BRIDGE ROOF PRISM: The modern and durable open bridge roof prism design ensures a solid yet lightweight binoculars construction.
Specifications
| Specification | Detail |
|---|---|
| Weight | 23.6 oz. |
| Dimensions | 5.9" |
| Eye Relief | 18.5mm |
| Field of View | 377ft @ 1000yd |
| Angular Field of View | 7.2° |
| Exit Pupil | 5.0mm |
| Twilight Factor | 18.3 |
| Close Focus Range | 8 ft. |
| Interpupillary Distance | 58mm - 78mm |
| Objective Diameter | 42mm |
| Product Type | Binoculars |
| Item Condition | New |
| UPC | 030317018283 |
| MPN | 174481 |

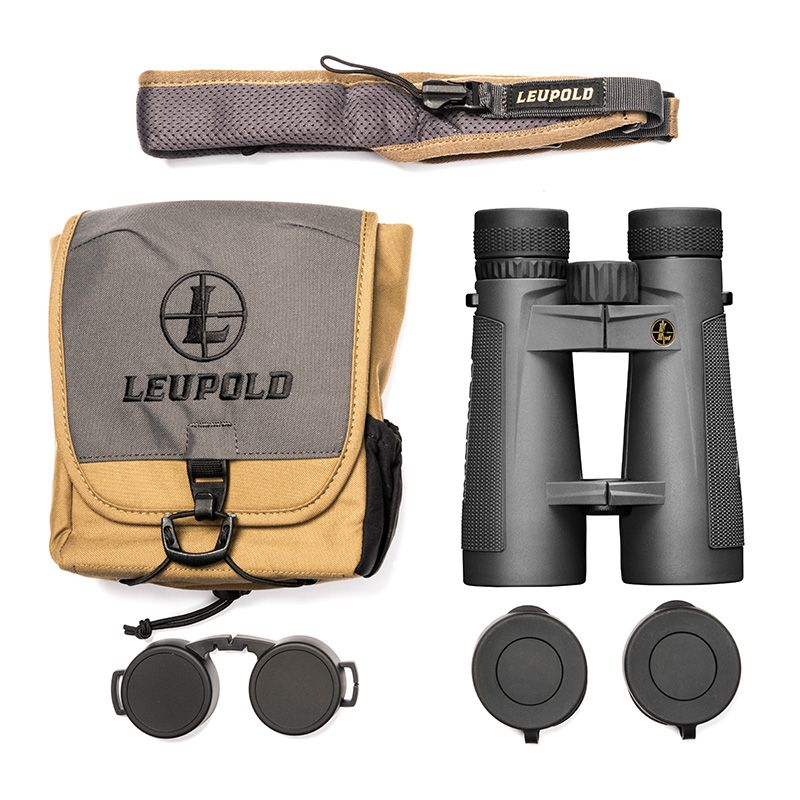

Included In The Box
- Leupold BX-5 Santiam HD 8x42mm Binoculars
- GO Afield shoulder strap
- Binocular case
- Lens covers
- Lens cloth
With peerless image quality and robust construction, the Leupold BX-5 Santiam HD 8x42mm Shadow Grey Binoculars are essential for any serious outdoorsman. Make these binoculars your go-to gear for an undistorted, vivid viewing experience in any terrain or weather.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
