Description

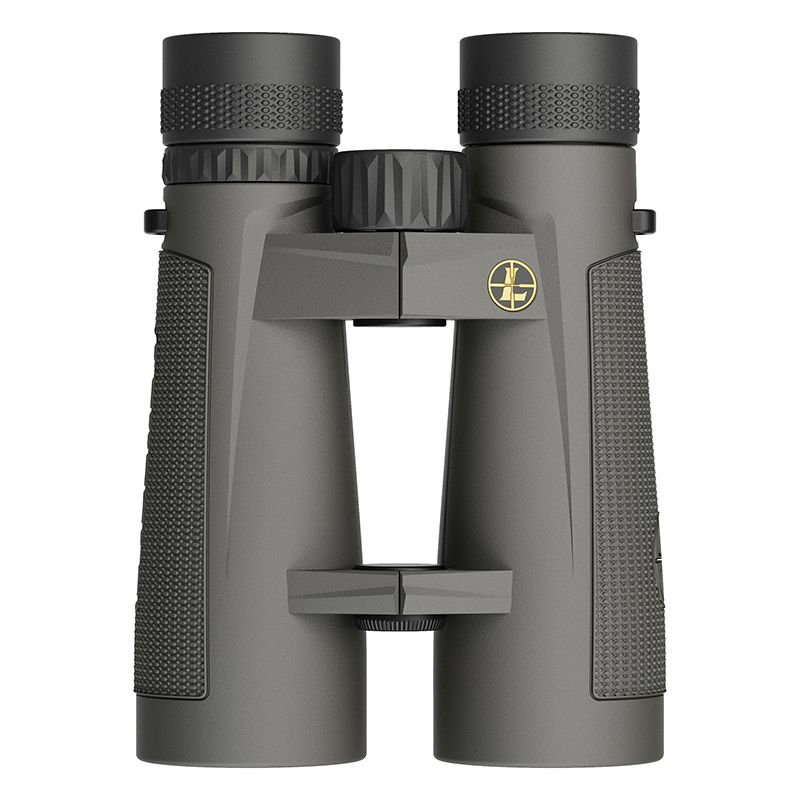

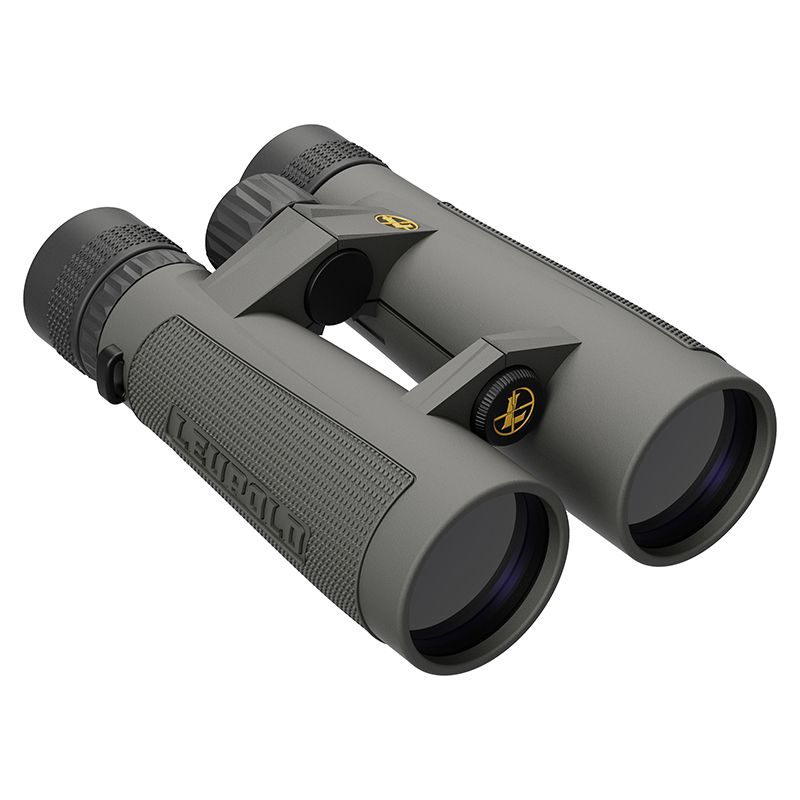

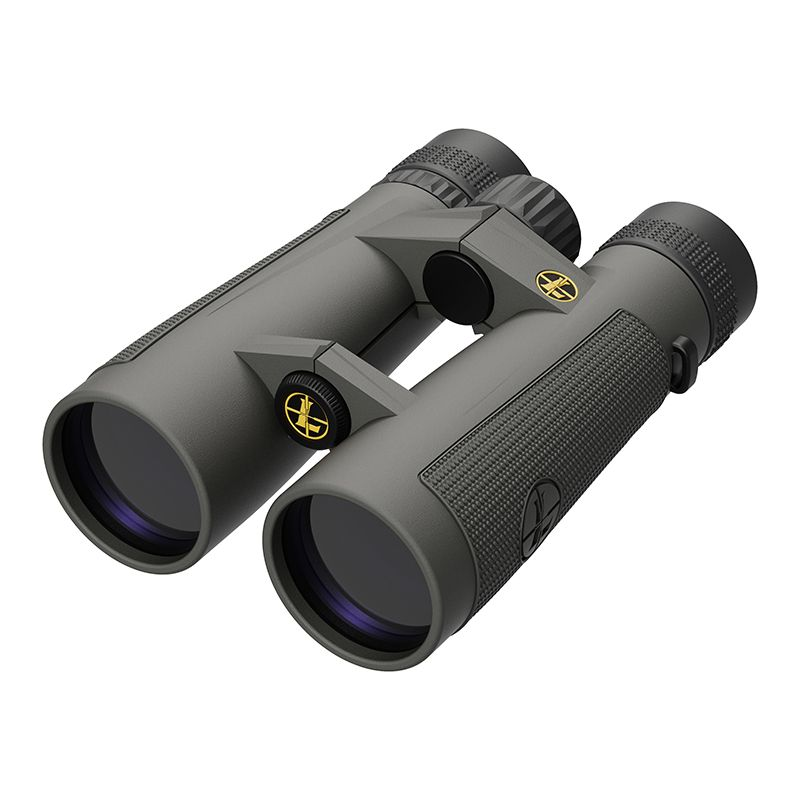

For the discerning outdoorsman seeking exceptional clarity and precision, the Leupold BX-5 Santiam HD 12x50mm Binoculars 175856 are the quintessential companion. They redefine optical performance and durability, crafted specifically for those moments when every detail counts. These binoculars boast Leupold's Professional-Grade Optical System, enhancing light transmission and providing the crisp, high-definition visuals that hunters and bird watchers demand. Whether in low-light conditions or the harsh outdoor environment, they stand up to the challenge, offering unparalleled sighting experiences every time.
The rugged yet lightweight construction of the BX-5 Santiam HD ensures their longevity in the field, while their ergonomic design ensures comfortable use for prolonged periods. Their Advanced HD Lens System pairs extra-low dispersion glass with element-coated optical lenses to supply an exceptionally sharp image, regardless of weather or lighting. The Guard-ion lens coating repels water and dirt, maintaining clarity and reducing the need for constant cleaning.
Furthermore, these binoculars come equipped with features that make them formidable tools for any serious shooter or outdoors person. The waterproof and fogproof capabilities guarantee reliability in all climates, while the twist-up eyecups and ample eye relief make them comfortable for all users, even eyeglass wearers. With the BX-5 Santiam HD, Leupold sets a new standard for excellence in high-powered, durable binoculars.
Features
- ADVANCED OPTICS: Leupold's BX-5 Santiam with Advanced HD Lens System for razor-sharp images in all conditions.
- LIGHT MANAGEMENT: Twilight Max HD Light Management System for dawn-to-dusk clarity.
- DURABLE BUILD: Waterproof and fogproof, withstanding harsh weather and environmental conditions.
- COMFORTABLE VIEWING: Ergonomic design featuring twist-up eyecups and generous eye relief.
- EASY FOCUS: Smooth focusing mechanism for quick and precise adjustment.
- COATING EXCELLENCE: Guard-Ion lens coating repels water, dirt, and smudges for uninterrupted viewing.
- HIGH-DEFINITION: BAK 4 Prisms and fully multi-coated lens system offer superior resolution.
- USER-FRIENDLY DESIGN: Open Bridge Roof Prism Design lightens the load for ease of handling.
Specifications
| Specifications | Details |
|---|---|
| Weight | 32.1 oz. |
| Dimensions | 6.8" |
| Eye Relief | 16.6mm |
| Field of View | 272ft @ 1000yd |
| Angular Field of View | 5.2° |
| Exit Pupil | 5.2mm |
| Twilight Factor | 25 |
| Close Focus Range | 11.4ft |
| Interpupillary Distance | 58mm - 74mm |
| Objective Diameter | 50mm |
| Product Type | Binoculars |
| Item Condition | New |
| UPC | 030317020514 |
| MPN | 175856 |

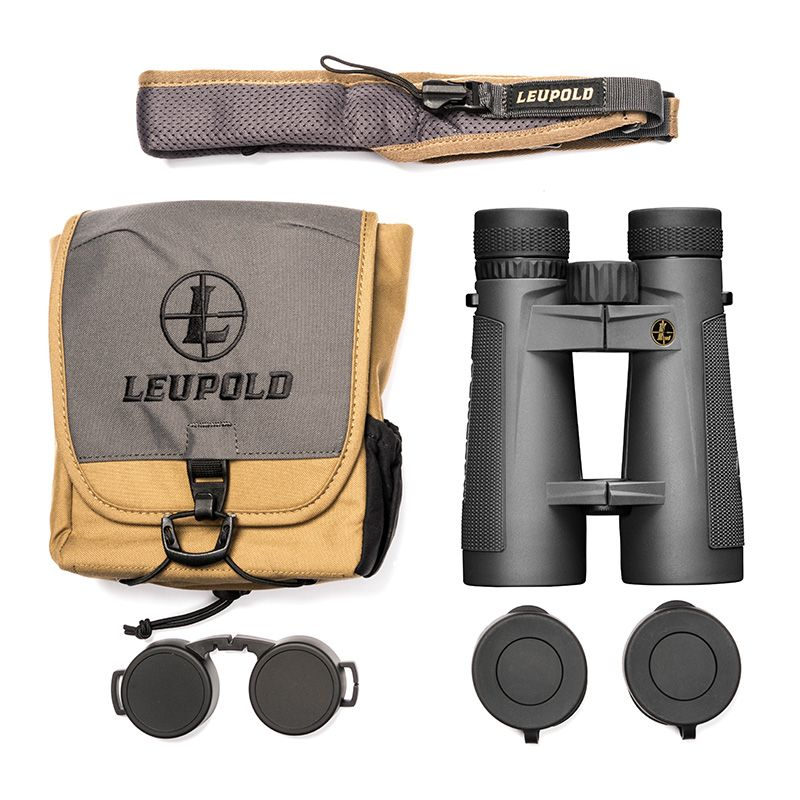

Included In The Box
- Leupold BX-5 Santiam HD 12x50mm Binoculars
- Protective Lens Covers
- Neck Strap
- Carrying Case
- Lens Cloth
- Instruction Manual
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
