Description

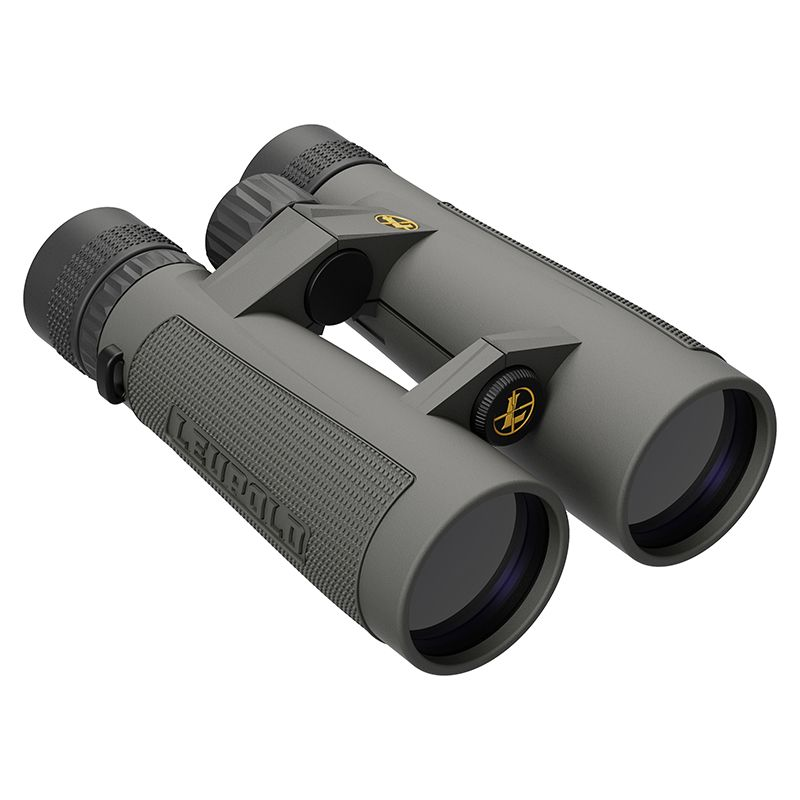

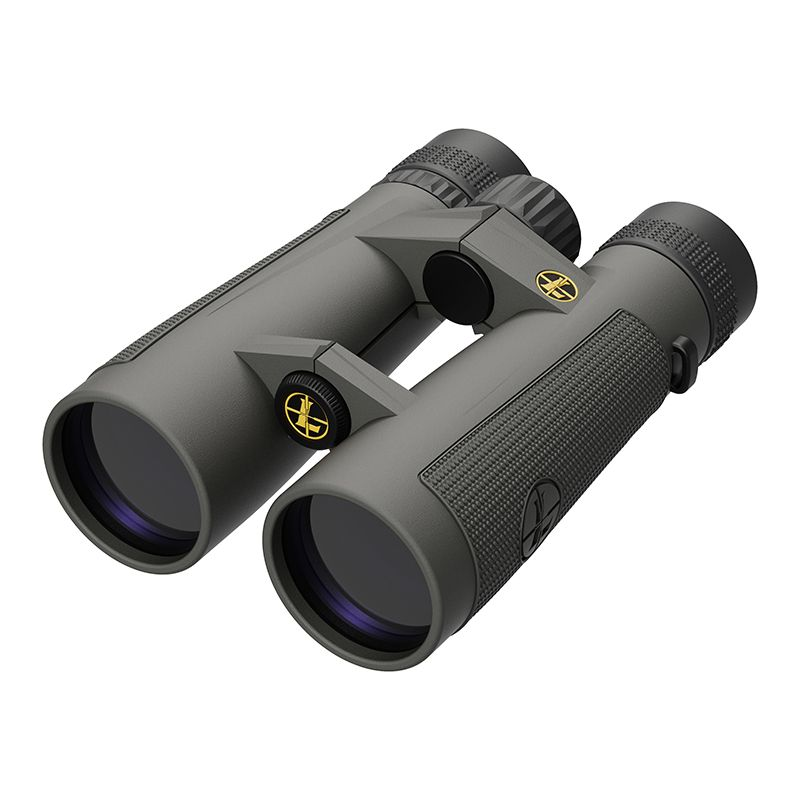

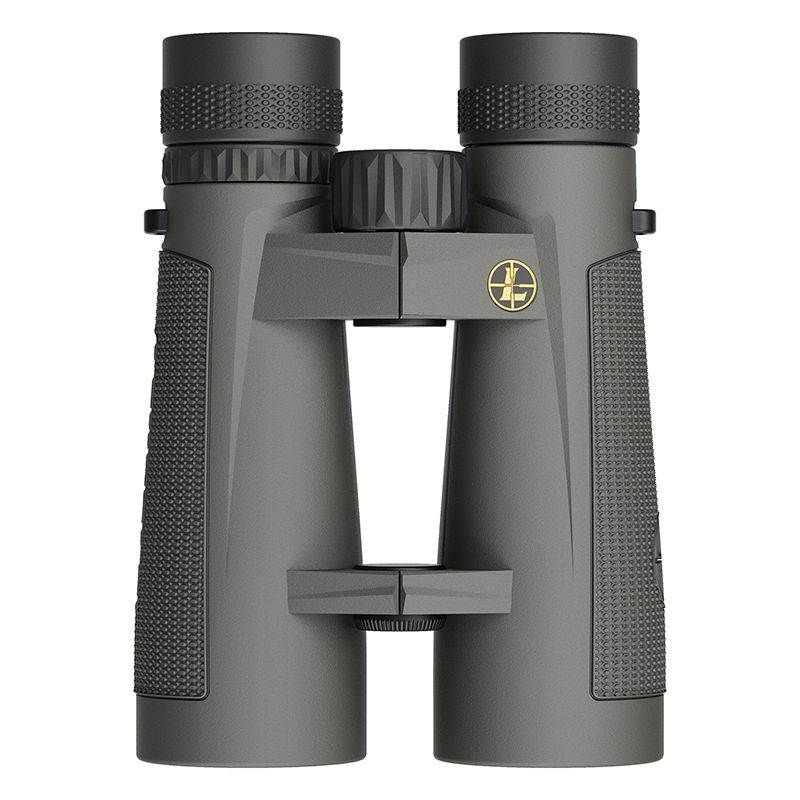

Discover the Leupold BX-5 Santiam HD 10x50mm Binocular 175854, a top-tier optical companion for rifle scope enthusiasts and hunters alike, offering unmatched clarity and precision. This model embodies the pinnacle of Leupold's Professional-Grade Optical System. It ensures crisp, high-definition visuals across all lighting conditions. Its enduring design deftly balances lightweight construction with unparalleled toughness, ready to face the wild's unpredictable nature.
Every aspect of the BX-5 Santiam HD binoculars is engineered with the field in mind. Equipped with the Twilight Max HD Light Management System, it redefines the edges of dawn and dusk, giving you up to 30 extra minutes of glassing light. The Guard-Ion lens coating rejects water and dirt, making these binoculars a clear choice in the harshest conditions. The ergonomic design promises comfort and ease during prolonged use, while the fully multi-coated lens system delivers exceptionally bright, sharp, and color-accurate images.
The reliability and functionality of the Leupold BX-5 Santiam HD 10x50mm are unparalleled. Built to withstand the elements, they feature waterproof and fog-proof technology, ensuring performance in all weather scenarios. With an open bridge roof prism design, they provide stability and ease of handling, crucial when tracking moving targets at a distance. Experience the world as never before, with the clarity and performance that serious outdoor enthusiasts demand.
Features:
- ADVANCED HD LENS SYSTEM: Experience High-Definition clarity and superior color fidelity with Leupold's professional-grade optics.
- TWILIGHT MAX HD: Extend your hunting hours with an additional 30 minutes of premium light, thanks to the Twilight Max HD Light Management System.
- WATERPROOF & FOGPROOF: Confidently venture into any climate with the reliably sealed and nitrogen-purged construction.
- ERGONOMIC DESIGN: Engage in prolonged observation with a comfortable and user-friendly ergonomic build.
- FULLY MULTI-COATED LENSES: Enjoy brighter, clearer images under any lighting condition with the fully multi-coated lens system.
- GUARD-ION LENS COATING: Keep your view pristine as the Guard-Ion lens coating repels water, dirt, and fingerprints.
- DIAMONDCOAT 2 PROTECTION: Safeguard your investment—the exterior lens surfaces are treated with DiamondCoat 2 for superior abrasion resistance.
- BAK 4 PRISMS AND OPEN BRIDGE: Delight in a wide field of view and easy handling, thanks to the premium BAK 4 prisms and an open bridge roof prism design.
Specifications:
| Feature | Specification |
|---|---|
| Item Condition | New |
| Binocular Weight | 31.5 oz |
| Magnification | 10x |
| Objective Lens Diameter | 50mm |
| Eye Relief | 19.3 mm |
| Exit Pupil | 5 mm |
| Field of View | 304 feet @ 1000 yards |
| Dimensions | Length 6.8 inches |
| Angular Field of View | 5.8 Degrees |
| Finish | Shadow Gray |
| Close Focus Range | 11.4 ft |
| Interpupillary Distance | 58 - 74mm |
| UPC | 030317020507 |
| MPN | 175854 |
| Product Type | Binoculars |

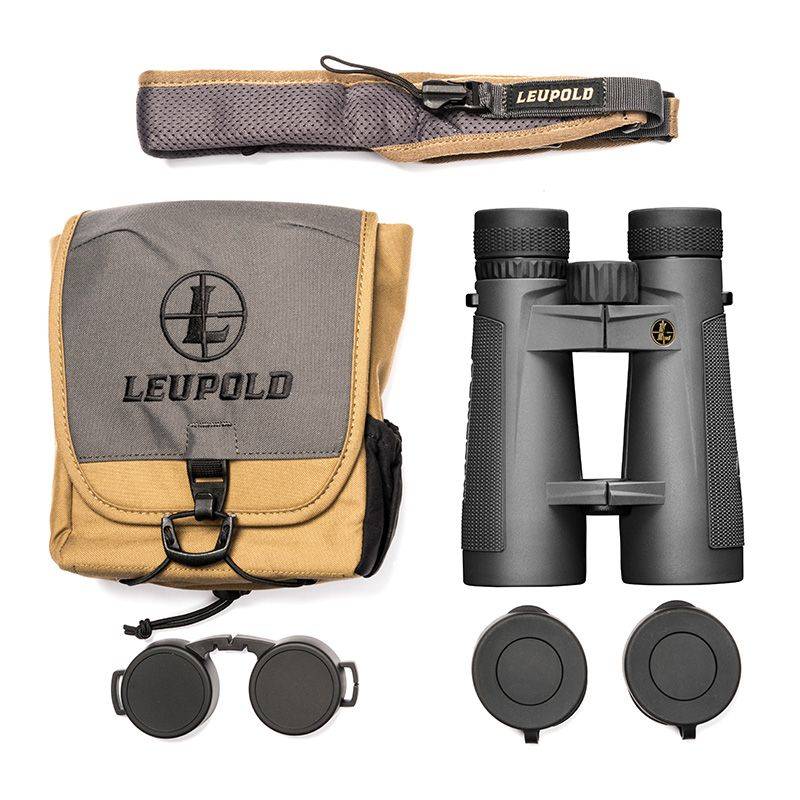

Included In The Box:
- Leupold BX-5 Santiam HD 10x50mm Binoculars 175854
- GO Afield shoulder strap
- Binocular case
- Lens covers
- Lens cloth
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
