Description

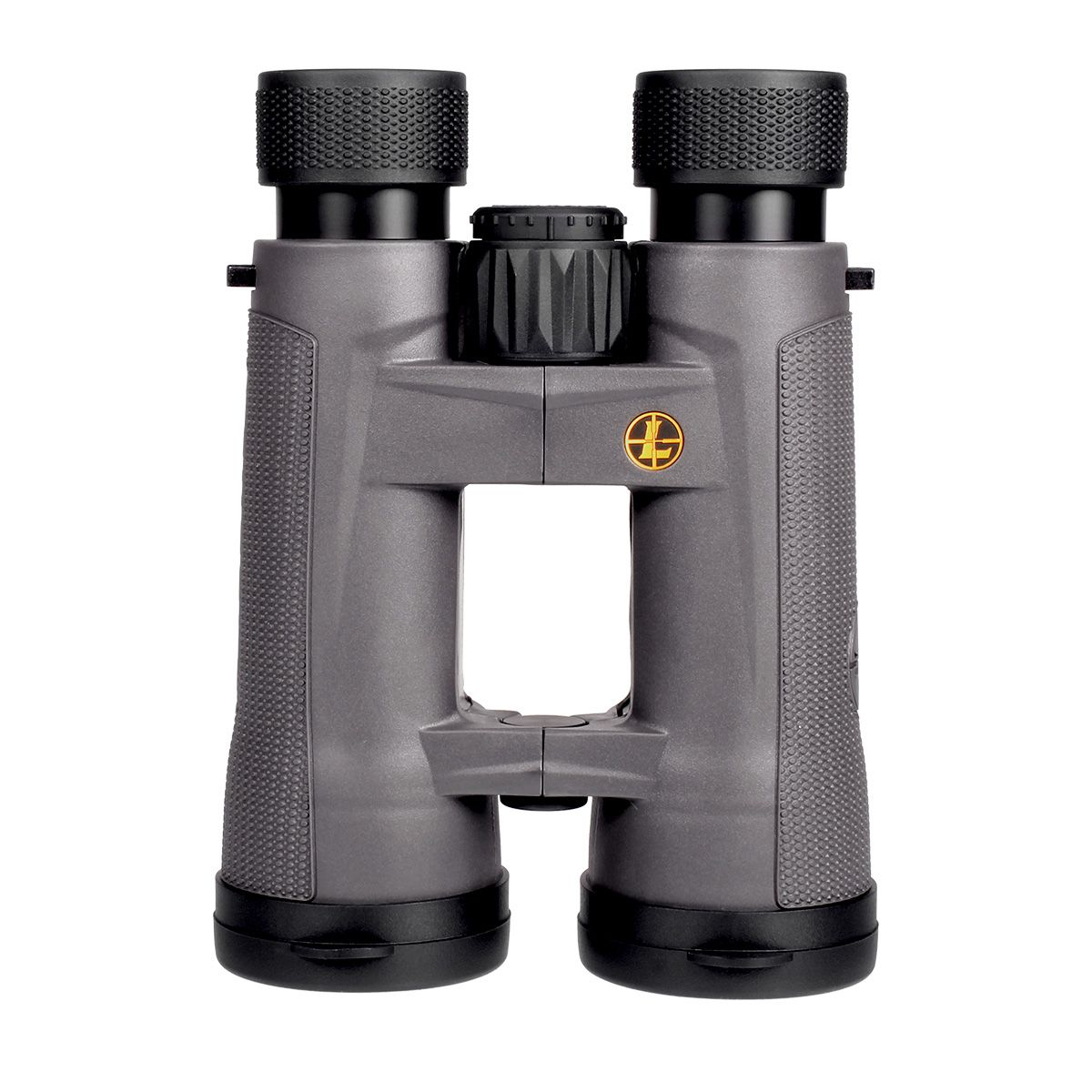

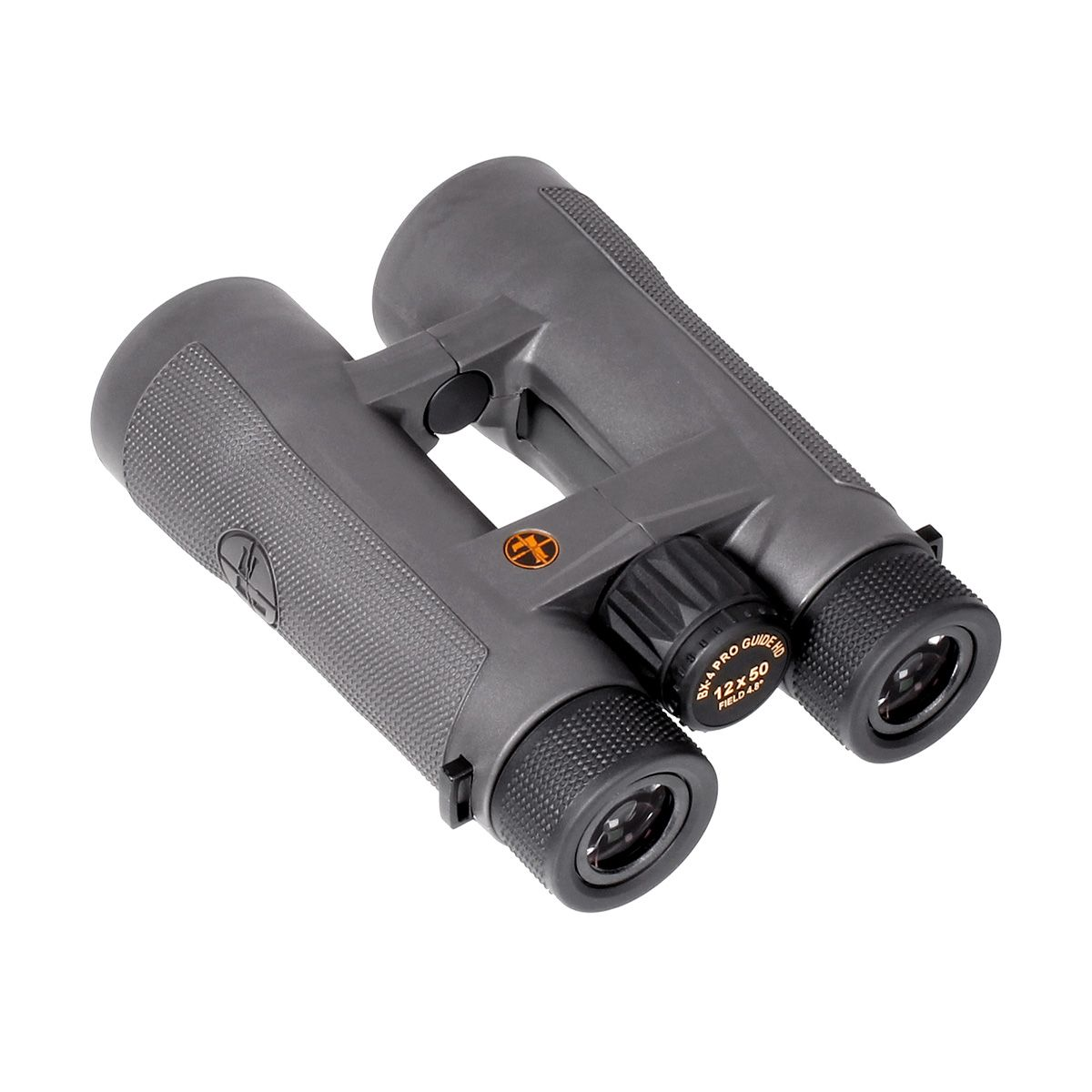

Experience the wilderness like never before with the Leupold BX-4 Pro Guide HD 12x50mm Binoculars 172675. Designed for discerning outdoorsmen and rifle scope enthusiasts, these high-definition binoculars offer pristine clarity and advanced light-gathering capabilities.
The Twilight Max Light Management System ensures optimal vision, even in the low light conditions of dawn and dusk, making these binoculars your perfect companion for hunting or nature observation. With a robust and ergonomic open bridge design, coupled with a lightweight, durable aluminum body, the BX-4 Pro Guide HD binoculars promise comfort and ease of use during extended periods of observation.
Leupold's BX-4 Pro Guide HD is engineered for top-tier performance, featuring BAK 4 Prisms and a Fully Multi-Coated Lens System. These technologies work together to create a vivid and undistorted view across the entire visual field. The binoculars' phase-coated roof prisms enhance resolution, providing a sharp and detailed image. Moreover, waterproof construction and a grippy texture mean they are ready for any weather, ensuring reliability in the most demanding environments. Backed by Leupold's Full Lifetime Guarantee, these binoculars are built to last.
Features
- SUPERIOR OPTICS: BAK 4 Prisms deliver a perfectly round exit pupil with minimal edge distortion for a clear, sharp image.
- TWILIGHT MAX: Optimal brightness and resolution thanks to the Twilight Max Light Management System for early morning or late evening use.
- ROBUST BUILD: Encased in lightweight, aircraft aluminum for long-lasting durability in any condition.
- HIGH DEFINITION: Calcium-flouride lenses offer high-definition visuals at all magnification levels.
- ENHANCED RESOLUTION: Phase-coated prisms significantly increase resolution, providing edge-to-edge picture clarity.
- COMFORT AND GRIP: Ergonomically designed with a non-slip texture, perfect for steady viewing with or without gloves.
- WEATHERPROOF: Completely waterproof construction with a sturdy armored design to withstand the elements.
- LIFETIME GUARANTEE: Confidence in your purchase with Leupold's Full Lifetime Guarantee.
Specifications
| Feature | Specification |
|---|---|
| Binocular Weight | 28.5 oz. |
| Binocular Magnification | 12x |
| Objective Lens Diameter | 50mm |
| Binocular Eye Relief | 0.62 inches |
| Exit Pupil | 3.9 mm |
| Field of View | 251 ft @ 1000 yards |
| Dimensions | Length 6.6 inches |
| Angular Field of View | 4.8 Degrees |
| Finish | Shadow Gray |
| Close Focus Range | 10 ft |
| Interpupillary Distance | 58 - 74 mm |
| UPC | 030317015343 |
| MPN | 172675 |
Included In The Box
- Leupold BX-4 Pro Guide HD 12x50mm Binoculars 172675

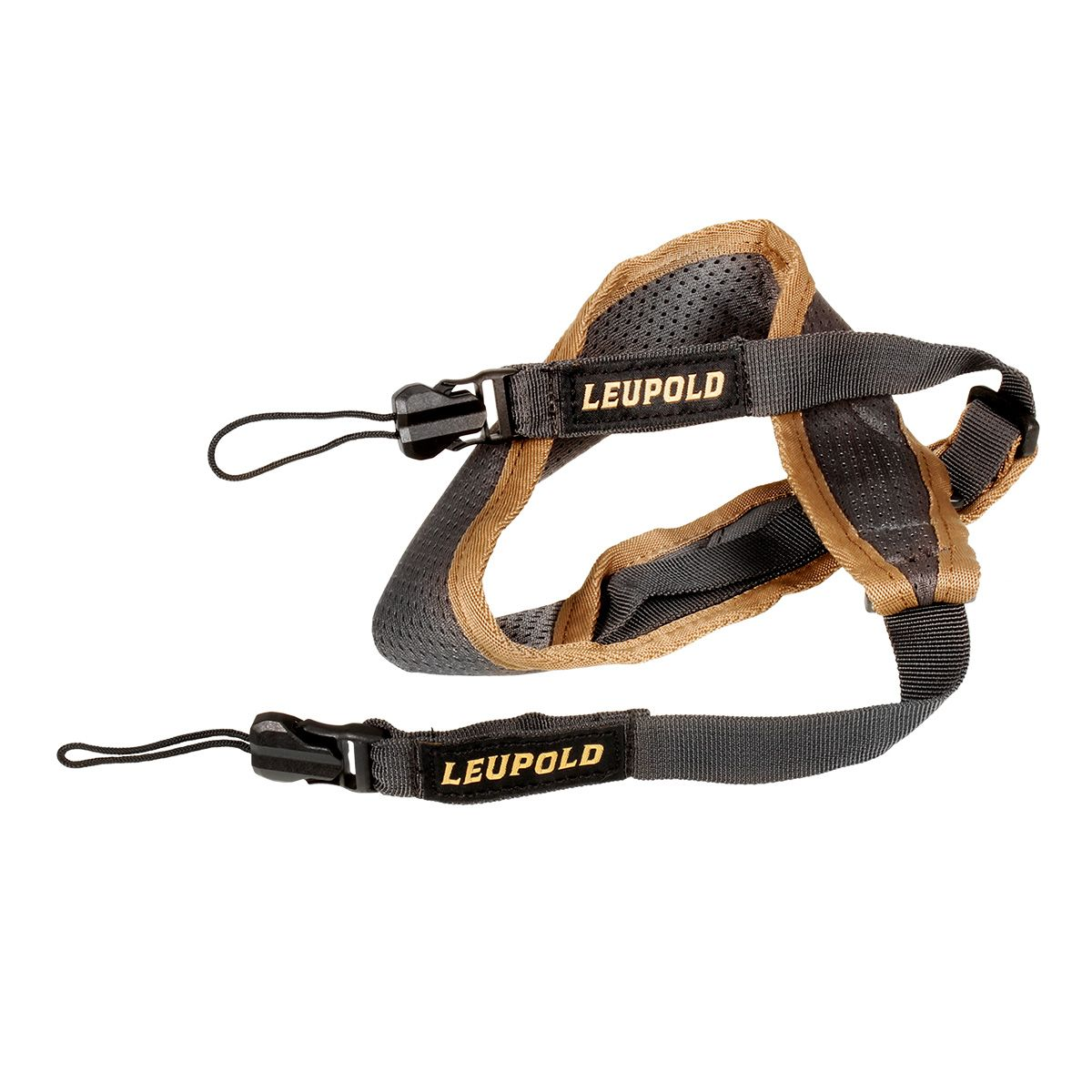

- Shoulder strap

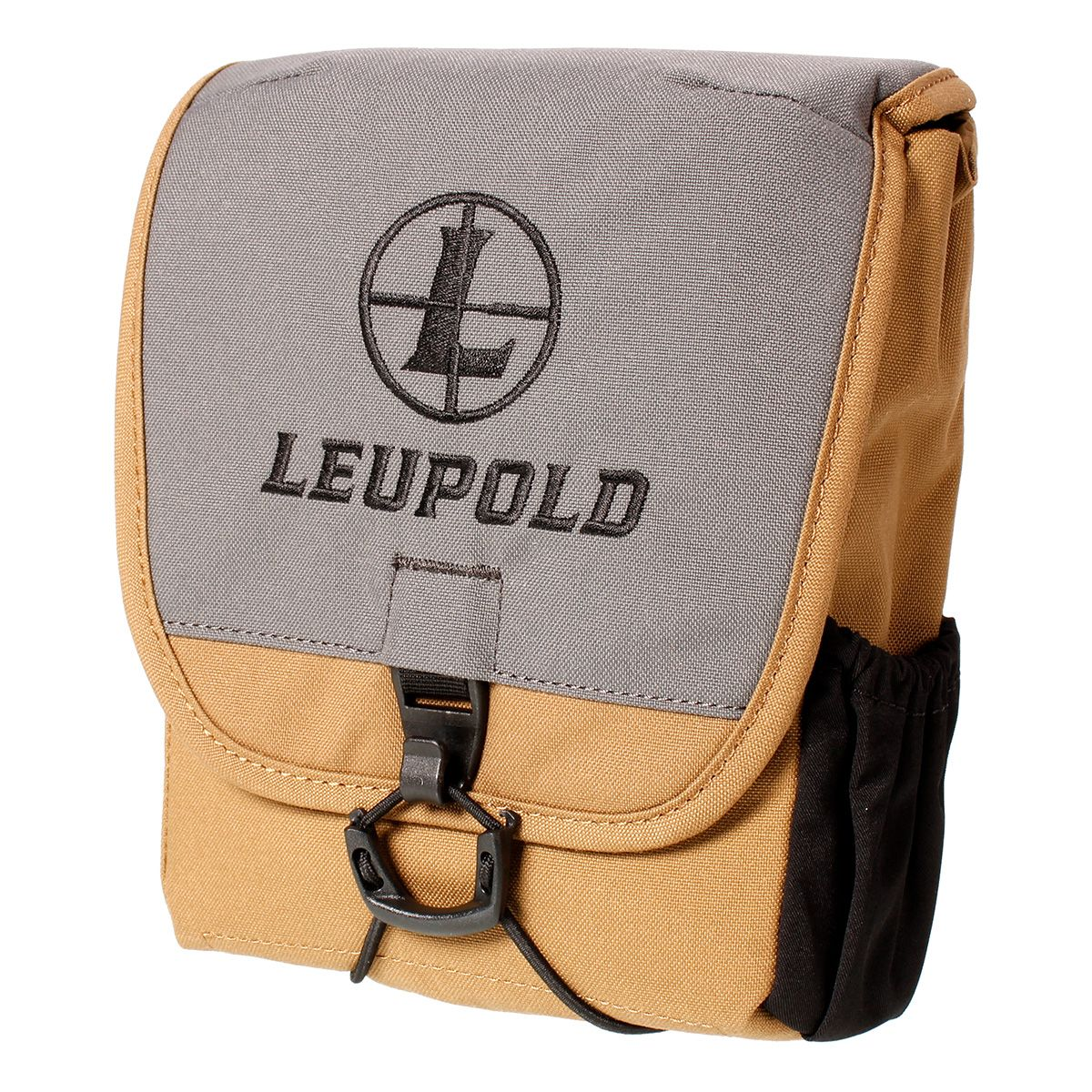

- Binocular case
- Lens covers
- Lens cloth
With the Leupold BX-4 Pro Guide HD 12x50mm Binoculars, you are equipped for any adventure where clarity and detail matter. Whether you're tracking wildlife or scouting terrain, these binoculars bring excellence to your outdoor journeys. They are an essential tool for any rifle scope shopper looking for exceptional optical performance in the field.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
