Description

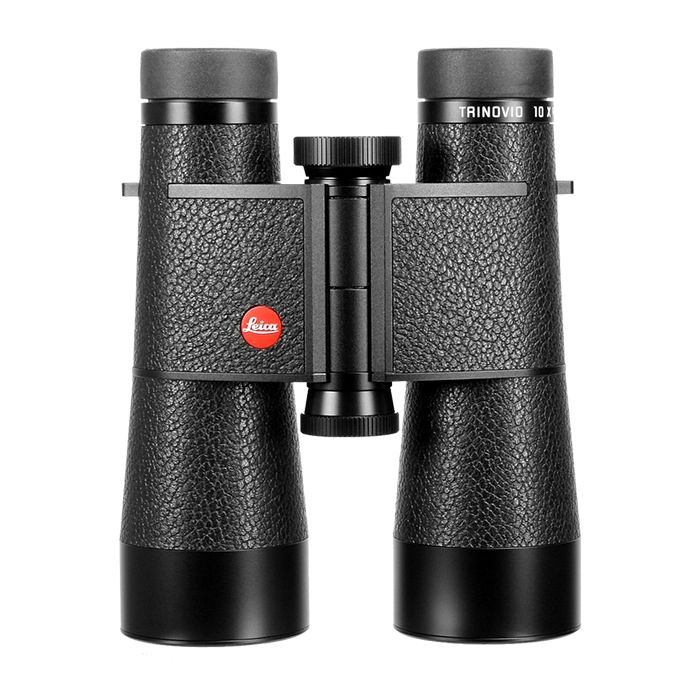

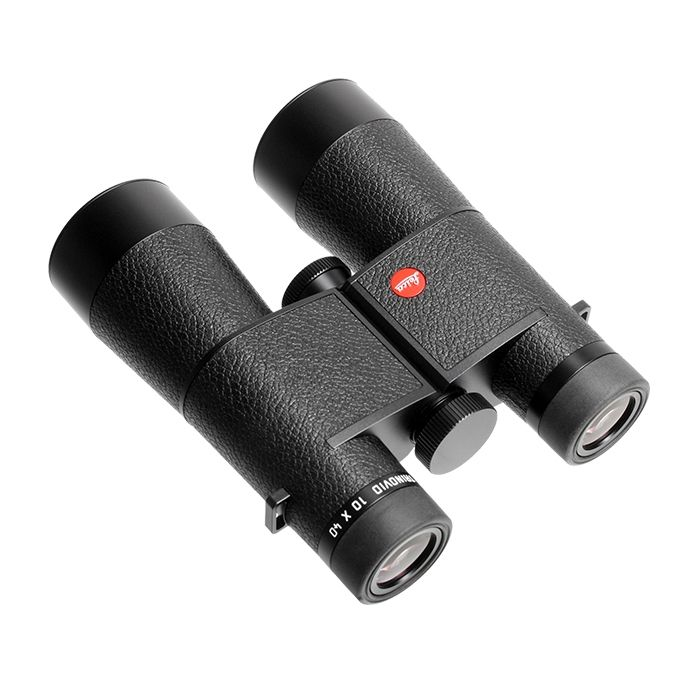

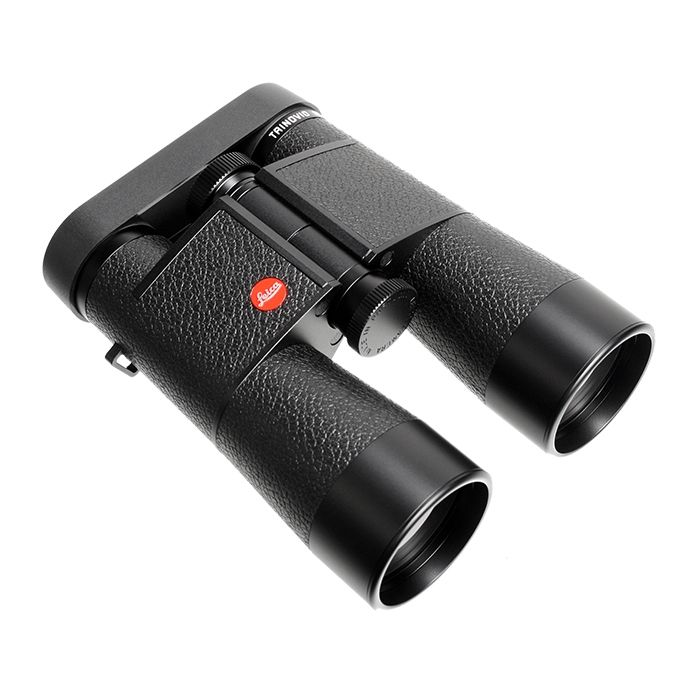

Discover the pinnacle of optical performance with the Leica Trinovid 10x40mm Leathered Black Binocular, model 40720—a must-have for the discerning rifle scope shopper. This finely crafted binocular exemplifies the tradition of excellence that is synonymous with the Leica brand. The Trinovid, with its sleek and elegant leathered design, is both lightweight and robust, ensuring both style and durability in the field.
Experience unparalleled vision clarity with the Trinovid's advanced Uppendahl Prism system, which offers an expansive field of view and edge-to-edge sharpness. Ideal for hunters, bird-watchers, and outdoor enthusiasts, this model boasts an enhanced optical experience. This is thanks to the use of new glass materials and coatings that optimize light transmission, eliminate color fringing, and produce rich, vivid, and neutral colors.
Whether surveying wide landscapes or focusing on distant targets, the Leica Trinovid's high-contrast and sharp imagery stands out. Paired with its aluminum housing, the unit promises protection and longevity so that you can rely on its precision performance for many adventures to come. The Leica Trinovid is the perfect companion for those who require the utmost in optical superiority and ergonomic comfort in a binocular.
Features
- EXCEPTIONAL OPTICS: HDC Fully Multi-Coated lenses offer enhanced sharpness, light transmission, and color fidelity.
- ENVIRONMENT RESISTANT: Nitrogen-Filled, Water and Fogproof construction ensures performance in harsh conditions.
- USER-FRIENDLY DESIGN: Closed Bridge Configuration provides stability and ease of use.
- VIEWING COMFORT: Twist-Up Click-Stop Eyecups cater to individual eye-relief preferences efficiently.
- LENS PROTECTION: AquaDura Outer Lens Coatings repel water and dirt, increasing durability.
- PRECISE FOCUSING: Knurled Center Focusing Wheel allows for smooth and accurate adjustments.
- EXTENSIVE WARRANTY: Leica's 10-Year Passport Protection Plan & 30 Year Manufacturer’s Warranty for peace of mind.
- TRUSTED DURABILITY: The robust aluminum housing protects the optics and ensures longevity.
Specifications
| Feature | Specification |
|---|---|
| Item Condition | New |
| Binocular Weight | 22.58 oz |
| Binocular Magnification | 10x |
| Objective Lens Diameter | 40mm |
| Binocular Eye Relief | 0.59 inches |
| Exit Pupil | 5mm |
| Field of View | 330 ft @ 1000 yards |
| Dimensions | 4.41 x 5.6 x 2.09 inches |
| Angular Field of View | 6.0° |
| Twilight Factor | 20 |
| Color | Black |
| Close Focus Range | 13.1 ft |
| Interpupillary Distance | 55-75mm |
| UPC | 4022243407206 |
| MPN | 40720 |
| Product Type | Shop All Binoculars |
Included In The Box
- Leica Trinovid 10x40mm Leathered Black Binocular (40720)

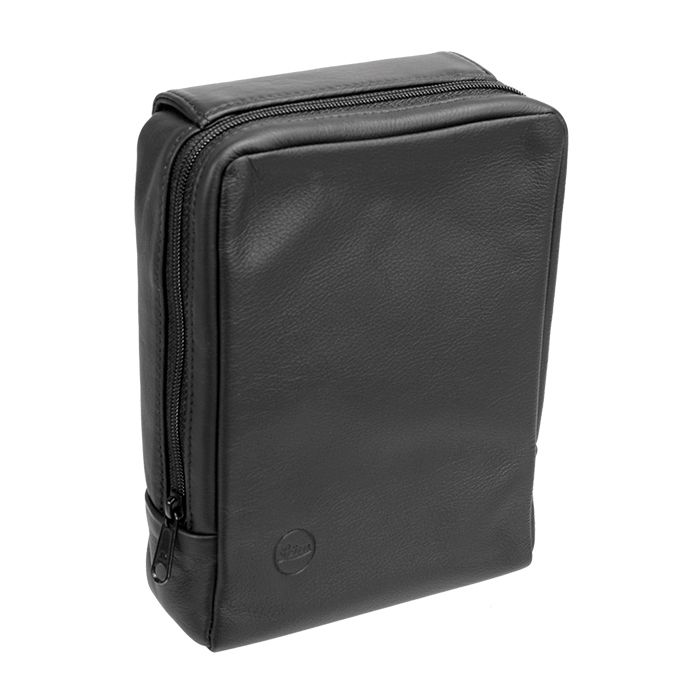

- Protective Carrying Case

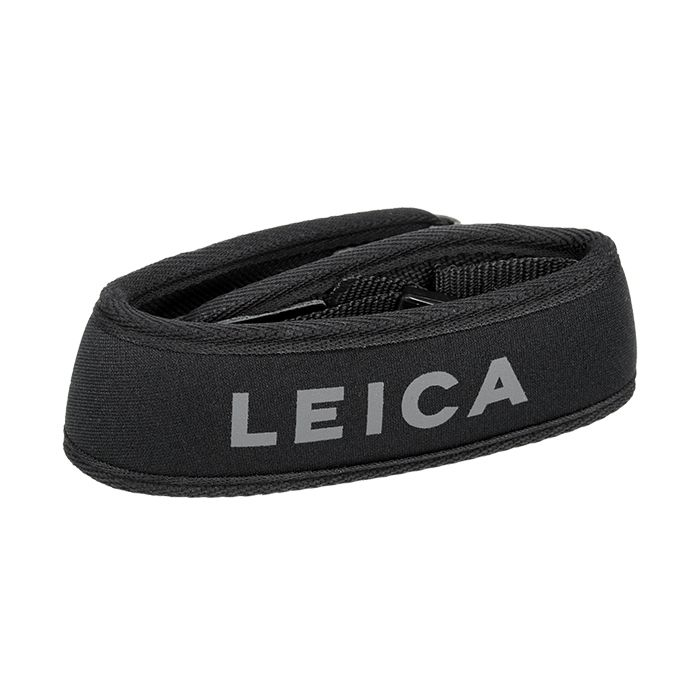

- Neck Strap
- Objective Lens Covers
- Eyepiece Covers
- Leica Lens Cleaning Cloth
- Warranty Cards for 10-Year Passport Protection and 30-Year Manufacturer's Warranty
- Instruction Manual
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
