Description

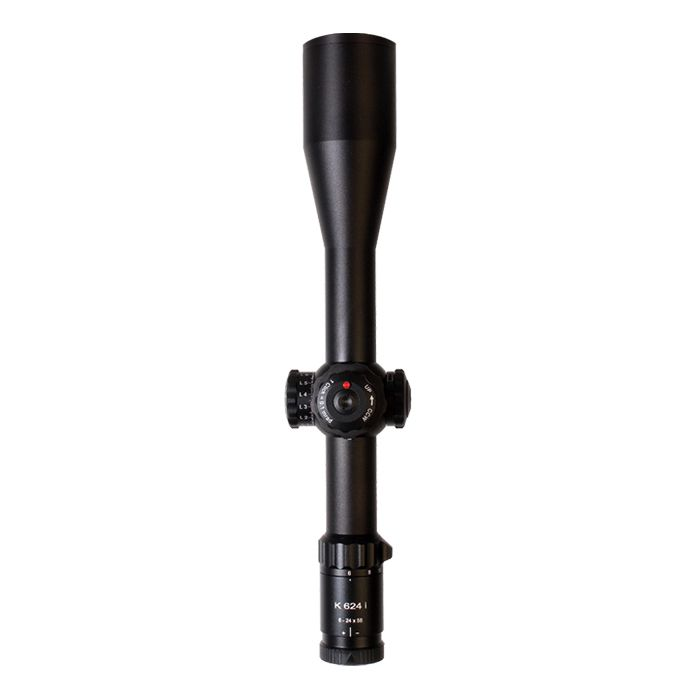

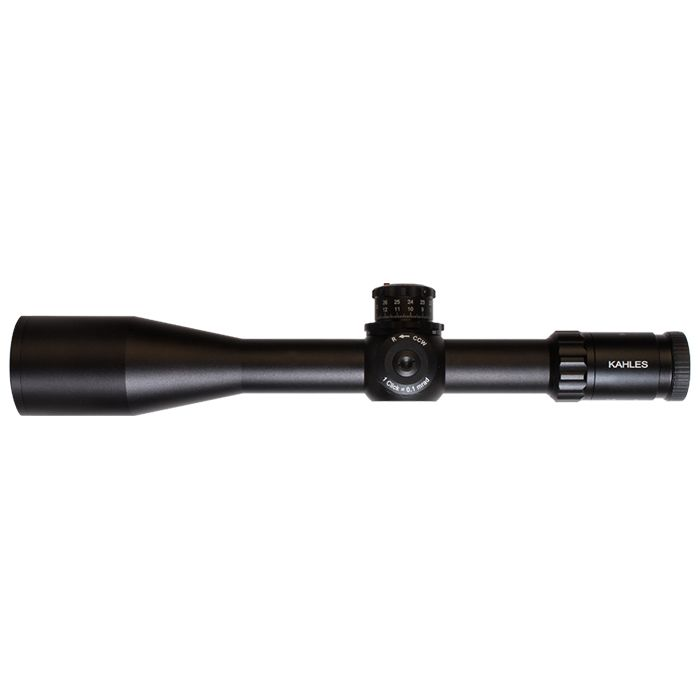

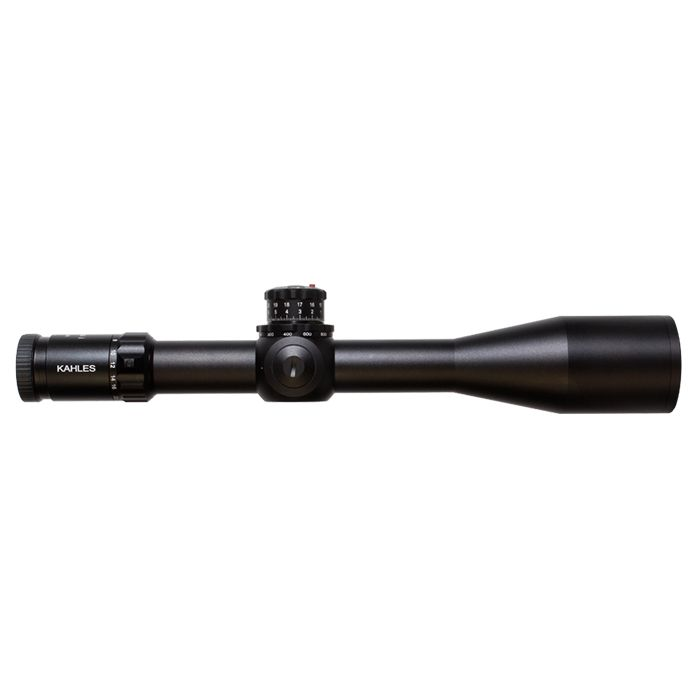

Discover unmatched precision with the Kahles K624i 6-24x56mm LSW CCW Riflescope 10682—a pinnacle of optical engineering designed for the discerning marksman. Embodying over 100 years of craftsmanship, this high-performance riflescope is tailored for long-distance accuracy, offering a remarkable zoom range of 6x to 24x magnification. The K624i's superior light transmission of 95% ensures a clear view of your target, while the high-contrast optics facilitate critical shot placement even in challenging light conditions.
Constructed with the finest materials, the robust Kahles K624i withstands the rigors of rough terrain and extreme use. Its wear-resistant design guarantees lifetime reliability and zero deviation. Furthermore, the riflescope's ergonomic features cater to all shooters—thanks to its ambidextrous parallax adjustment, both right and left-handed users will enjoy unparalleled ease of use.
The K624i's first focal plane illuminated reticle ensures precise distance and size measurements, while the innovative parallax adjustment, seamlessly integrated into the elevation turret, allows for adjustments from 50m to infinity. With this level of precision and adaptability, the Kahles K624i 6-24x56mm sets new standards in rifle scope technology, making it an essential upgrade for those seeking to enhance their shooting accuracy and performance.
Features
- PRECISE MAGNIFICATION: Zoom range of 6x-24x for versatile targeting and precision shooting.
- OPTIMAL LIGHT TRANSMISSION: Exceptional 95% clarity for increased visibility in low light conditions.
- DURABLE CONSTRUCTION: High-quality materials ensure wear resistance and long-term durability.
- AMBIDEXTROUS DESIGN: Parallax adjustment caters to both left and right-handed shooters.

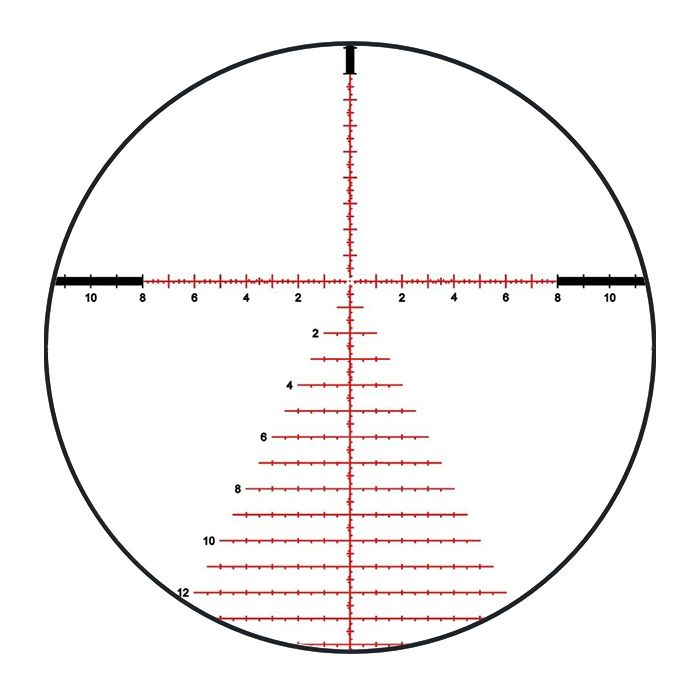

- FIRST FOCAL PLANE: Illuminated reticle allows safe distance and size measurements.
- INTEGRATED PARALLAX CONTROL: Elevation turret parallax adjustment from 50m to infinity.
- WEATHERPROOF INTEGRITY: Waterproof and fog proof for reliability in all conditions.
- TACTICAL MIL TURRETS: Precise .1 MRAD click adjustments for on-the-fly accuracy tuning.
Specifications
| Specification | Detail |
|---|---|
| Magnification | Zoom: 6X to 24X |
| Objective Lens Diameter | 56mm |
| Exit Pupil | 9.4 mm to 2.3 mm |
| Eye Relief | 3.54 in |
| Field of View @ 100 Yards | 20.4 ft @ 6X; 5.1 ft @ 24X |
| Tube Diameter | 34mm |
| Turret Type | Tactical MIL |
| Turret Click Value | .1 MRAD |
| Illuminated Reticle | Yes |
| Reticle Focal Plane | 1st Focal Plane |
| Weather Resistance | Waterproof & Fogproof |
| Weight | 33.5 oz |
| Length | 15.9 in |
| Max Elevation Adjustment | 25.5 Mil |
| Max Windage Adjustment | 11.25 Mil |
Included In The Box
- Kahles K624i 6-24x56mm LSW CCW Riflescope 10682
- Lens Cleaning Cloth
- Protective Lens Caps
- Battery for Illuminated Reticle
- User Manual
- Warranty Information Card
Whether you are on the hunt or hitting the long-range targets, the Kahles K624i 6-24x56mm LSW CCW Riflescope 10682 is your ally in achieving unparalleled precision and reliability. Add it to your gear today and experience the difference.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
